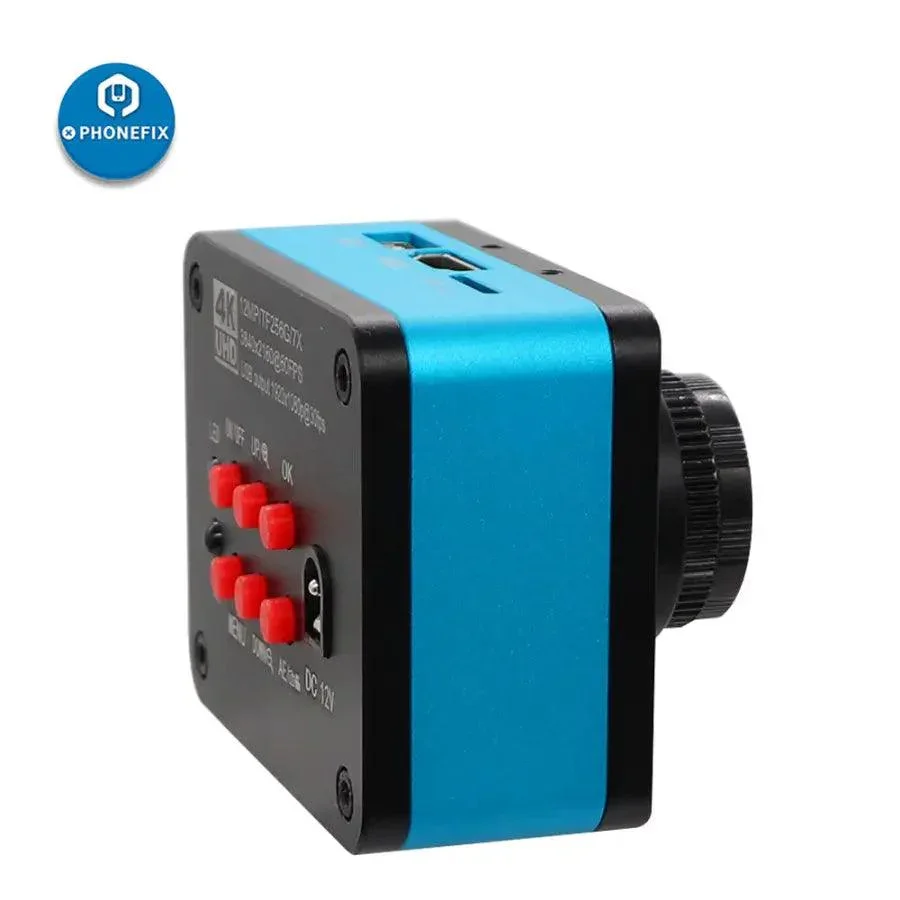

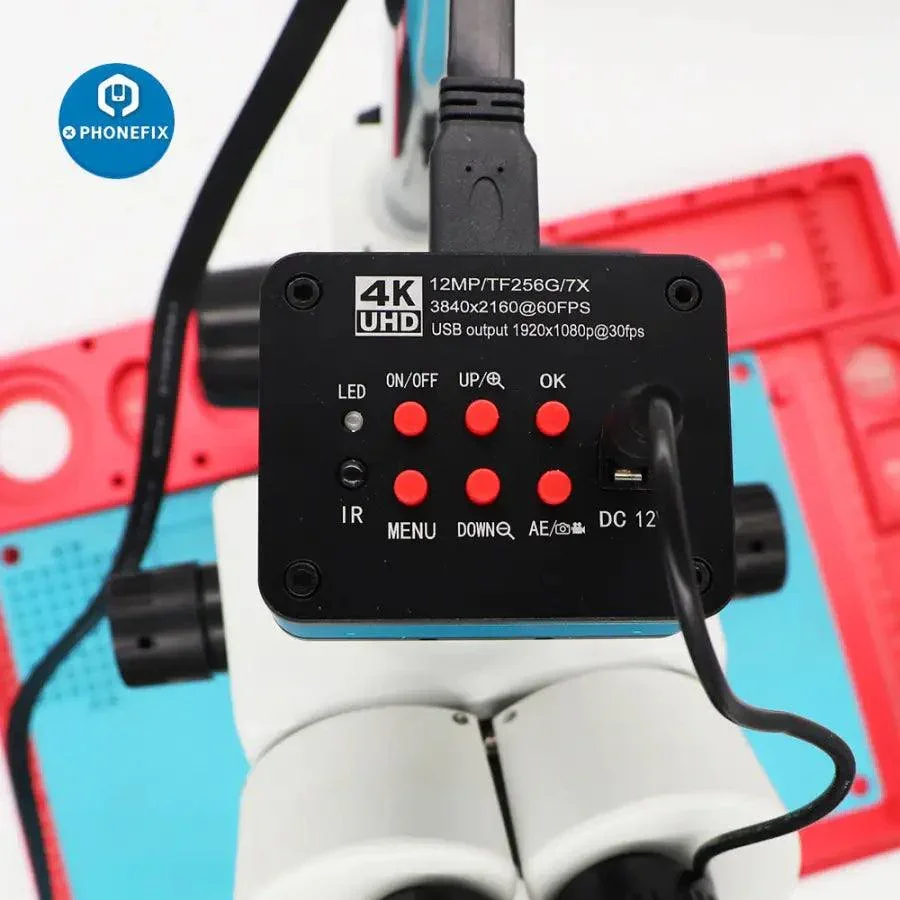

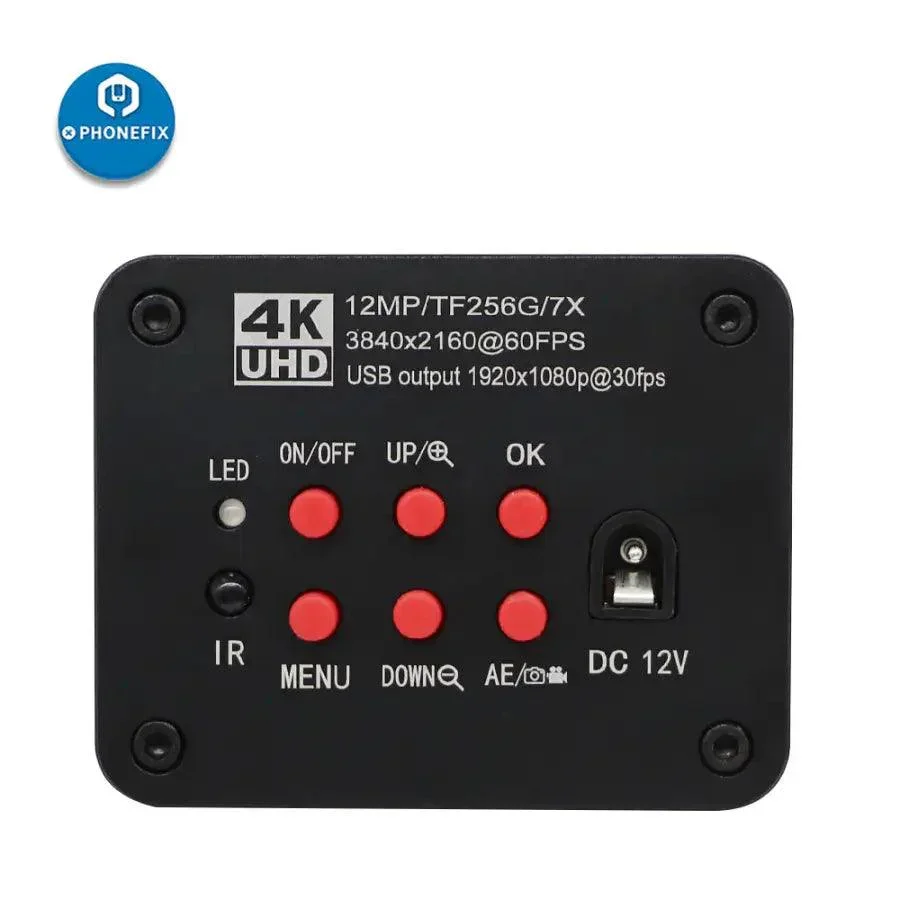

Sony ultra 12MP UHD 4K Microscope Camera industrial digital camera

Sony ultra HD 4K 12MP 1080P industrial digital microscope camera for mobile phone motherboard soldering repair tool, 720P 1080P 4K mode microscope camera, the resolution is 3840 x 2160 pixels, can choose, Adopt standard HDMI interface, It can be used as education, scientific research, laboratory, demonstration, maintenance and inspection, Use HDMI splitter to project to a large FHD TV for the best display.

SONY 12MP 1080P 4K CMOS UHD Digital Electronic Industrial C-mount Video Microscope Camera For Mobile Phone Teaching Repair

Product Parameter :

• Effective Pixels: SONY 12MP CMOS 1/2.33 IMX 4K SENSOR
• Resolution: 4K/2K/1080P 1080P (USB)
• Sensor Size: 1/2.33inch
• Pixel Size: 1.55 × 1.55μm
• Image Resolution: 4032 × 3024 (12MP) (16:9)
• Frame rate: 60@FPS (4K)
• Image Format: JPEG
• Wave Length [nm]: 400nm~700nm
• Frame Fate: 3840×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS

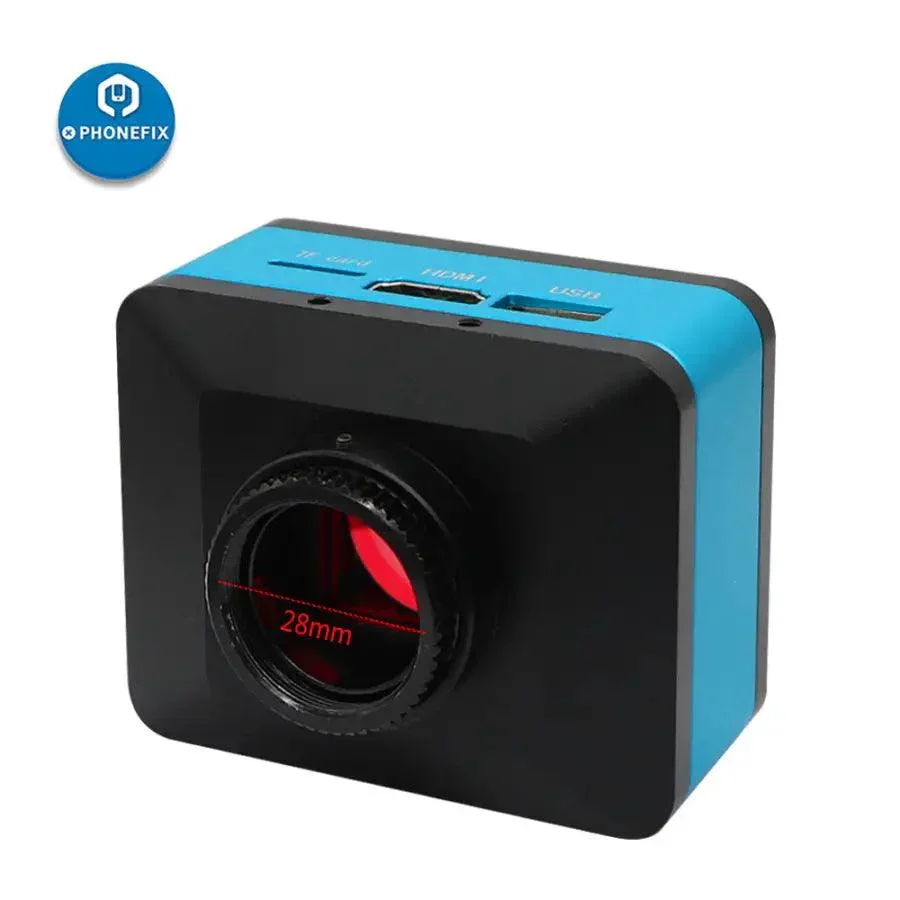

• Lens Type: C / CS
• Timing Photo/Record: Support Timing Photo/Record
• Storage: TF Card, Max 256G
• PC Support: Windows XP/7/8/10, PC Software with Measuring Function
• Image Measurement: Support HAYEAR Measurement
• Language: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP

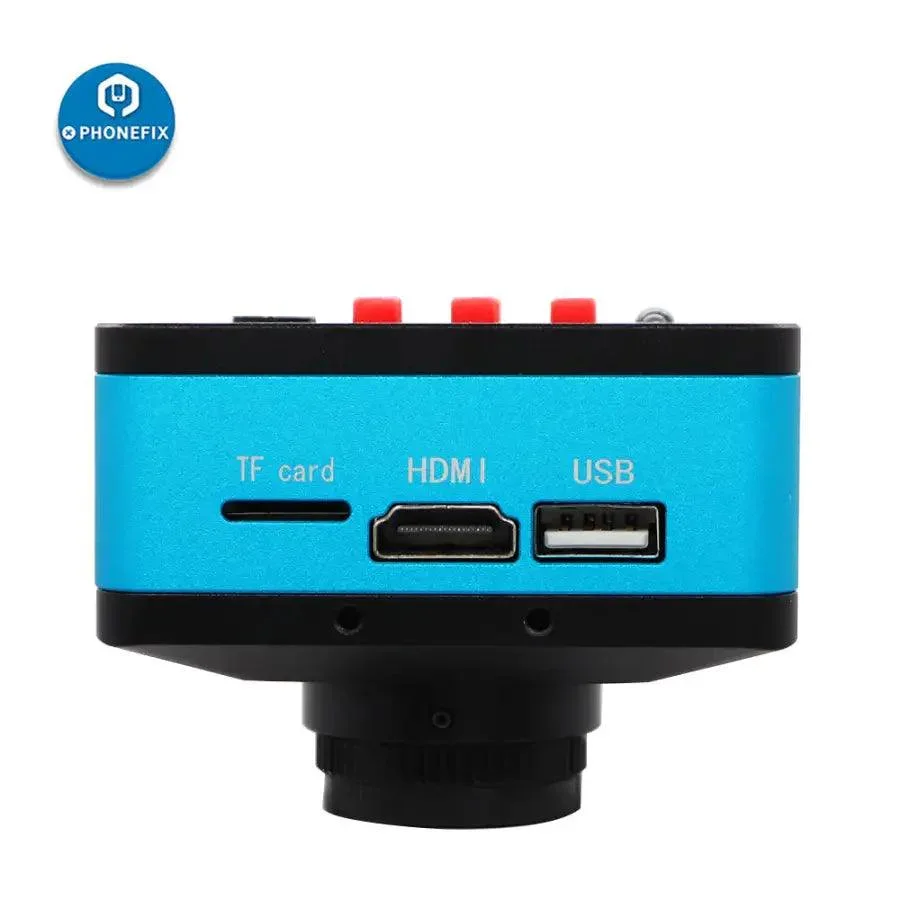

• Output Interface: HDMI/USB Standard USB 2.0 interface (Type B)
• Image Scaling: 7-Fold zoom
• Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable, Different color, 5 horizontal line, 5 vertical line, any positions
• Encode: H.264 /H.265 (High Profile)
• Video format : MP4
• Input Voltage: DC 12V 1A
• Exposure: Auto/Manual, value adjustable
• Size: 75×60×39mm (LxWxH)

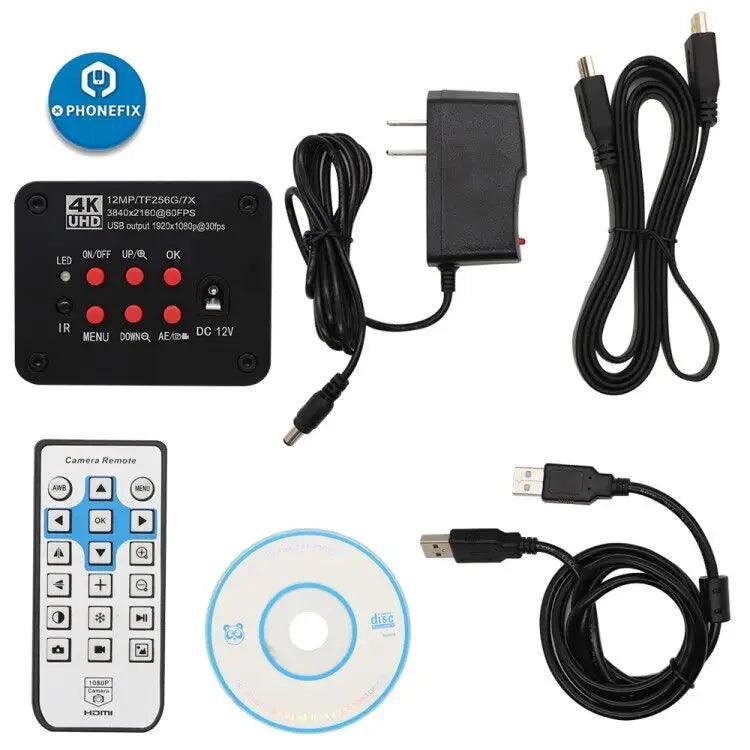

Package includes:

• 1pcs x 12MP 4K Camera
• 1pcs x Power supply
• 1pcs x USB line
• 1pcs x HDMI line
• 1pcs x Software DISC

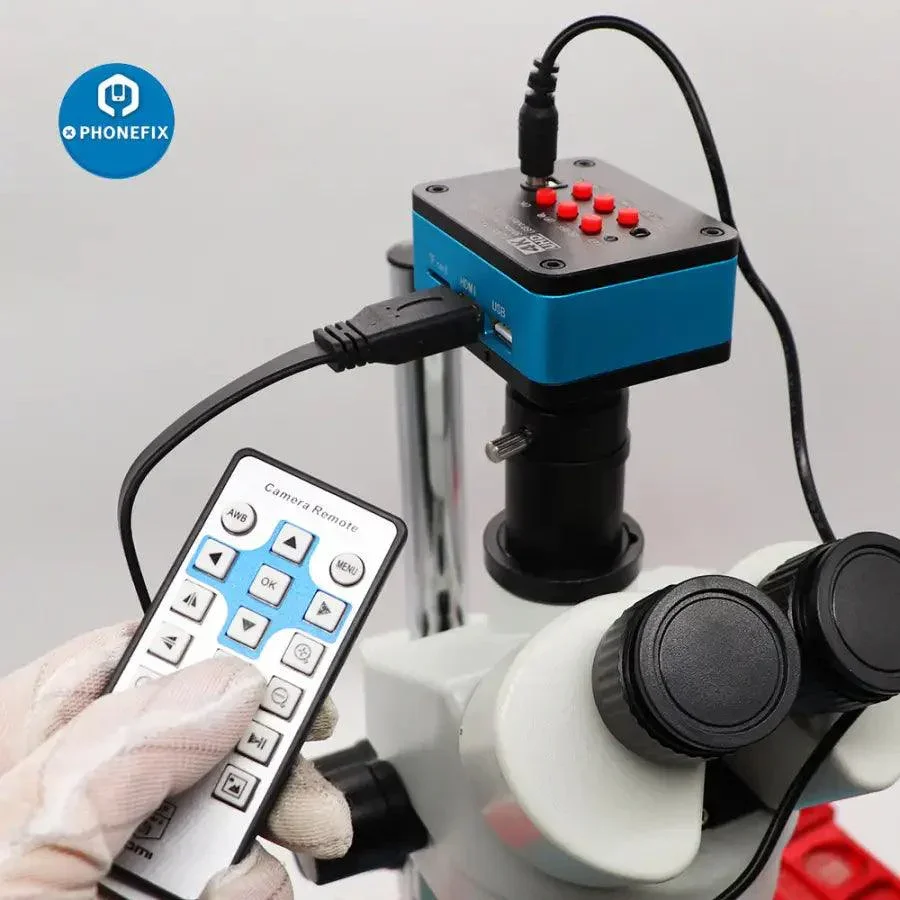

• 1pcs x Remote Control
• 1pcs x Power Adapter (EU/AU Adapter)
