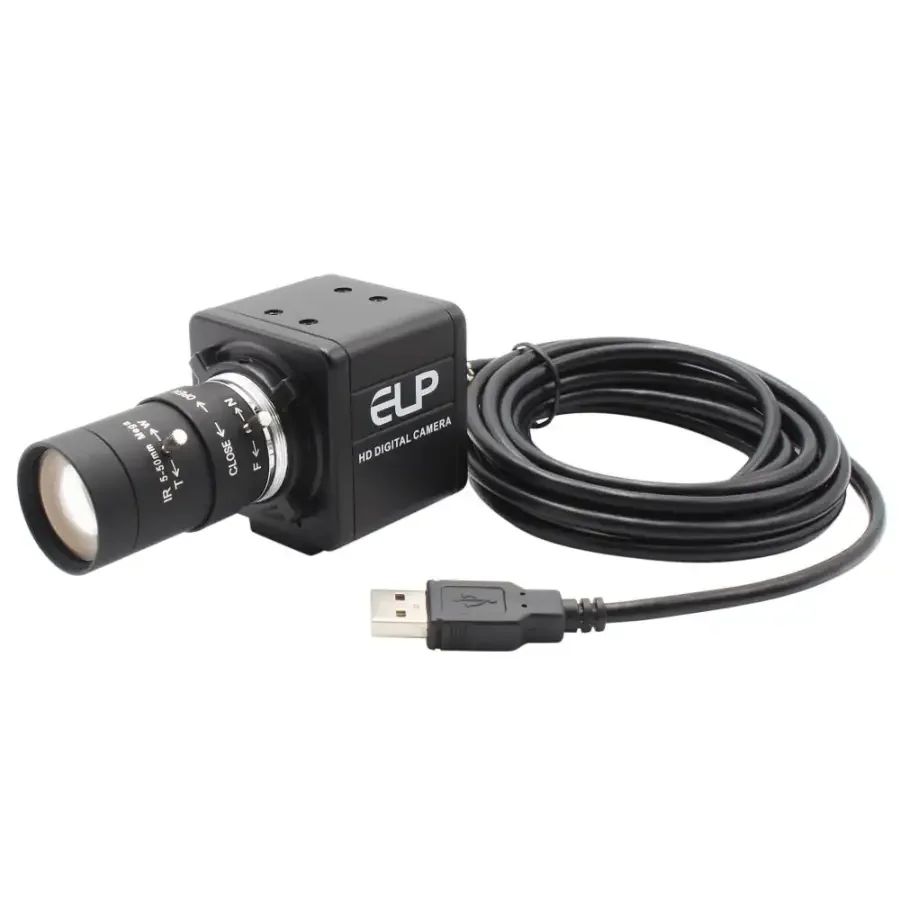

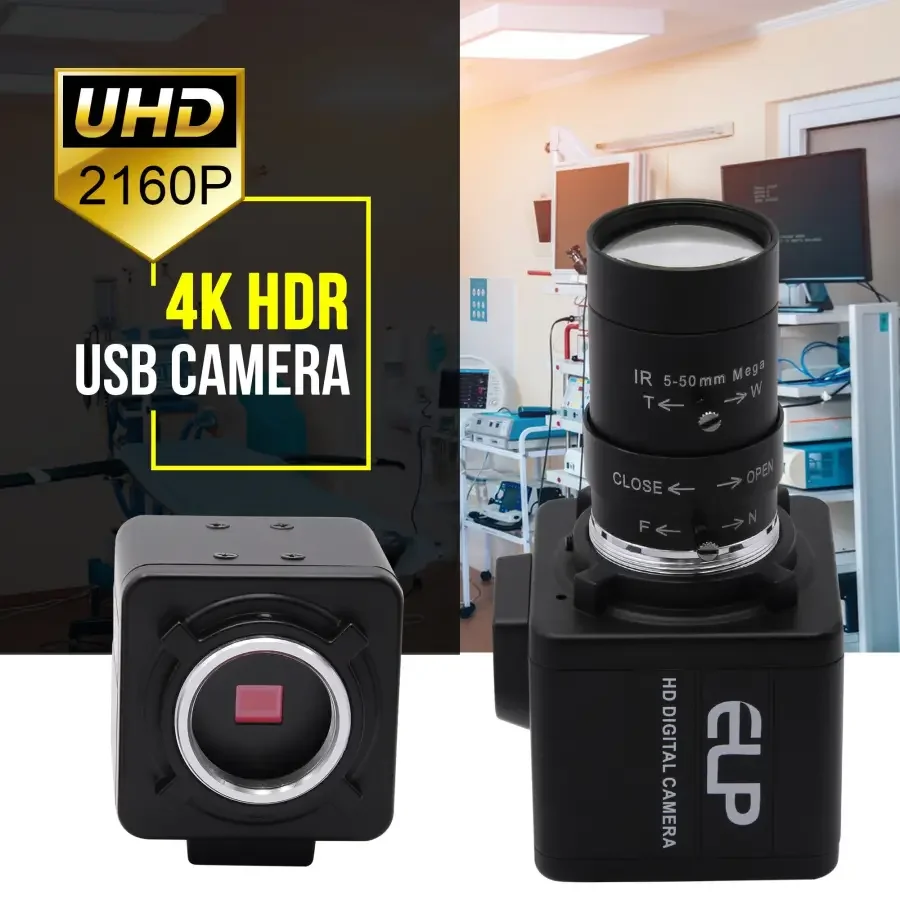

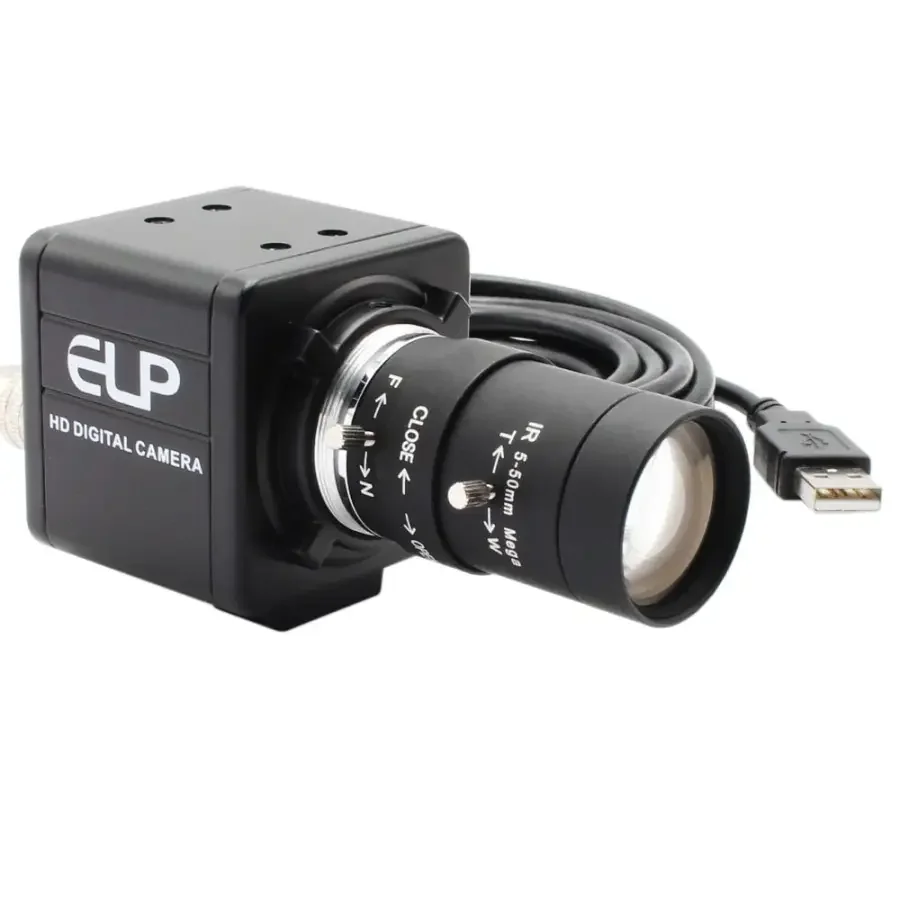

4K SONY High frame rate USB Webcam Camera with Manual Varifocal Lens

Model

ELP-USB4KHDR01-MFV

Sensor

SONY IMX317 (1/2.5”)

Max Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Image area

6100^mx4524^m

Picture format

MJPEG /YUY2 (YUYV)

Resolution & FPS

3840x2160@ 30fps MJPEG/ 2592x1944@ 30fps MJPEG

2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG

1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG

1280x960@30fps MJPEG/1280x720@ 30fps MJPEG

1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG

640x480@ 30fps MJPEG/ 320x240@ 30fps MJPEG

3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2

2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2

1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2

1280x960@5fps YUY2/1280x720@ 5fps YUY2

1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2

640x480@ 30fps YUY2 / 320x240@ 30fps YUY2

Center Definition

1000LW/PH (Center)

S/N (Signal Noise Ratio)

26dB

Sensitivity

0.65V/lux-sec@550nm

Low illumination

0.2lux

Shutter

Electronic rolling shutter / Frame exposure

Interface

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance,

Backlight Contrast, Exposure

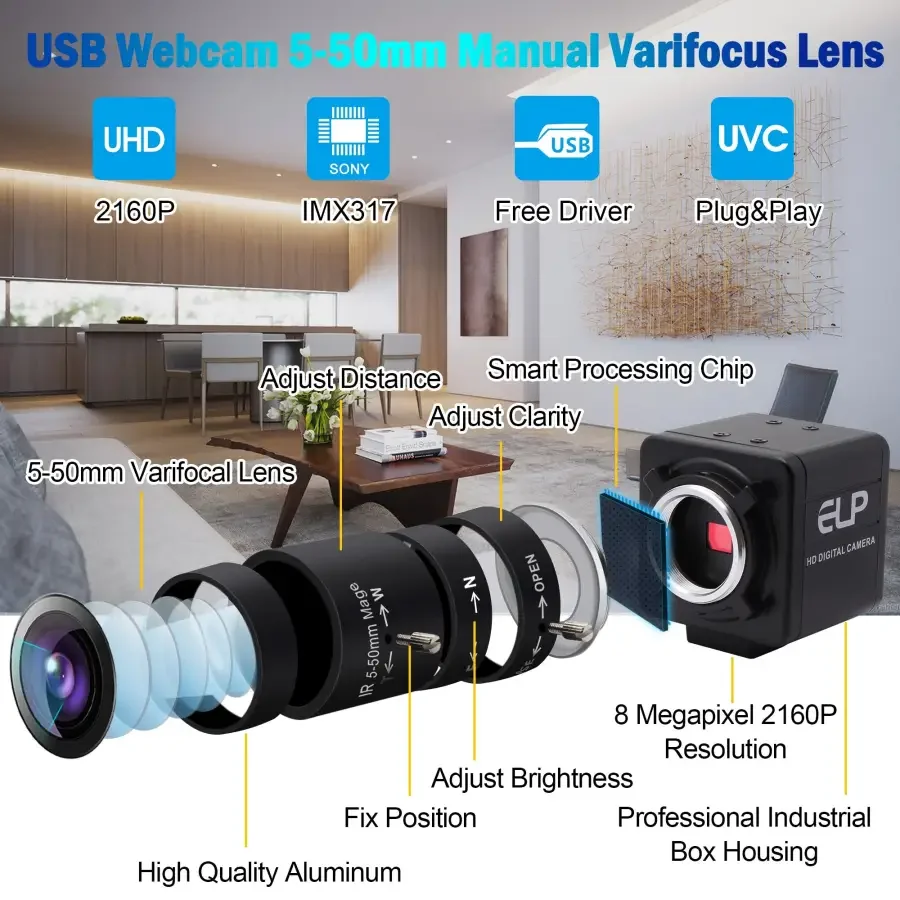

Lens

2.8-12mm/5-50mm  lens optional

Relative Illumination (Sensor): 70%

IR Filter: 650±10nm

Power Supply & Connector

USB BUS POWER 4P-2.0mm socket

Power

DC5V

Current

200mA

Size

38mm x 38mm

Storage Temperature

-20°C to 70°C

Working Temperature

0°C to 60°C

USB Cable

1M(2M/3M/5M Optional)

Operating System

Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
