ATTEN AT8586 Hot Air Gun BGA Rework Station

ATTEN AT8586 700W hot air gun soldering iron 2 in 1 BGA rework station with LED display for mobile phone circuit board BGA PCB SMD soldering desoldering repair. ATTEN AT8586 2 in 1 hot air SMD soldering rework station with auto-sleep function and a good cooling system.

Hot air gun specifications:
Input voltage: 220V AC ±10%  60Hz.
Output Power: 700W.
Temperature Range: 100℃-500℃.
Temperature Stability: ±5℃.
Air Flow: 120L/min (max).

Soldering iron specifications:
Soldering Iron power: 60W.
Voltage: 230VAC/50H.
Hot air temperature range: 100℃-500℃.
Soldering iron temperature range: 200℃-480℃.
Temperature Stability: ±2℃(static)
Ground Impedance: <2 Ohm.
Ground Voltage: <3mV.

Features:
1. LED screen to show temperature and operation state.
2. Low-voltage supplied iron heater to protect sensitive electronic components effectively.
3. Intelligence cooling system and deferred power-off function to extend hot air gun and heater inside lifespan.
4. Auto-sleep function to save energy.
5. Intelligent malfunction detection and indications.
6. Combined heat guns and soldering stations perfectly.
7. The core of the whole machine is controlled by the single and microwave chip to make sure of temperature accuracy and stability of rework station and soldering station; not simply combined by the two types of equipment.
8. Temperatures of rework stations and soldering stations continuously adjusted by digital buttons to meet the needs in different workplaces.
9. The two stations can work separately.
10. Intuitive fault indication function.

Package list:

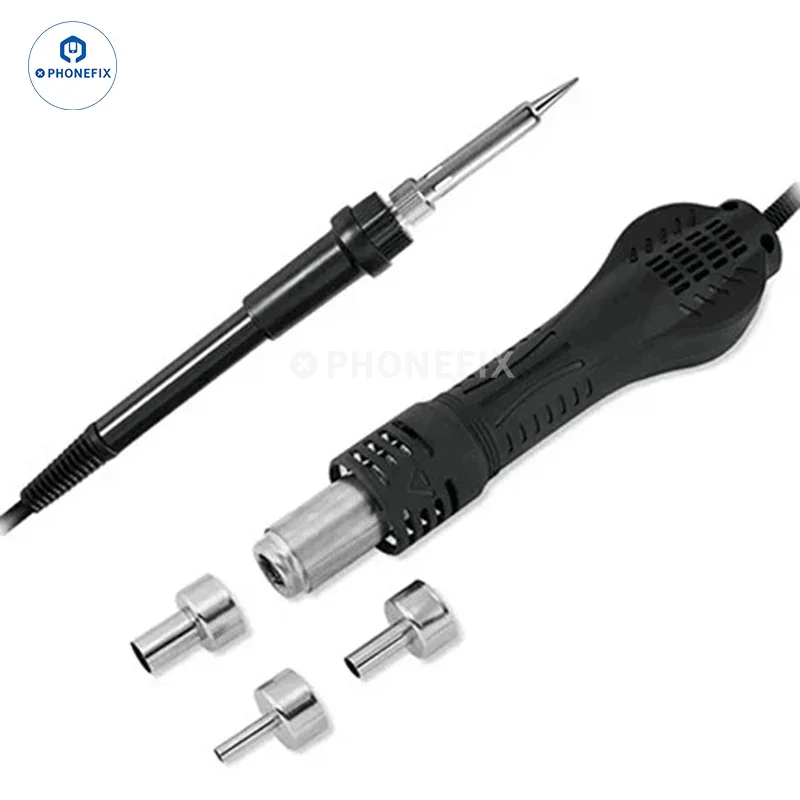

1 x ATTEN AT8586 Rework station.
1 x Soldering iron.
1 x Iron holder.
3 x Hot air gun nozzles.
1 x Power cable.
