Commonly Used Soldering Microscope Heads for Electronic Repair

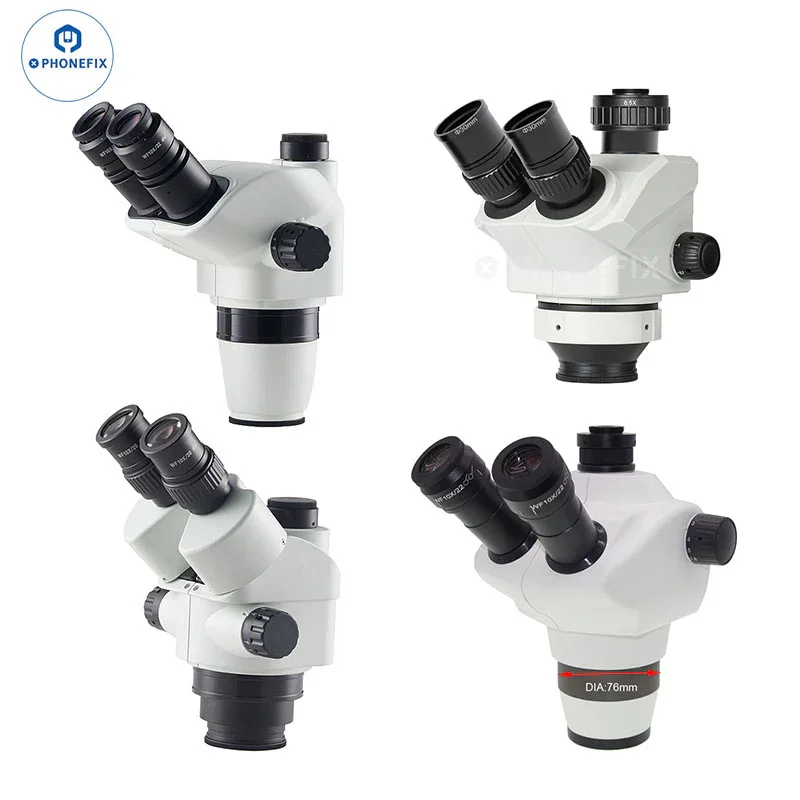

The most common type of Soldering Microscope Heads, Commonly Used SZM7X45 7X-45X Continuous Zoom Trinocular Stereo Microscope Head Replacement. DG7X60 7X-60X/ST8X50 8X-50X /SZ6745 6.7X-45X 360 Degree Rotatable 45 degree Inclined Binocular Microscope Head Replacement. Suitable for cell phone repair, motherboard repair, soldering desoldering PCB observation.

SZM7X45 Parameters:
Type: Continuous zoom trinocular stereo microscope
Total Magnification: Original 7X~45X (Enlarged to 90X with 20X eyepiece)
Observation tube: Trinocular
Eyepiece: WF20X
Objective lens: 0.7X~4.5X continuous magnification

DG7X60 Parameters:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: WF10X/22MM
Zoom Magnification:0.7-6x
Field of View:31.4mm-3.7mm
Magnification:7x-60x
Working Distance:120mm

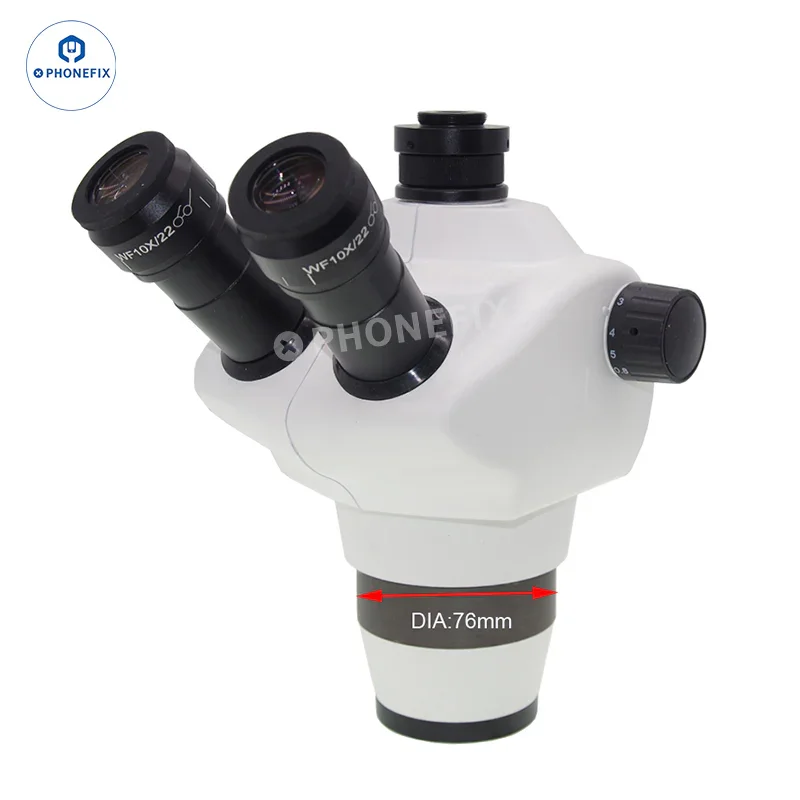

Installation diameter: 76mm
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece, provide convenience for observers wearing glasses

SZ6745 Parameters:
Head: 45-degree inclined 360-degree swiveling binocular
Eyepiece: 30mm extreme wide field high-eye point WH10X/22
Objective: 0.67-4.5X
Zoom Range: 6.7:1
Diopter Adjustment: ±5dp
Interpupillary Distance: 2-3/4" - 2-15/16"(47-75mm)
Field of View: 1-3/8" (35mm)
Working Distance: 4" (100mm)
Head Mounting Size: 3" (76mm) in diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter

ST8X50 Parameters:
Head: 45 degree inclined 360 degree swiveling binocular
Eyepiece: 30mm extreme widefield focus-adjustable 10X/22
Objective: 0.8X-5.0X
Diopter Adjustment: +/-5dp
Interpupillary Distance: 2-0" - 2-15/16"(52-75mm)
Working Distance: 4.5" (115mm)
0.4X reduction lens
