DS215H Mini Oscilloscope 2in1 Dual Channel Signal Generator

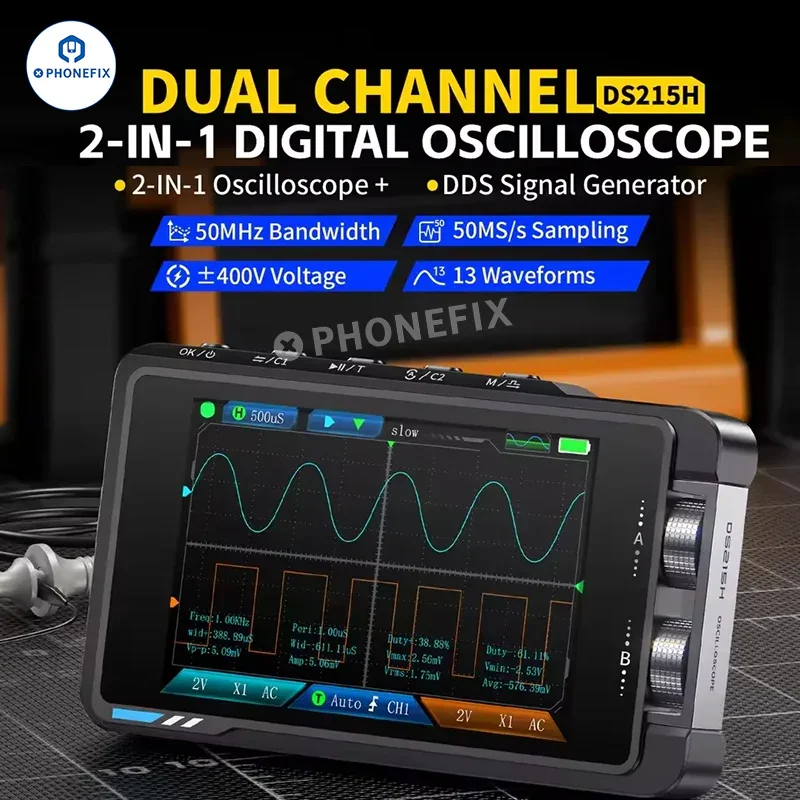

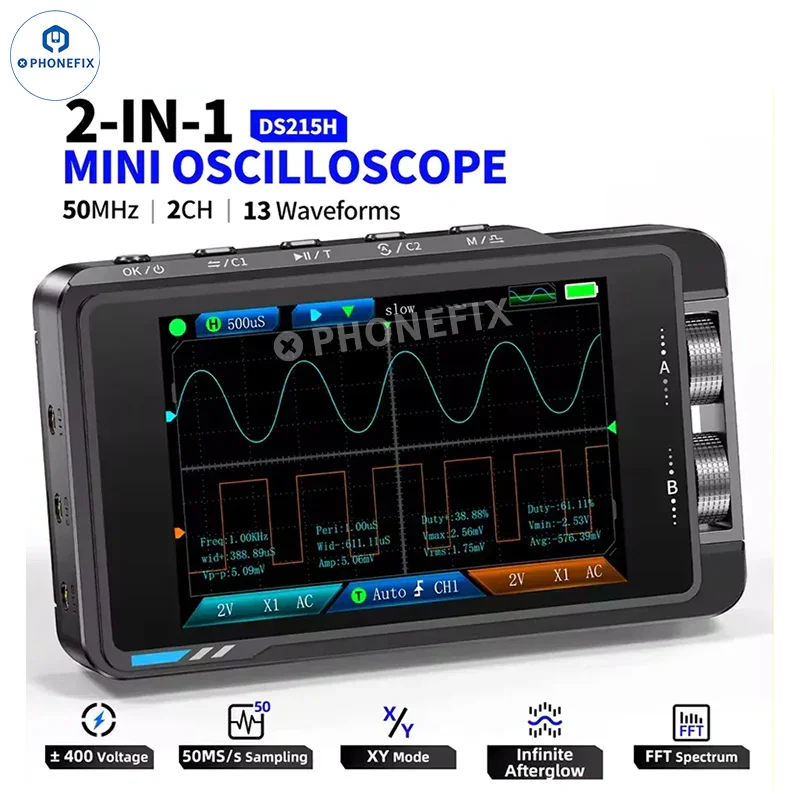

DS215H Dual-channel Mini Oscilloscope with DDS signal generator 50MHz bandwidth, ±400V voltage, 50MS/s sampling meets a variety of test needs. In addition to waveform generation, it also allows detailed analysis and correction functions of the signal.

Features:
1. High-precision measurement: FNIRSI-DS215H provides high precision with a sampling rate of up to 250MS/s and an analog bandwidth of 50MHz, ensuring accurate measurements for a variety of applications.
2. Wide voltage protection: Supports peak voltage measurement up to ±400V, providing reliable and safe performance in high-voltage situations.
3. Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.
4. Signal generator function: It has 13 waveform outputs with a frequency range of 0-50 KHz and adjustable 1Hz steps. The output parameters (including frequency, amplitude and duty cycle) are fully adjustable to meet various needs.
5. Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) with clear and intuitive visual effects. Its compact and lightweight design makes it ideal for mobile use.
6. Long battery life: powered by a 1500mAh rechargeable lithium battery, supporting up to 4 hours of continuous operation, ensuring lasting performance on the go.
7. Ideal for professionals: FNIRSI-DS215H is designed to provide powerful and flexible functions, providing users with portable and efficient tools for maintenance, R&D and testing tasks.

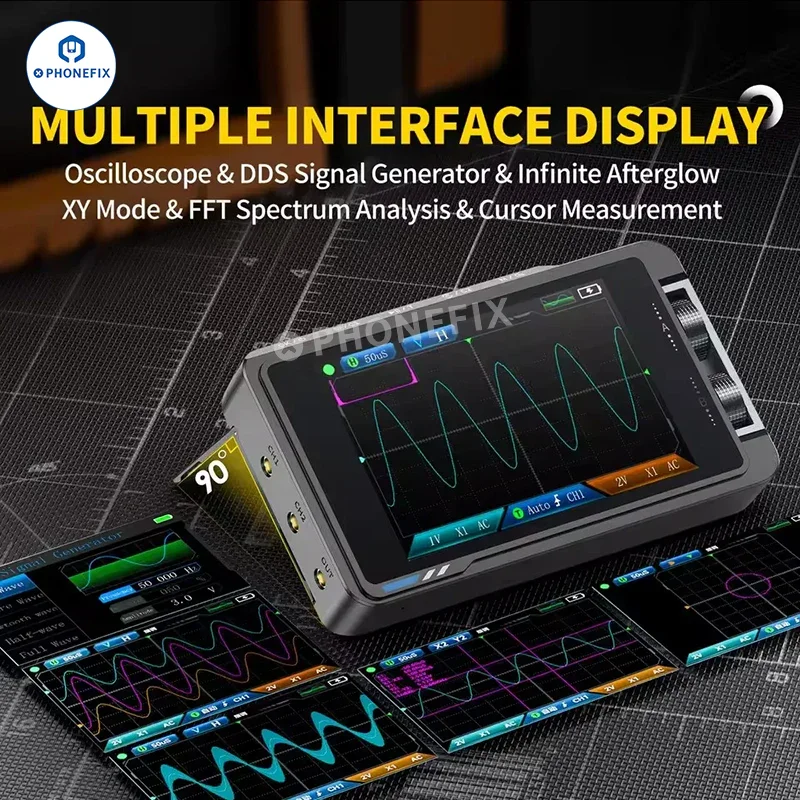

8. Multi-interface display, oscilloscope and DDS signal generator and infinite persistence XY mode and FFT spectrum analysis and cursor measurement.

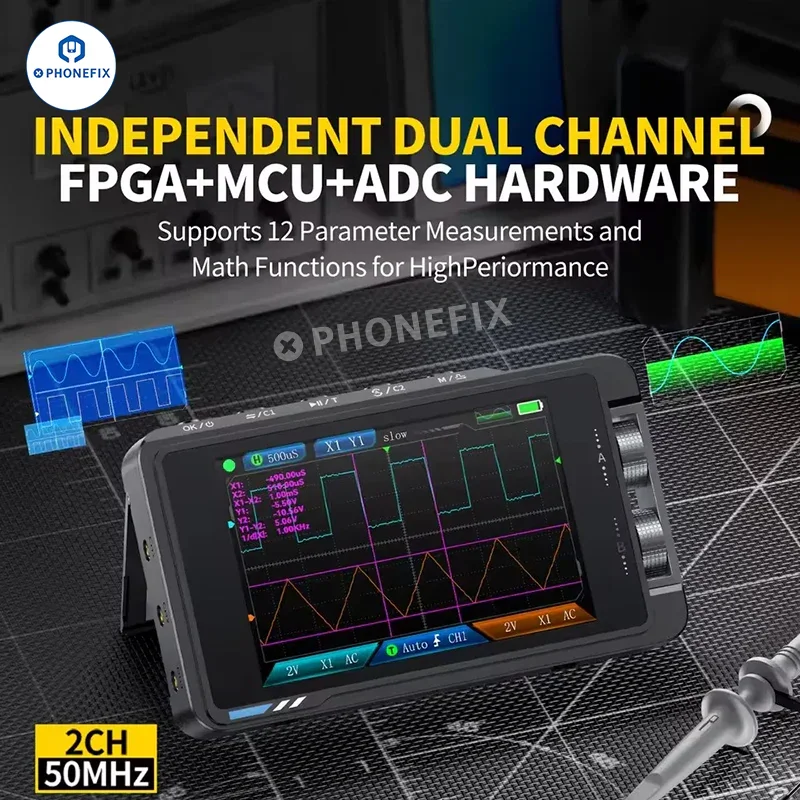

9. Independent dual-channel FPGA+MCU+ADC hardware supports 12 parameter measurements and mathematical functions for high performance.

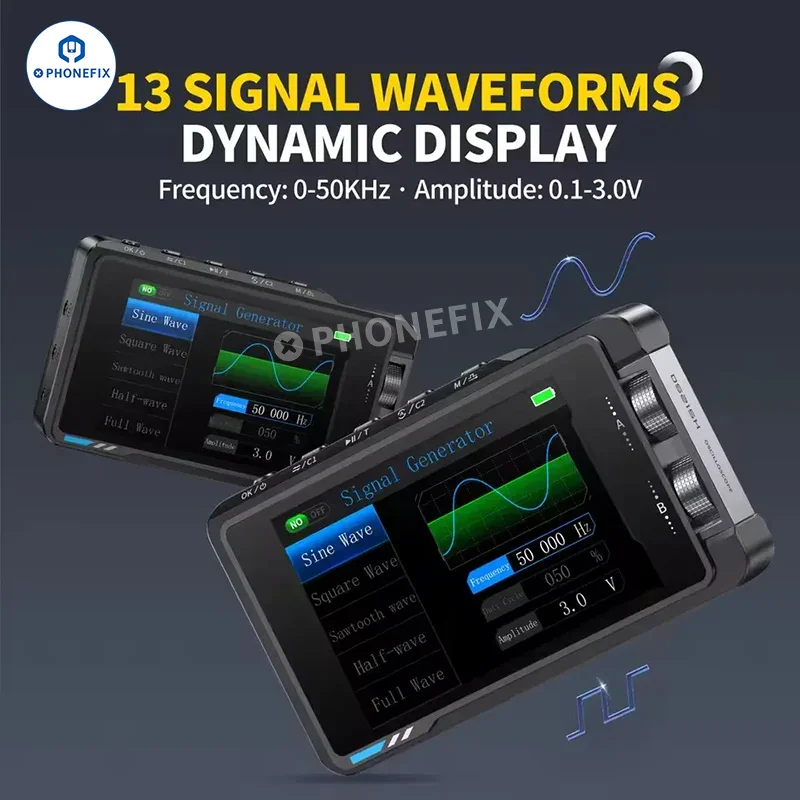

10. 13 types of signal waveform dynamic display frequency: 0-50KHz·Amplitude: 0.1-3.0V.

Product Parameters:
Display: 3.5-inch IPS high-definition color screen
Backlight: adjustable brightness
Power supply: TYPE-C (5V/1A)
Battery: 1500mAh
Language: Chinese, English, Russian, Spanish, Portuguese, German
Product size: ≈66x110x19.5mm
Nude weight: ≈138g

Oscilloscope Parameter:
Channel: Dual Channel
Bandwidth: 50 MHz
Real-time sampling rate: 250 MSa/s
Storage space: 14M
Time base range: 20ns/div - 20s/div
Vertical sensitivity: 10mV/div - 10V/div
Waveform display mode: Scroll
Vertical resolution: 8 bits
Input impedance: 1ΜΩ
Measurement data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp,Dduty cycle, Pulse width
Probe attenuation factor: 1x / 10x
Input coupling: AC / DC
Trigger type: Rising edge / Falling edge
Peak voltage: ±400V
Trigger level range: 8 grids (positive and negative)
Trigger mode: Auto / Normal / Single

Signal Parameter:
Output waveform: Supports multiple waveform outputs
Waveform frequency: 0-50 KHz
Square wave duty cycle: 0-100%
Waveform amplitude: 0.1V - 3.0V

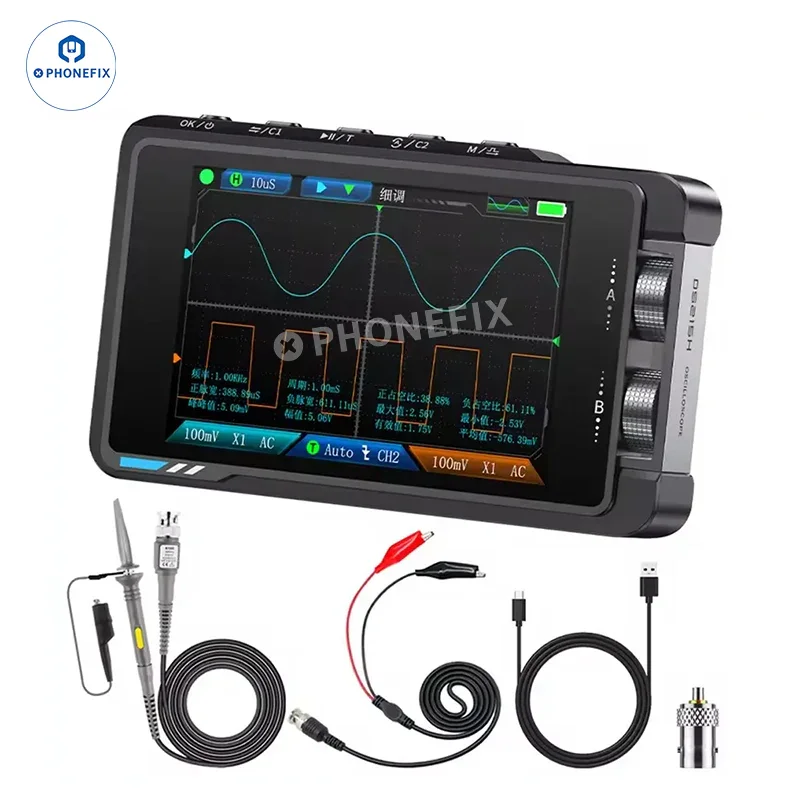

Package Lists (Standard):
Adapter x1
Host device x1
User manual x1
Charging cable x1
Alligator clip probe x1
Packaging color box x1
P6100 high vltage probe x1

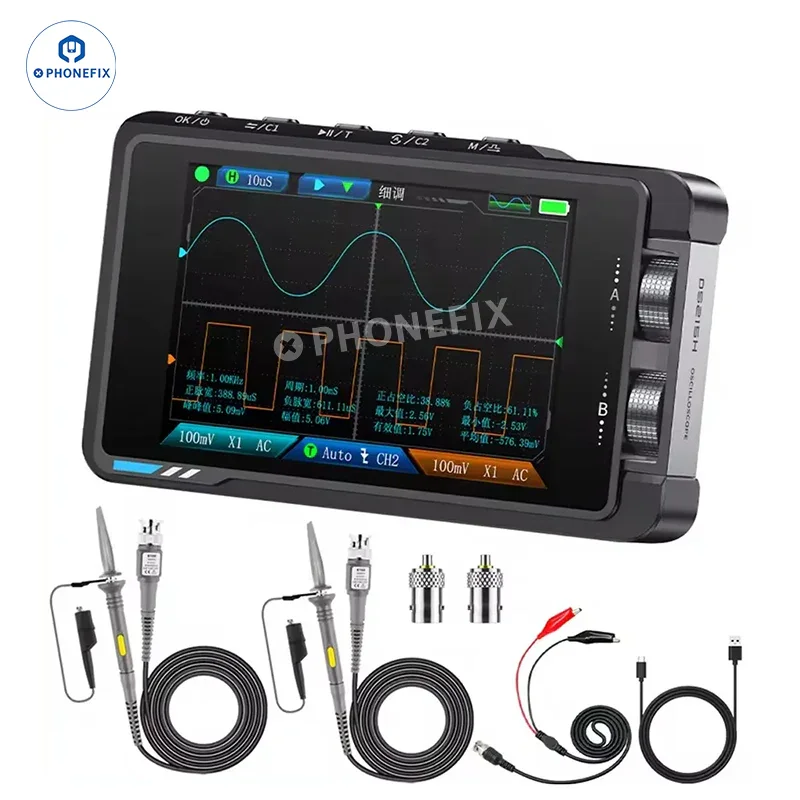

Package Lists (High-end):
Adapter x2
Host device x1
User manual x1
Charging cable x1
Alligator clip probe x1
Packaging color box x1
P6100 high vltage probe x2
