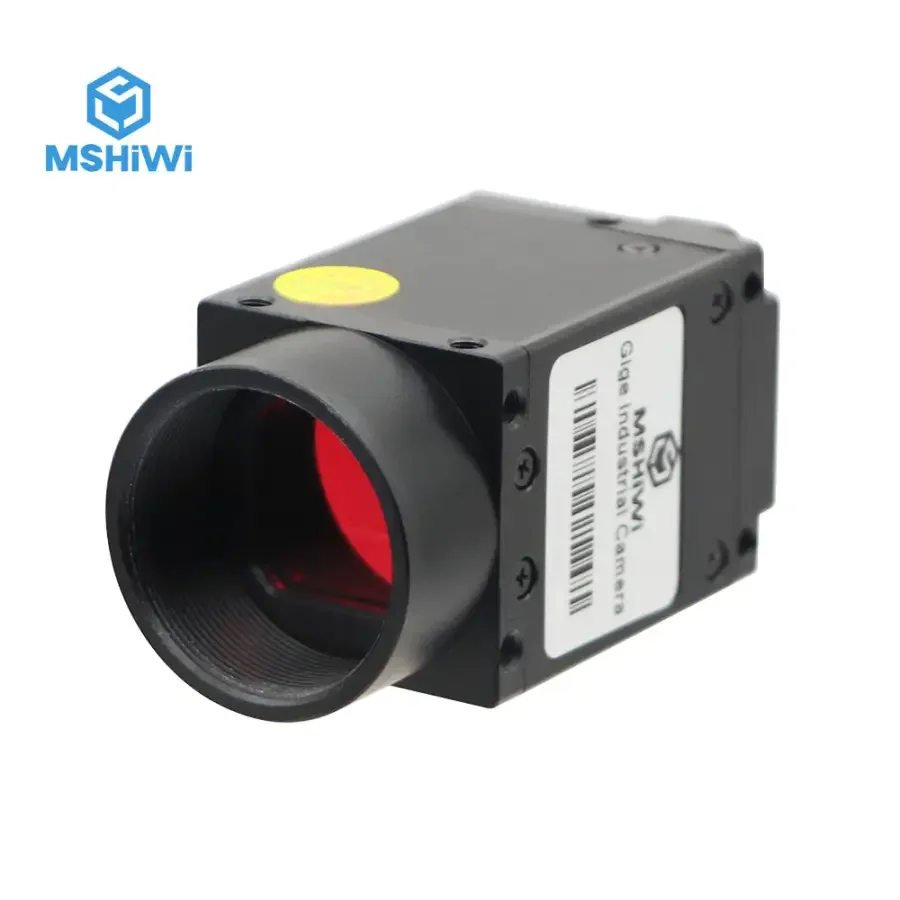

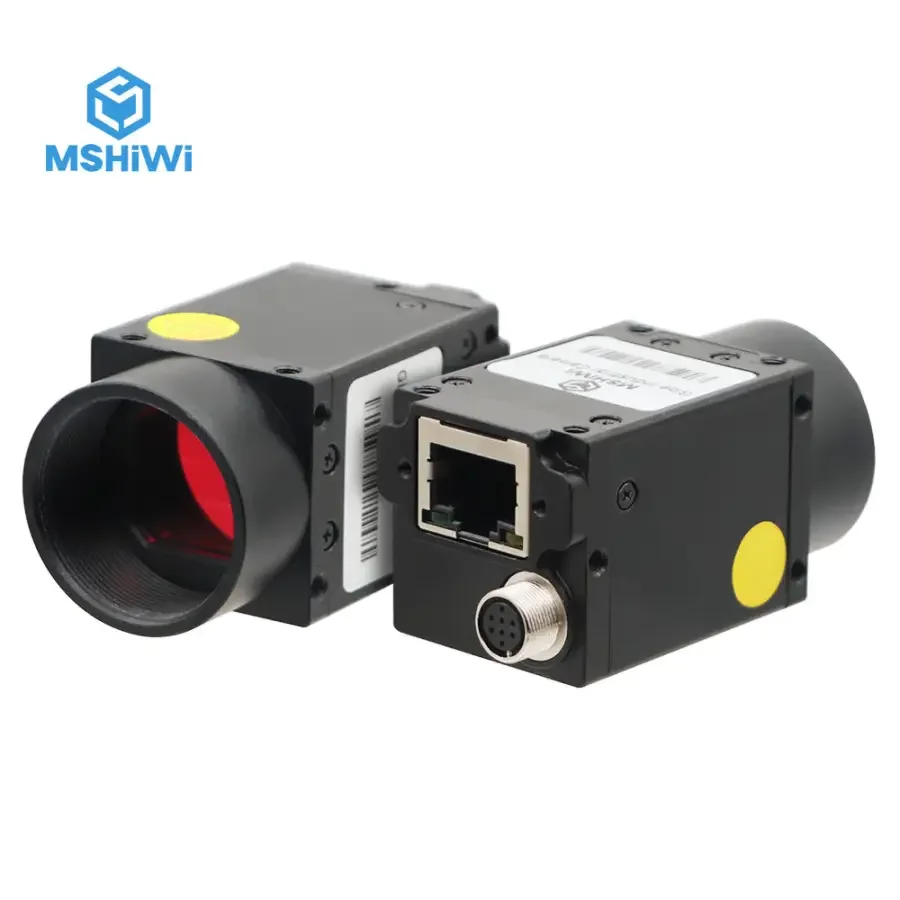

GIGE 12.0 MP Industrial Vision Cameras with Gigabit Ethernet interface, [email protected] (12.0 Megapixel), SmartVision Controller Vision Solutions Applications, with format 1/1.7" CMOS, Rolling Shutter, Monochrome, 9.86fps maximum frame rate, C-mount for lens, and available 8 bit depth, black and white or color selectable according to your requirements. High resolution, high speed and favorable price.

12.0MP GigE Monochrome Rolling Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters：

Model

HT-GEA1201M-T-CL

Sensor

1/1.7" CMOS

Shutter Type

Rolling Shutter

Camera Type

Monochrome

Pixel Size

1.85X1.85μm

Effective Pixels

12.0 MP

Resolution @FPS



[email protected]



Pixel Bit Depth

8bit

Sensitivity

250mV 1/30s

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

22

Exposure Time (ms)

0.008~1048.6

Filters

NONE

Frame Buffer

128M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8

Visual Standard Protocol

GigE Vision V1.2、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
GIGE 12.0 MP Industrial Vision Cameras,1/1.7 CMOS, Rolling
Demo Source Code:

GIGE 12.0 MP Industrial Vision Cameras,1/1.7 CMOS, Rolling

Hardware Trigger Line Sequence:

GIGE 12.0 MP Industrial Vision Cameras,1/1.7 CMOS, Rolling

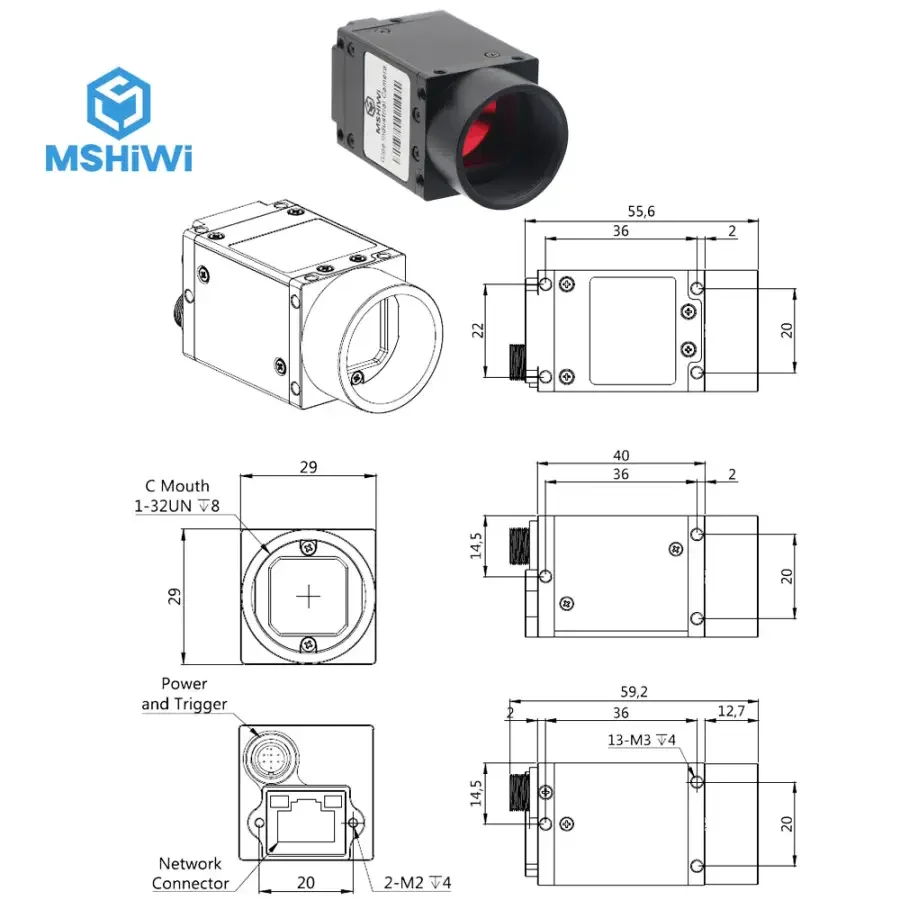

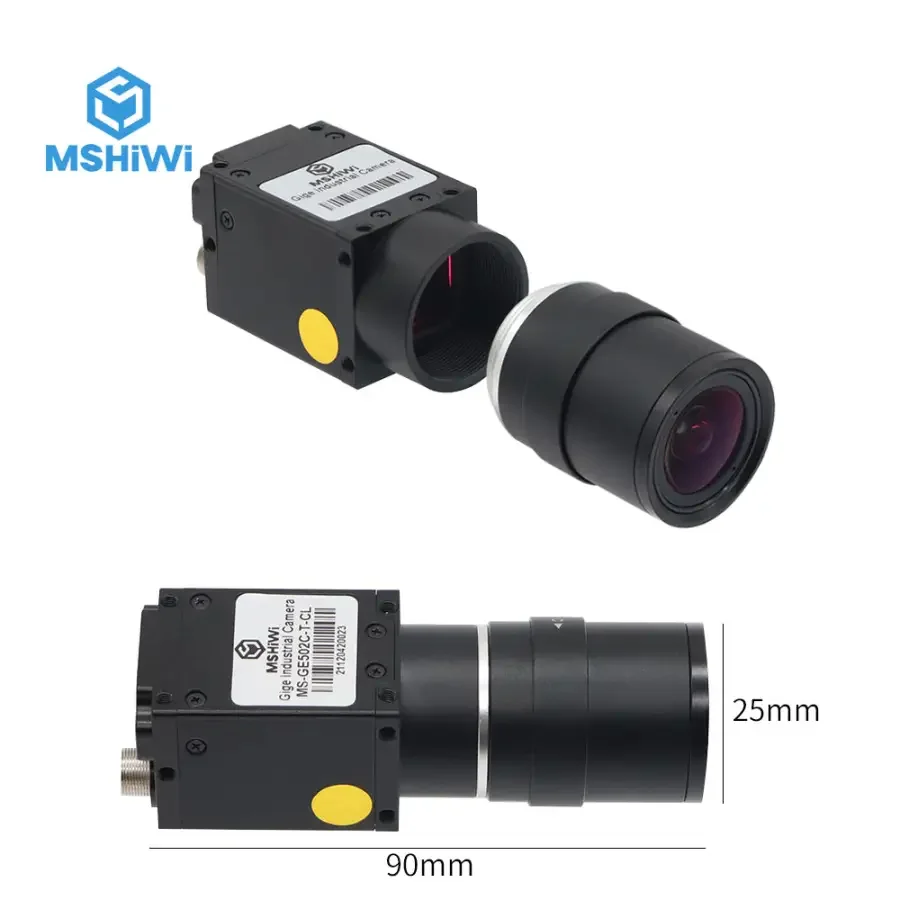

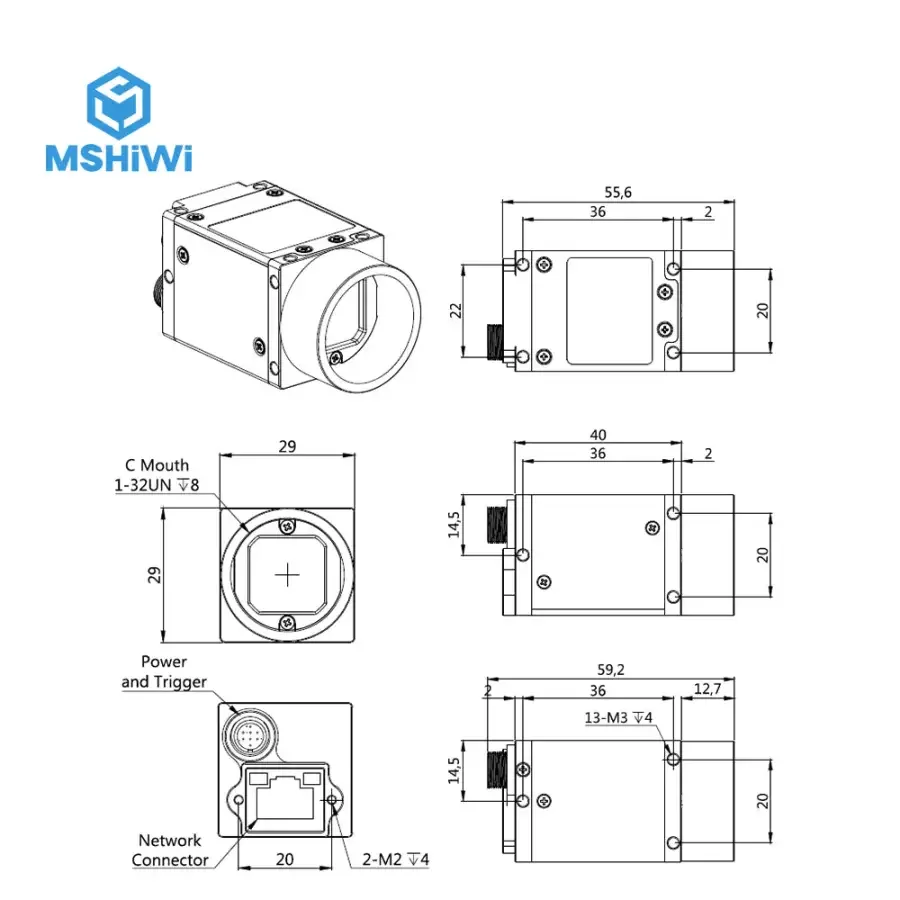

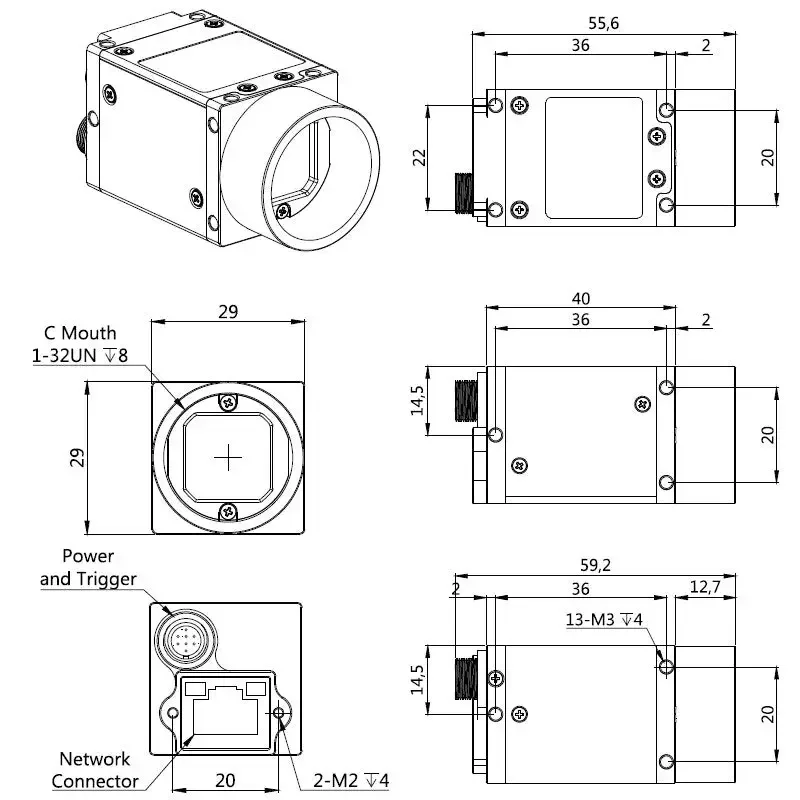

Camera Size:


GIGE 12.0 MP Industrial Vision Cameras,1/1.7 CMOS, Rolling

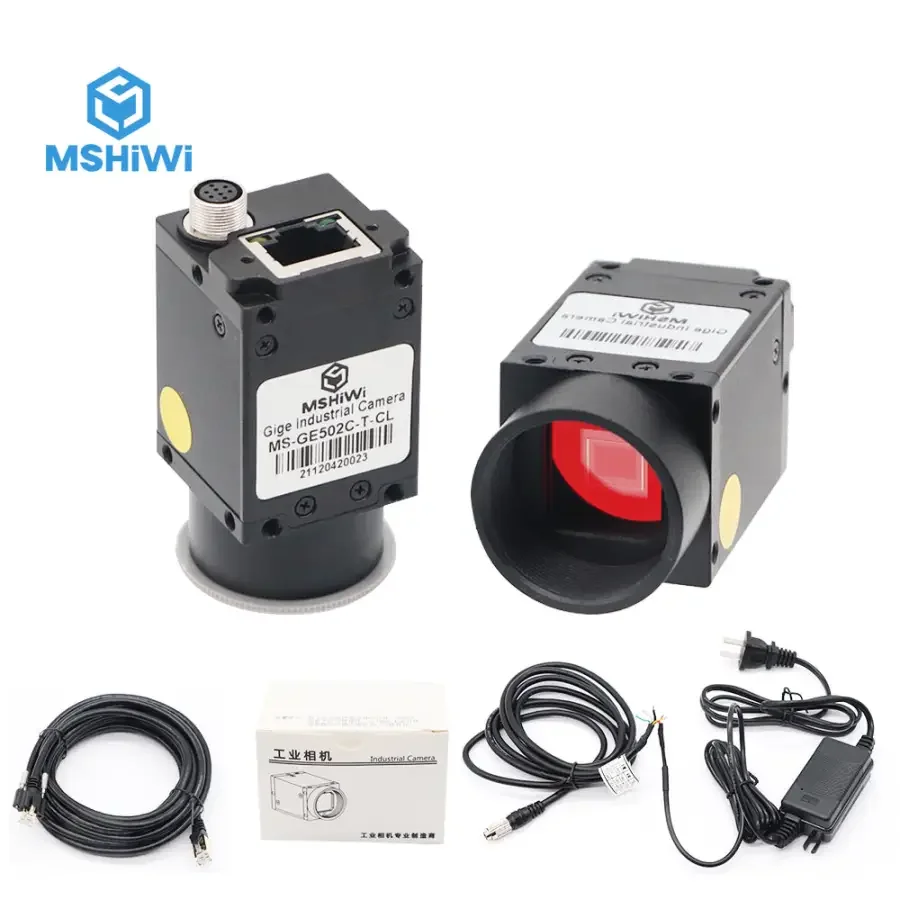

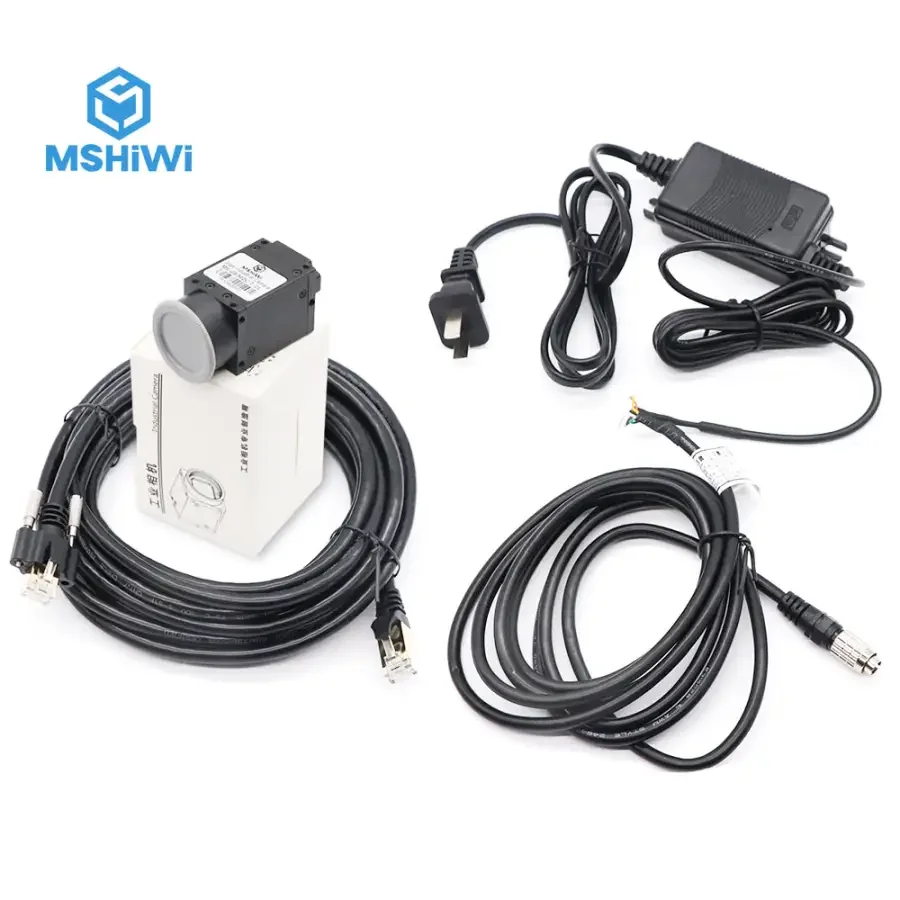

Product Packing List:


GIGE 12.0 MP Industrial Vision Cameras,1/1.7 CMOS, Rolling

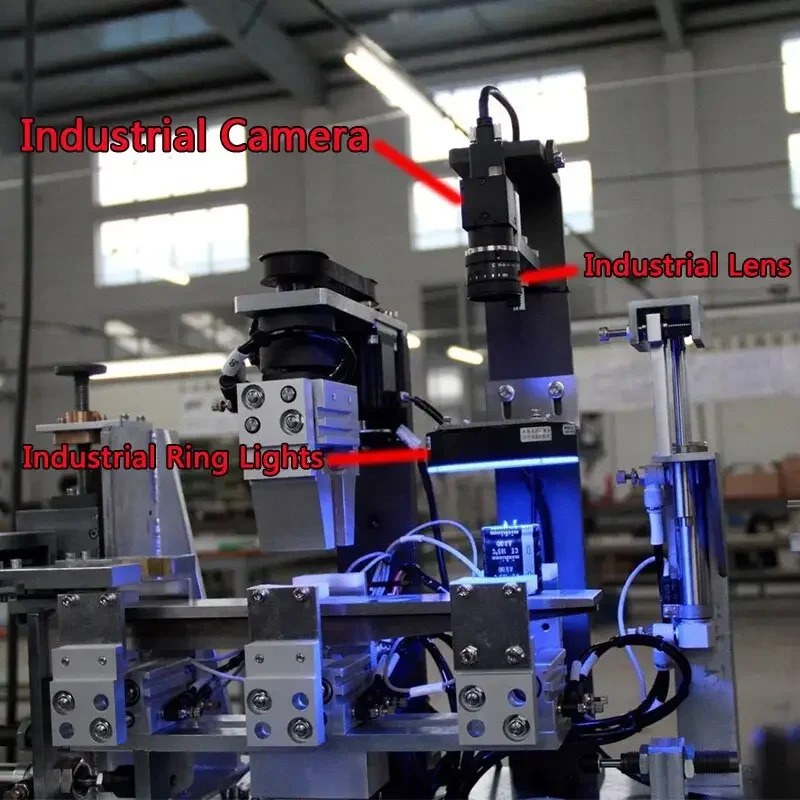

Picture Case Show:

GIGE 12.0 MP Industrial Vision Cameras,1/1.7 CMOS, Rolling
