GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono

Super-speed GigE Industrial Camera with RJ45 Gigabit Ethernet interface, resolution of 1920*1200(2.3 Megapixel), 2/3" CMOS, pixel size 4.8ÎŒmX4.8ÎŒm, max. frame rate 51.0fps, Monochrome, Global Shutter, optional 8/10bit depth, GigE interface with long transmission distance, SmartVision Controller Vision Solutions for Automated Inspection Measuring, use advanced indsutrial image sensor, superior image quality and high resolution.
2.3MP Monochrome Global Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

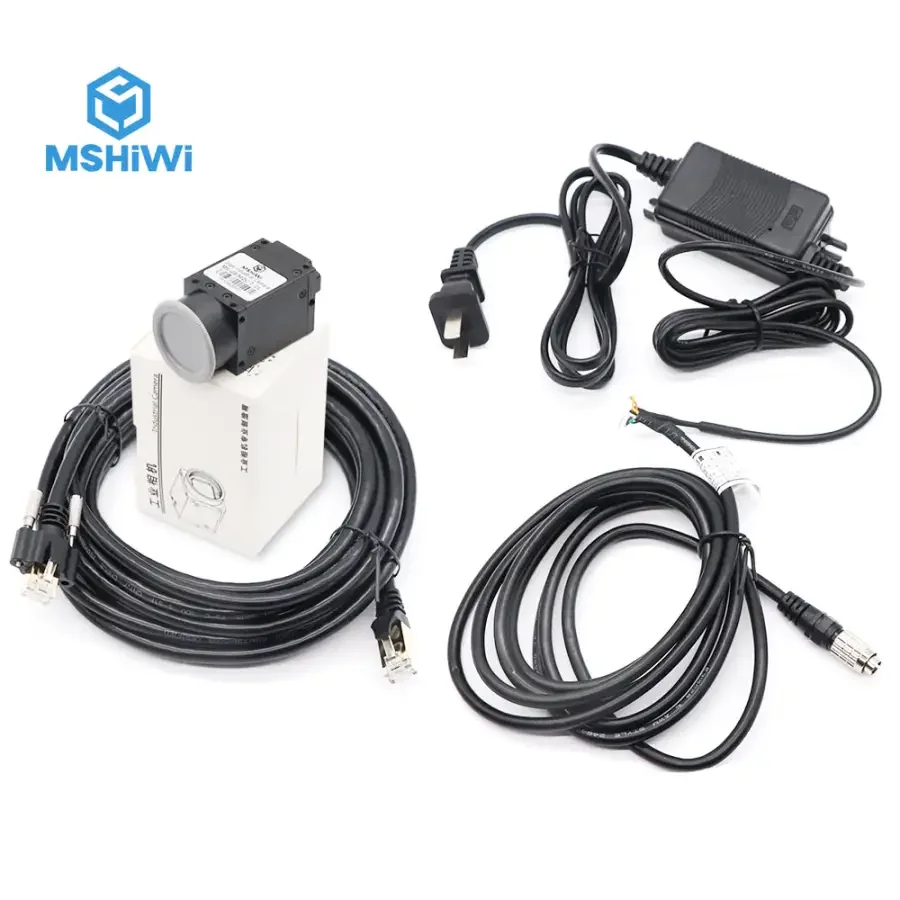

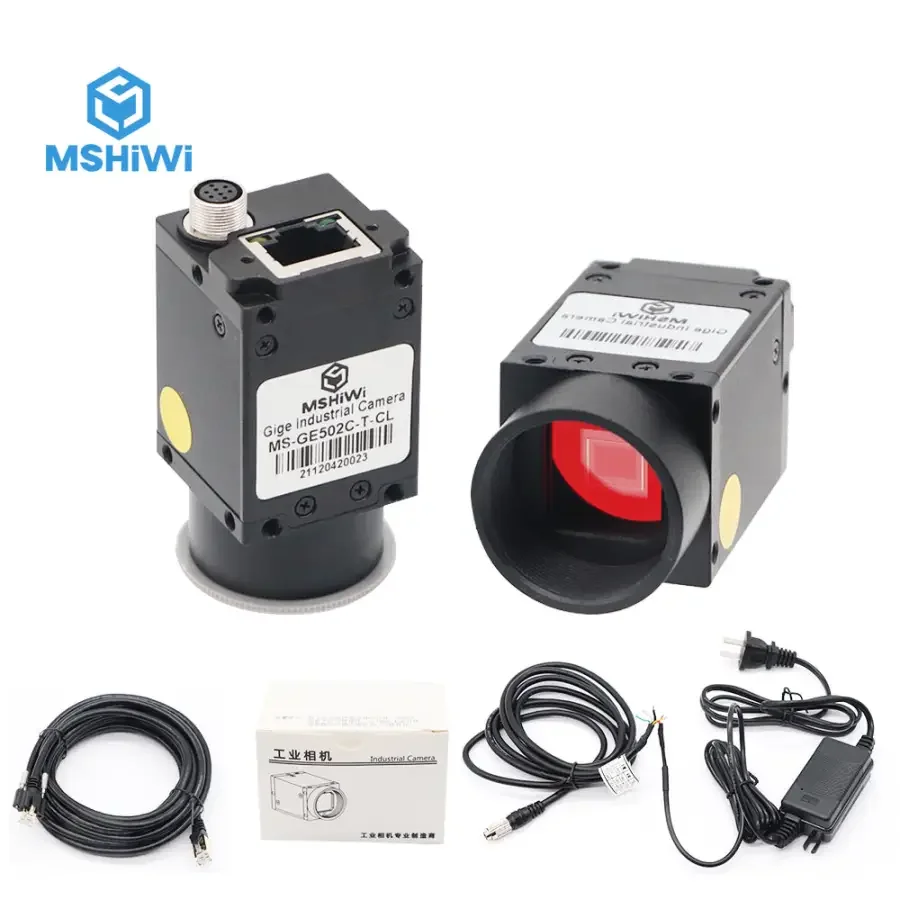

Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters

Model

HT-GE202GM-T-CL

Sensor

2/3" CMOS

Shutter Type

Global Shutter

Camera Type

Monochrome

Pixel Size

4.8*4.8ÎŒm

Effective Pixels

2.3 MP

Resolution @FPS



1920*1200@51FPS



Pixel Bit Depth

10bit

Sensitivity

7.5V/lux-s 550nm

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

8

Exposure Time (ms)

0.005~327.7

Filters

None

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
GigE Industrial Camera, 2/3 CMOS, 2.3MP, Global Shutter,
Demo Source Code:

GigE Industrial Camera, 2/3 CMOS, 2.3MP, Global Shutter,

Hardware Trigger Line Sequence:

GigE Industrial Camera, 2/3 CMOS, 2.3MP, Global Shutter,

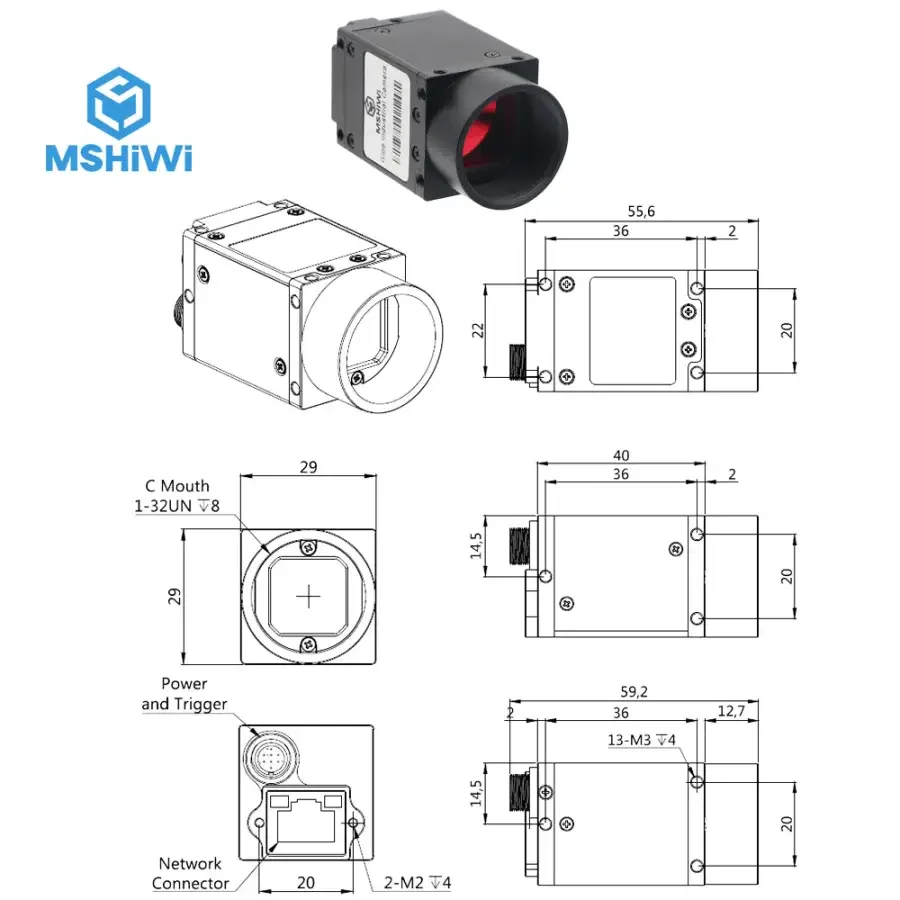

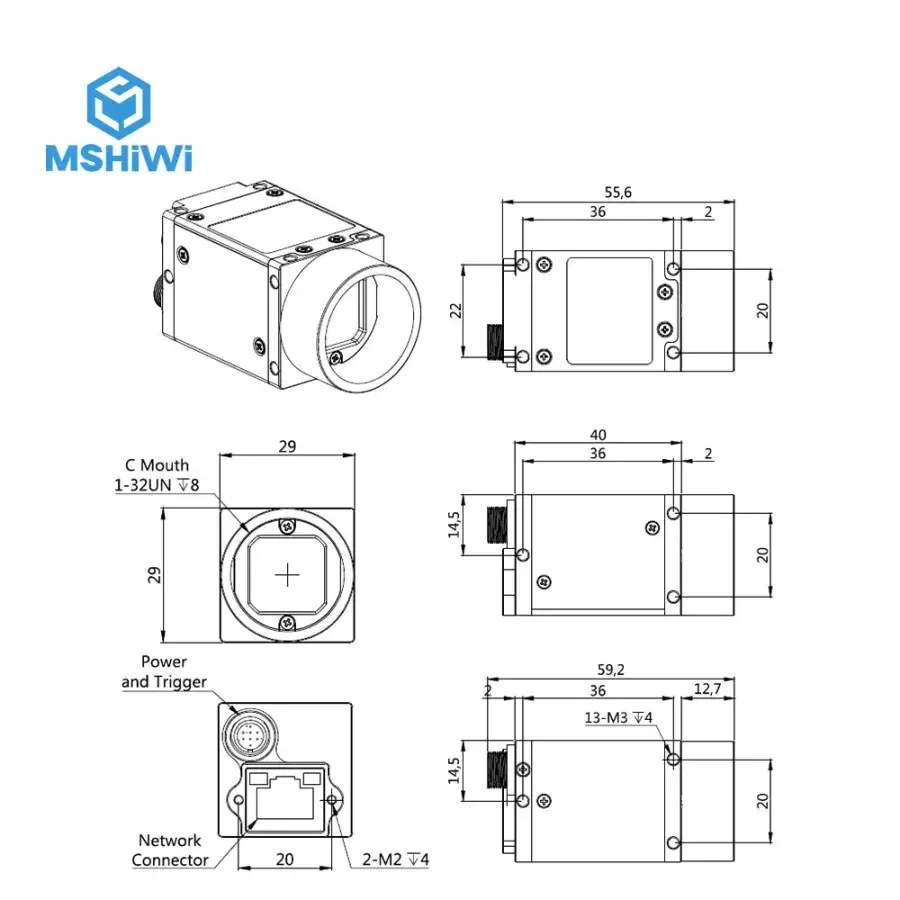

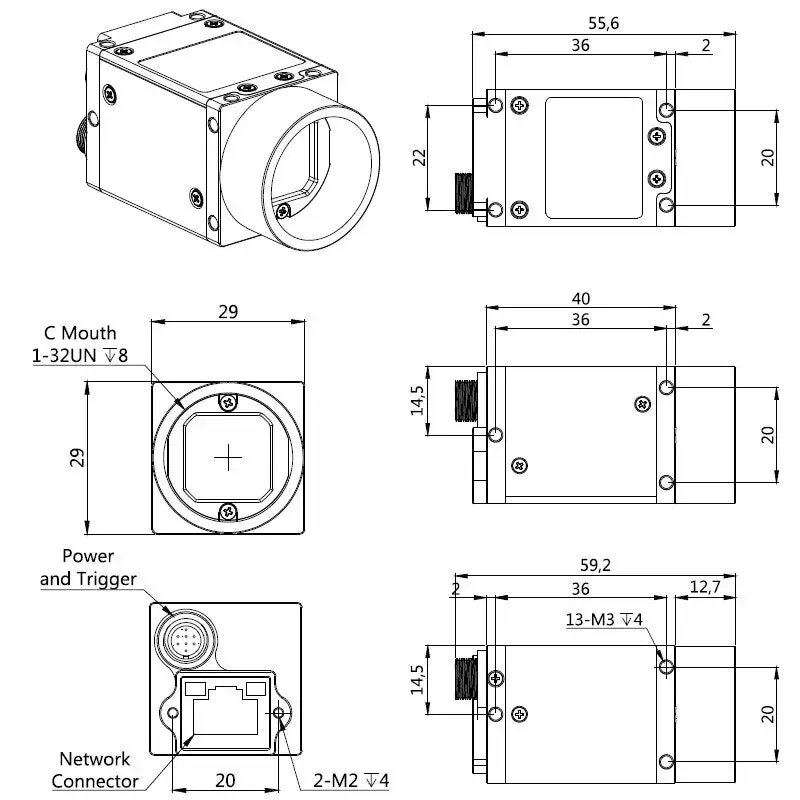

Camera Size:


GigE Industrial Camera, 2/3 CMOS, 2.3MP, Global Shutter,


Product Packing List:


GigE Industrial Camera, 2/3 CMOS, 2.3MP, Global Shutter,

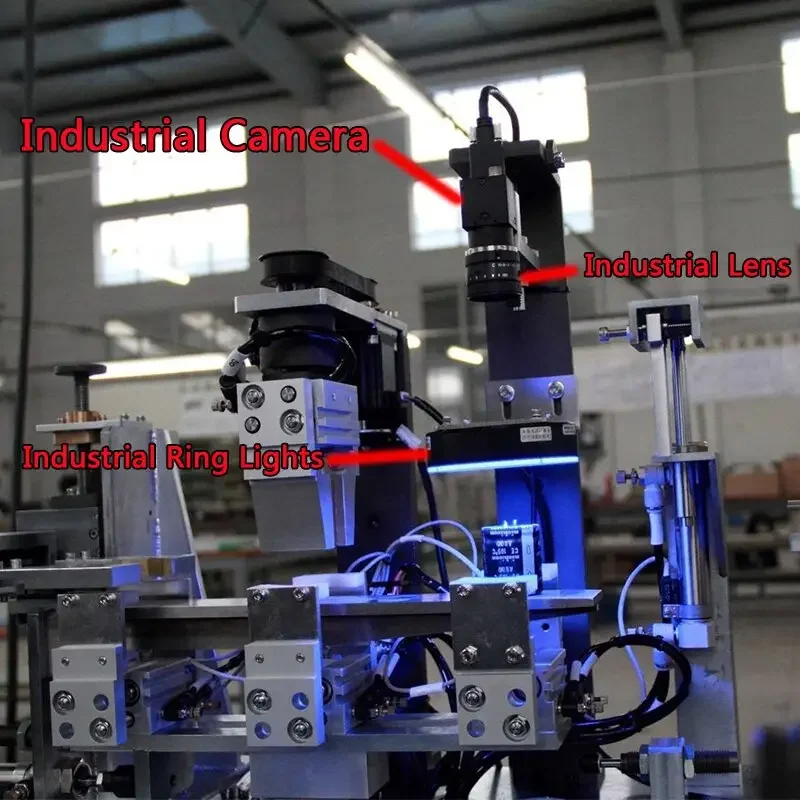

Picture Case Show:

GigE Industrial Camera, 2/3 CMOS, 2.3MP, Global Shutter,



Select Option
From $139.65

Original: $399.00

-65%
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono—

$399.00

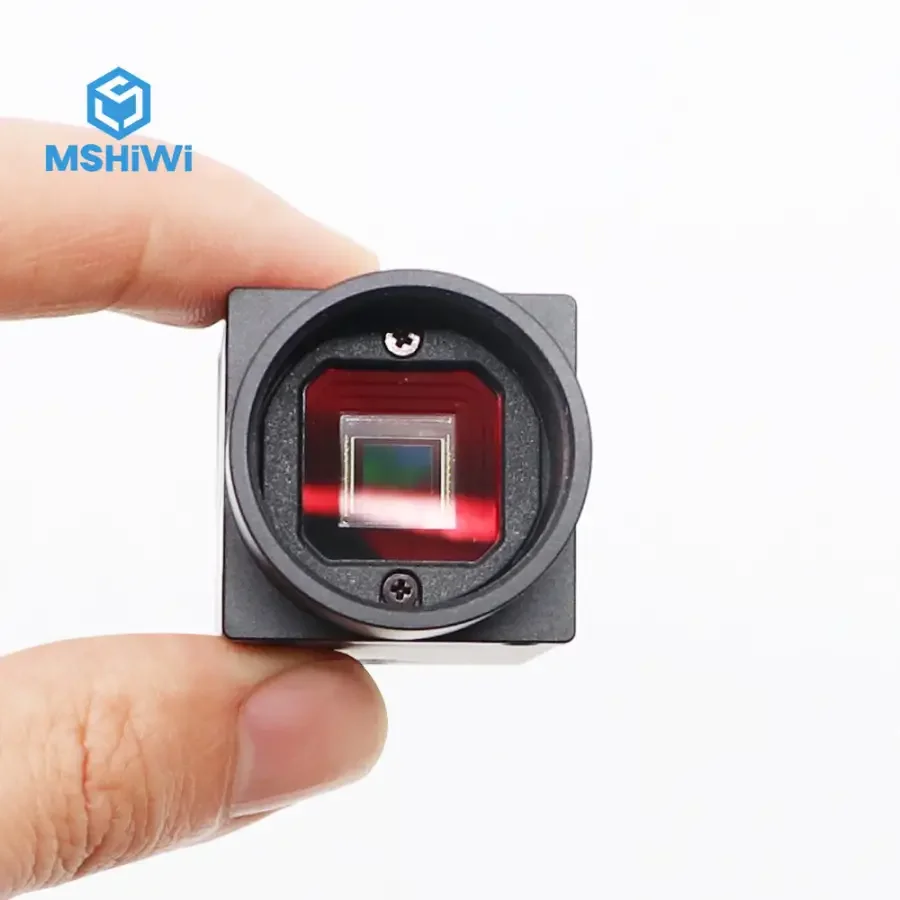

$139.65

More Images

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 2
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 3

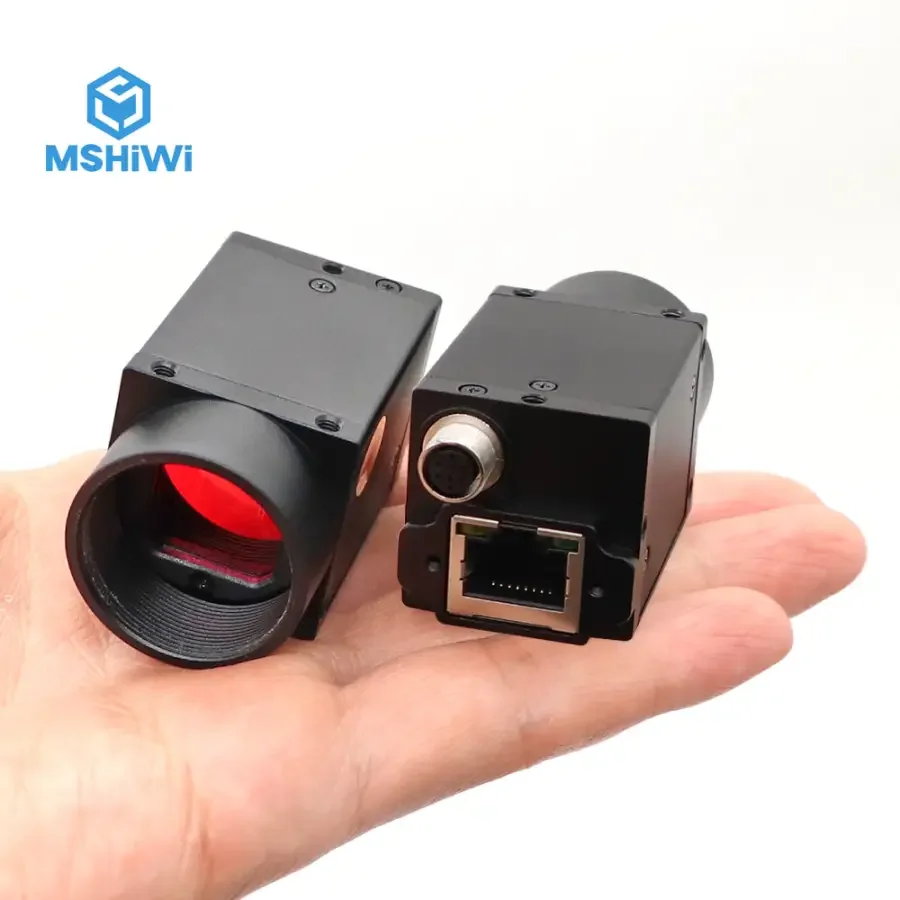

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 4
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 5
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 6
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 7

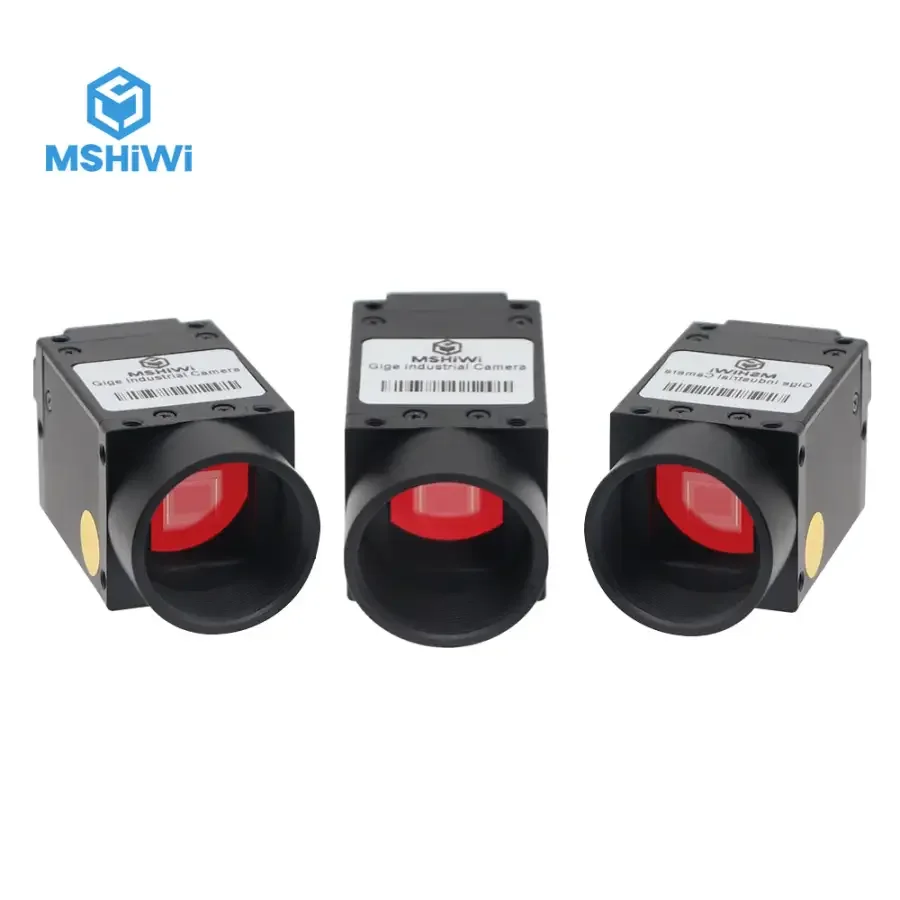

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 8
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 9

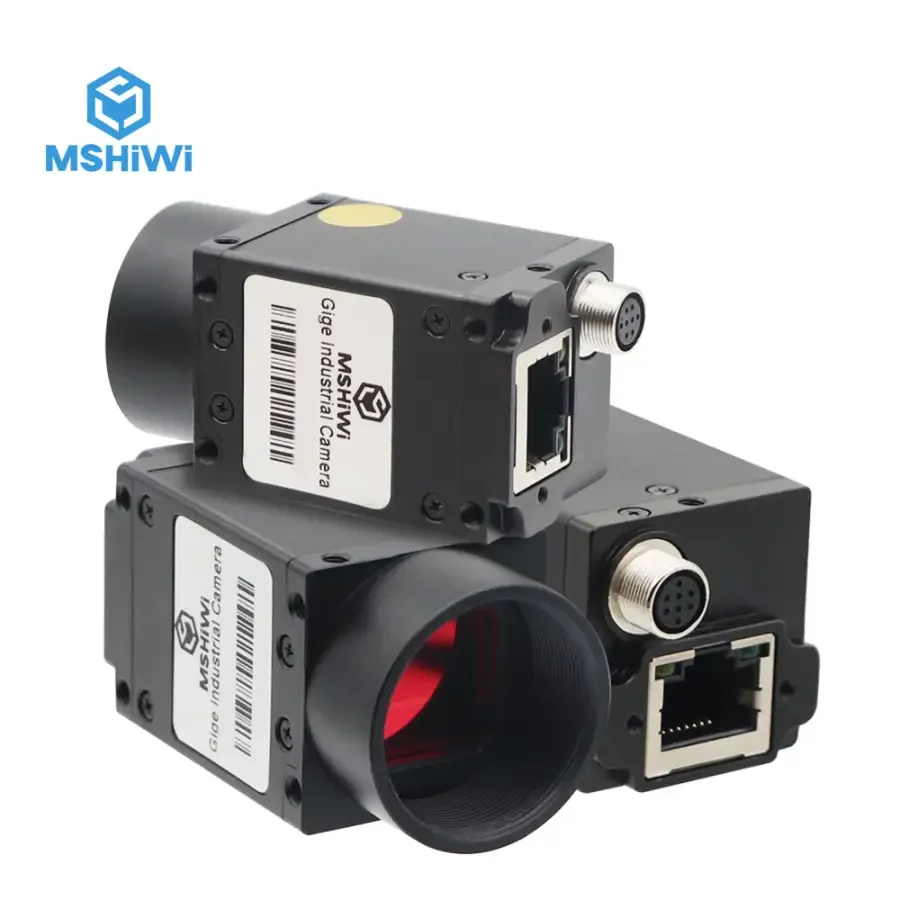

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 10
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 11
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 12
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 13

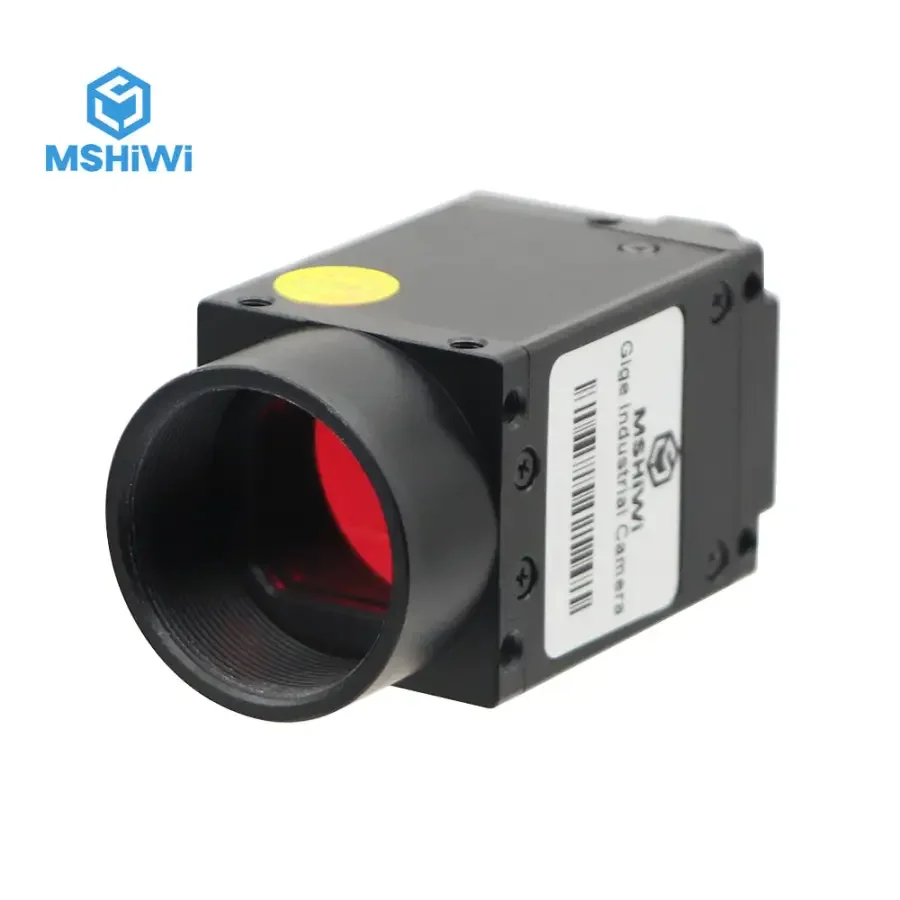

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 14
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 15
GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 16

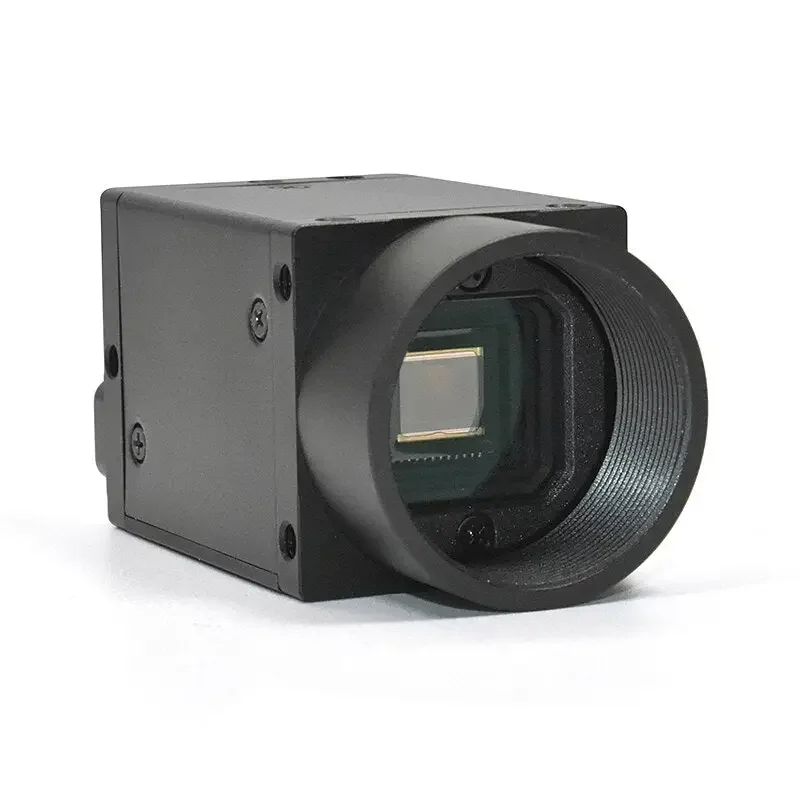

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 17

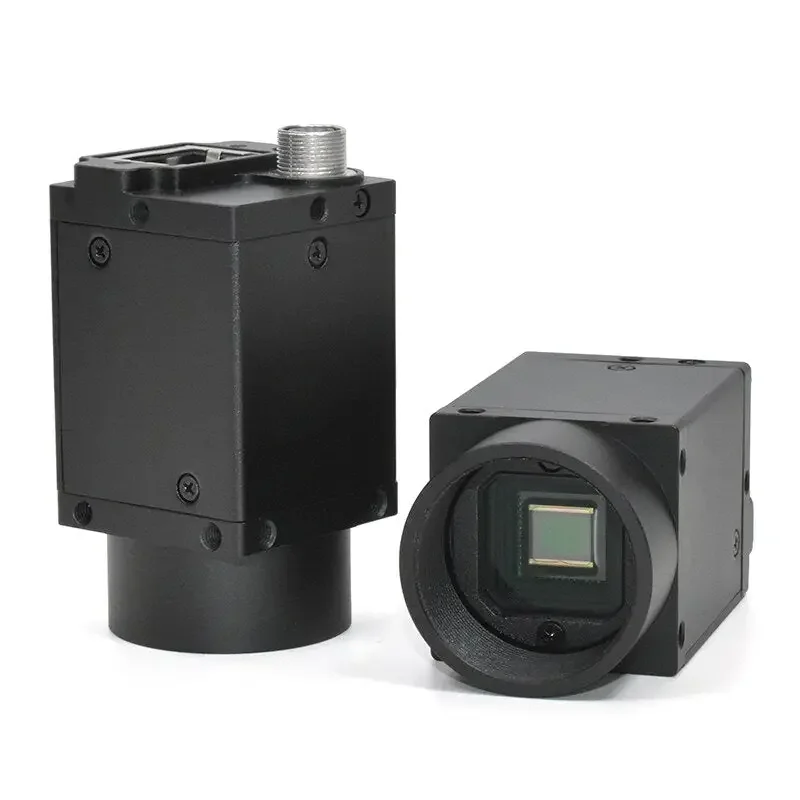

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono - Image 18
