GigE Vision Industrial Camera, 1.3MP, 1/3" CMOS, Color, Global Shutter
HomeStore

GigE Vision Industrial Camera, 1.3MP, 1/3" CMOS, Color, Global Shutter

GigE Vision Industrial Camera, 1.3MP, 1/3" CMOS, Color, Global Shutter

1.3MP GigE machine vision camera, max esolution of 1280X960 pixel, 1/3" format, 72fps maximum frame rate, global shutter type, COMS, GigE with long transmission distance, C mount for lens, professional SDK provided, cheap but best industrial camera for various detections and measurements.
1.3MP GigE Color Global Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

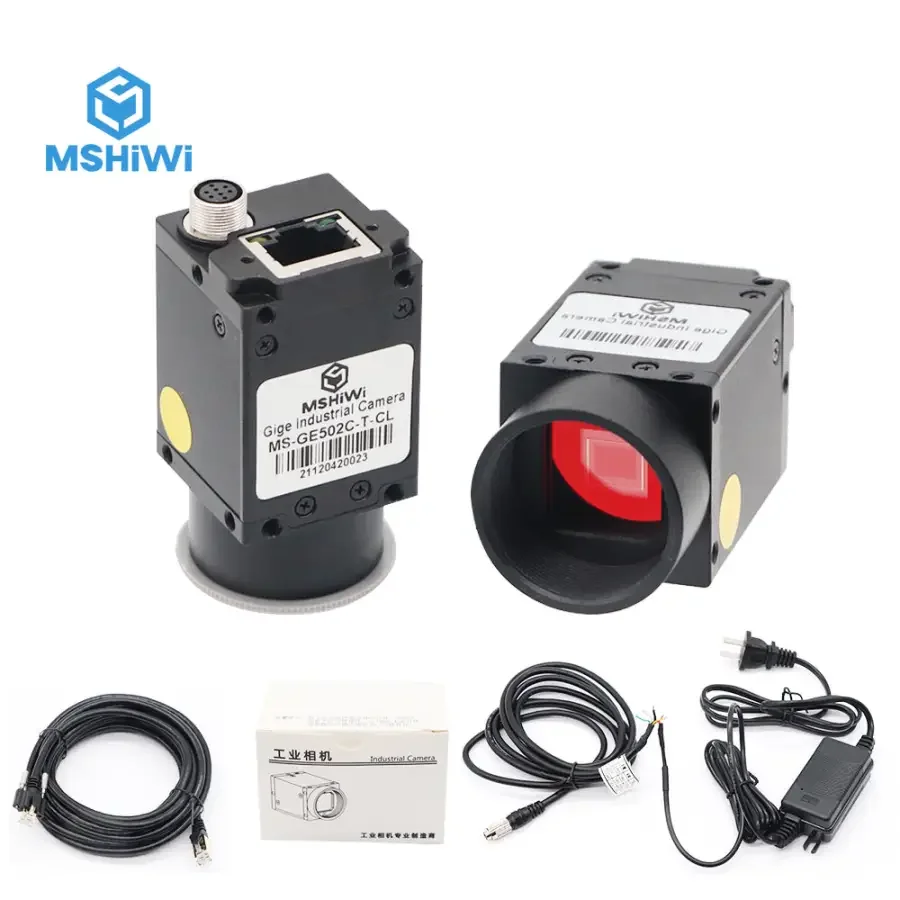

Package incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters：

Model

HT-GE131GC-T-CL

Sensor

1/3"CMOS

Shutter Type

Global Shutter

Camera Type

Color

Pixel Size

3.75X3.75Îźm

Effective Pixels

1.3 MP

Resolution @FPS



1280X960@72FPS



Pixel Bit Depth

12bit

Sensitivity

5.3V/lux-sec 550nm

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

4

Exposure Time (ms)

0.014~53

Filters

650nm Infrared Filter

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
GigE Vision Industrial Camera, 1.3MP, 1/3 CMOS, Color,
Demo Source Code:

GigE Vision Industrial Camera, 1.3MP, 1/3 CMOS, Color,

Hardware Trigger Line Sequence:

GigE Vision Industrial Camera, 1.3MP, 1/3 CMOS, Color,

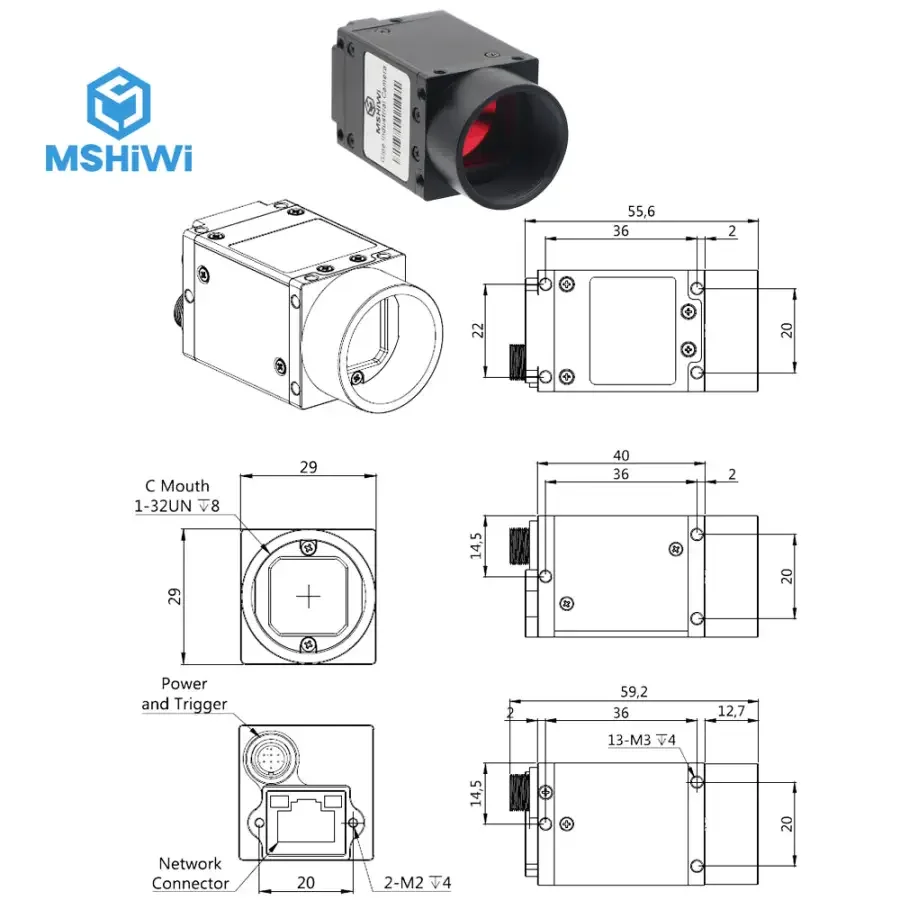

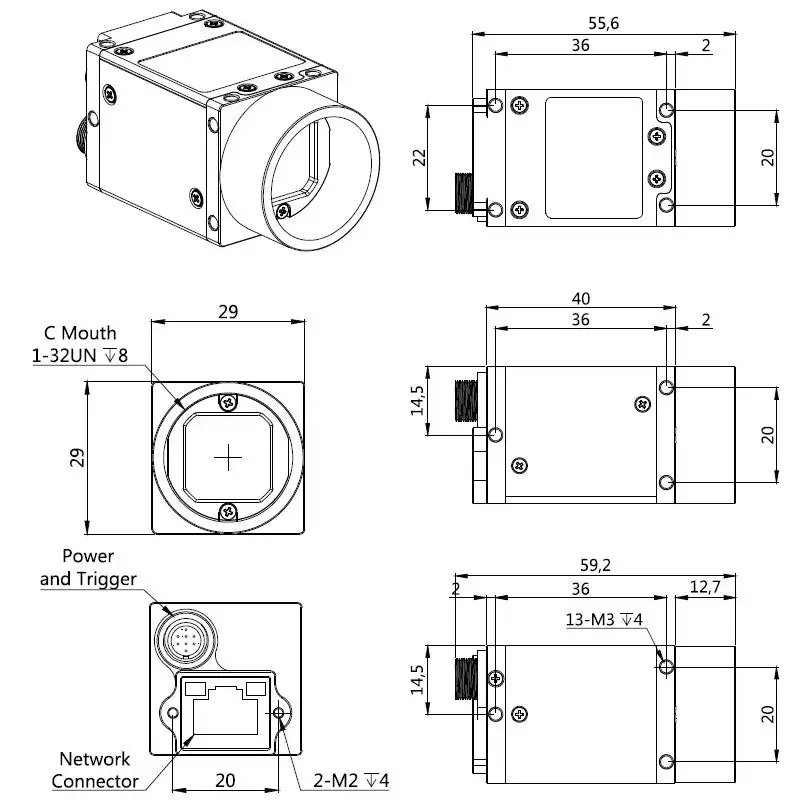

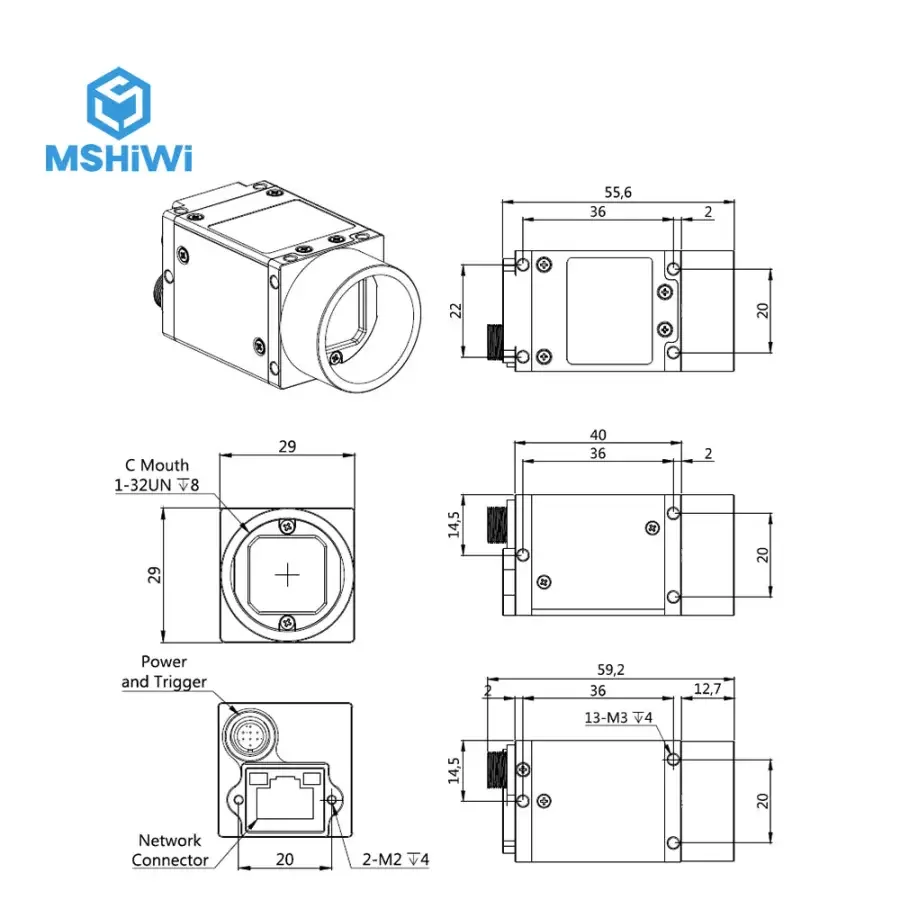

Camera Size:


GigE Vision Industrial Camera, 1.3MP, 1/3 CMOS, Color,

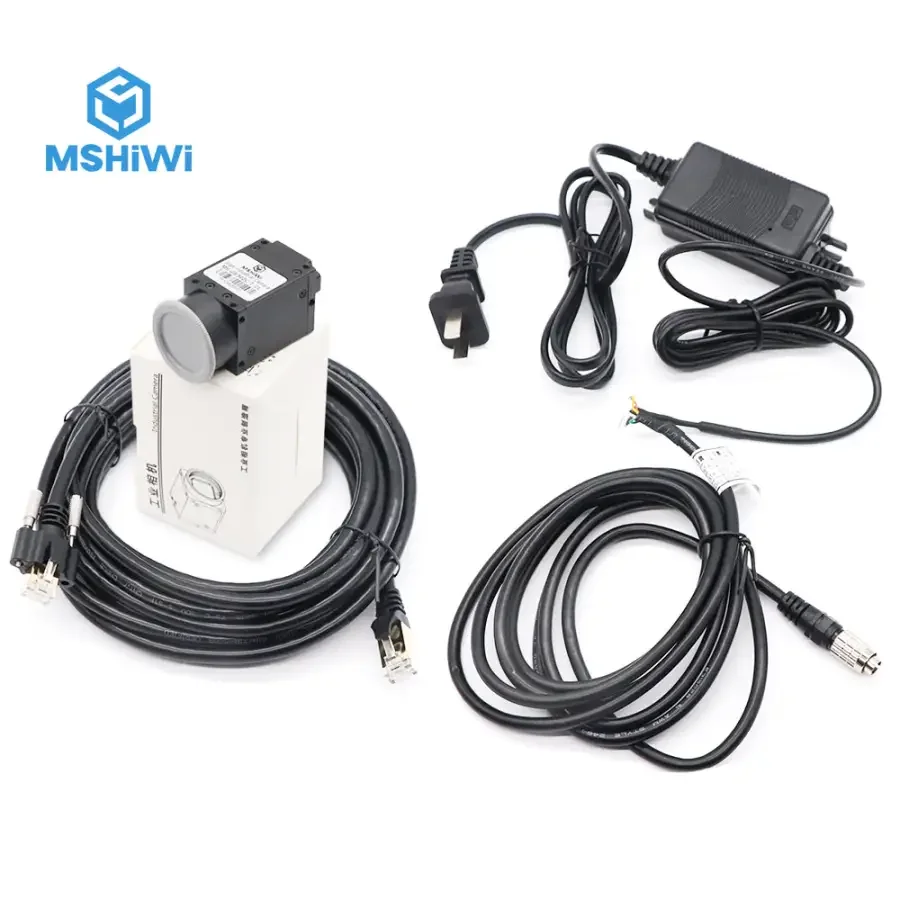

Product Packing List:


GigE Vision Industrial Camera, 1.3MP, 1/3 CMOS, Color,

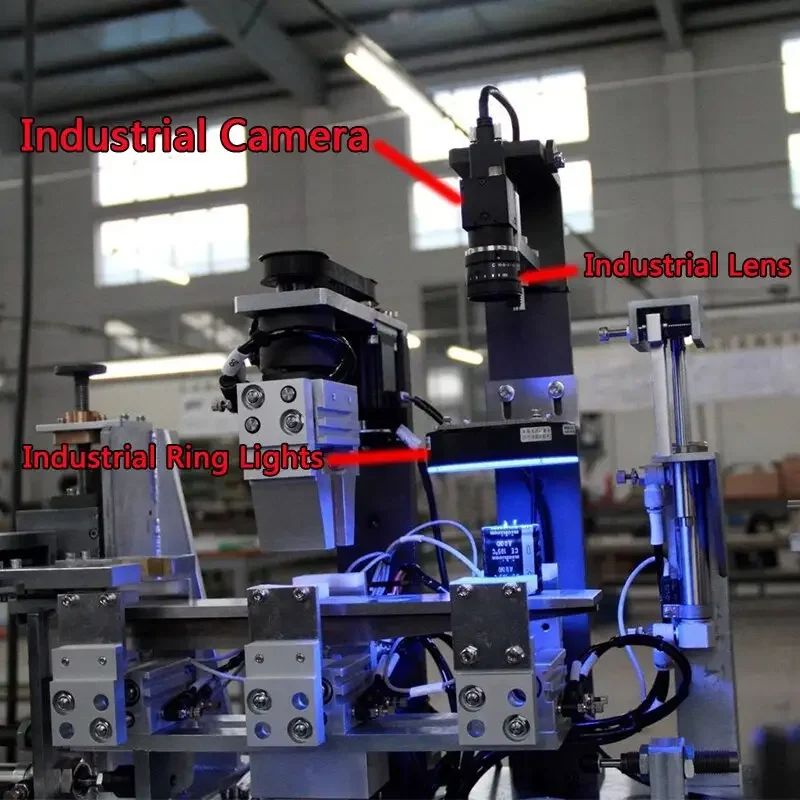

Picture Case Show:

GigE Vision Industrial Camera, 1.3MP, 1/3 CMOS, Color,
