GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS
HomeStore

GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS

GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS

1920X1200 (2.3 Megapixel), is a best choice for machine vision applications, with format 1/1.2" CMOS, 40fps maximum frame rate, Gigabit Ethernet interface, GigE vision industrial camera is a best choice for machine vision system with a resolution of 1920X1200 (2.3 Megapixel), suitable for various visual applications such as mobile phone screen detection, defect detection, electronic components manufacturing, wafer positioning applications and so on.

2.3MP GigE Color Global Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters：

Model

HT-GE231GC-T-CL

Sensor

1/1.2" CMOS

Shutter Type

Global Shutter

Camera Type

Color

Pixel Size

5.86*5.86μm

Effective Pixels

2.3 MP

Resolution @FPS



1920X1200@40FPS



Pixel Bit Depth

12bit

Sensitivity

1016mV/ 1/30s

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

64

Exposure Time (ms)

0.02~41943

Filters

650nm Infrared Filter

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
GigE Vision Industrial Camera, 2.3MP, 1/1.2 CMOS, Color,
Demo Source Code:

GigE Vision Industrial Camera, 2.3MP, 1/1.2 CMOS, Color,

Hardware Trigger Line Sequence:

GigE Vision Industrial Camera, 2.3MP, 1/1.2 CMOS, Color,

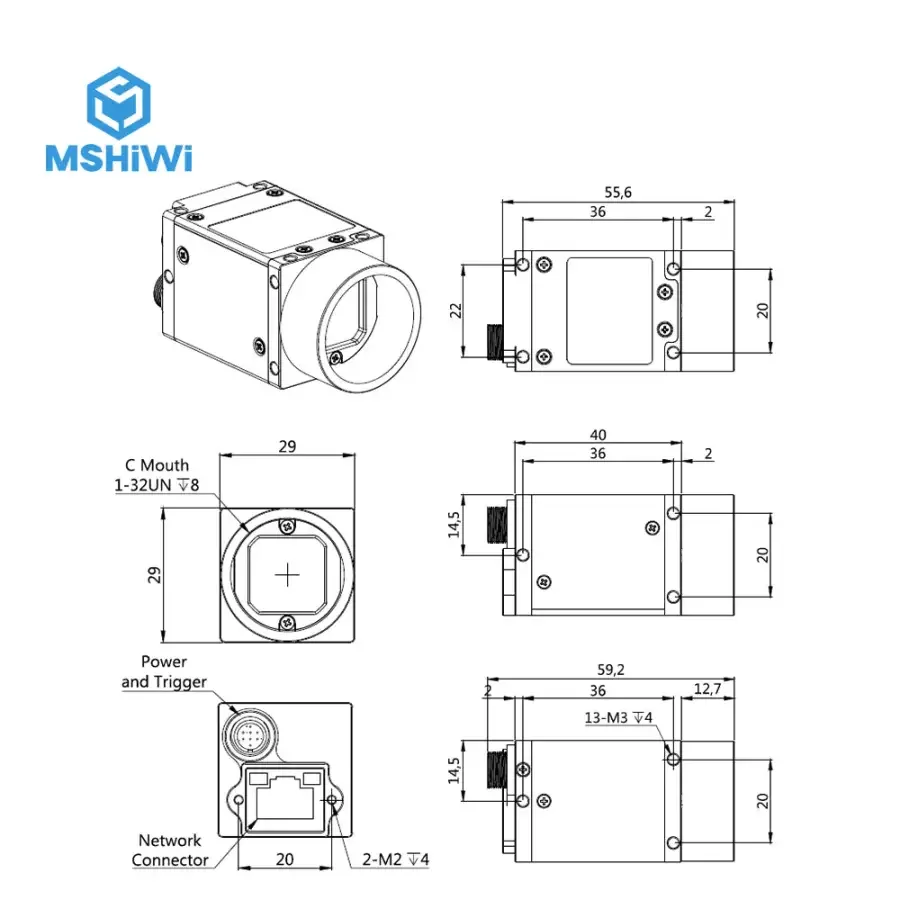

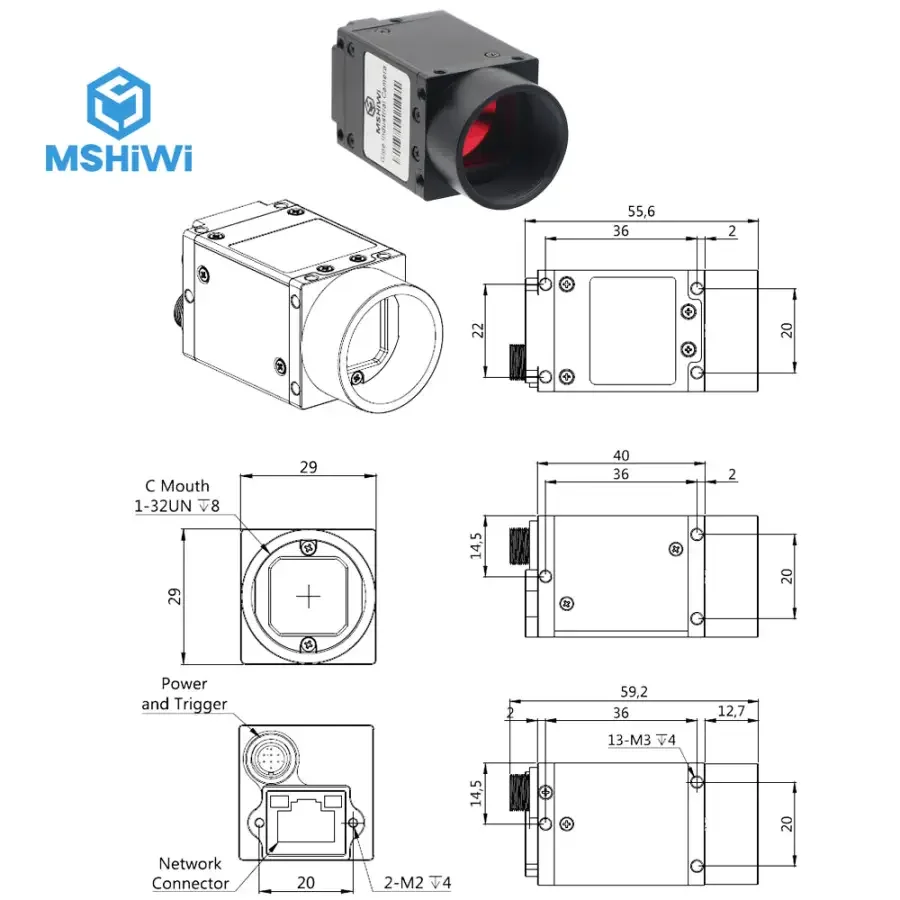

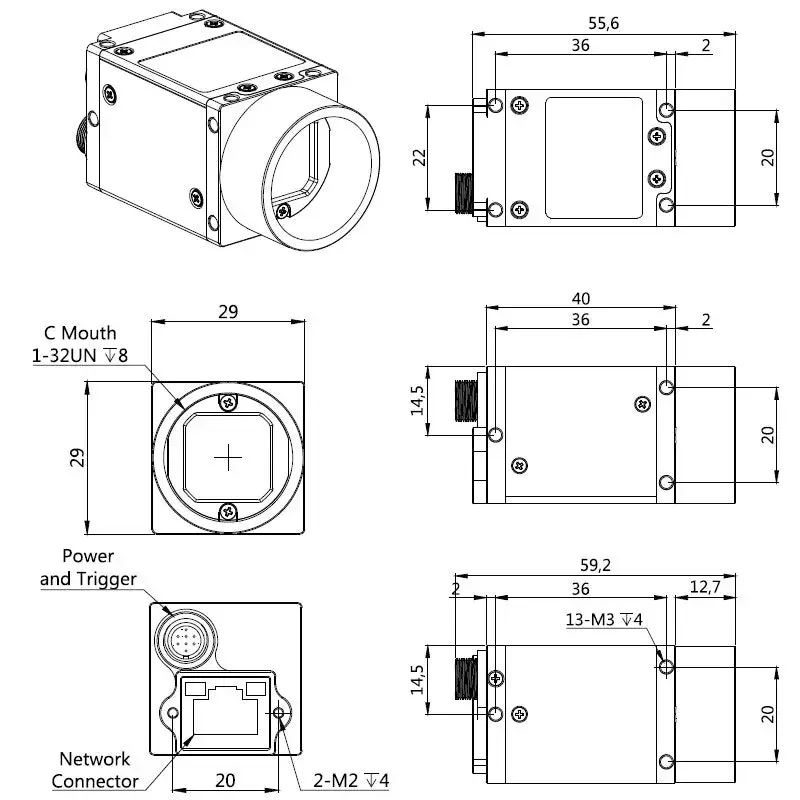

Camera Size:


GigE Vision Industrial Camera, 2.3MP, 1/1.2 CMOS, Color,

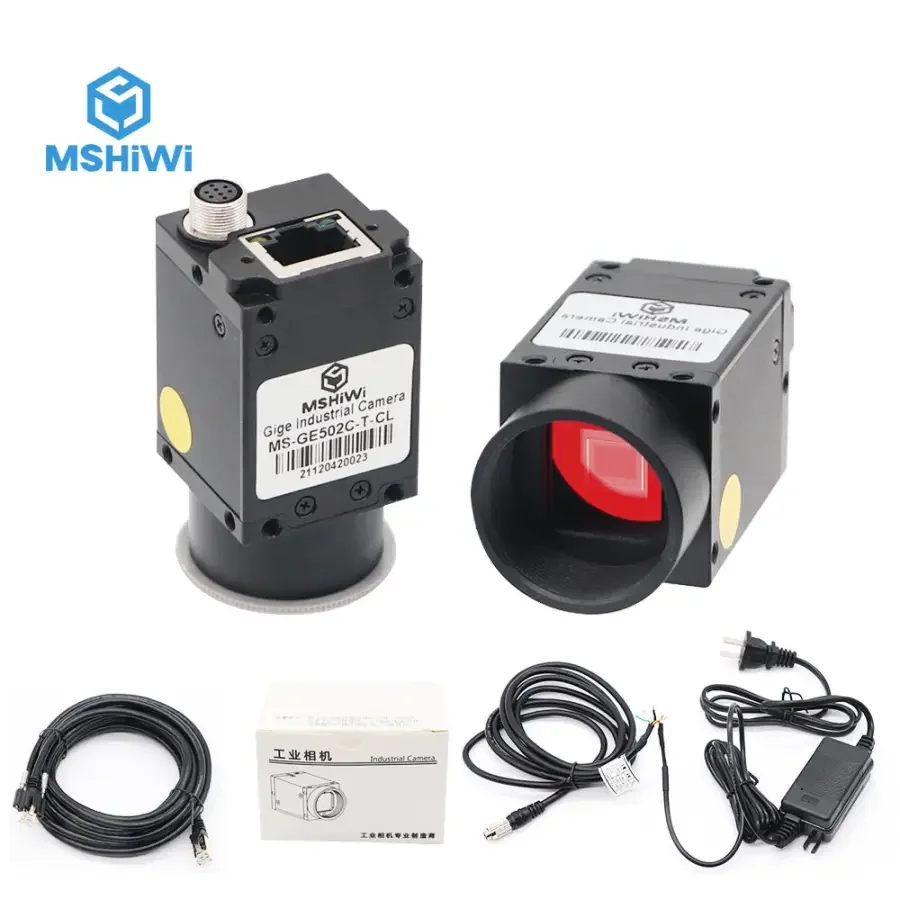

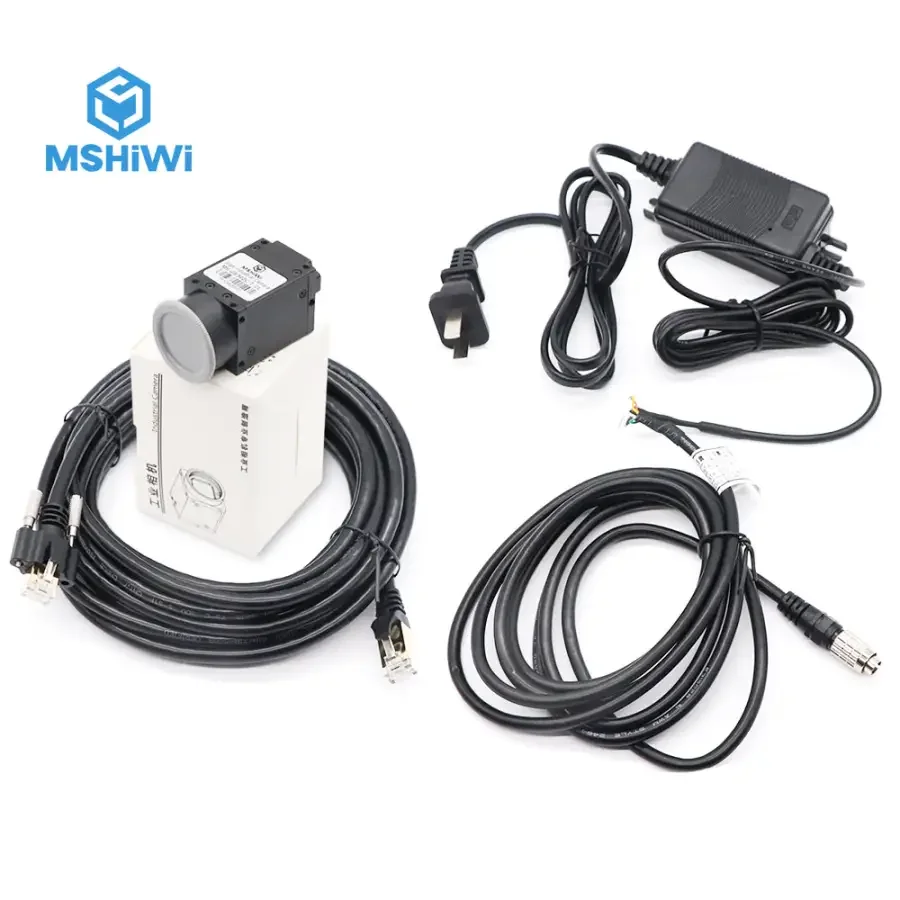

Product Packing List:


GigE Vision Industrial Camera, 2.3MP, 1/1.2 CMOS, Color,

Picture Case Show:

GigE Vision Industrial Camera, 2.3MP, 1/1.2 CMOS, Color,



Select Option
From $133.00

Original: $380.00

-65%
GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS—

$380.00

$133.00

More Images

GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS - Image 2

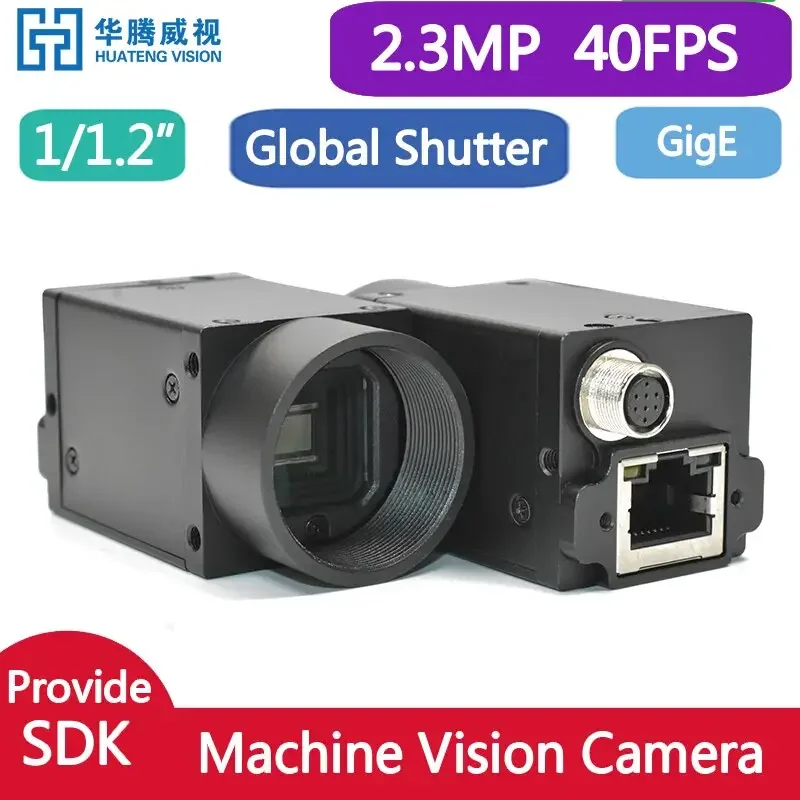

GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS - Image 3
