GigE Vision Industrial Camera 6.3MP 1/1.8"CMOS Rolling Shutter Color
HomeStore

GigE Vision Industrial Camera 6.3MP 1/1.8"CMOS Rolling Shutter Color

GigE Vision Industrial Camera 6.3MP 1/1.8"CMOS Rolling Shutter Color

Super Speed GigE vision industrial camera,Color, resolution of 3088X2064 (6.3MP), 1/1.8" CMOS, pixel size 2.4X2.4Îźm, max. frame rate 18fps, rolling shutter, optional 8/10/12-bit depth, GigE interface with long transmission distance, high cost performance, use advanced indsutrial image sensor, superior image quality and high resolution.
6.3MP GigE Color Rolling Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Feature Product:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

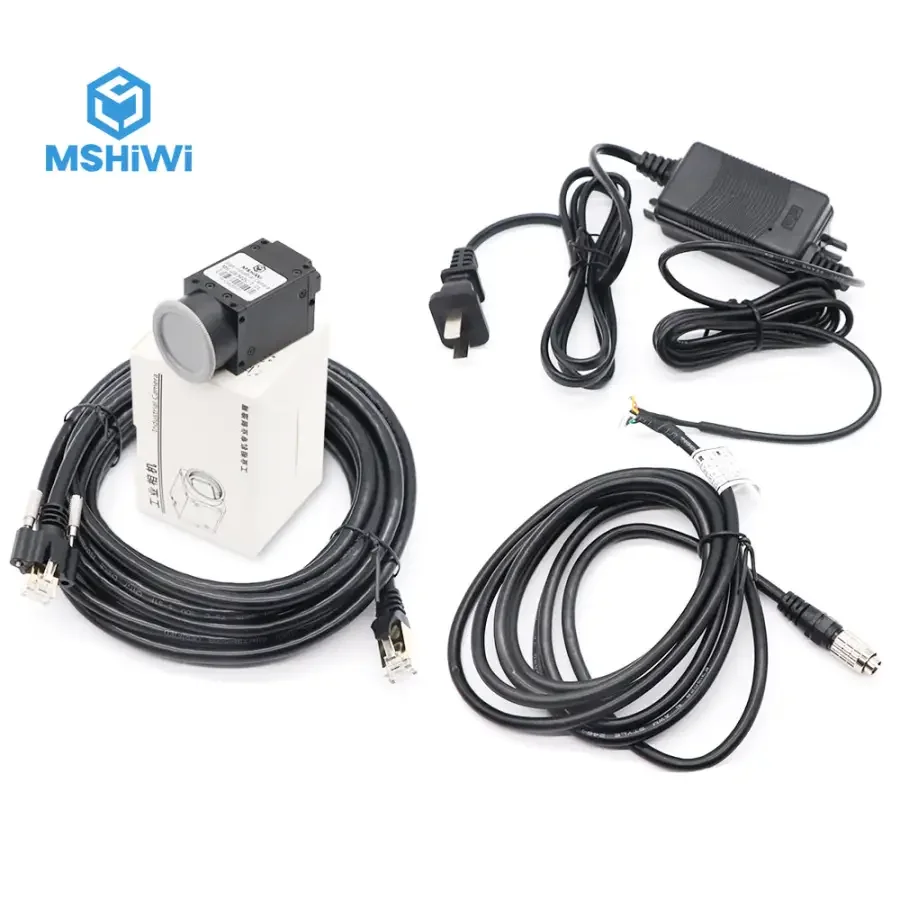

Package incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters：

Model

HT-GE630C-T-CL

Sensor

1/1.8"CMOS

Shutter Type

Rolling Shutter

Camera Type

Color

Pixel Size

2.4X2.4Îźm

Effective Pixels

6.3 MP

Resolution @FPS

3088X2064@18FPS

2592X1944@23FPS

1280X1024@89FPS  640X480@197FPS

Pixel Bit Depth

12bit

Sensitivity

425mV 1/30s

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

32

Exposure Time (ms)

0.025~3612

Filters

650nm Infrared Filter

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.

GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling

GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling


Demo Source Code:

GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling

Hardware Trigger Line Sequence:

GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling

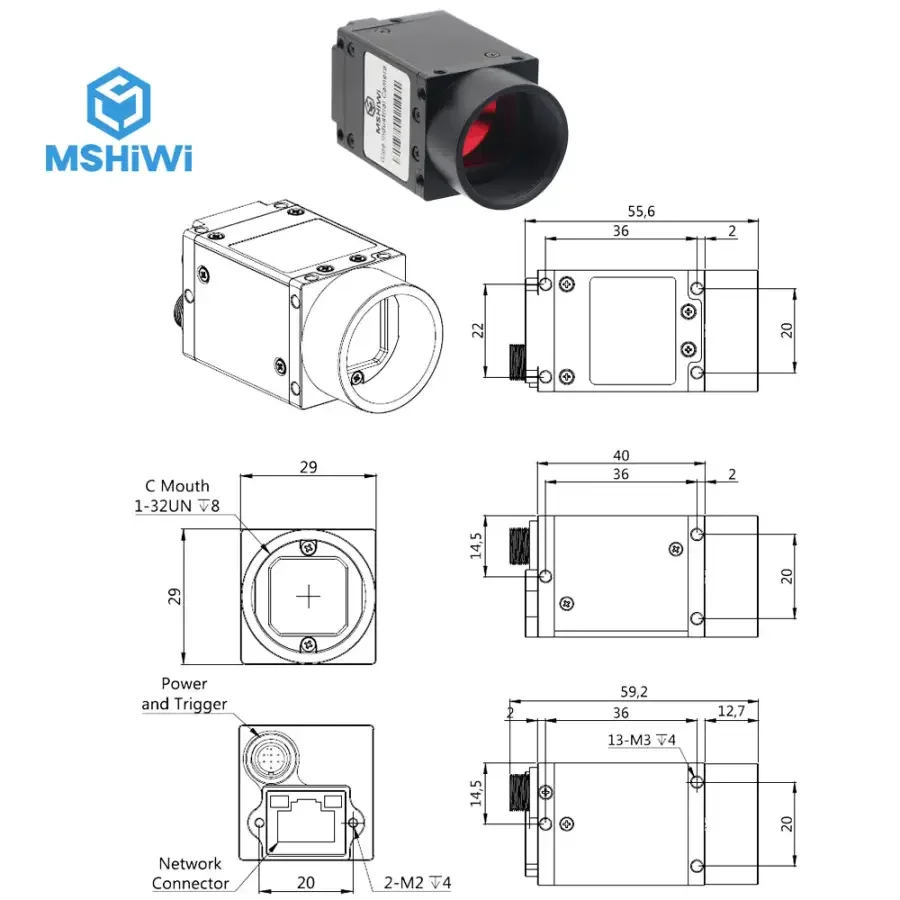

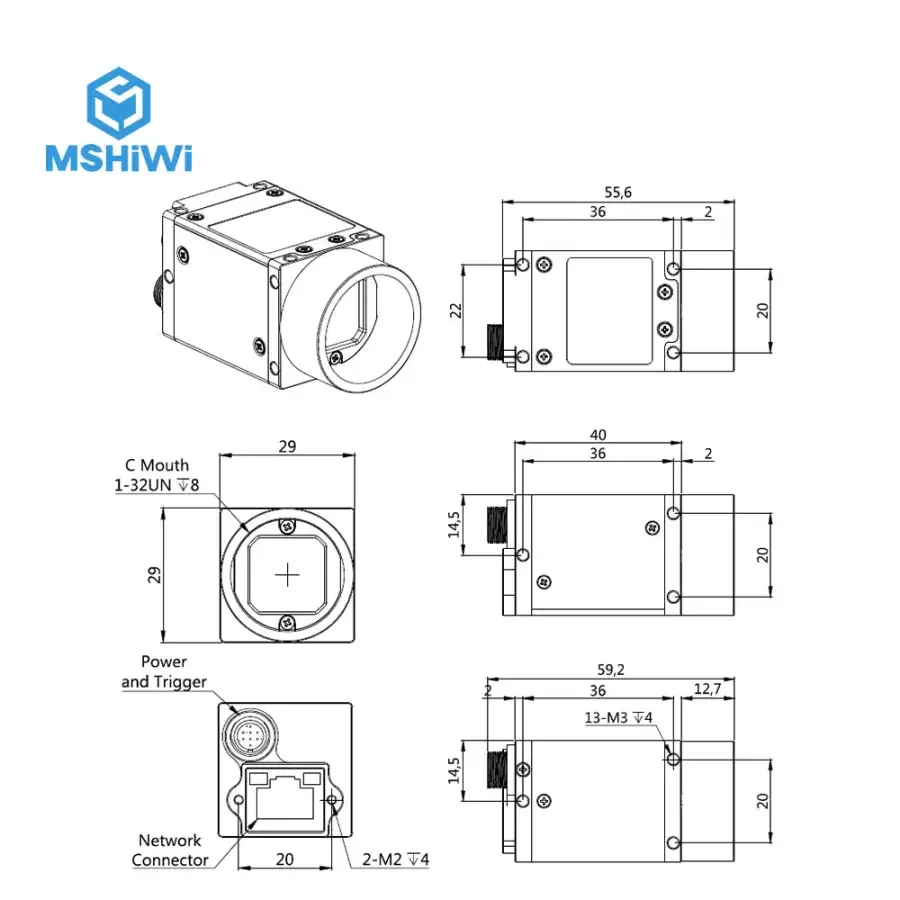

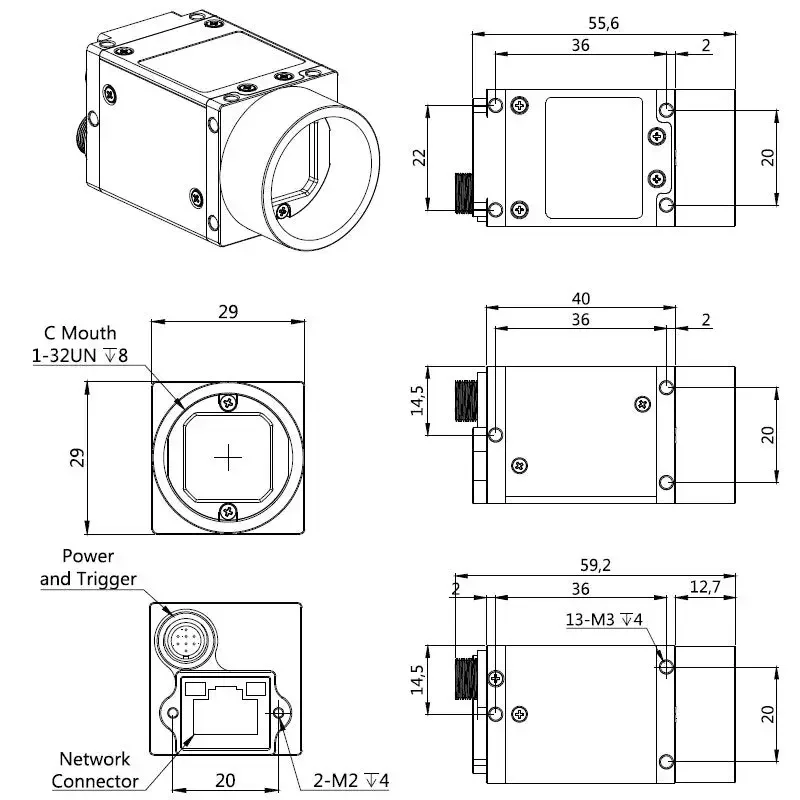

Camera Size:


GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling

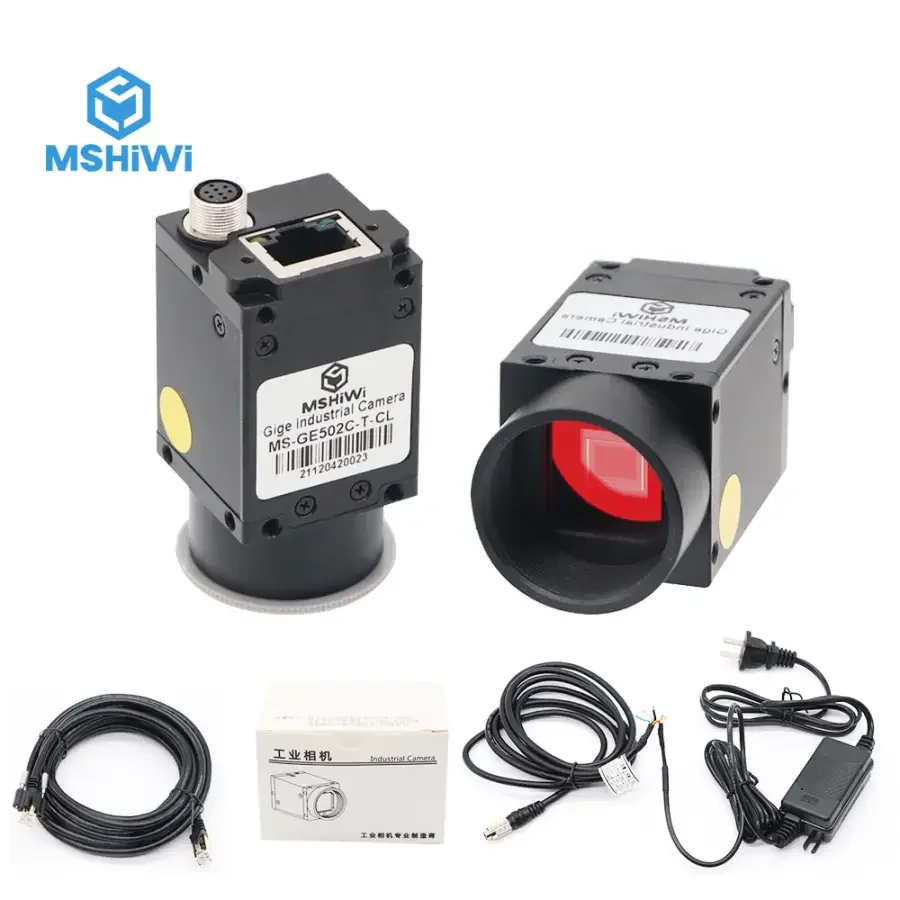

Product Packing List:


GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling

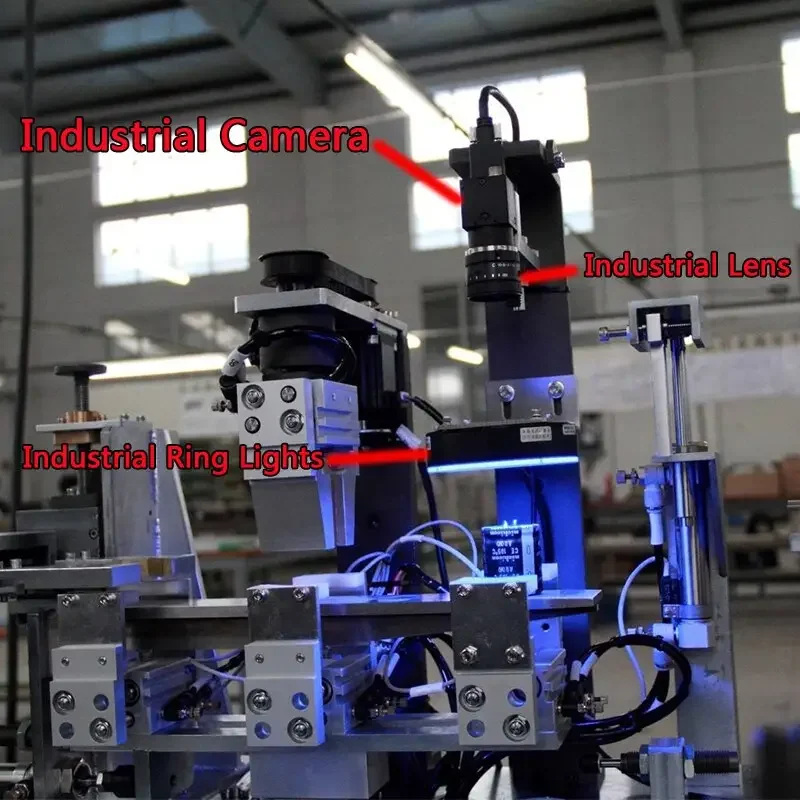

Picture Case Show:

GigE Vision Industrial Camera 6.3MP 1/1.8CMOS Rolling
