GigE Vision Industrial Cameras, 1/3" CMOS, 0.36 MP, Global Shutter

GigE vision industrial camera, Monochrome, resolution of 752X480 (0.36MP), 1/3" CMOS, pixel size 6.0μm x 6.0μm, max. frame rate 249fps, Global shutter, optional 8-bit, 10-bit or 12-bit depth, GigE interface with long transmission distance, high cost performance, use advanced indsutrial image sensor, superior image quality and high resolution.

GigE Series Features:

1) Support 100 meters transmission or POE (optional).

2) Compatible with gige vision standard.

3) With hardware image processing acceleration.

4) Support multiple cameras to work at the same time.

5) Data packet retransmission technology to ensure reliable data transmission.

6) Provide SDK, easy to use and convenient.

7) Support external trigger and flash.

8) SDK supports Windows and Linux systems.

9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:

1) Camera parameter archive is saved as a file.

2) Camera name can be modified to easily distinguish multiple cameras.

3) With a maximum of 16K bytes of data storage.

4) Support 8bit, 24bit, 32bit image format output.

5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Include:

1 x Industrial Camera (No Include Lens)

1 x Trigger line

1 x 5 Meters Gigabit Ethernet Cable

1 x 12V Power Supply

Industrial Camera Parameters:

Model	HT-GE31GM-T-CL
Sensor	1/3" CMOS
Shutter Type	Global Shutter
Camera Type	Monochrome
Pixel Size	6.0X6.0μm
Effective Pixels	0.36 MP
Resolution @FPS	752X480@108FPS
	640X480@124FPS
	320X240 @249FPS
Pixel Bit Depth	12bit
Sensitivity	4.8V/lux-sec 550nm
GPIO	6-pin Hirose Connector
Acquisition	Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple)	4
Exposure Time (ms)	0.065~57
Filters	NONE
Frame Buffer	32M Bytes
Custom Data	2K Bytes
Video Output Format	Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
Visual Standard Protocol	GigE Vision 、GenICam
Lens Interface	C Mouth
Data Interface	RJ45 Gigabit Ethernet interface
Power Supply	12V(Optional POE Power Supply)
Power	<2.5W
Dimensions	29(mm)X29(mm)X40(mm)
Weight	< 75g
Operating Temperature	0~50 Degrees
Operating System	Support WIN7/8/10 32&64 System; PC Linux System
Driver	Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions	Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.

Machine Vision Software:

Support Halcon, OpenCV, LabView, Matlab, Python, etc.

Demo Source Code:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

Hardware Trigger Line Sequence:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

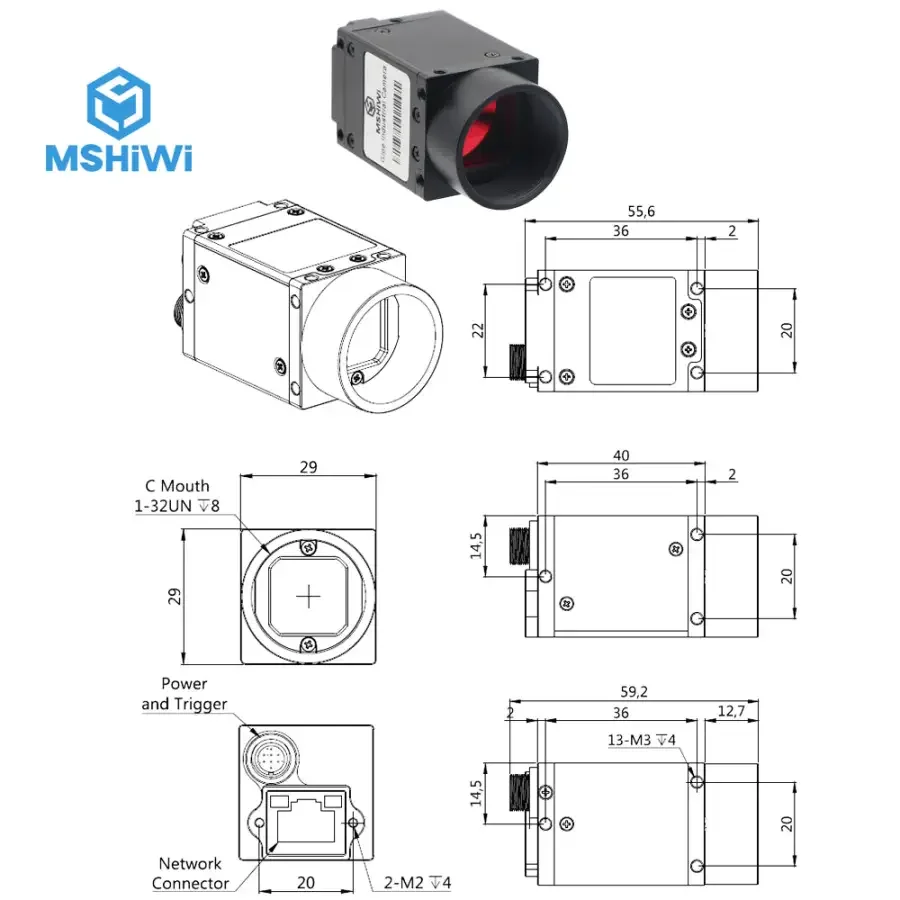

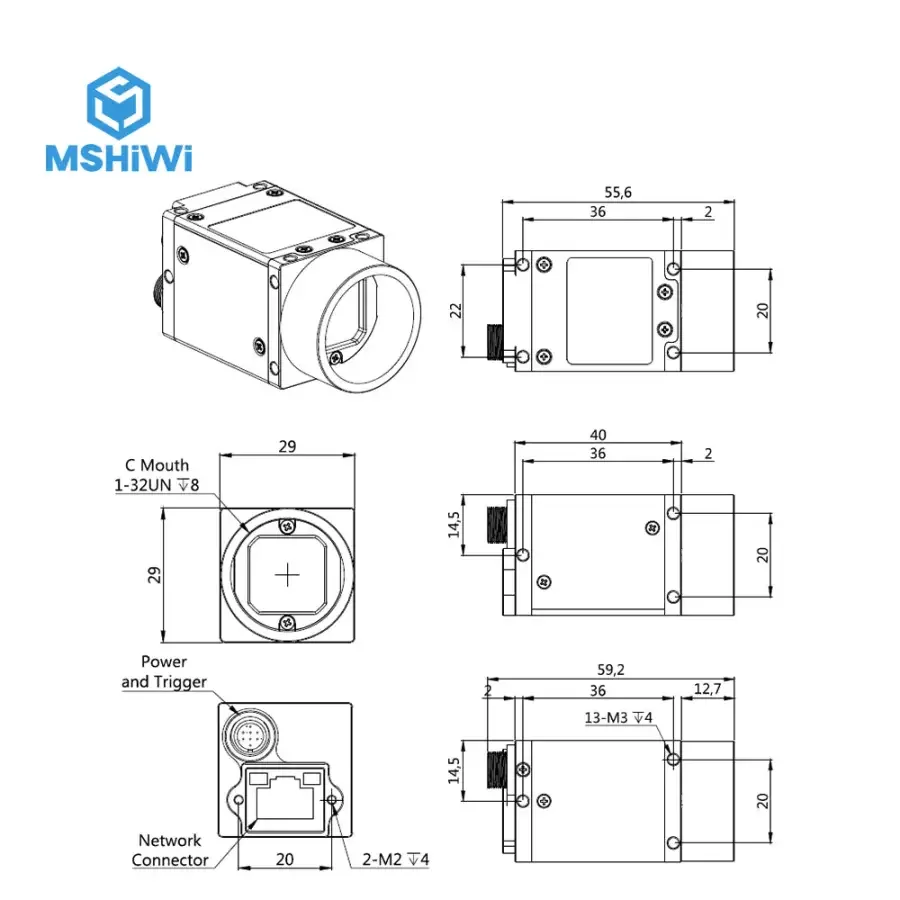

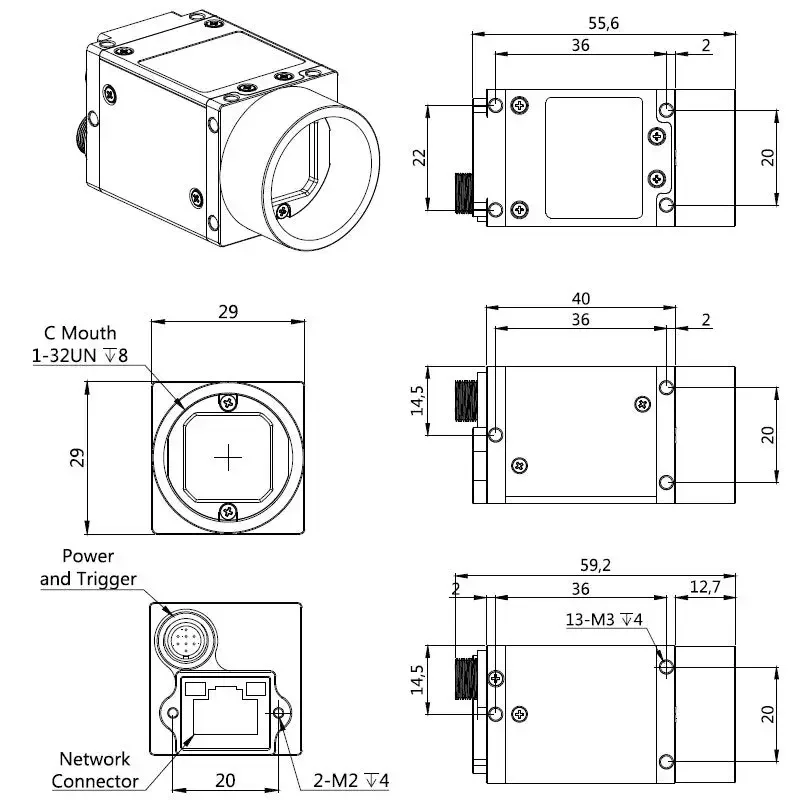

Camera Size:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

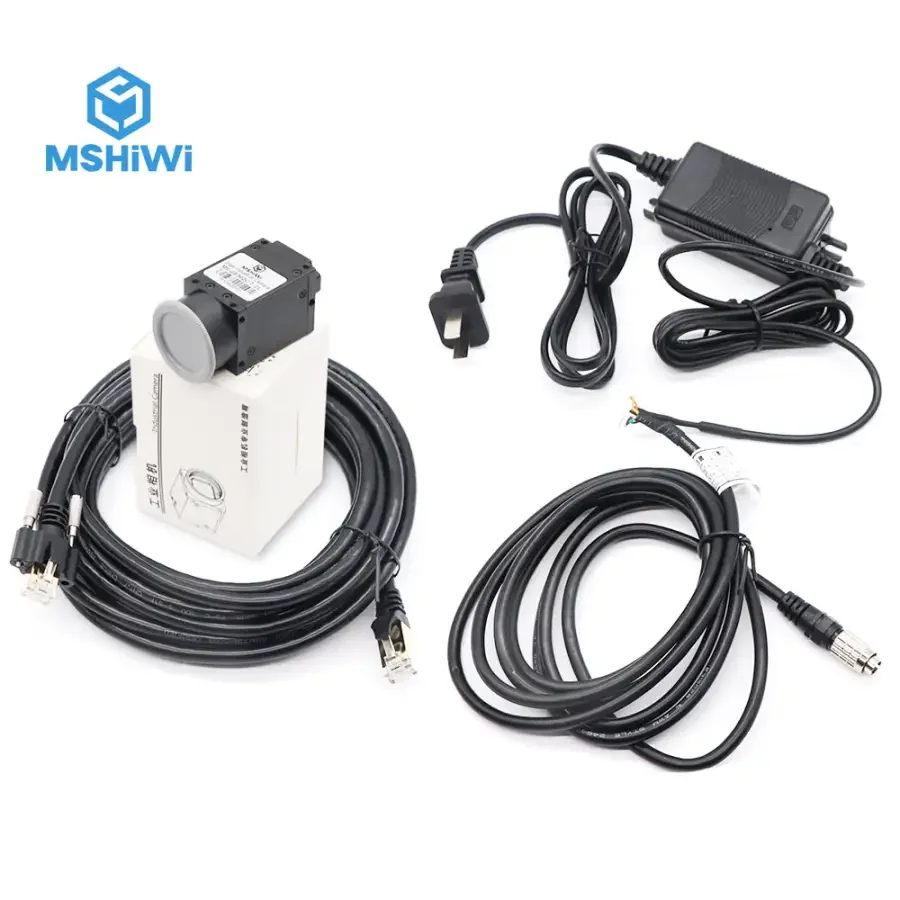

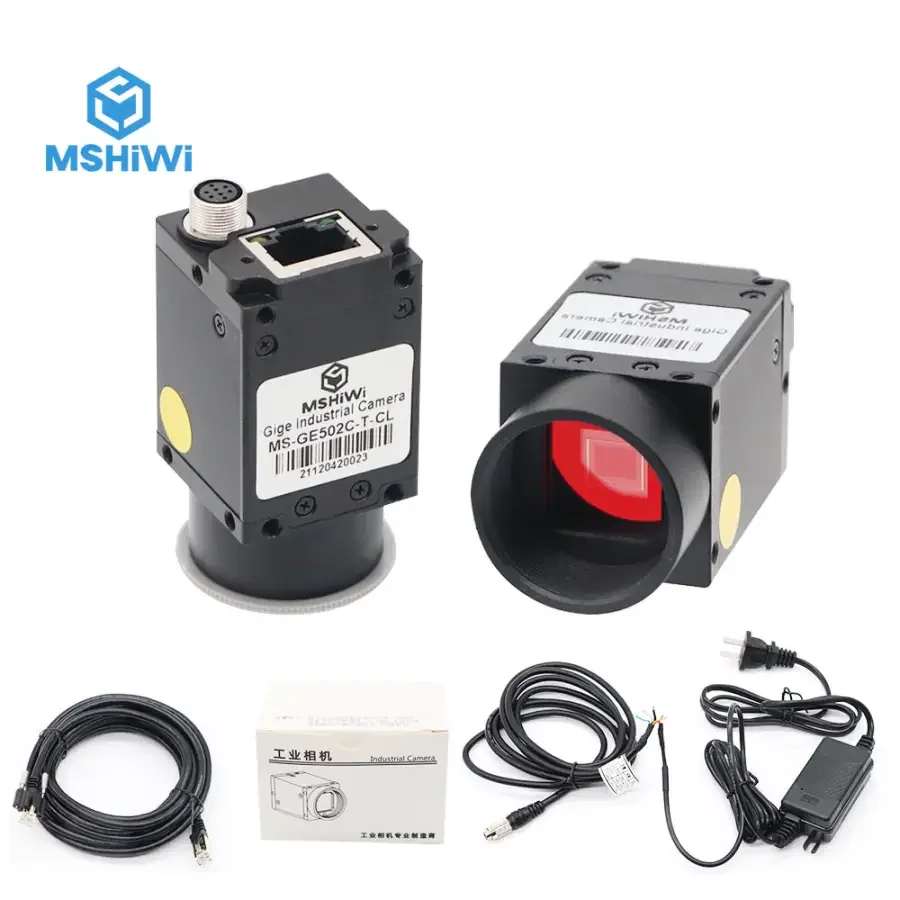

Product Packing List:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

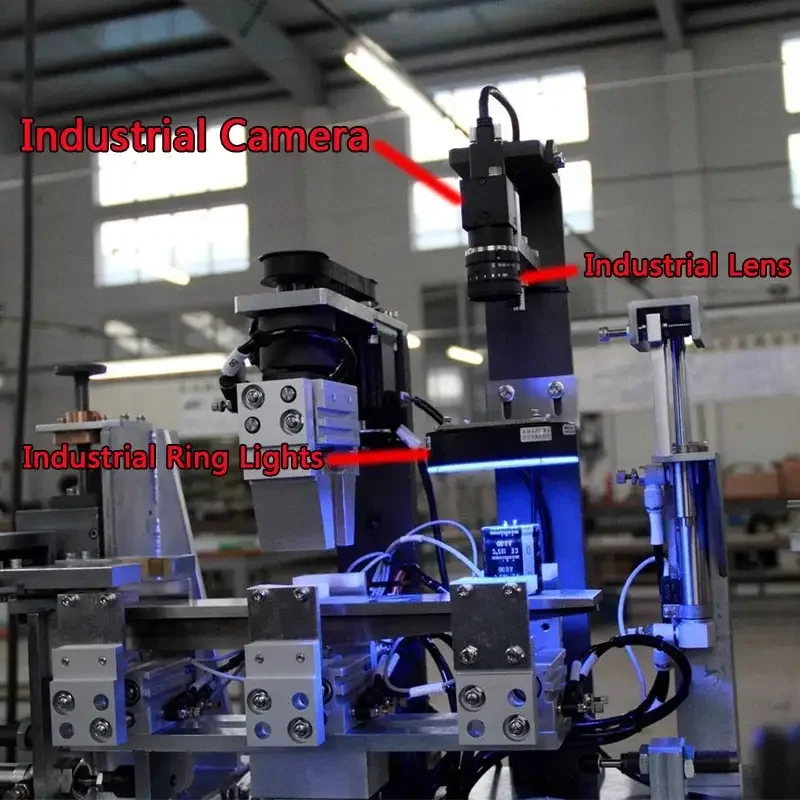

Picture Case Show:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global
