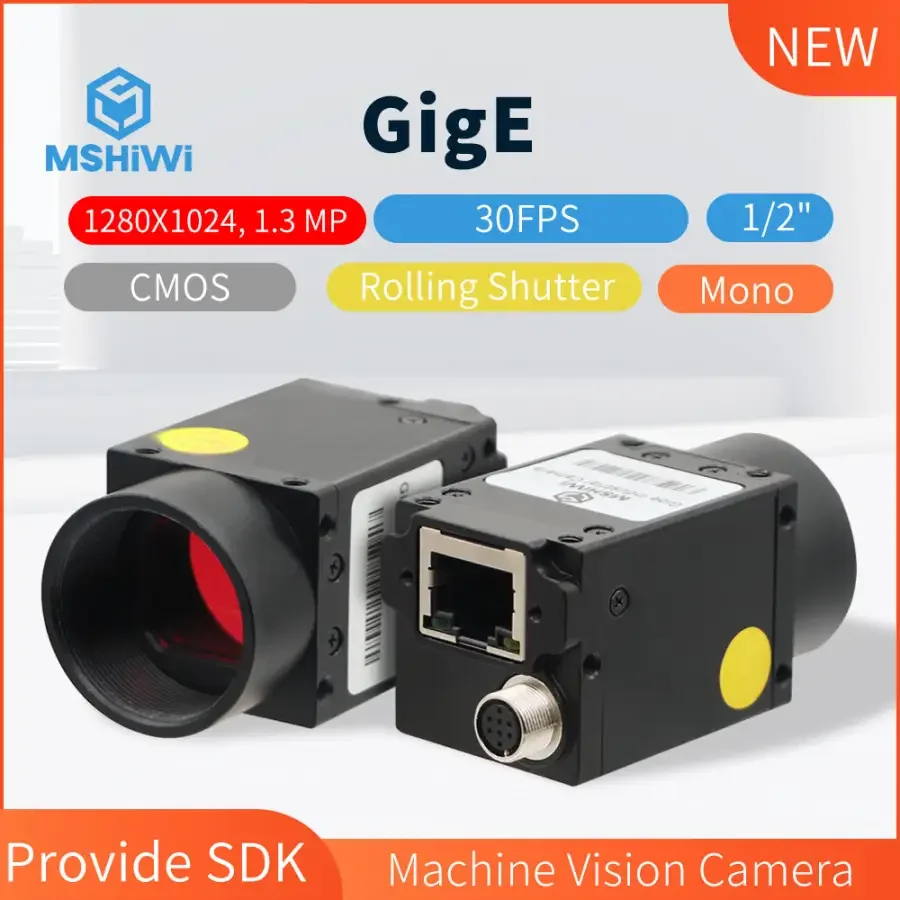

Industrial GigE Vision Camera 1.3MP, 1/2" CMOS, Mono, Rolling Shutter
HomeStore

Industrial GigE Vision Camera 1.3MP, 1/2" CMOS, Mono, Rolling Shutter

Industrial GigE Vision Camera 1.3MP, 1/2" CMOS, Mono, Rolling Shutter

high-speed GigE vision industrial camera for Automated Inspection Measuring, resolution of 1280X1024 (1.3 Megapixel), 1/2" CMOS, pixel size 5.2μm*5.2μm, max. frame rate 30fps, Monochrome, rolling shutter, optional 8-bit, 10-bit depth, GigE interface with long transmission distance, high cost performance, use advanced indsutrial image sensor, superior image quality and high resolution.
1.3MP GigE Monochrome Rolling Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters：

Model

HT-GE130M-T-CL

Sensor

1/2" CMOS

Shutter Type

Rolling Shutter

Camera Type

Monochrome

Pixel Size

5.2X5.2μm

Effective Pixels

1.3 MP

Resolution @FPS

1280X1024@30FPS

640X480@104FPS

1280X1 @1750FPS

Pixel Bit Depth

10bit

Sensitivity

2.1V/lux-sec 550nm

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

15

Exposure Time (ms)

0.032~524

Filters

650nm Infrared Filter

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
Industrial GigE Vision Camera 1.3MP, 1/2 CMOS, Mono, Rolling
Demo Source Code:

Industrial GigE Vision Camera 1.3MP, 1/2 CMOS, Mono, Rolling

Hardware Trigger Line Sequence:

Industrial GigE Vision Camera 1.3MP, 1/2 CMOS, Mono, Rolling

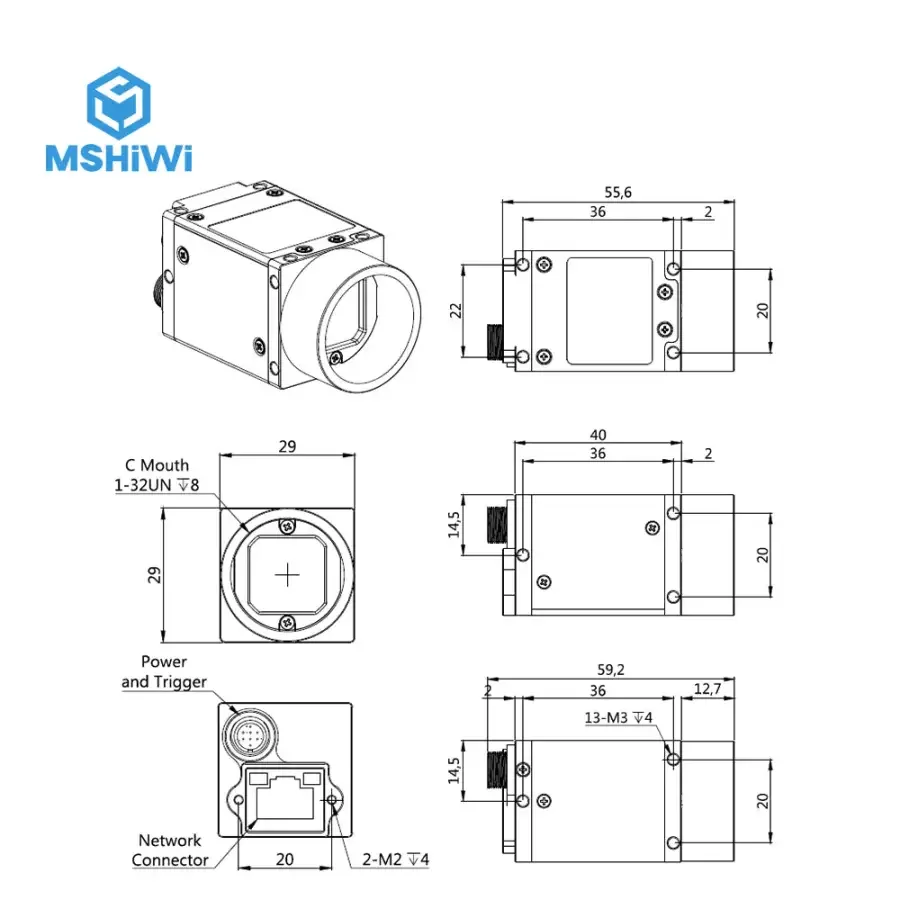

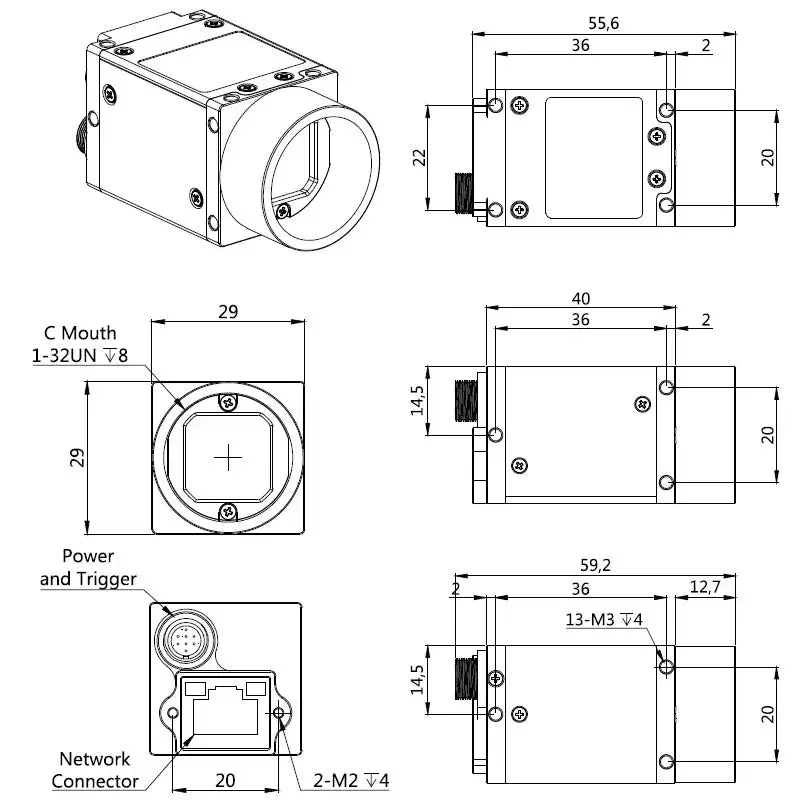

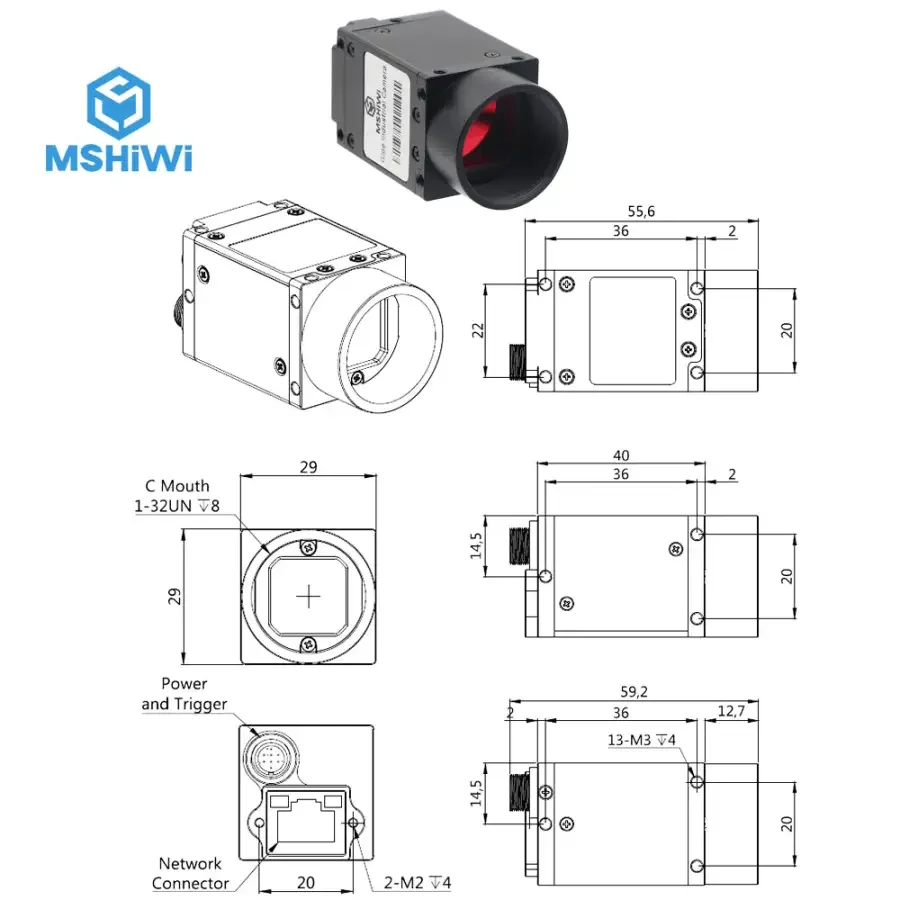

Camera Size:


Industrial GigE Vision Camera 1.3MP, 1/2 CMOS, Mono, Rolling

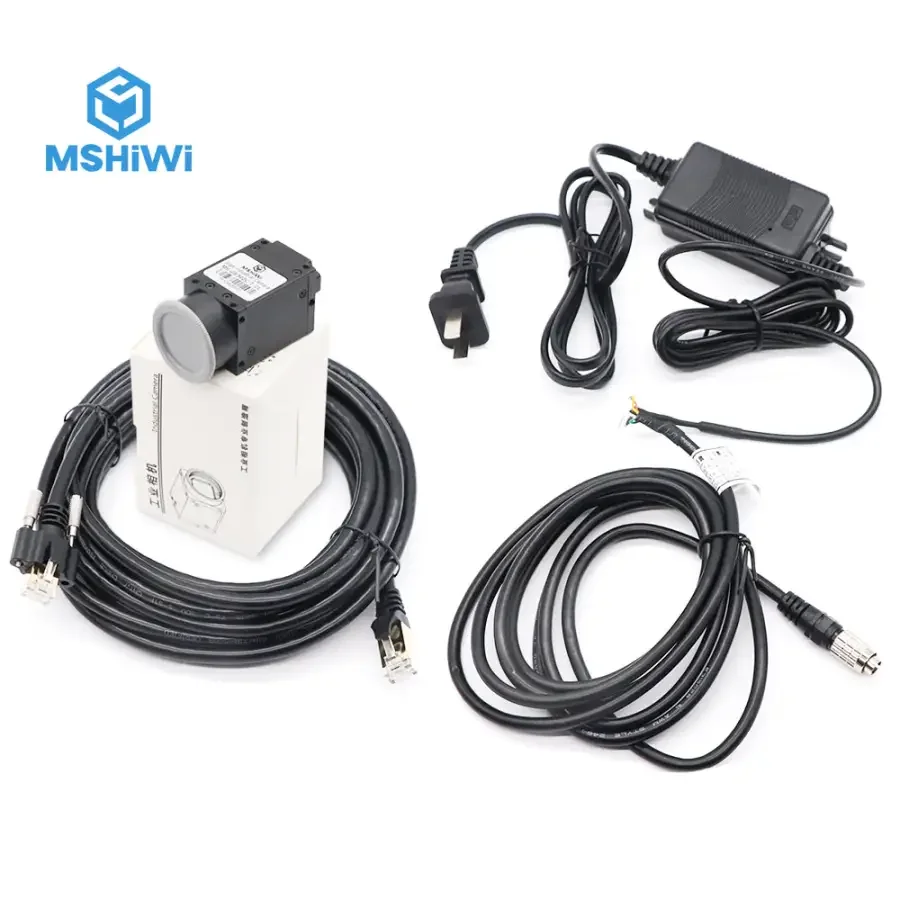

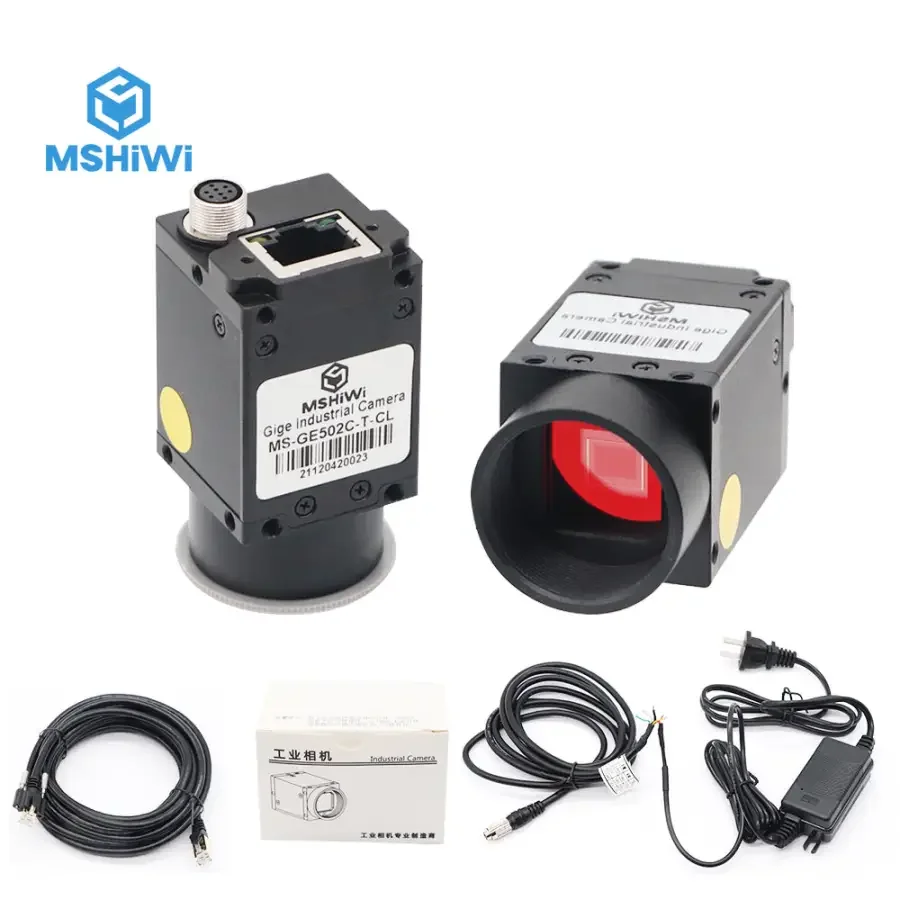

Product Packing List:


Industrial GigE Vision Camera 1.3MP, 1/2 CMOS, Mono, Rolling

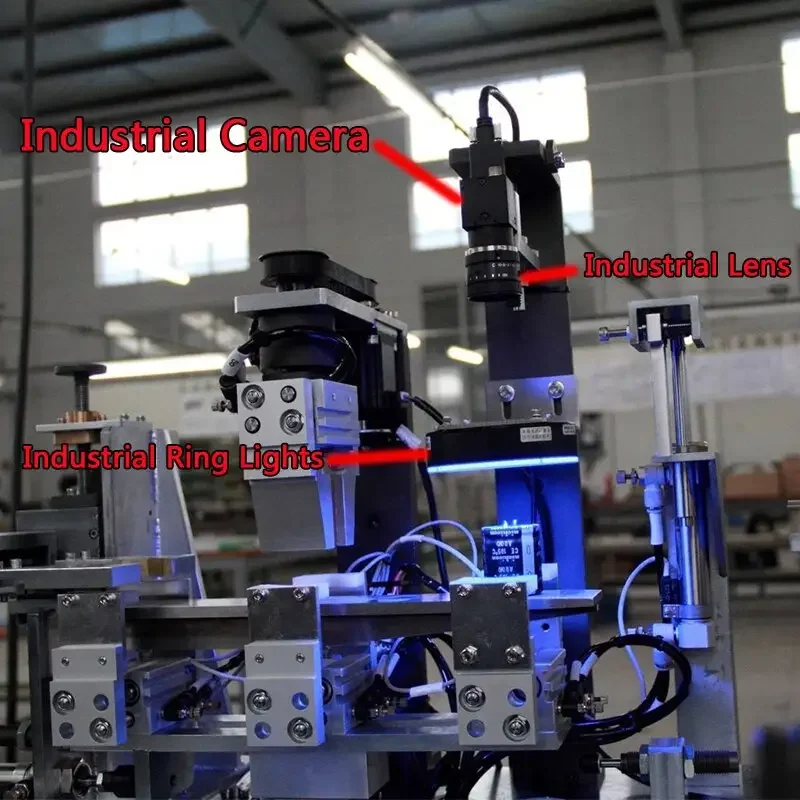

Picture Case Show:

Industrial GigE Vision Camera 1.3MP, 1/2 CMOS, Mono, Rolling
