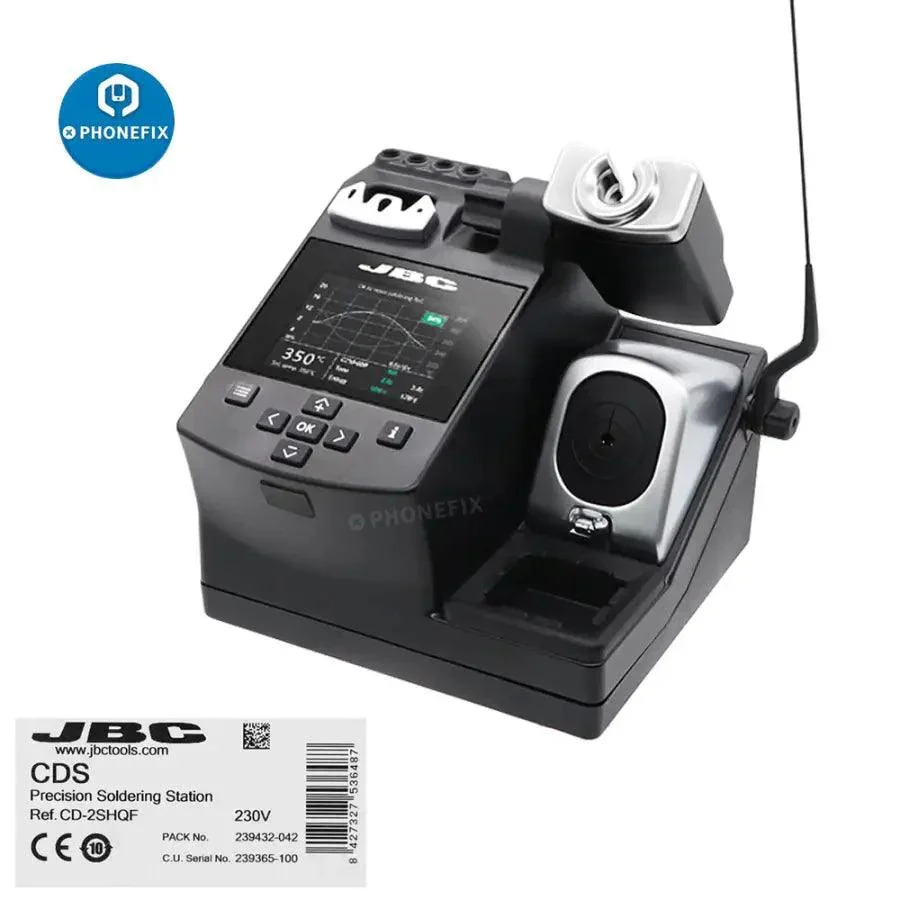

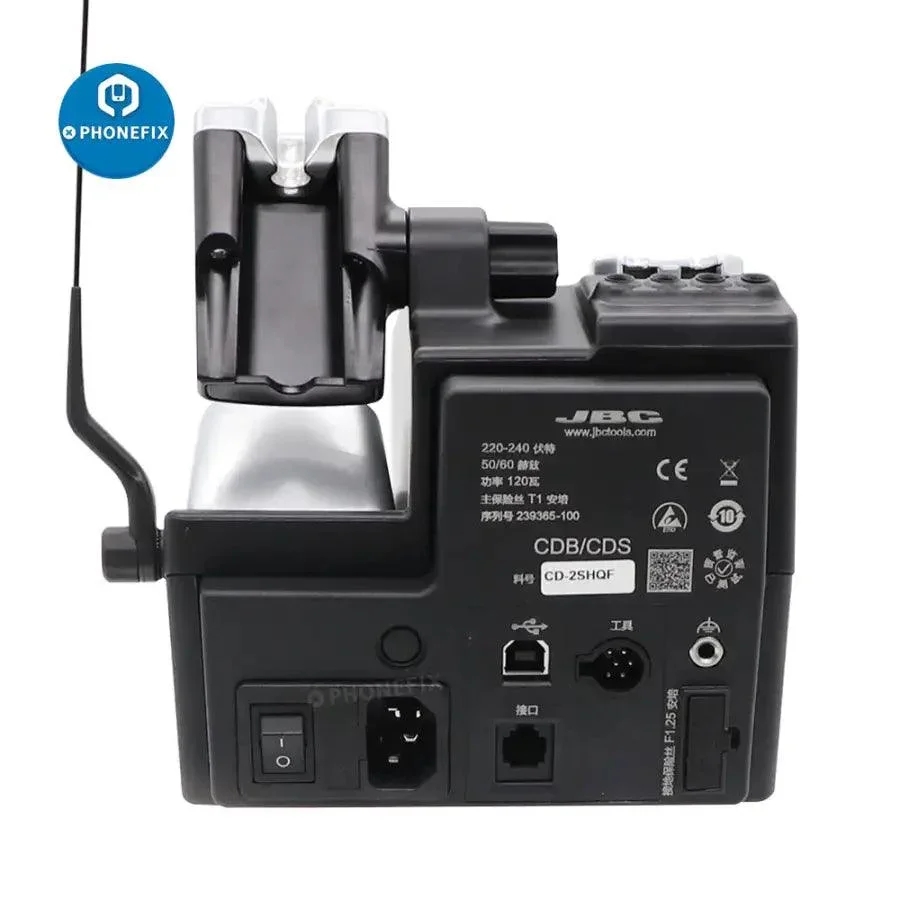

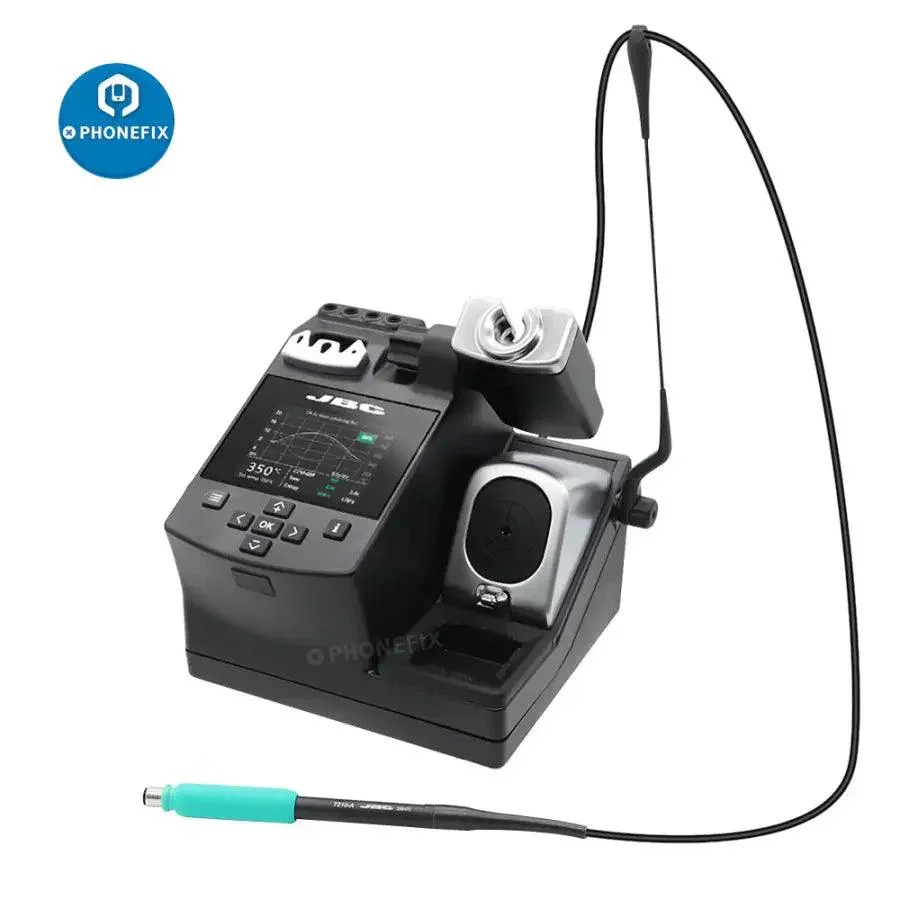

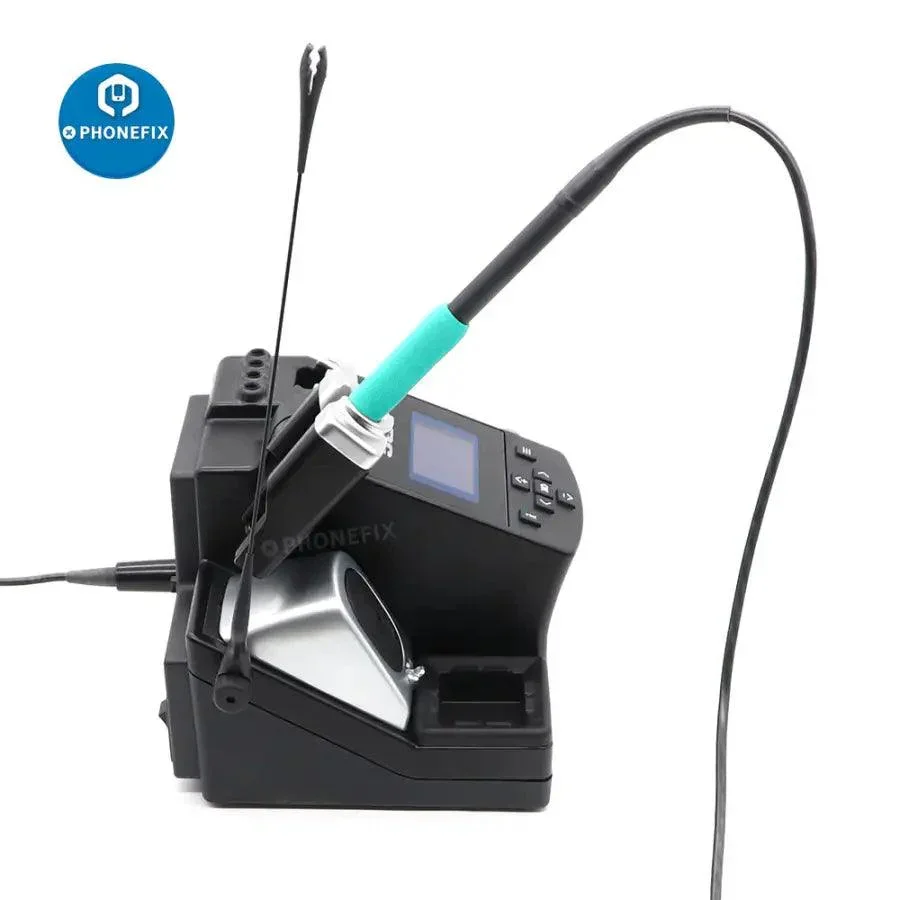

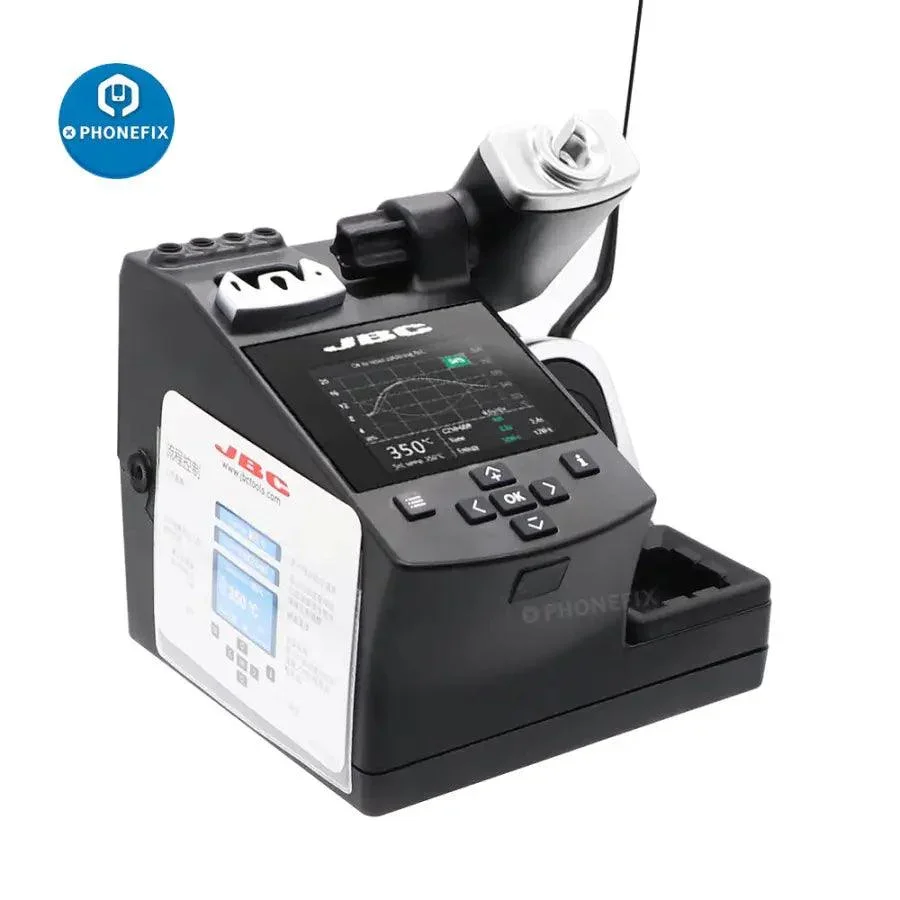

Original JBC CD-2SHE Precision Soldering Station electronic welding
HomeStore

Original JBC CD-2SHE Precision Soldering Station electronic welding

Original JBC CD-2SHE Precision Soldering Station electronic welding

Original JBC CDS CD-2SHQF CD-2SHE Precision Soldering Station. JBC CD-2SHE Precision Soldering station works with the JBC exclusive heating system and the intelligent sleep & hibernation, over 20 parameters to help manage the soldering process, Professional-grade and Precision Purpose Soldering Station for Mobile Phone Motherboard Repair. Original JBC CDS CD-2SHQF CD-2SHE Precision Soldering Station Phone Repair.

Note: JBC Solder Station is now only 220v in our market, if you choose 110v, we will send you a voltage converter.

Original JBC Precision Soldering station:

https://www.jbctools.com/cd-s-precision-compact-station-product-506-gama-10.html

JBC CD-S soldering station with the JBC Advanced system for general electronic applications. It works with the JBC exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. It features a USB connector to update software, create graphs and manage parameters from a PC. Complete cleaning system with an antisplash membrane to keep the work area clean.

Use the integrated wiper to remove excess solder from the tip.
Use T210 series handle, with C210 series iron head for precision welding

Power 40W. Can be used 300 degrees low temperature welding

You can use the USB-B type data cable to connect the computer to observe the temperature curve.

2 seconds to 350 degrees
Up to 20 sets of parameters can be set using the menu
Unique sleep + sleep function can extend the life of the tip 5 times
User-friendly handle control, very comfortable to use the feel

Specifications :

Ambient operating temp: 10-40 C / 50-104 F
Output Peak Power: 130W / 23.5V
Package dimensions: 234 x 234 x 258 mm
Package weight: 4 kg
Size: 150 x 175 x 145 mm
Temperature selection: 90-450 C / 190-840 F
Tip to ground resistance: <2 ohms
Tip to ground voltage: <2mV RMS
Voltage: 220V or 110V

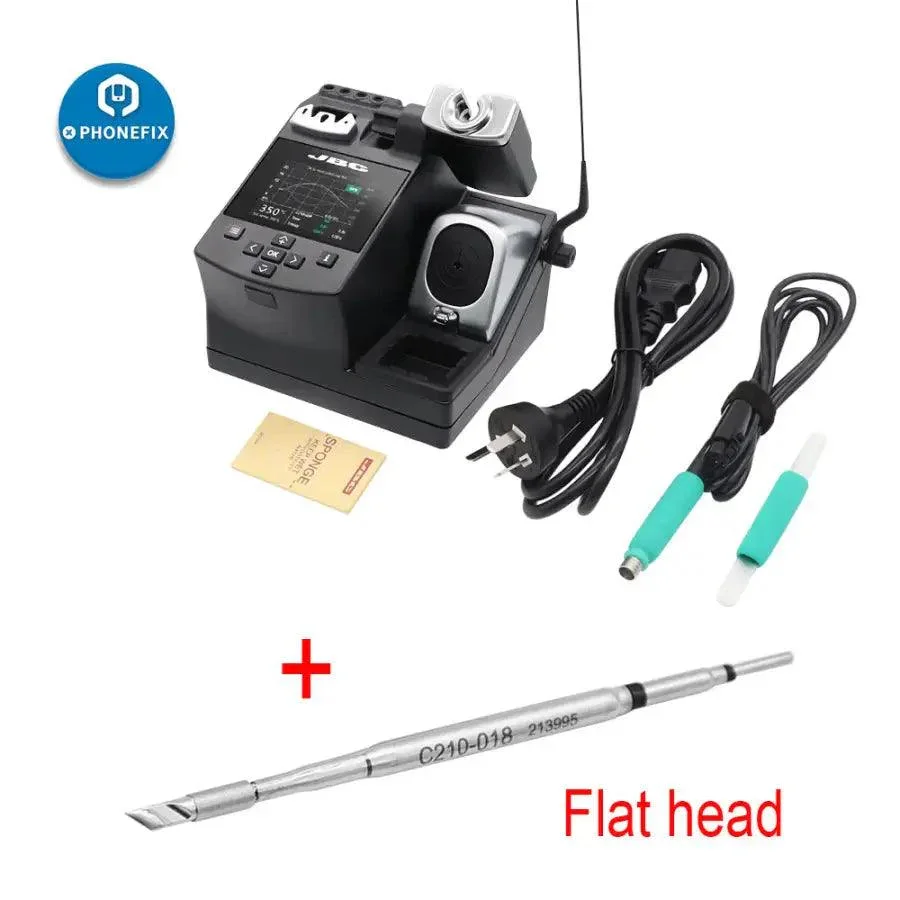

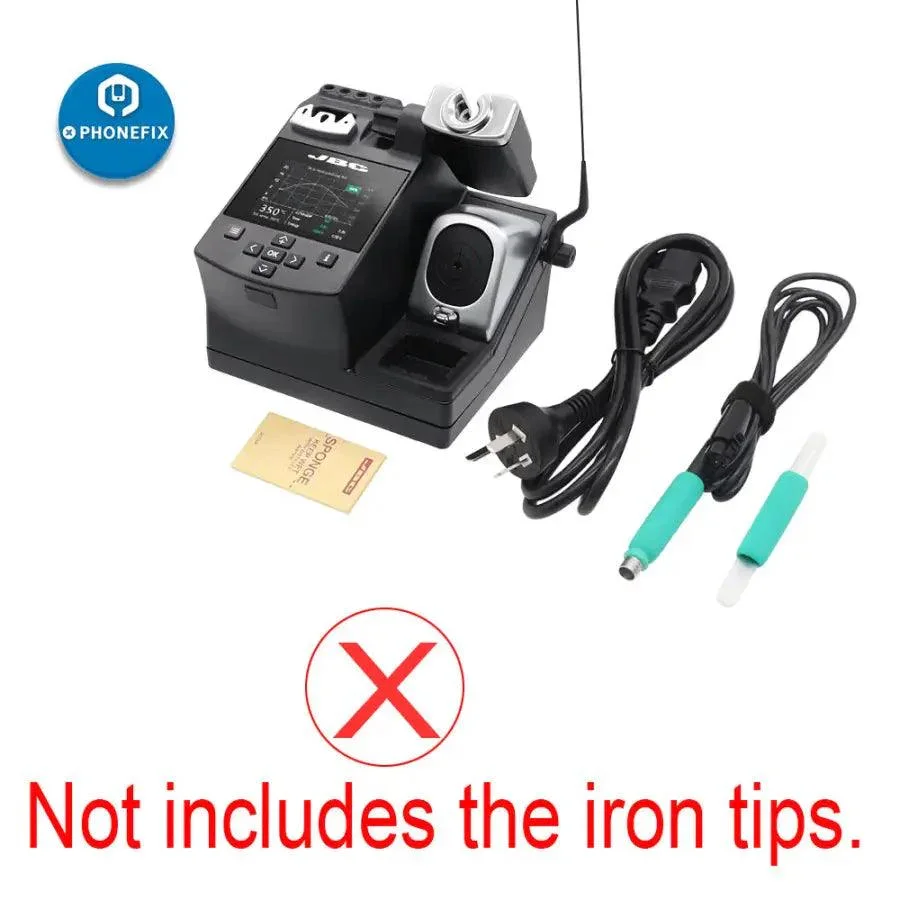

Package list:

CD Control Unit: CD-2HE (230V)
Precision Purpose Handle: T210-A
Power Cord: 0009401(230V)
Sponge: S0354
Manual: 0017070
Select Voltage
Select Option
From $355.55
Original JBC CD-2SHE Precision Soldering Station electronic welding—
$355.55

More Images

Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 2
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 3
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 4
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 5
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 6
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 7
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 8
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 9
Original JBC CD-2SHE Precision Soldering Station electronic welding - Image 10

Original JBC CD-2SHE Precision Soldering Station electronic welding

Original JBC CDS CD-2SHQF CD-2SHE Precision Soldering Station. JBC CD-2SHE Precision Soldering station works with the JBC exclusive heating system and the intelligent sleep & hibernation, over 20 parameters to help manage the soldering process, Professional-grade and Precision Purpose Soldering Station for Mobile Phone Motherboard Repair. Original JBC CDS CD-2SHQF CD-2SHE Precision Soldering Station Phone Repair.

Note: JBC Solder Station is now only 220v in our market, if you choose 110v, we will send you a voltage converter.

Original JBC Precision Soldering station:

https://www.jbctools.com/cd-s-precision-compact-station-product-506-gama-10.html

JBC CD-S soldering station with the JBC Advanced system for general electronic applications. It works with the JBC exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. It features a USB connector to update software, create graphs and manage parameters from a PC. Complete cleaning system with an antisplash membrane to keep the work area clean.

Use the integrated wiper to remove excess solder from the tip.
Use T210 series handle, with C210 series iron head for precision welding

Power 40W. Can be used 300 degrees low temperature welding

You can use the USB-B type data cable to connect the computer to observe the temperature curve.

2 seconds to 350 degrees
Up to 20 sets of parameters can be set using the menu
Unique sleep + sleep function can extend the life of the tip 5 times
User-friendly handle control, very comfortable to use the feel

Specifications :

Ambient operating temp: 10-40 C / 50-104 F
Output Peak Power: 130W / 23.5V
Package dimensions: 234 x 234 x 258 mm
Package weight: 4 kg
Size: 150 x 175 x 145 mm
Temperature selection: 90-450 C / 190-840 F
Tip to ground resistance: <2 ohms
Tip to ground voltage: <2mV RMS
Voltage: 220V or 110V

Package list:

CD Control Unit: CD-2HE (230V)
Precision Purpose Handle: T210-A
Power Cord: 0009401(230V)
Sponge: S0354
Manual: 0017070
