JC CNC Grinder EM03 EM02 Grinding Machine for iPhone PCB IC Repair

Upgraded JCID EM03 Intelligent CNC Grinder Automatic BGA Chip Grinding Mahine for iPhone 6-17 Pro Max Motherboard CPU IC SIM card slot grinding removal. JCID EM02 CNC Grinding Machine for iPhone 6 7 8 X 11 12 13 14 15 16 17 series BGA Chip IC grinding removing. JC EM03 CNC Grinder is used to grind and remove the CPU, Baseband, CHIP, HDD, WIFI, FONT chips of iPhone PCB without any damage in the motherboard, motherboard hardware iCloud unlock tool.

Please Note that now JCID EM02 has been upgraded to JCID EM03 model, the molds are universal.

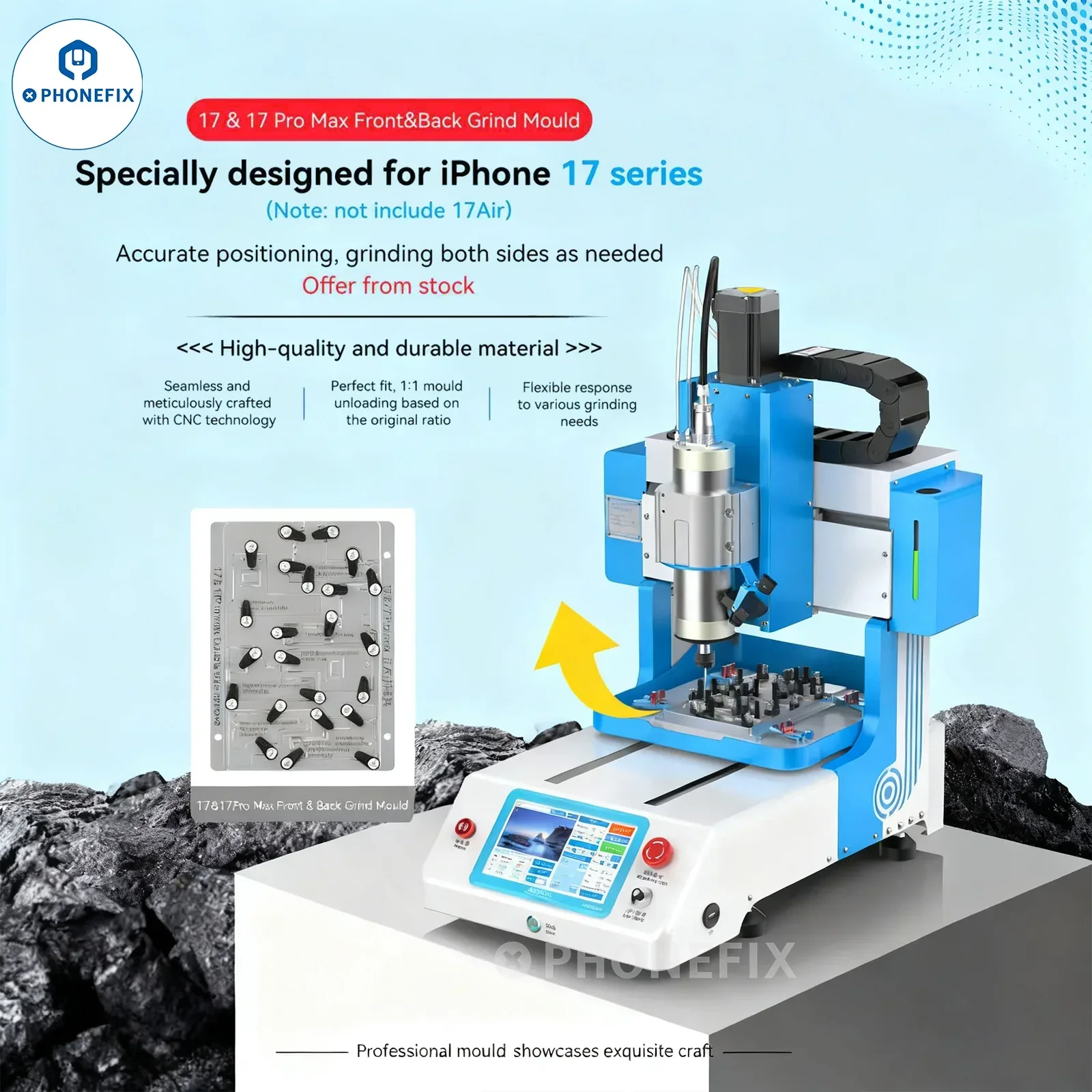

JCID EM03 adds the iPhone 17 series motherboard front & back grinding moud, which is suitable for grinding iPhone 17/17Air/17 Pro/17 Pro Max motherboard CPU chip.

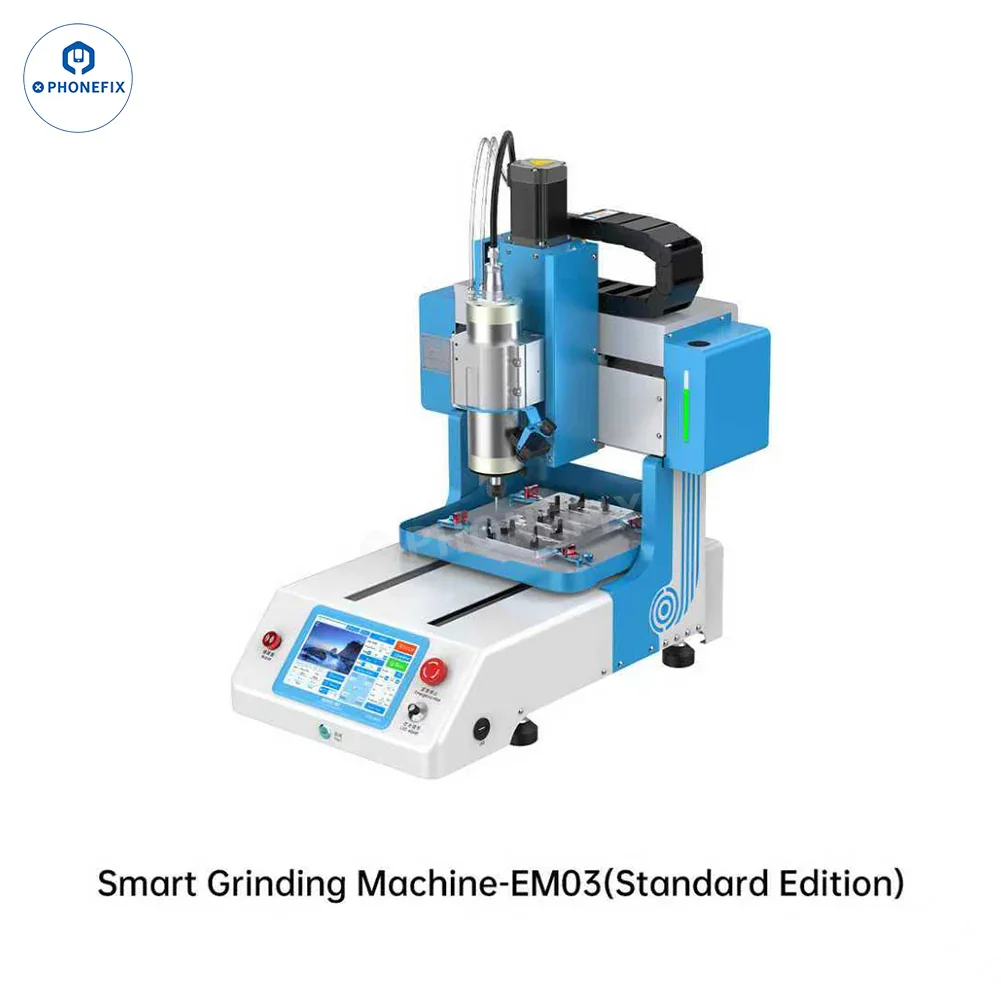

JCID EM03 Smart Grinding Machine features:
1. Extended XYZ three-axis guideways – easily accommodate more and larger workpieces.
2. Upgraded Z-axis servo motor – greater torque, real-time data acquisition.
3. Compatible with EM02 molds – seamless switching, improving workflow efficiency.
4. New high-performance core board – faster operating speed and higher stability.
5. Supports visualization system expansion – upgrade anytime, always stay ahead.

JCID EM02 adds the iPhone 16 series motherboard front & back grinding mould, which is suitable for grinding iPhone 16/16 Plus/16 Pro/16 Pro Max motherboard CPU chips.

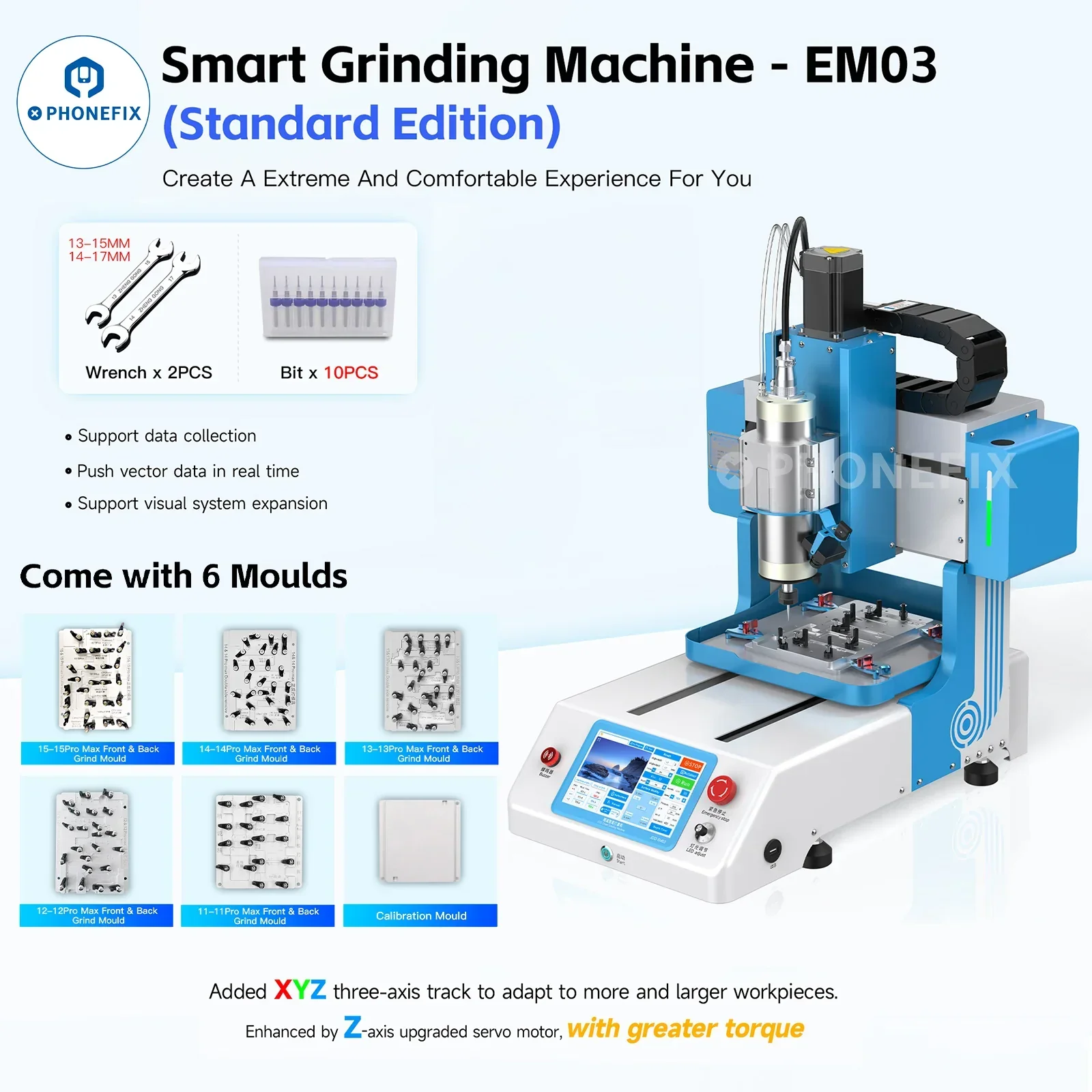

JCID EM03 Standard set:
1X JCID EM03 grinding machine.

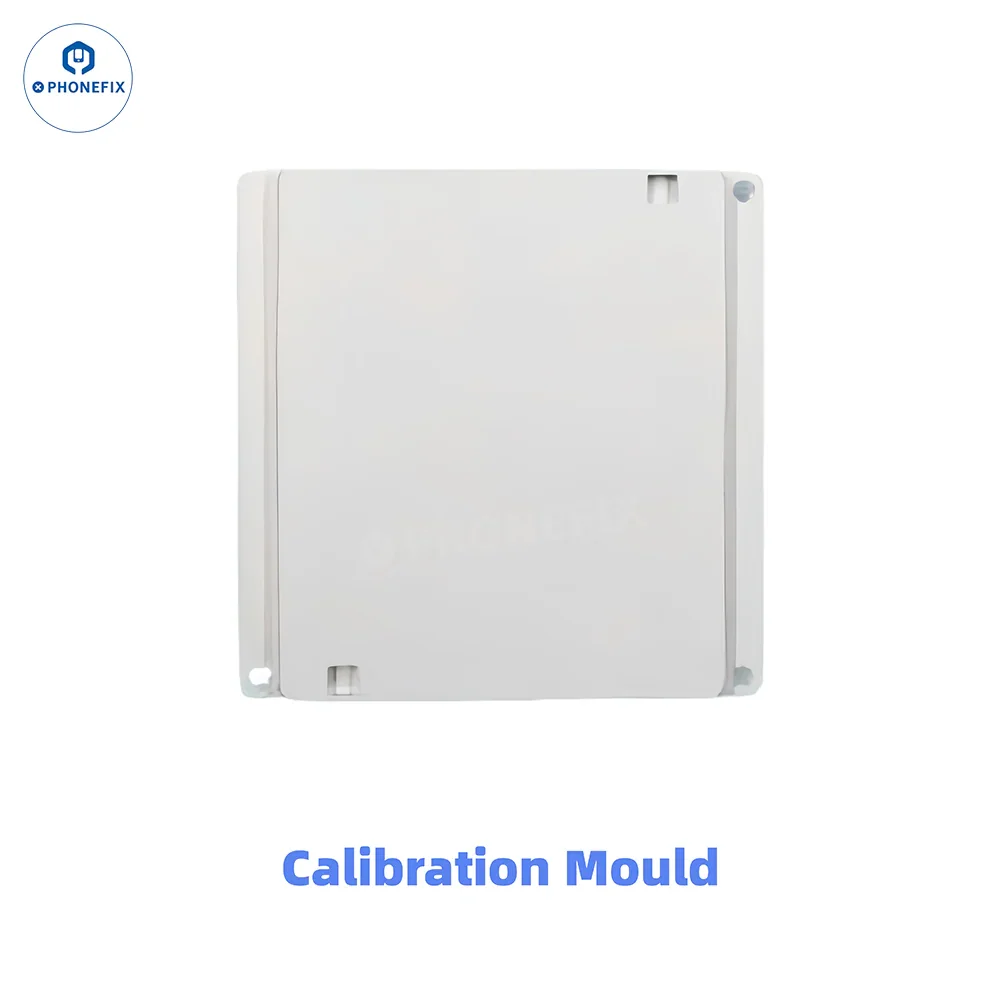

1X Calibration Mould.
1X iPhone 11-11 Pro Max Front/Back grinding mold.
1X iPhone 12-12 Pro Max Front/Back grinding mold.

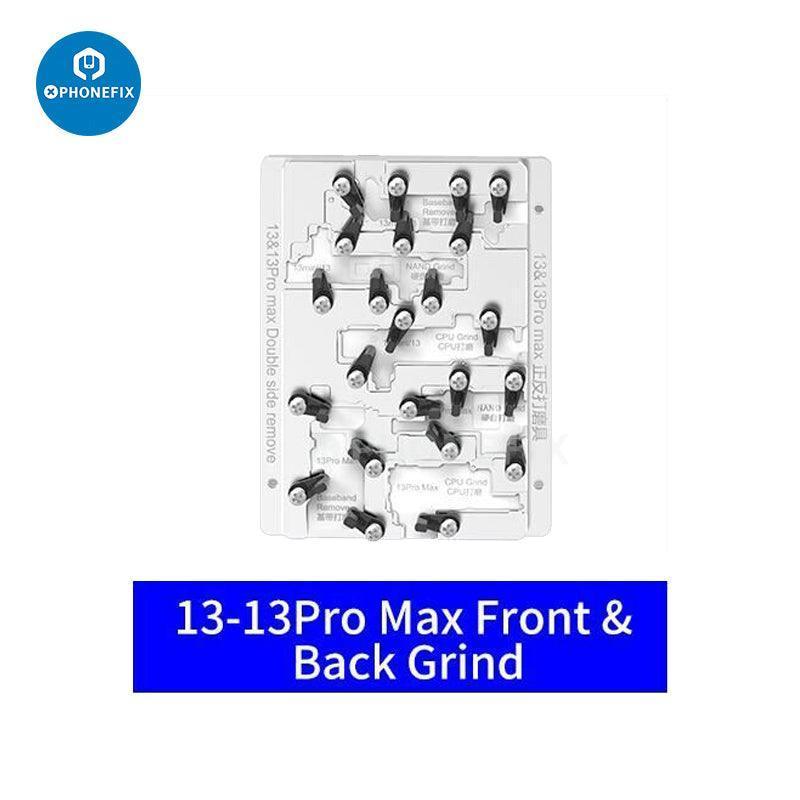

1X iPhone 13-13 Pro Max Front/Back grinding mold.

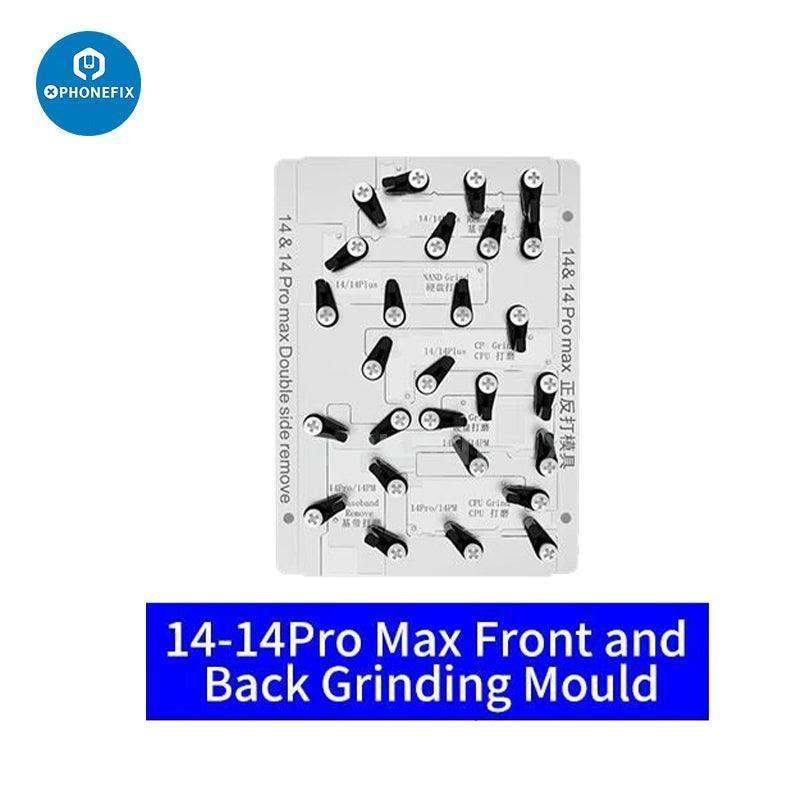

1X iPhone 14-14 Pro Max Front/Back grinding mold.

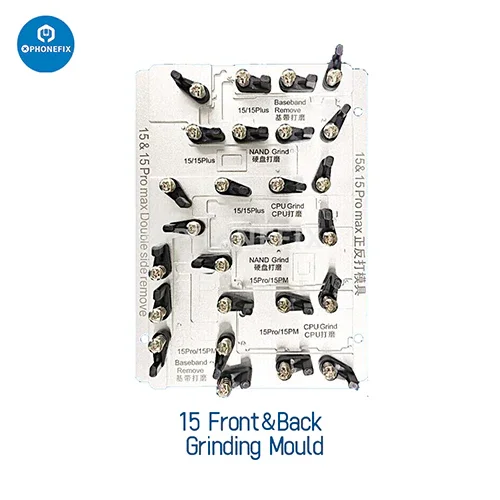

1X iPhone 15-15 Pro Max Front/Back grinding mold.
2X Wrench(13-15mm, 14-17mm).
10x PCB Drill bit(10pcs/box).

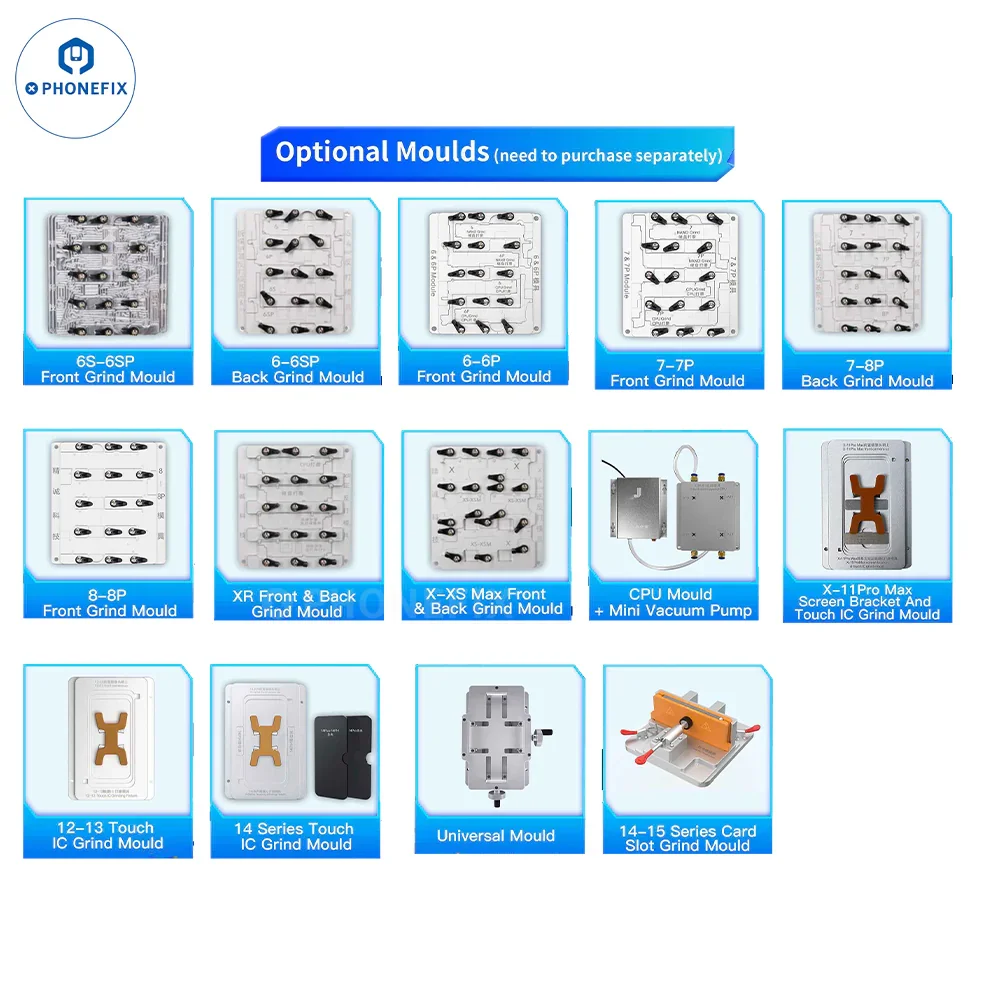

JC EM02/EM03 CNC Grind Mould(Optional):

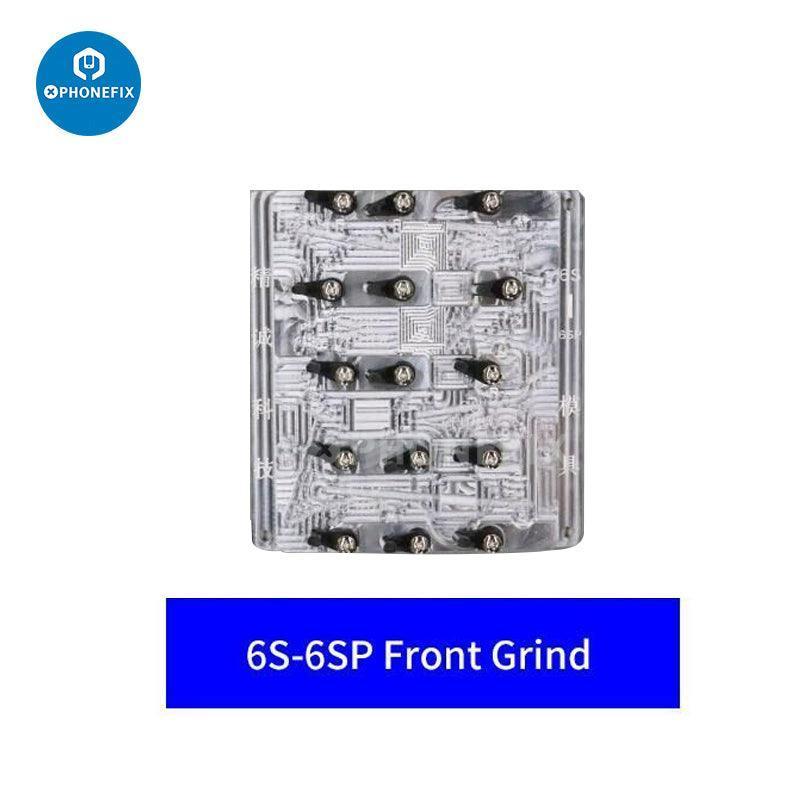

1X iPhone 6S-6SP Front grinding mold.

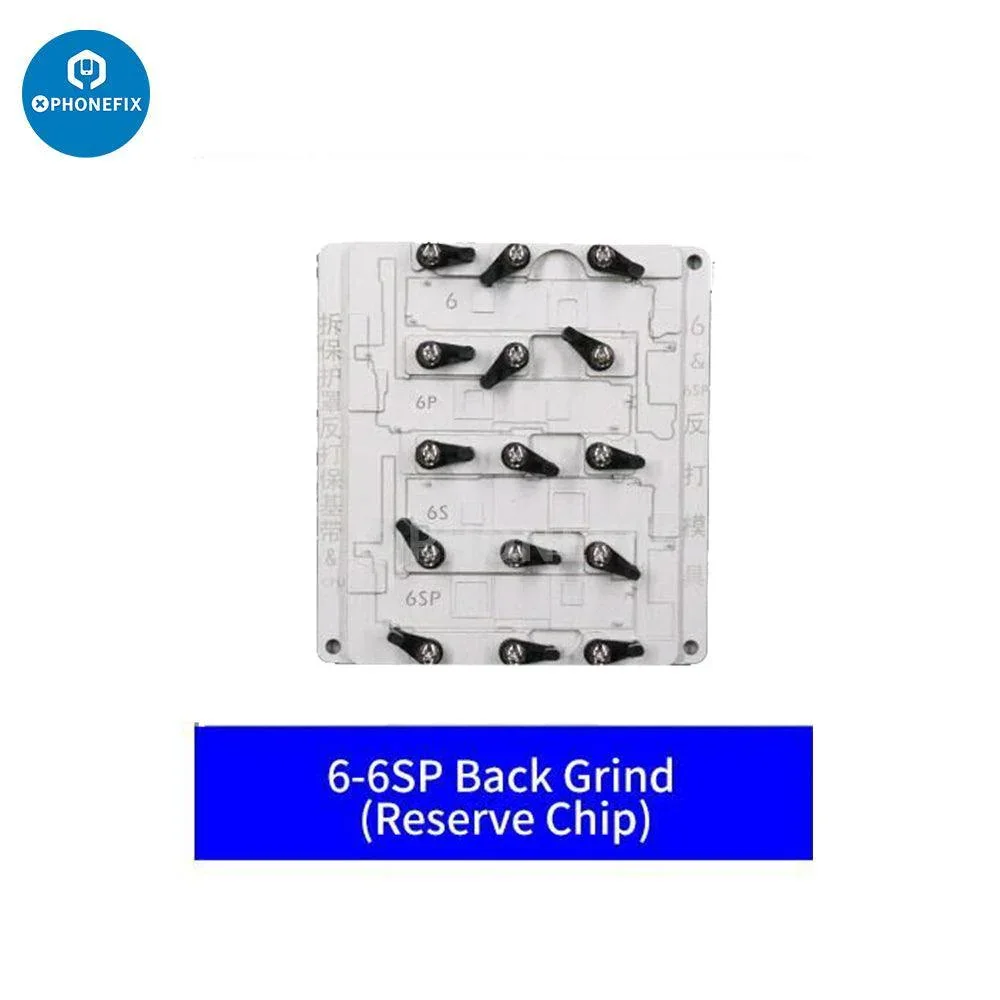

1X iPhone 6-6SP Back grinding mold.

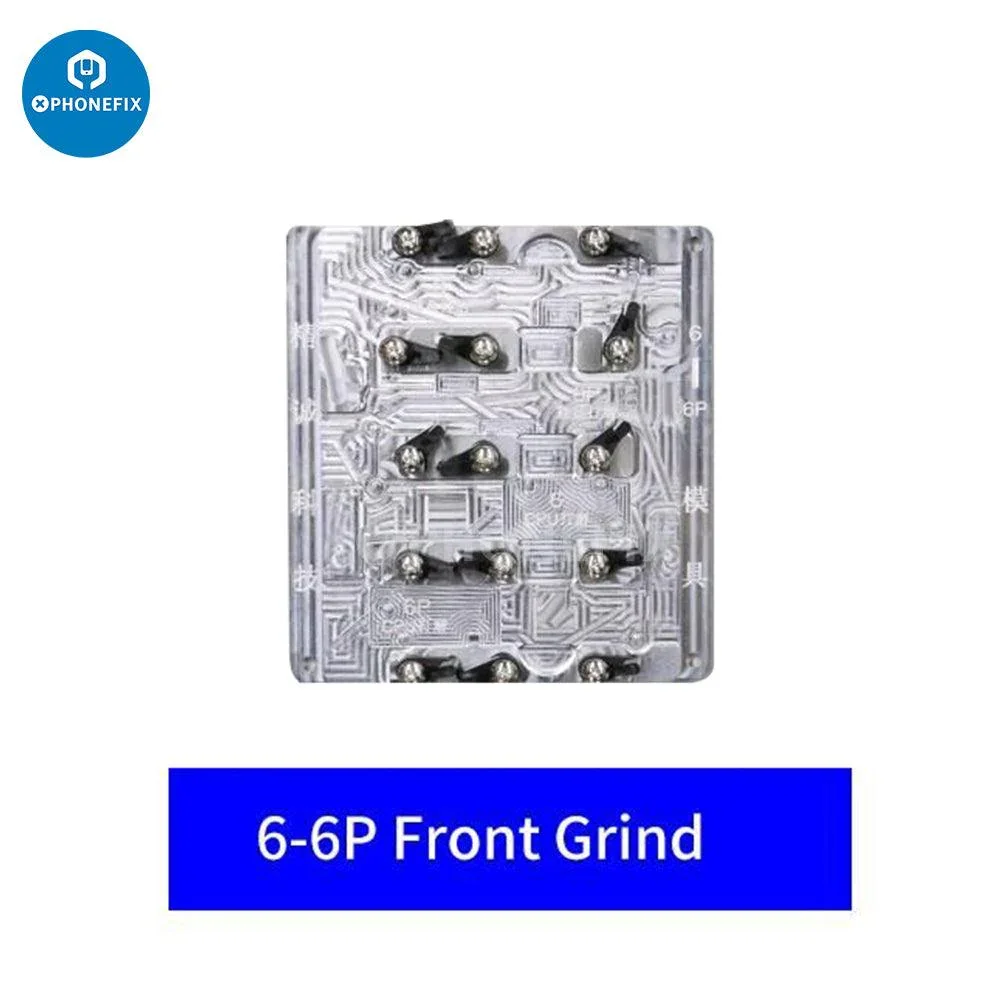

1X iPhone 6-6P Front grinding mold.

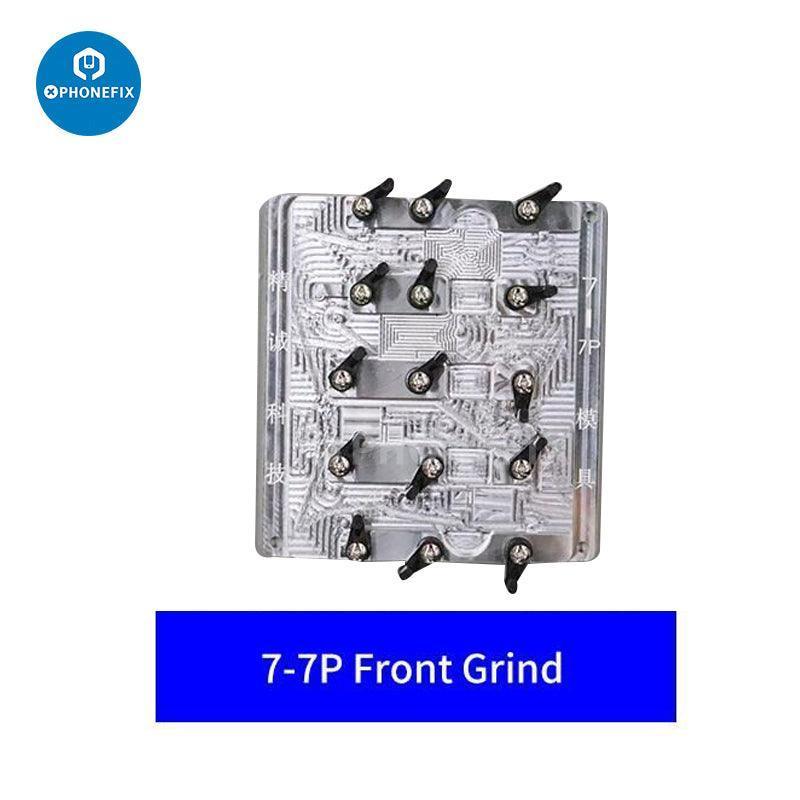

1X iPhone 7-7P Front grinding mold.

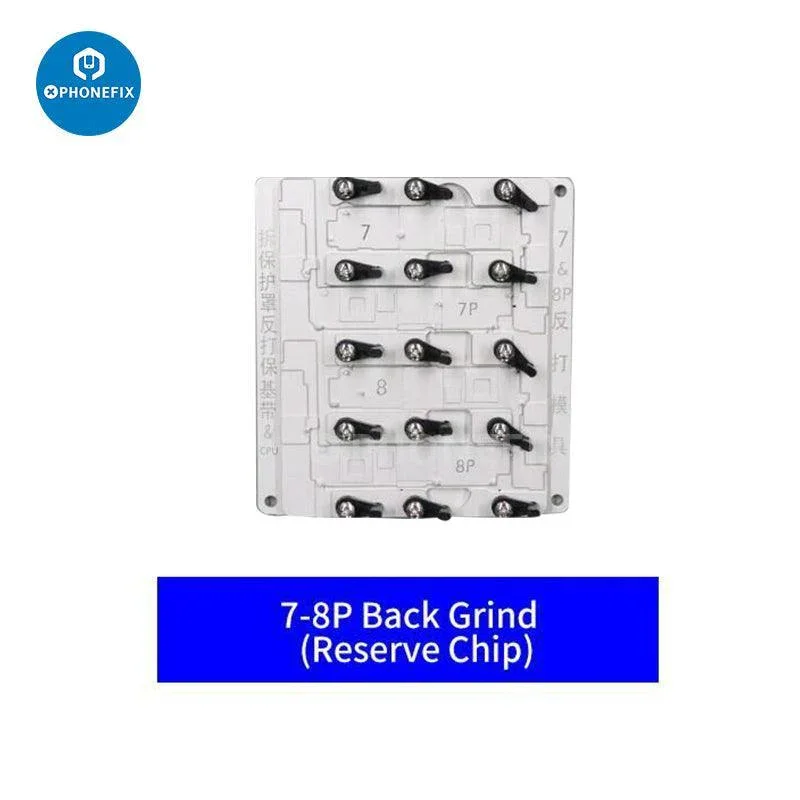

1X iPhone 7-8P Back grinding mold.

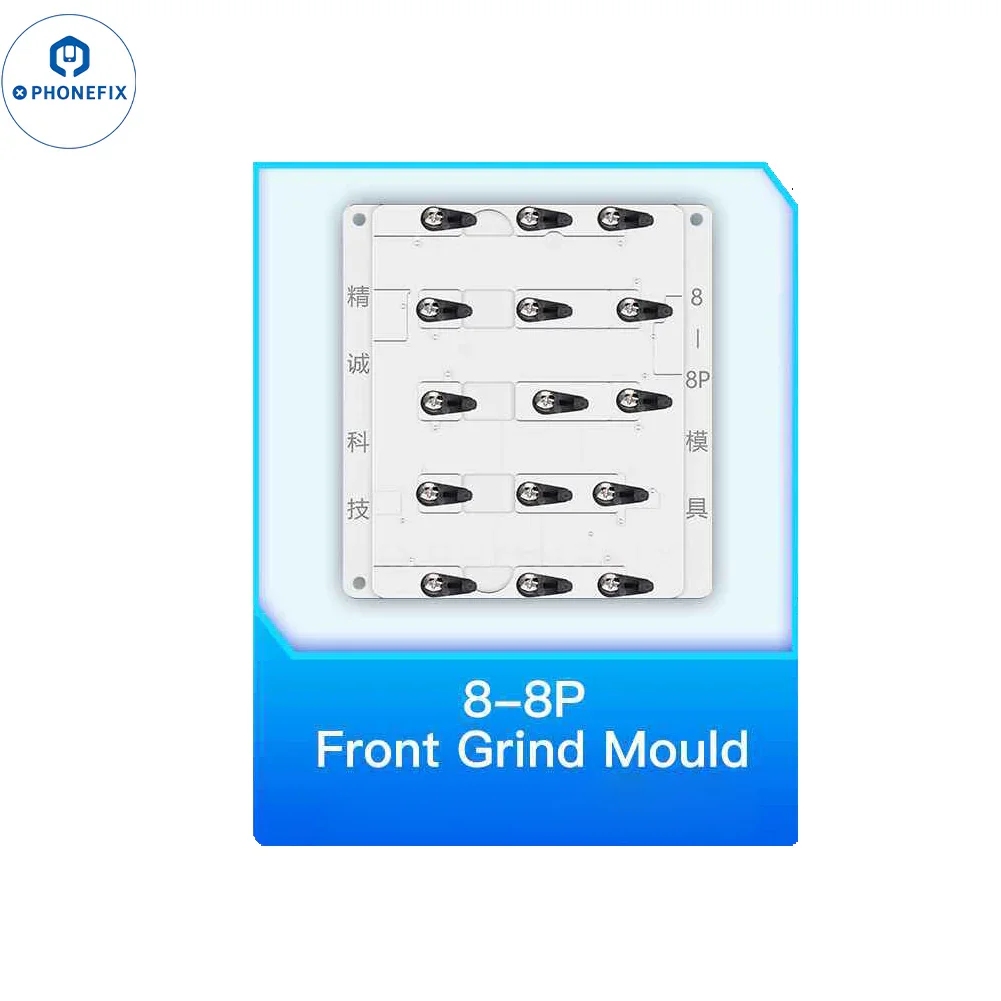

1X iPhone 8-8P Front grinding mold.

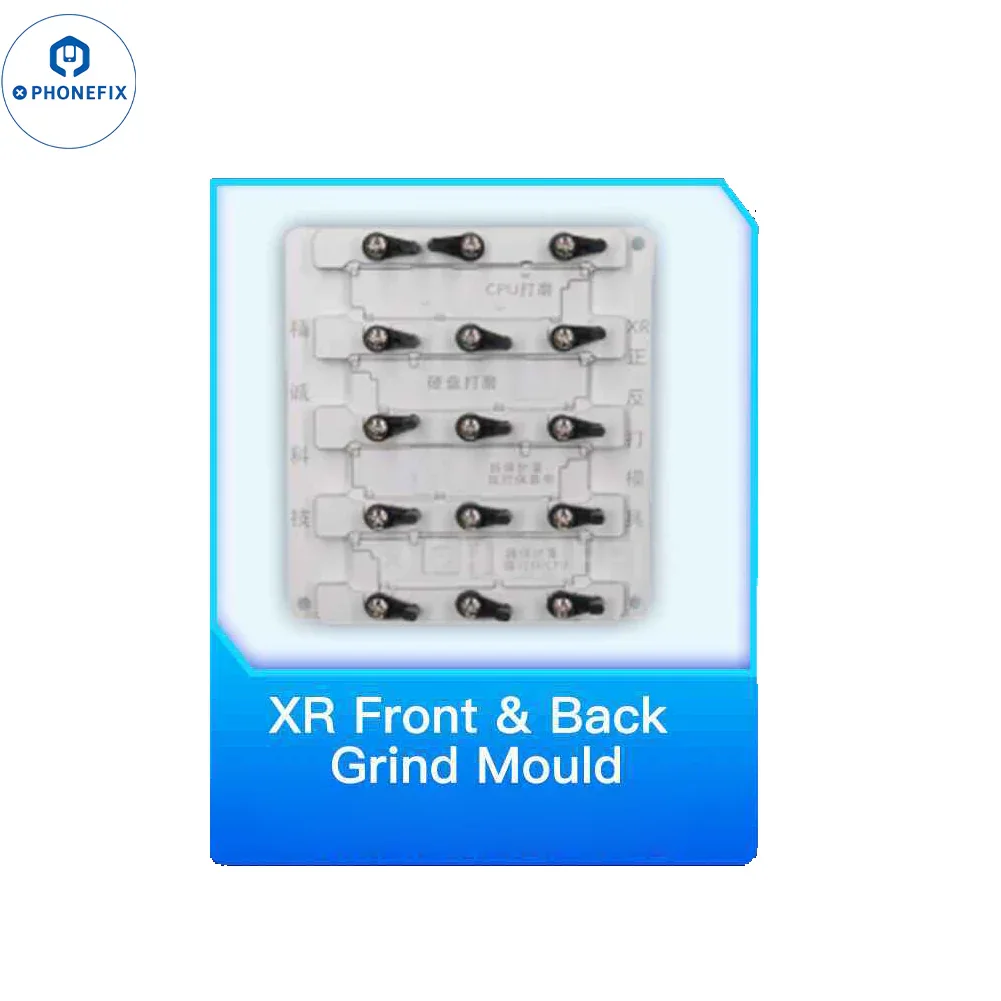

1X iPhone XR Front/Back grinding mold.

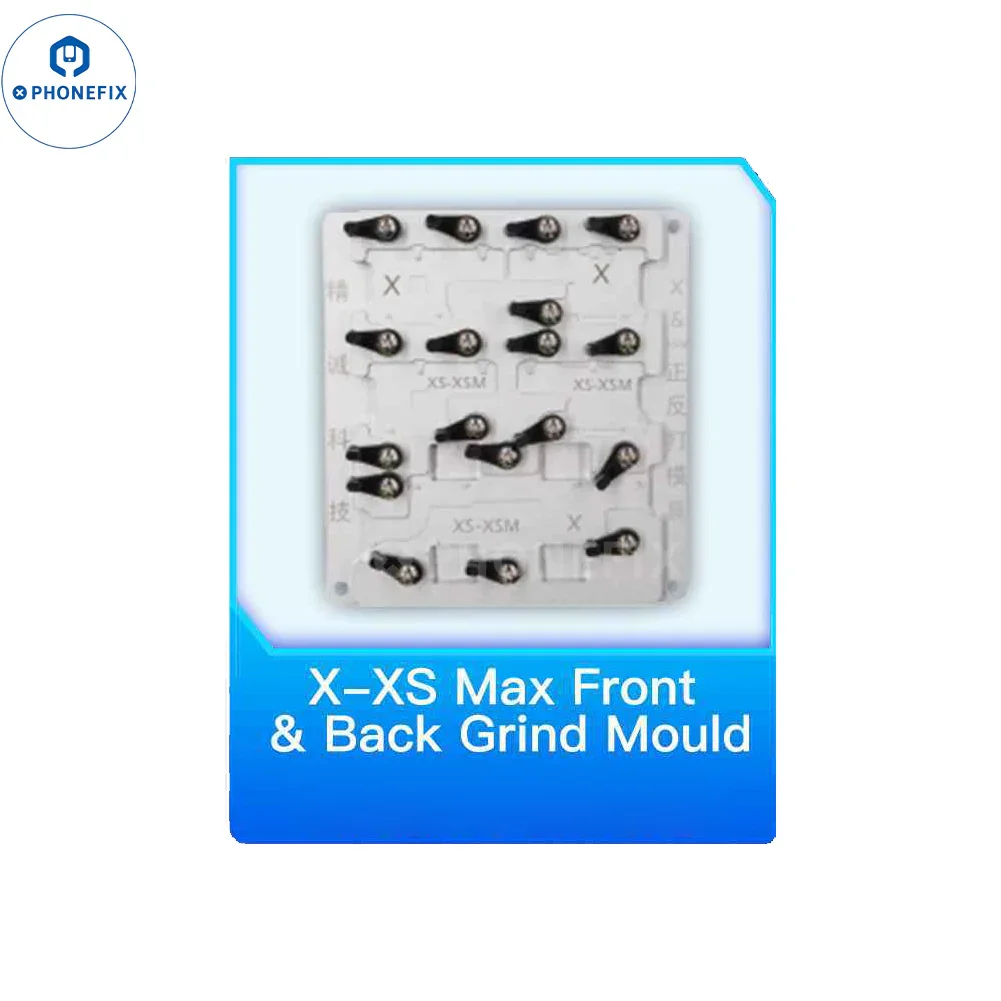

1x iPhone X-XS Max Front/Back grinding mold.

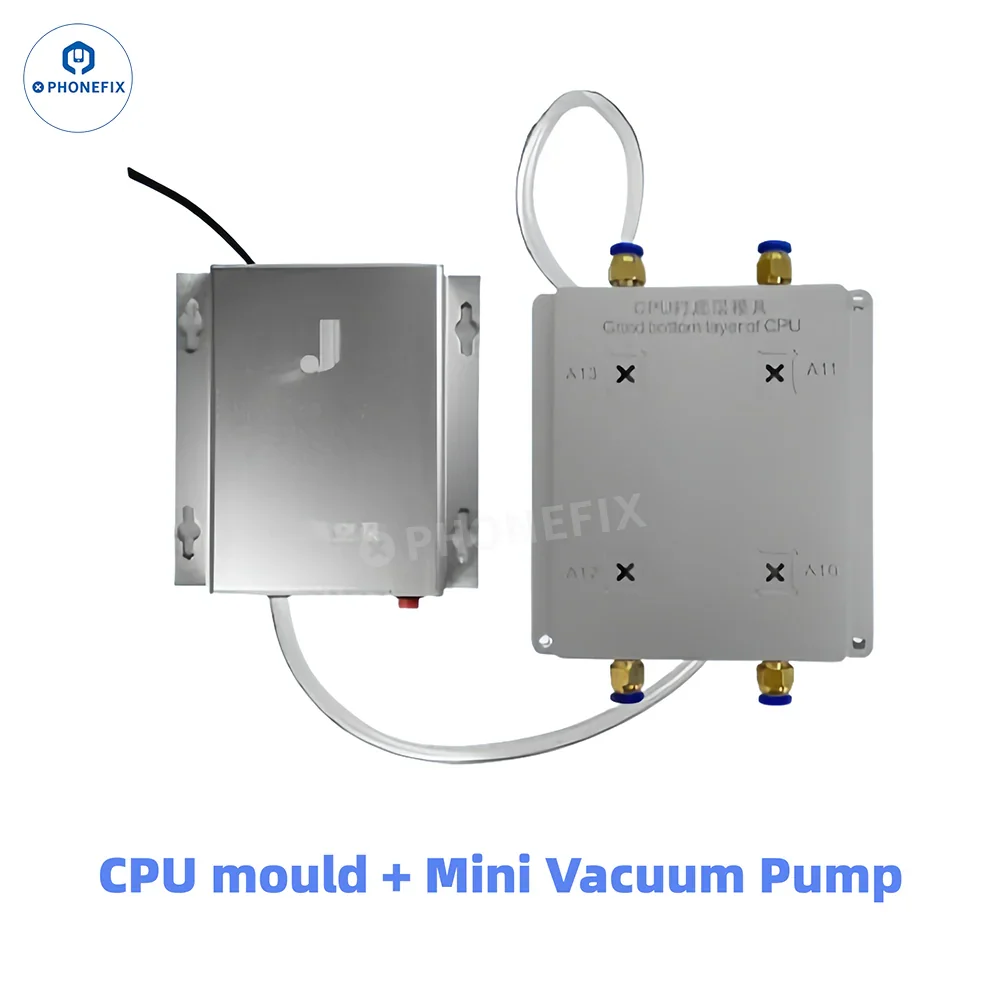

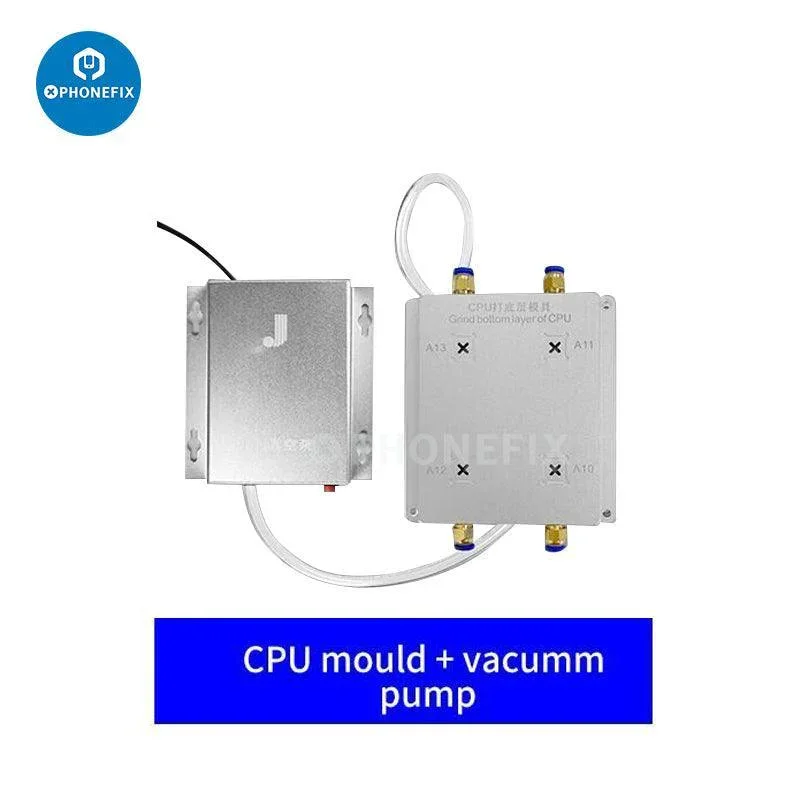

1X CPU mould+Vacumm pump.

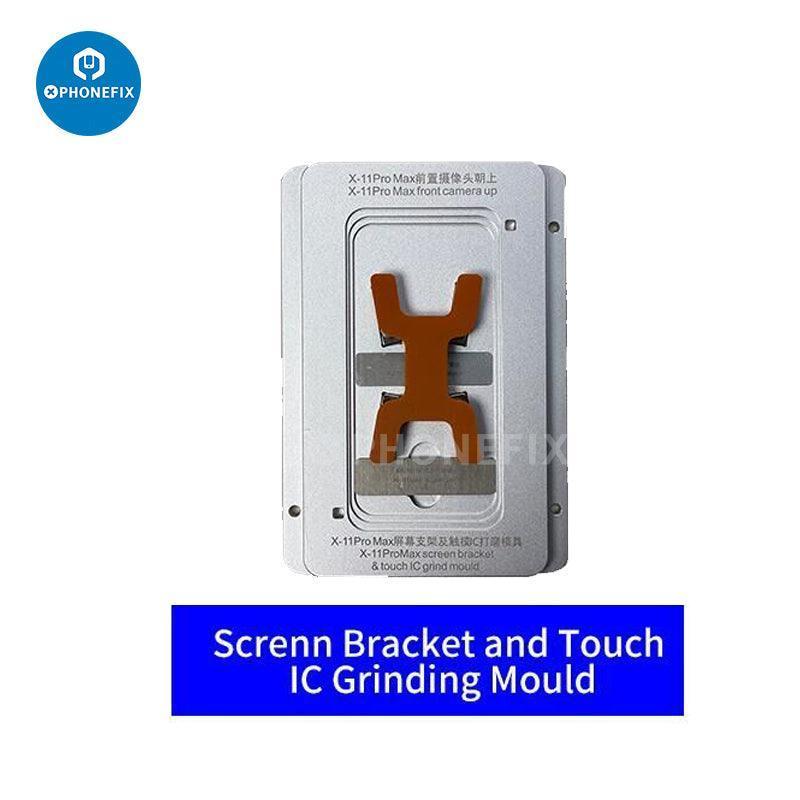

1X iPhone X-11 Pro Max Screen Bracket and Touch IC Grinding Mould.

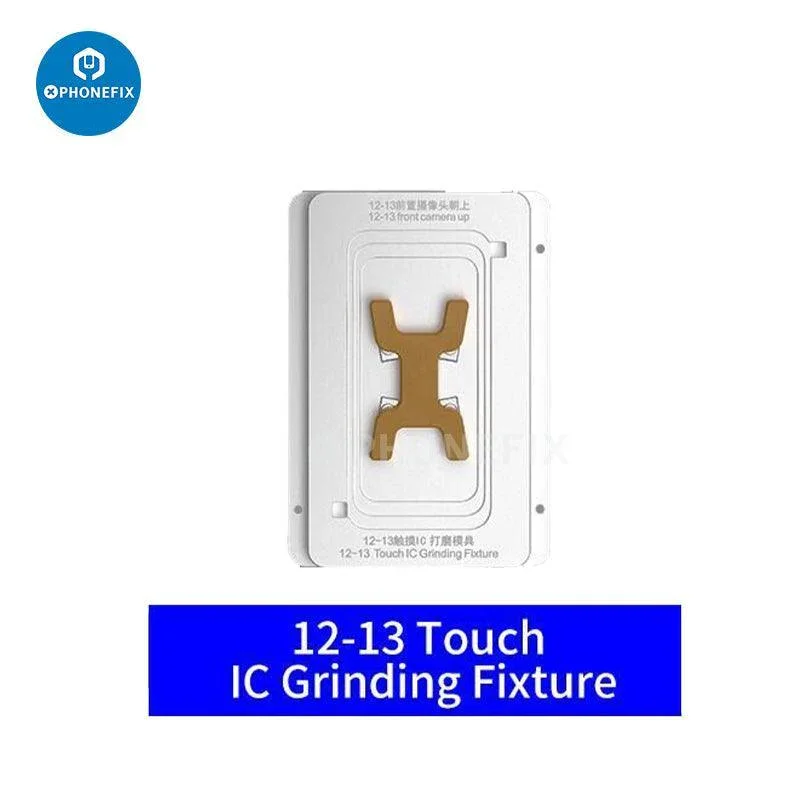

1X iPhone 12-13 series Touch IC Grinding mold.

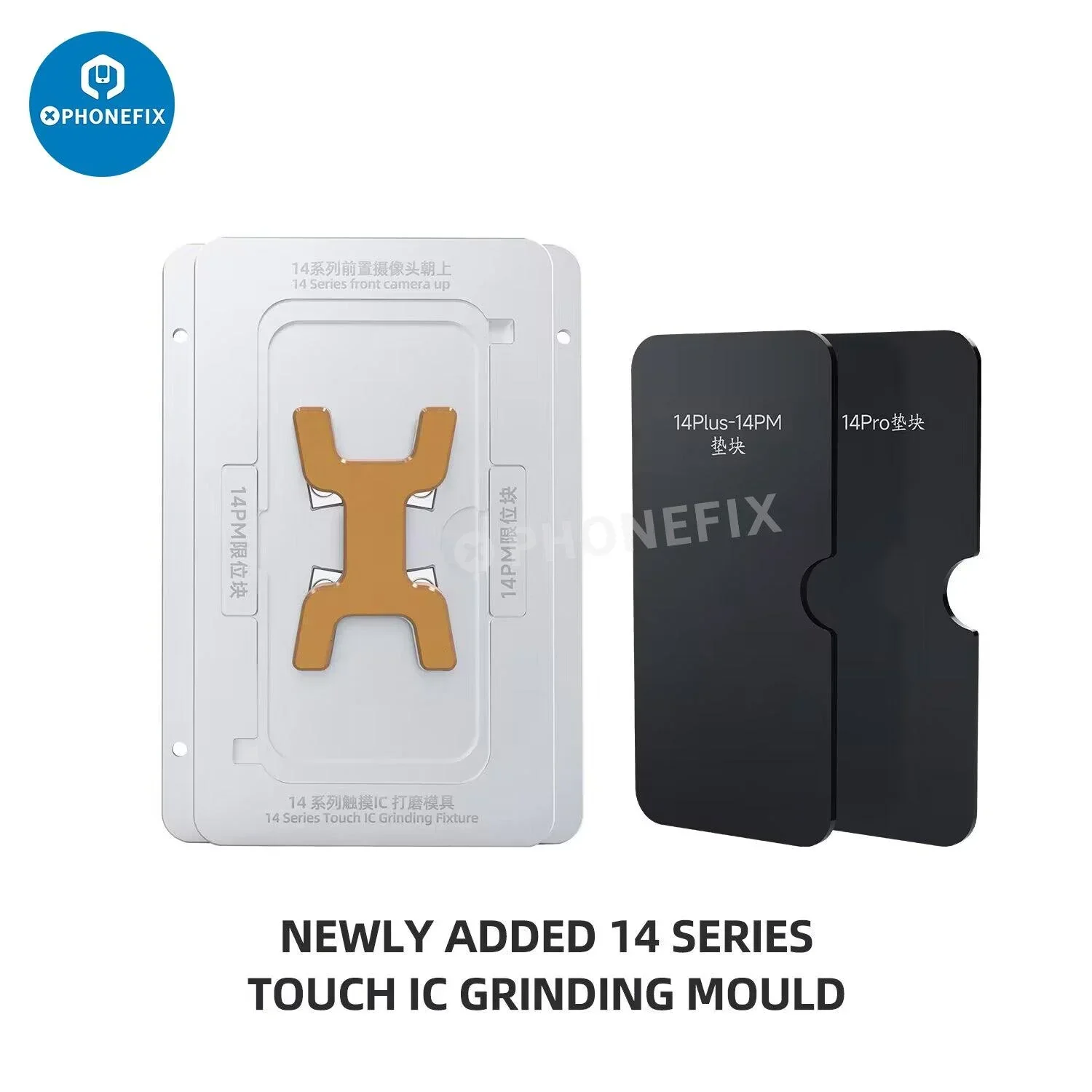

1X iPhone 14 series touch IC grinding mold.

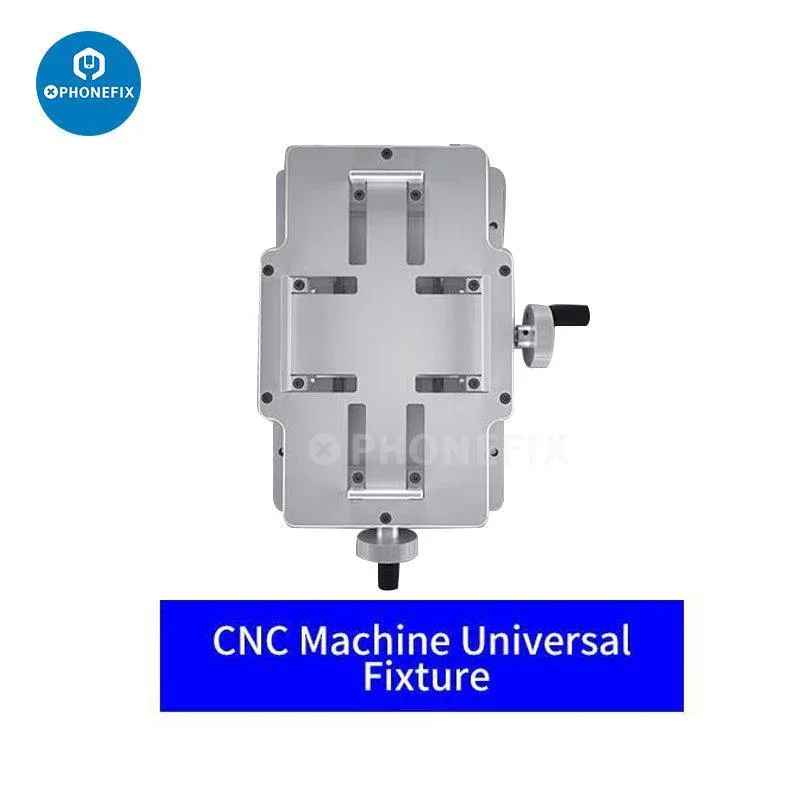

1X CNC Machine Universal Fixture.
1x iPhone 14-15 Series Card Slot Grinding Mould.

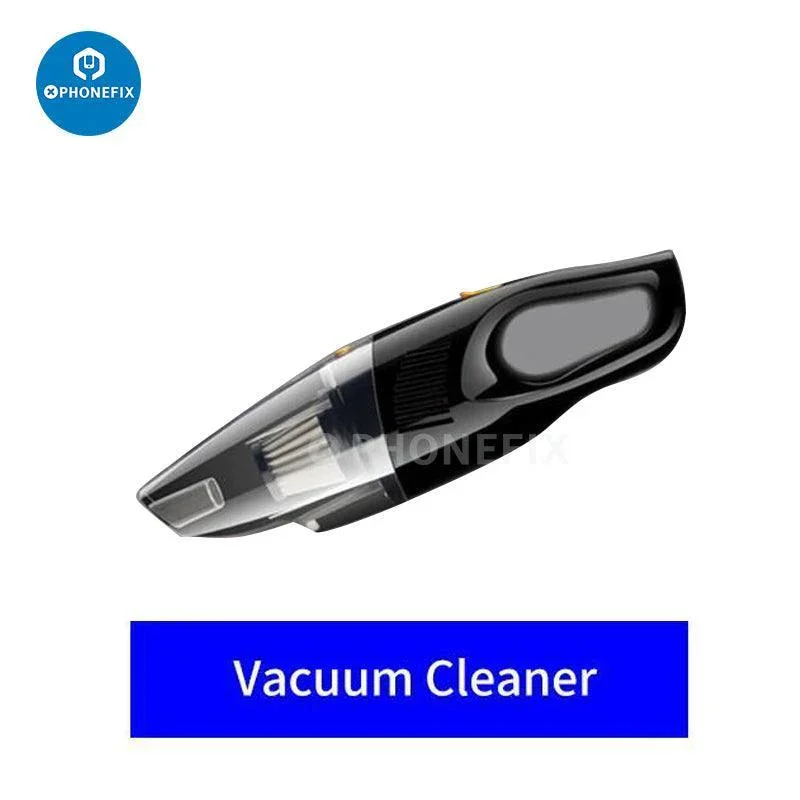

1X Vacuum Cleaner.

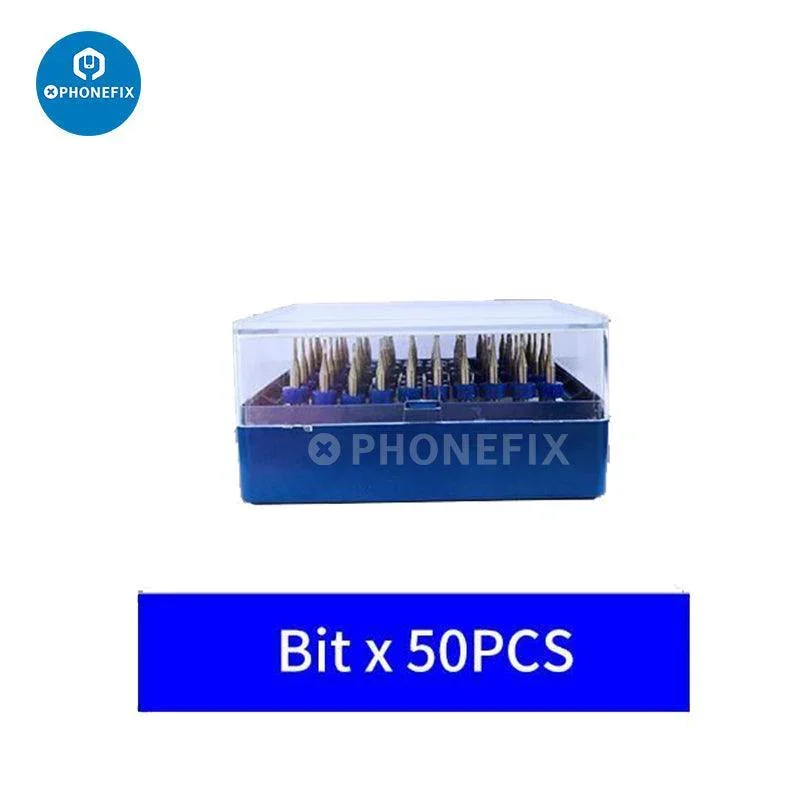

1X 50PCS Bit.

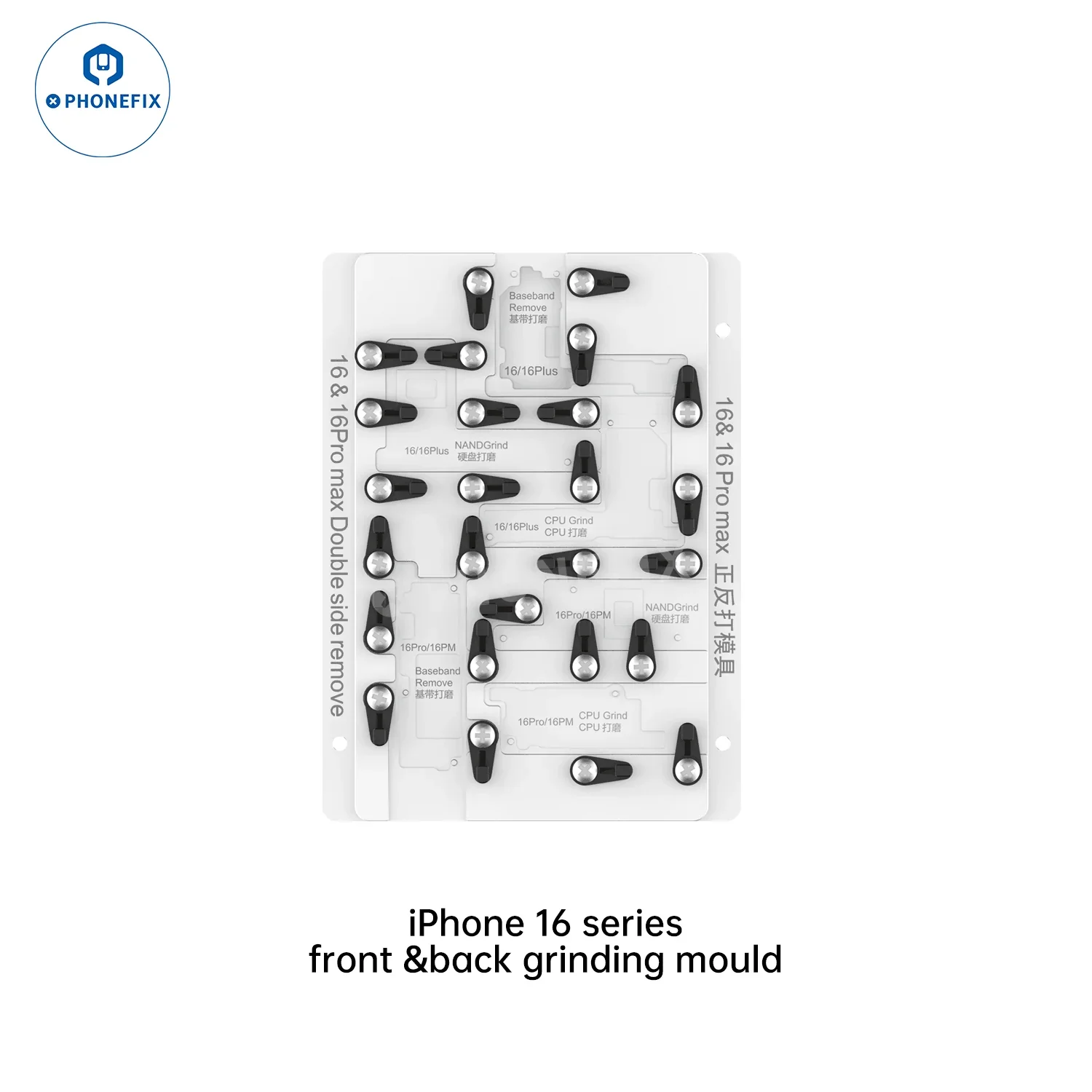

1x iPhone 16 series Front/Back grinding mold.

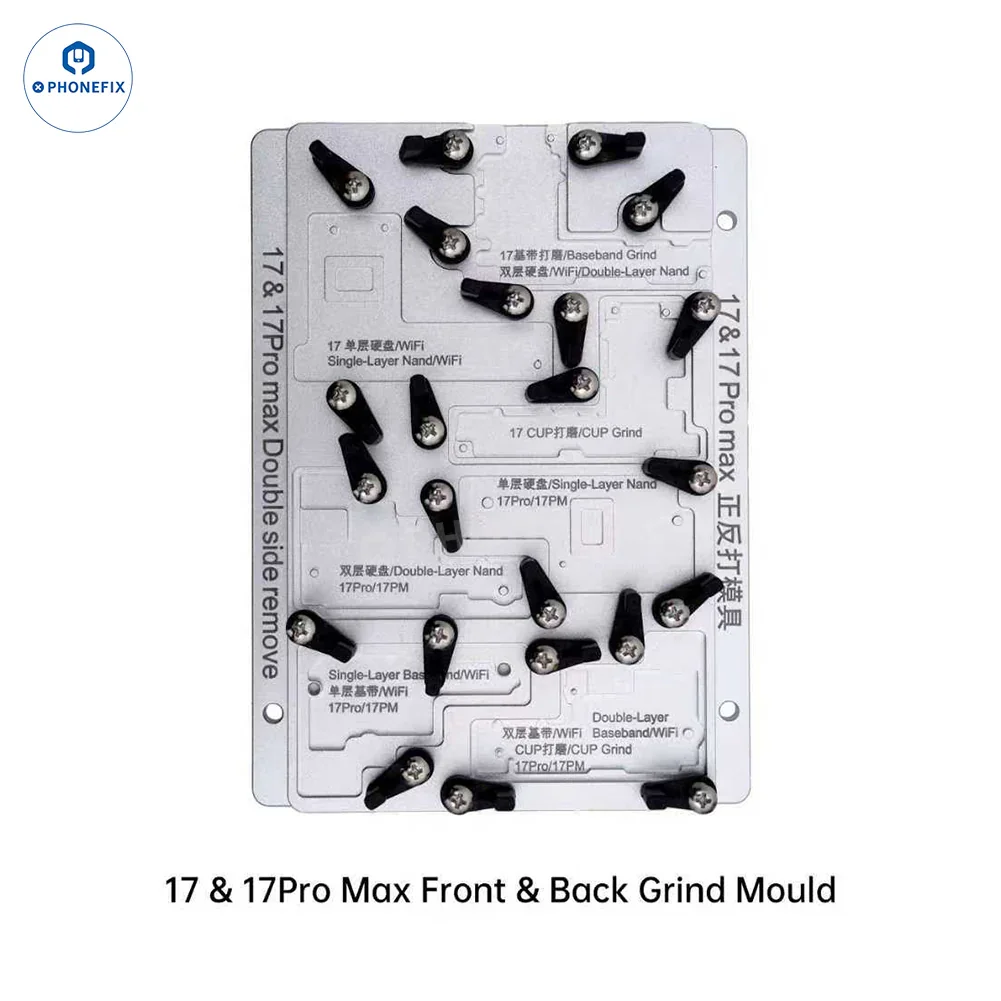

1x iPhone 17 series Front/Back grinding mold.

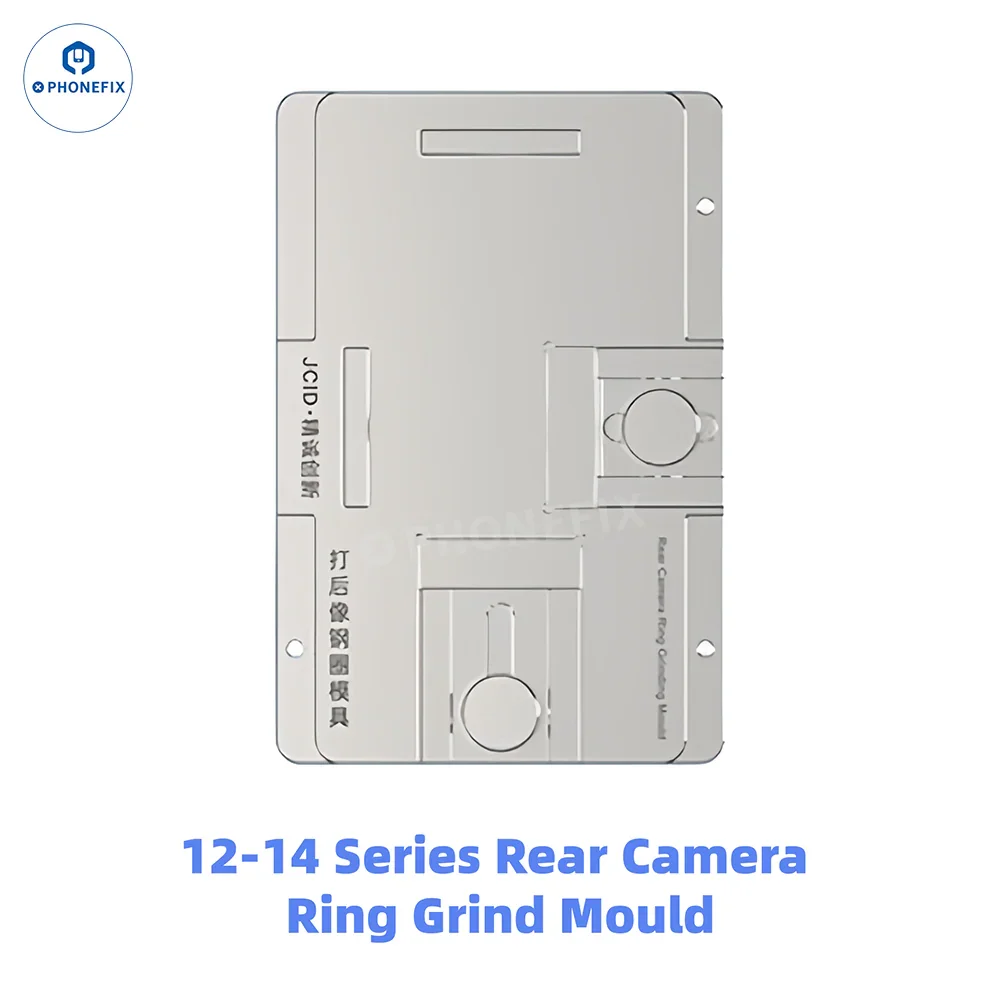

1x 12-14 Series Rear Camera Ring Grind Mold

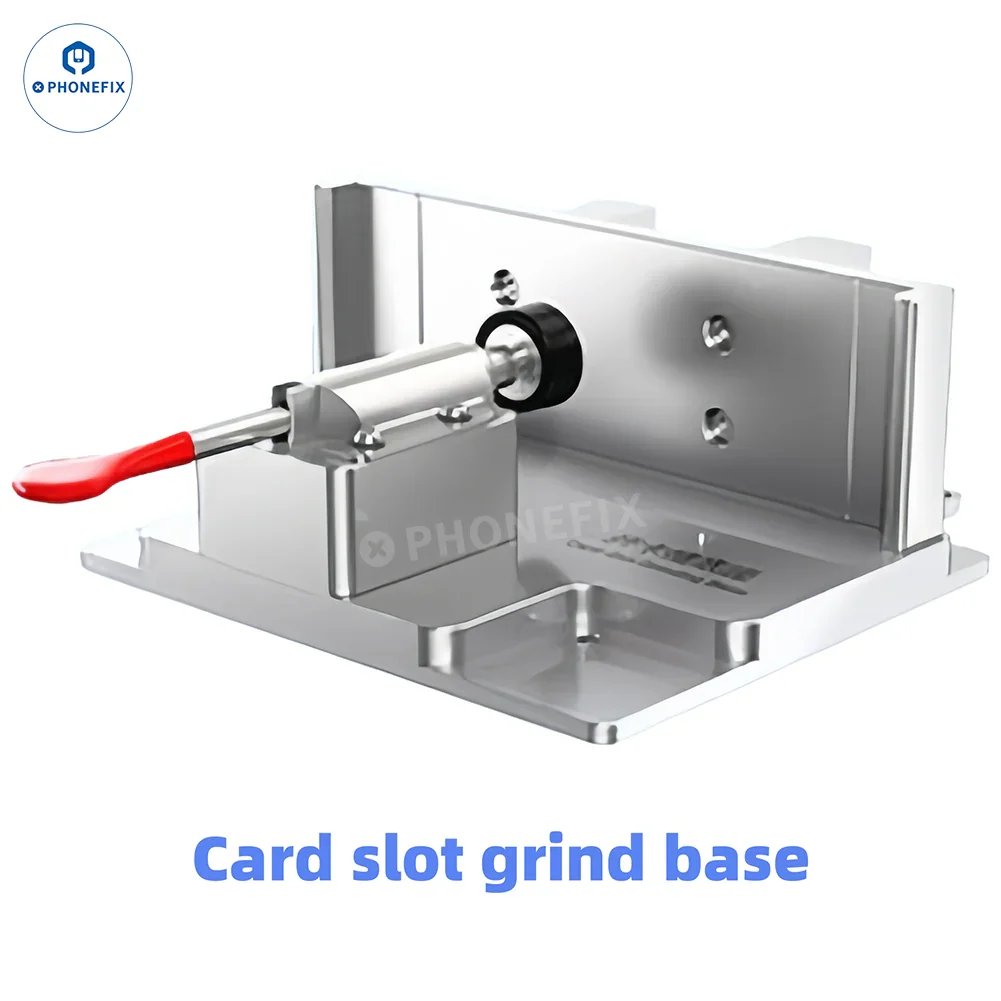

1x iPhone card slot grind base.

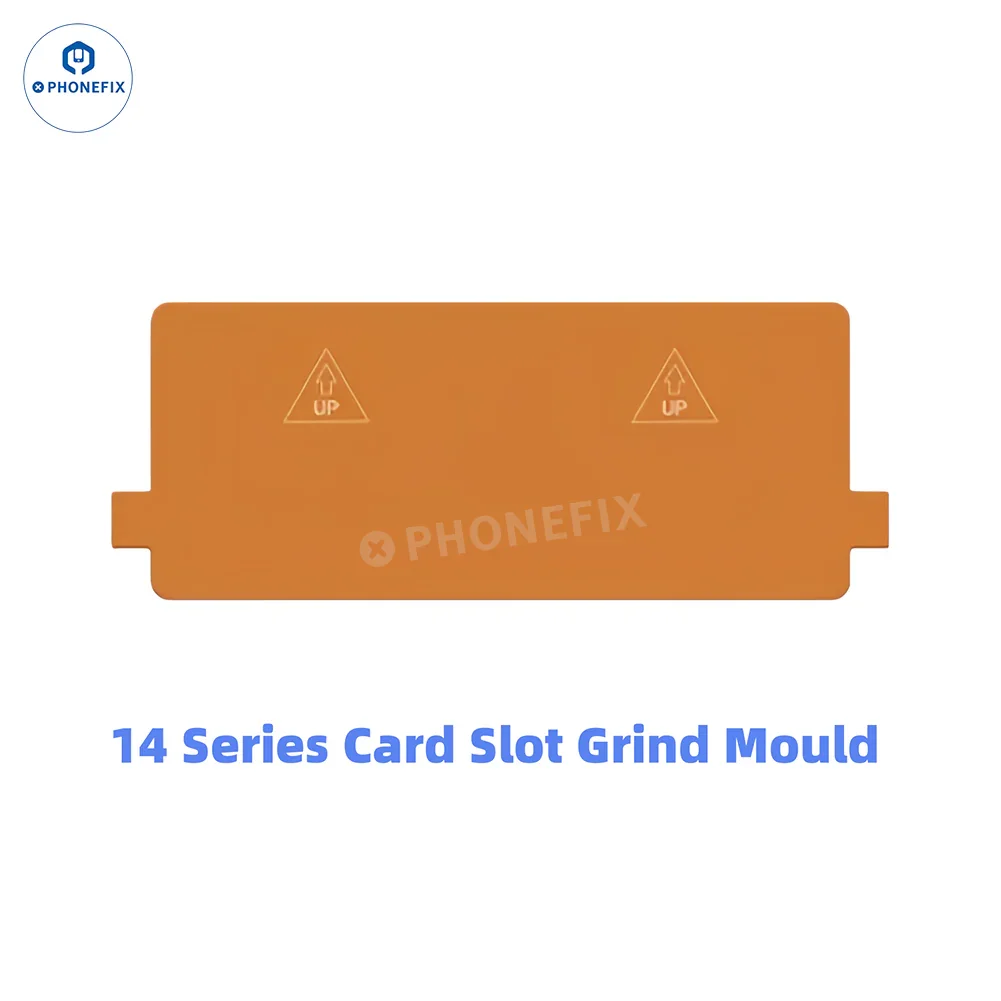

1x iPhone 14 series card slot grind mold.

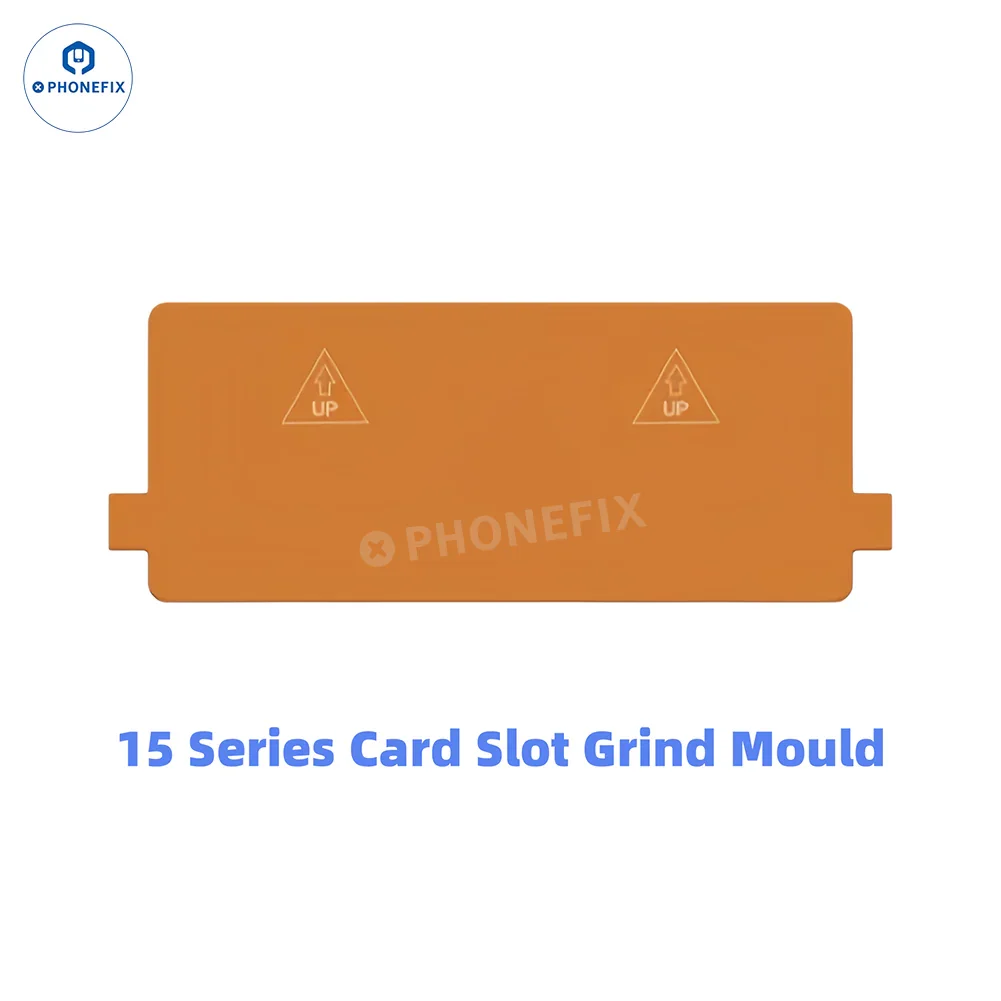

1x iPhone 15 series card slot grind mold.

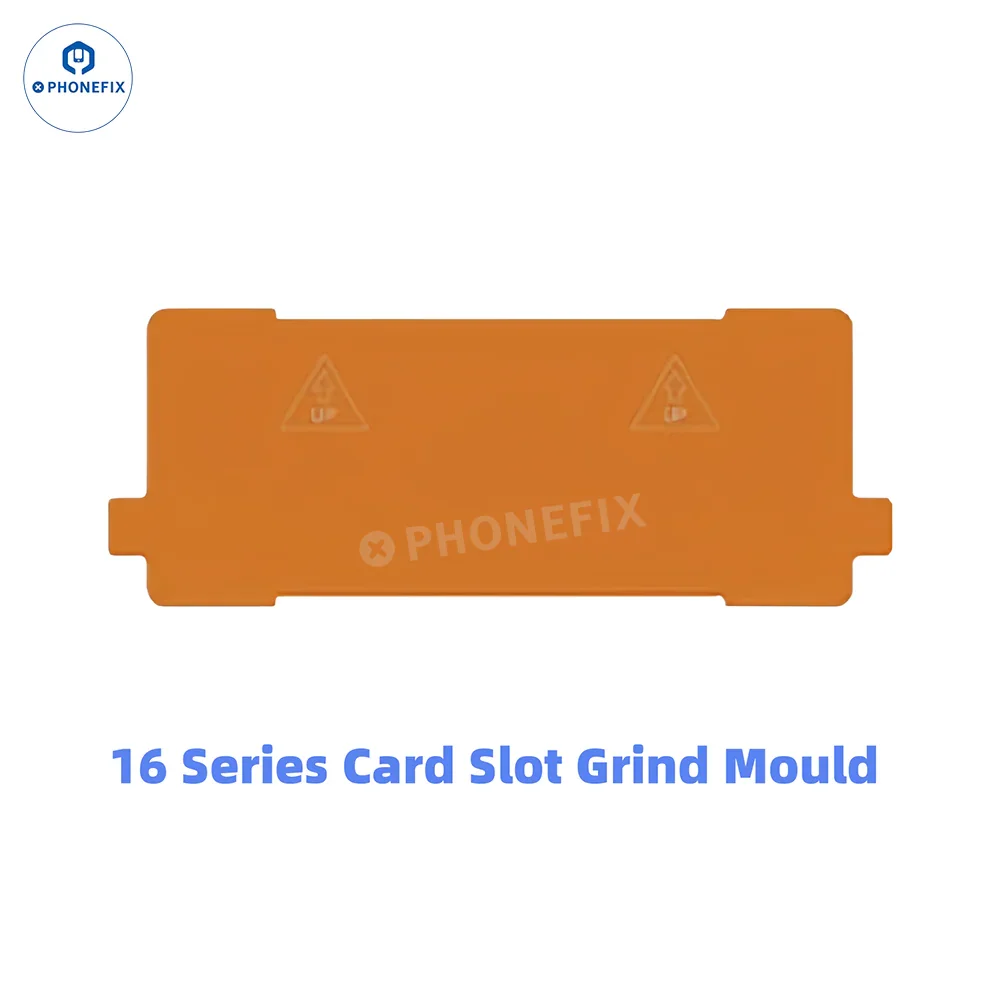

1x iPhone 16 series card slot grind mold.

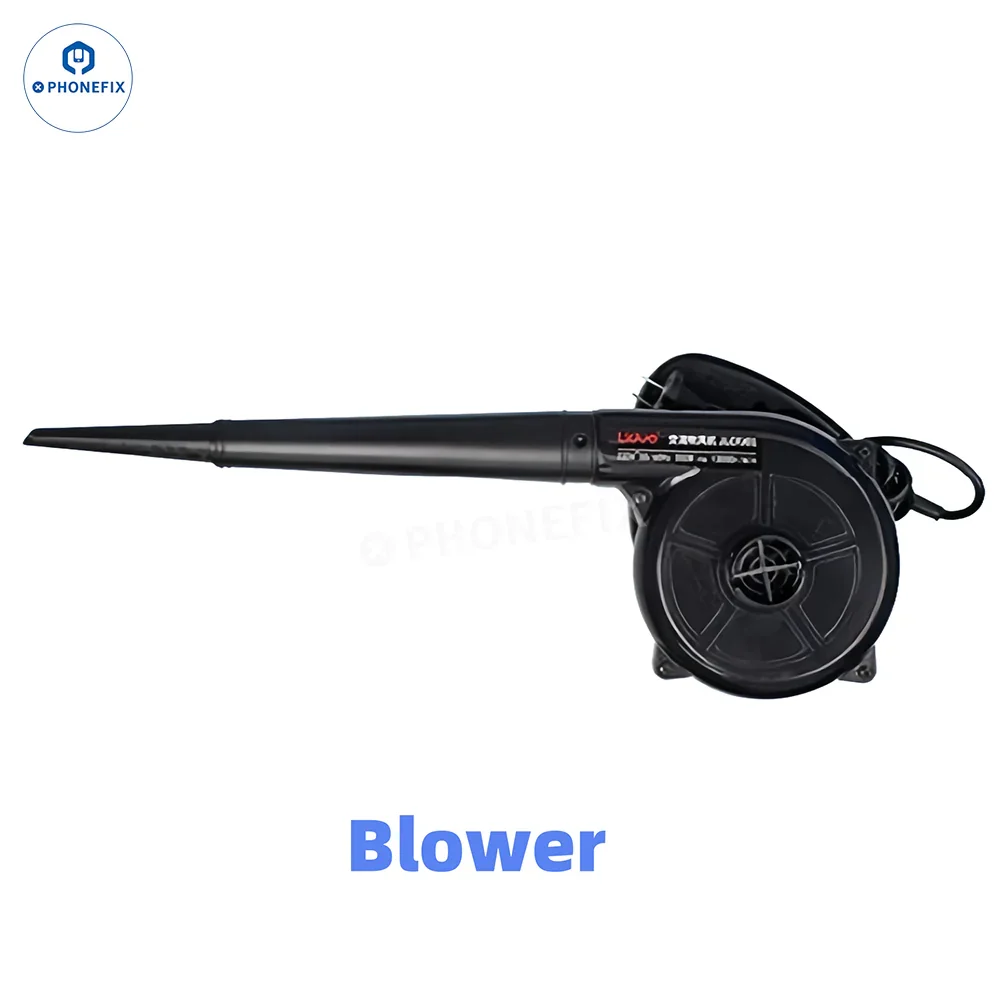

1x Blower.

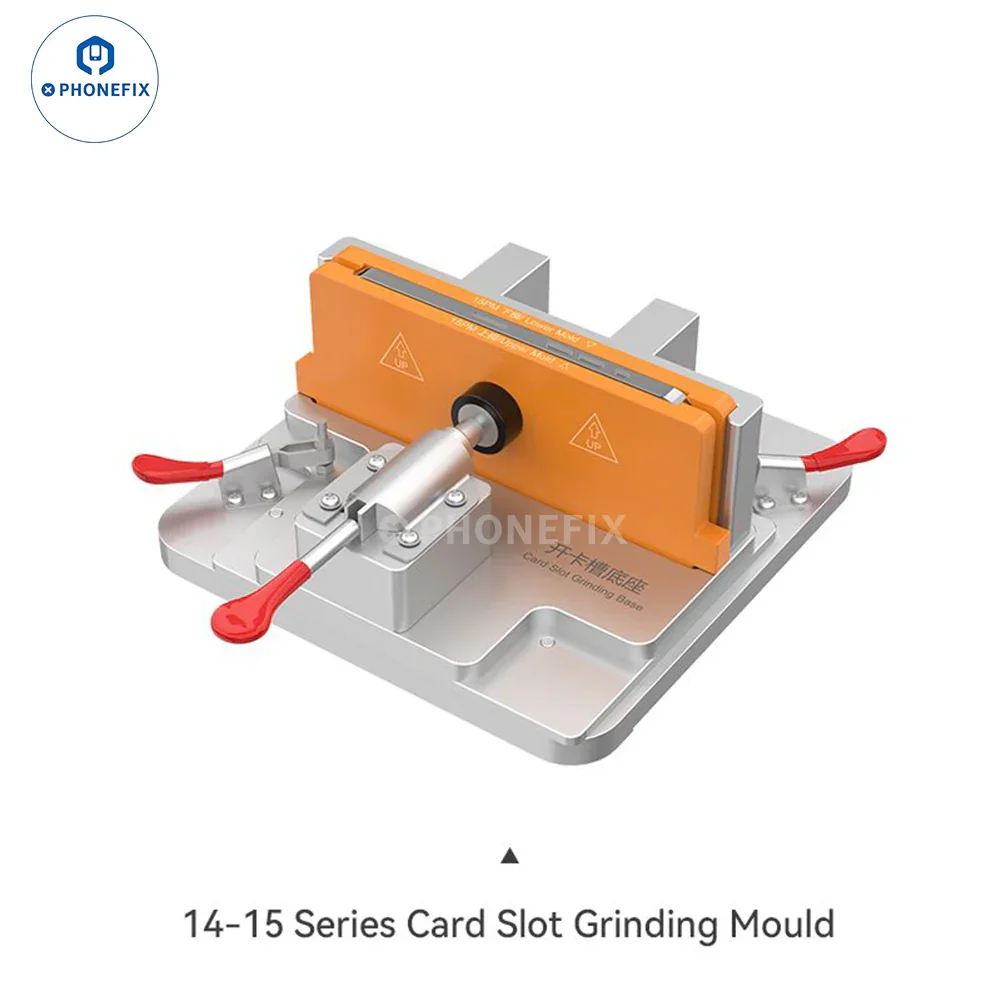

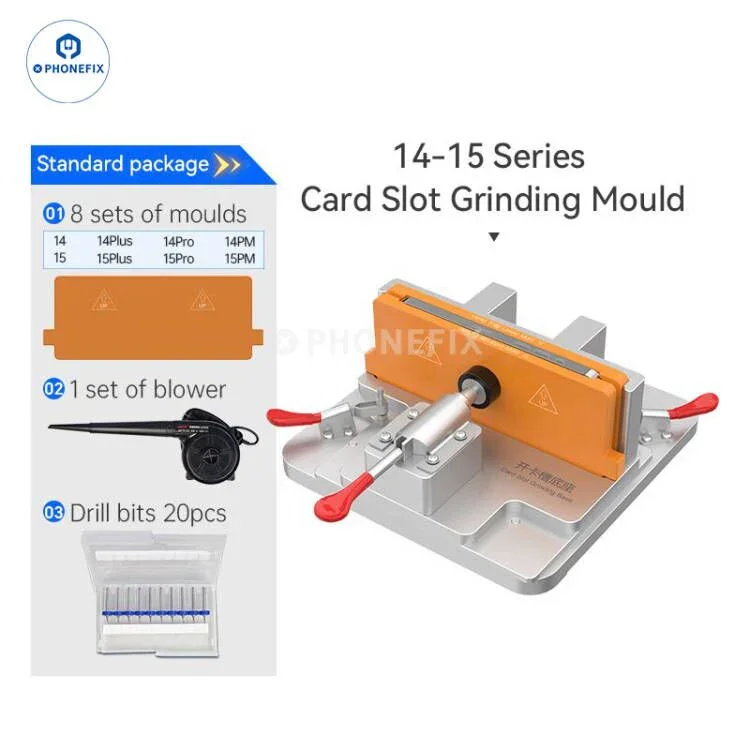

JCID EM02 added iPhone 14-15 Series Card Slot Grinding Mould, which includes card slot grinding base and 8 sets of moulds for iPhone 14/14 Plus/14 Pro/14 Pro Max/15/15 Plus/15 Pro/15 Pro Max. JCID 14-15 series card slot grinding mould for grinding SIM card slot on the middle frame of the iPhone 14-15 Pro Max.

JC EM02/EM03 grinding machine user manual: https://drive.google.com/file/d/1vE2AXT6VgHypSZxpT_xtwBq-ELEB7wAR/view?usp=drive_link

Please Note:
1. Please place the iPhone mould with the "UP" side facing upward.
2. It's necessary to use a blower to keep blowing air towards it when grinding.
3. The grinding time for iPhone 14/14 Plus/15/15 Plus is about 6 minutes.
4. The grinding time for iPhone 14Pro/14 Pro Max/15 Pro/15 Pro Max is about 14 minutes.
5. When the grinding machine reports that the pressure is too high during the grinding processing, the drill bit needs to be replaced to continue grinding.

Features:

• For iPhone 6-17 Pro Max.
• Support front and back Grinding (to reserve chip) for each model.
• Self-developed operation system.
• 7-inch high-resolution capacitive touchscreen.
• Support automatic software upgrade via WI-FI.
• Chip grinding APP data will update automatically via WiF.
• Grinding APP data for other accessories will update automatically for the future.
• Adopt 1.2g Quad-Core CPU.
• Integrated image processing chip.
• Support 720P HD camera and 180-degree panoramic image display.
• Supporting grinding for quadrangle chip, hexagonal WiFi chip and rounded parts.
• Support chip data custom addiction.
• Quickly generate accurate chip grinding data trough chip diagonal point. positioning Built-in precise sensor,
• Fully automatic 5-point detection for the chip surface flatness,
• Analysis and generation of surface grinding data.
• 3 axes all adopt imported ball screw and linear guide, processing accuracy no less than 0.01mm.
• Support data import from USB memory.
• Support connecting Mouse and Keyboard for operation.
