JC Drawing iBooter Surface Current Analyzer Real-time Data Monitoring

JCID iBooter Surface Current Analyzer for 2013-2024 Microsoft Surface Current Analysis. Used with JC Intelligent Drawing to make Surface PCB current and voltage data monitoring and repair simpler and smarter. Supports current and voltage monitoring, data analysis, and multiple charging protocols.

Features:
1. JCID Current Analyzer-iBooter Surface specially designed for 2013-2024 Surface series current analysis and repair.

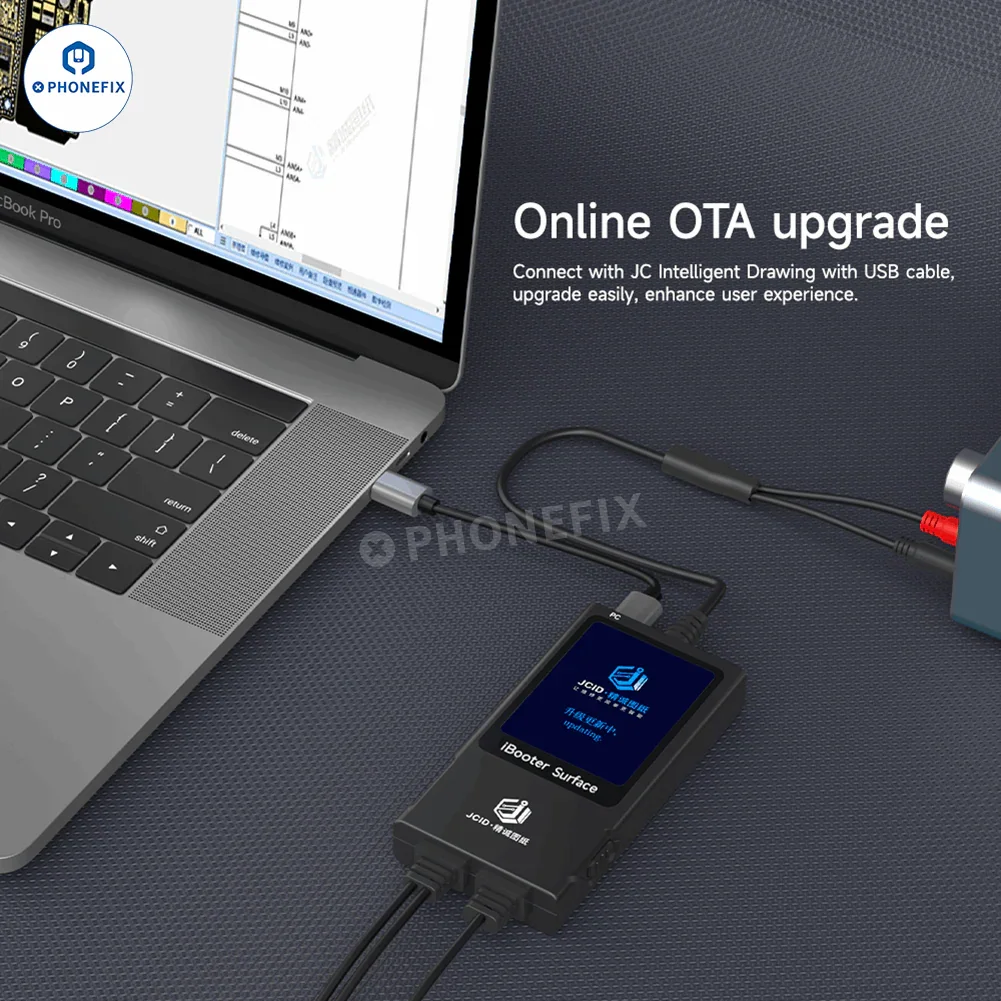

2. Connect to JC Intelligent Drawing via USB cable, easily upgrade and improve user experience.

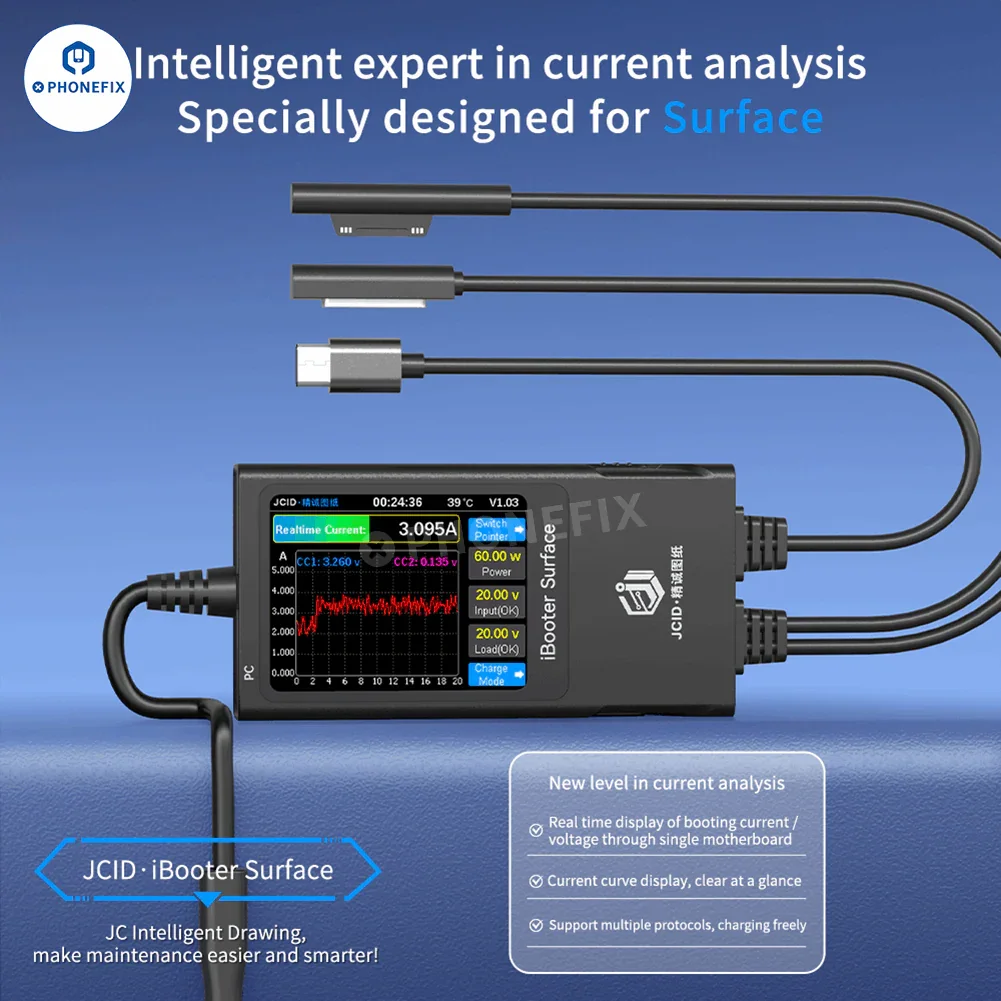

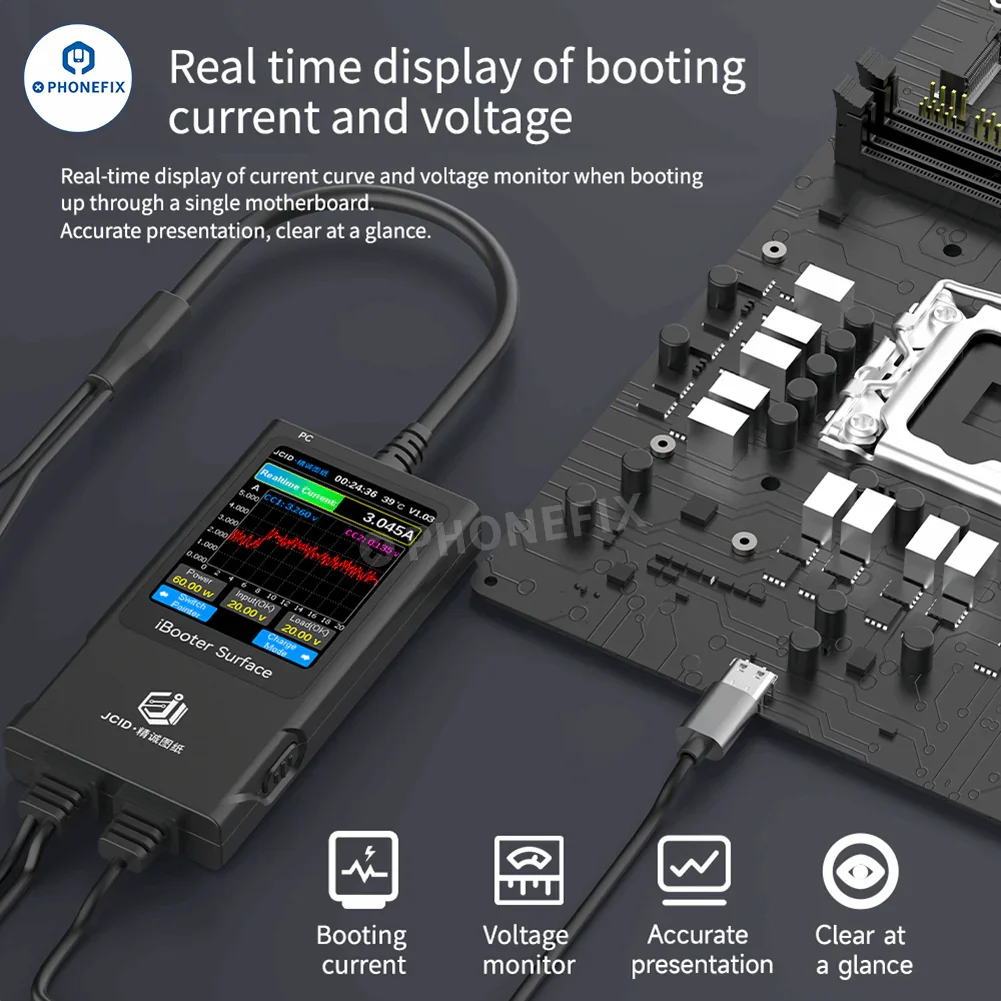

3. Supports real-time display of current curve and voltage monitoring when a single motherboard is turned on.

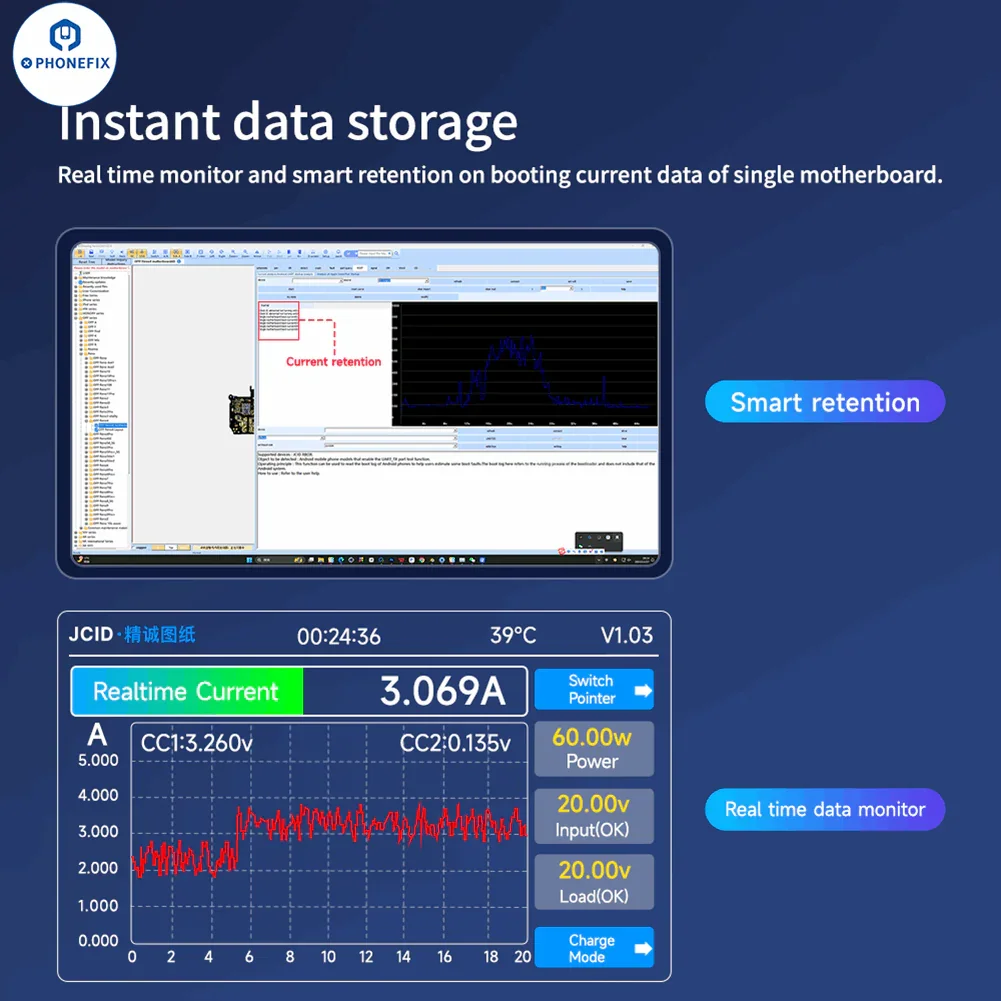

4. Real-time monitoring and intelligent retention of single motherboard startup current data.

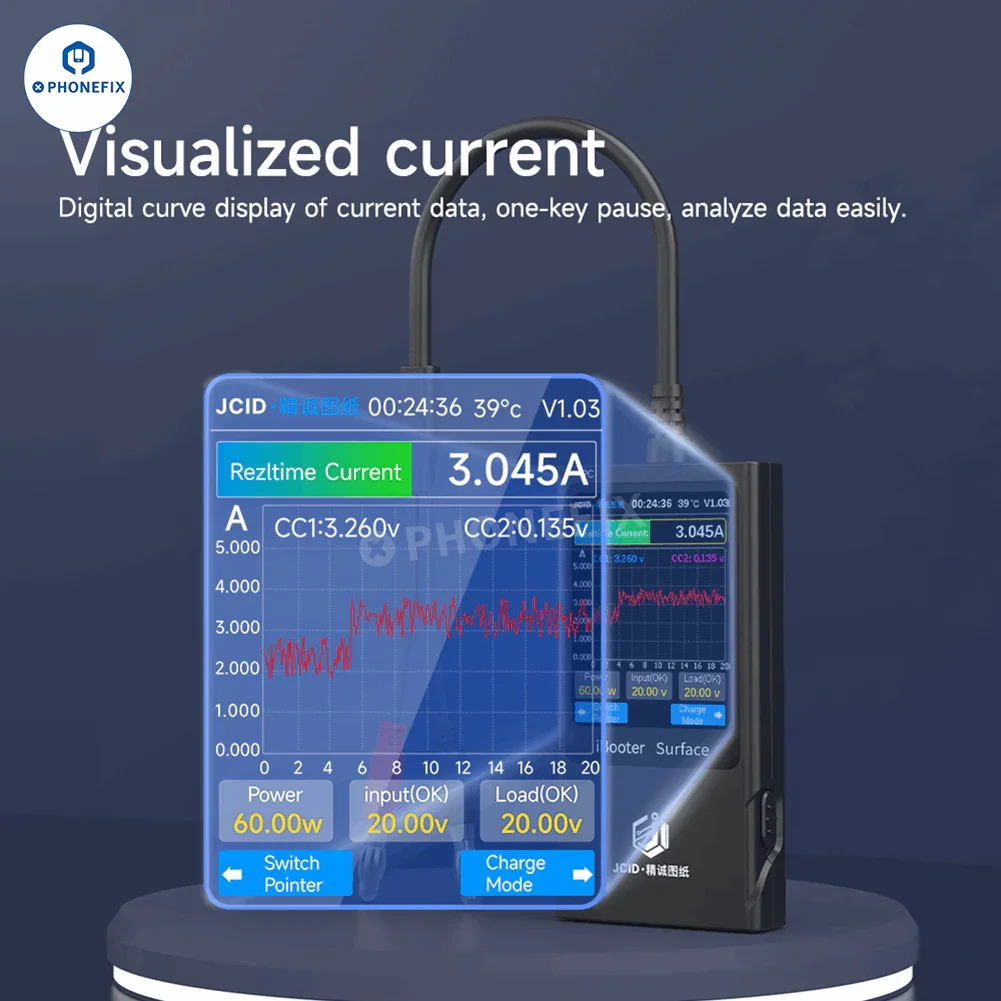

5. Current data digital curve display, one-click pause, easy data analysis.

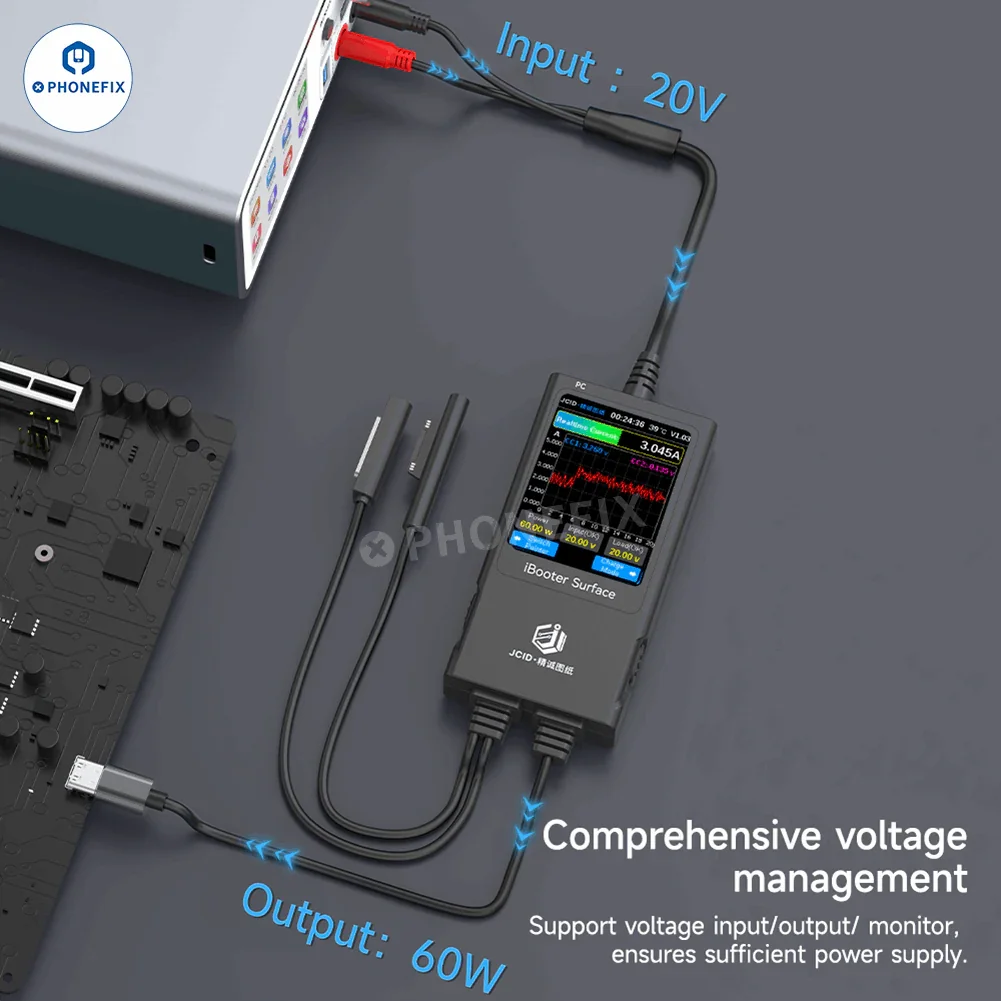

6. Support voltage input/output/monitoring, comprehensive voltage management.

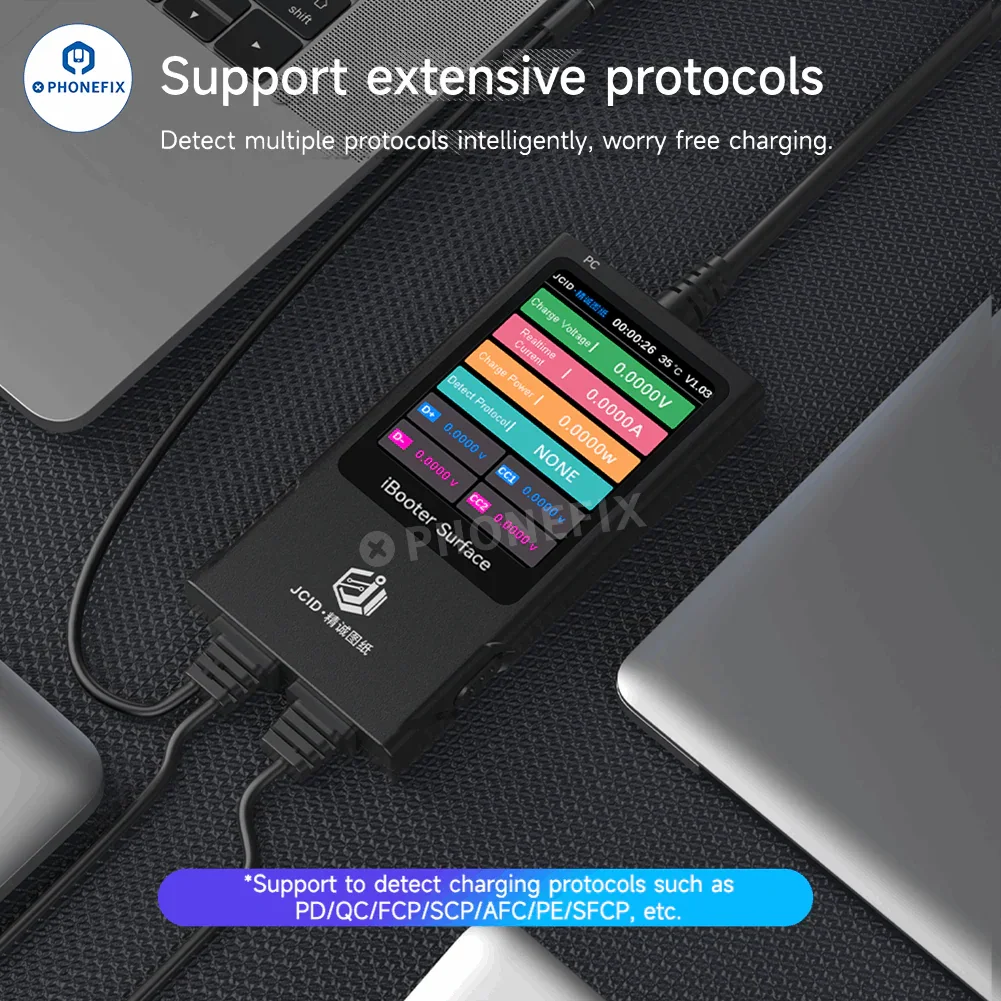

7. Intelligent detection of multiple charging protocols such as PD/QC/FCP/SCP/AFC/PE/SFCP.

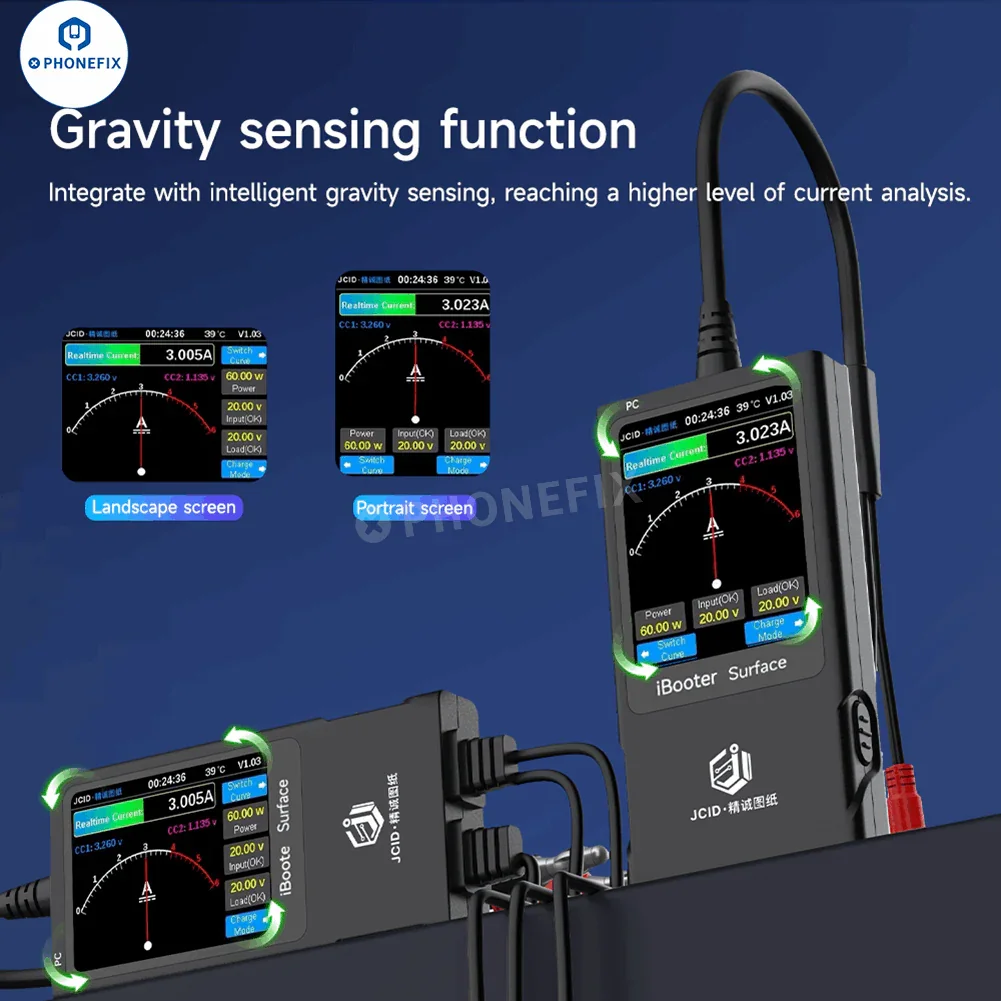

8. Integrated with intelligent gravity sensing, both horizontal and vertical screens can be displayed.

Product Parameters:
Name: JCID iBooter Surface Current Analyzer.

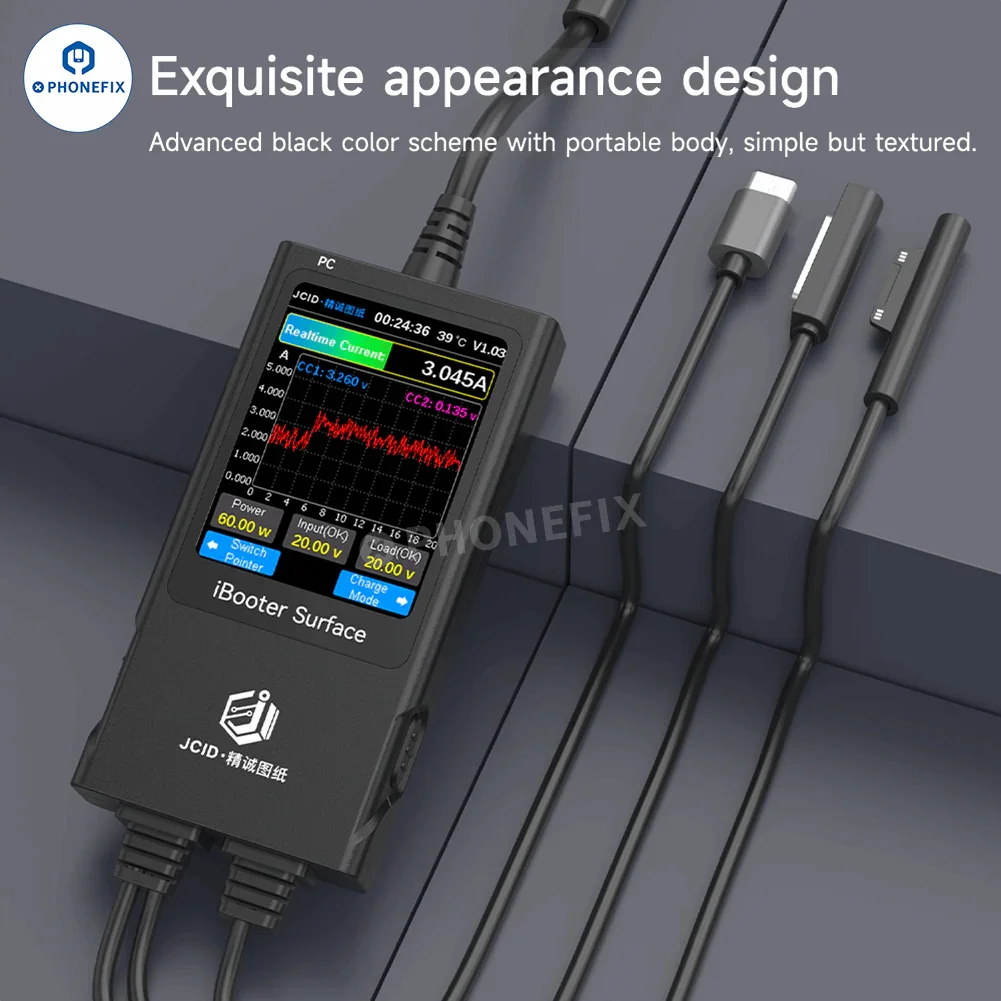

Color: Black.
Dimensions: 95.6mm*49.4mm*15.4mm.
Applicable to: 2013-2024 Surface Series.
