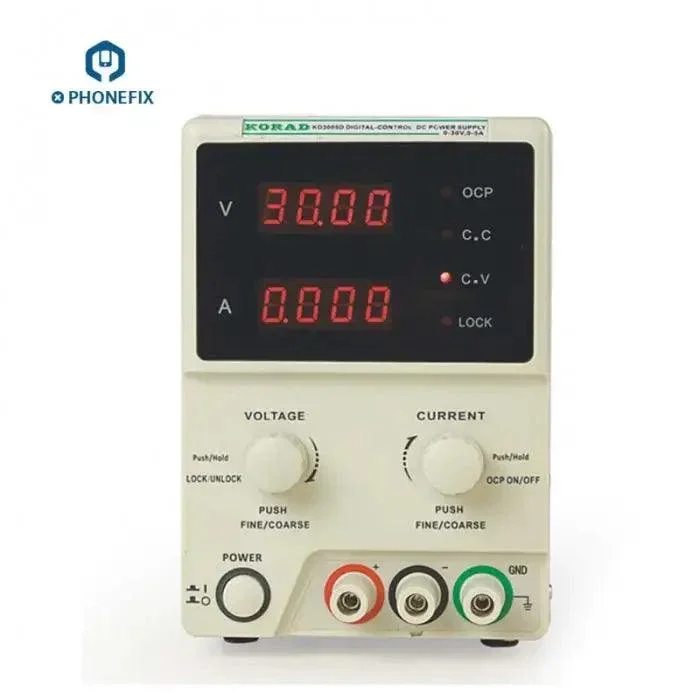

KORAD KD3005D Precision Adjustable DC Power Supply 30V 5A
KD3005D is the adjustable DC power supply station, with dual 4 digit LED displays, 0-30V 0-5A continuously adjustable DC power supply for mobile phone repair. KORAD KA3005P 30V 5A adjustable DC power supply 4 digits LED screen display. KORAD KA3005P precisely generate the required voltages and currents, 0-30V adjustable DC output high-precision, 10mV and 1mA resolution.
Features:Â
Compact Design with Dual 4 Digit LED Displays and Digital Controls.
Circuit protection for over load protection, short circuit and over temperature.
Automatic switching between mA and A display.
Specification:
- Weight: 4.8 kg
- Dimensions (W x H x D): 110 x 260 x 156 mm
- Supplied with: laboratory power supply unit, power cable, instructions
- Mains voltage: 110 or 230V AC, 50/60 Hz
- Output voltage: 0 - 30 V DC
- Output current: 0 - 5 A
Load stabilization :
- Voltage: 0.01%+2 mV
- Current: <0.1%+10 mA
Mains stabilization :
- Voltage: 0.01%+3 mV
- Current: <0.1%+3 mA
- Resolution setting: 10 mV/1 mA
Accuracy (at 25°C +/- 5°C) :
- Voltage: 0.5%+20 mV
- Current: <0.5%+ 10 mA
Residual ripple (20 Hz - 20 MHz) :
- Voltage: <2 mV rms
- Current: <3 mA rms
- Display resolution: 10 mV/1 mA
- Response time (10% load): <100 ms

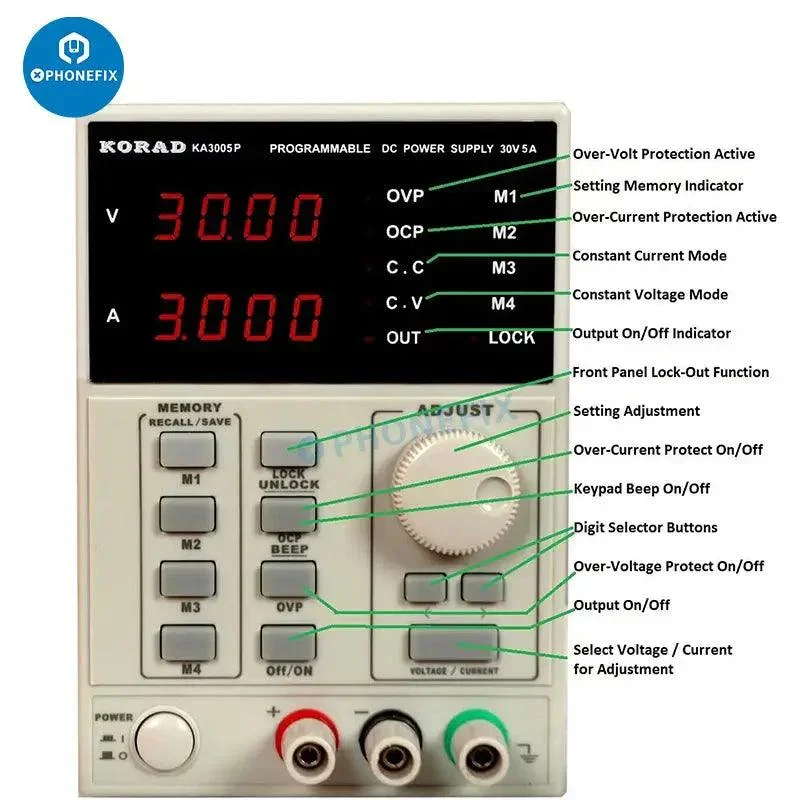

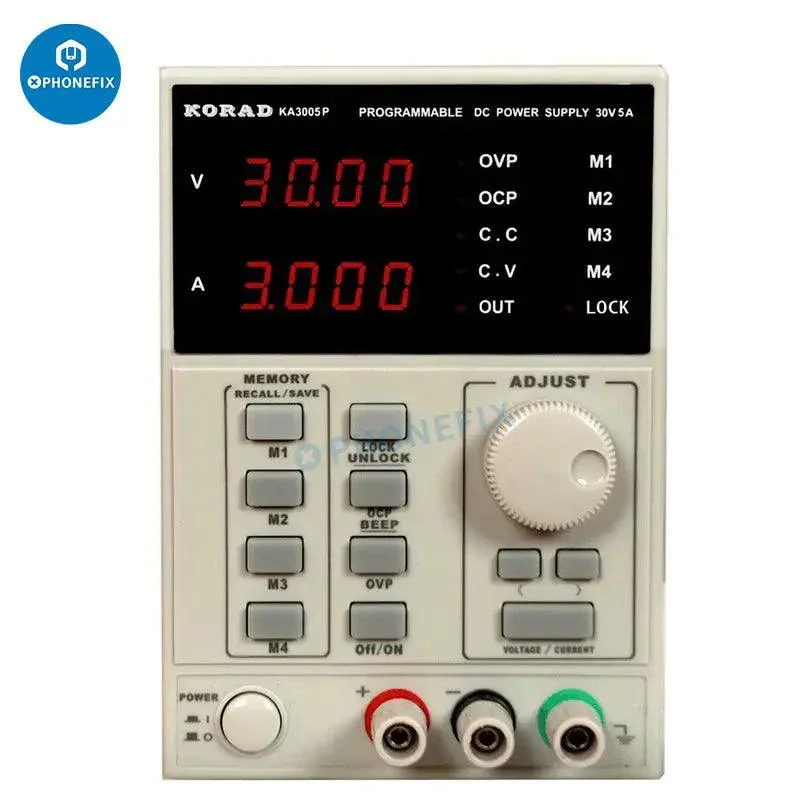

KORAD KA3005P Specification:
Operating Conditions:
Input voltage: 220V +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 â (0-40 ÂșC)
Operating humidity: < 80%RH
Storage temperature: 32-158 â (0-70 ÂșC)
Storage humidity: < 70%RH
Stable Voltage:
Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10 mV
Setup Accuracy: <0.05% +20 mV
Ripple: < 1mVRMS
Read back Accuracy: 10 mV
Temp. Coefficient: < 0.1% + 10mV
Read back Temp. Coefficient: < 100 ppm+10 mV
Stable Current:
Output Current Range: 0-5A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: <0.1% +3 mA
Ripple: < 3mARMS
Read back Accuracy: 1 mA
Temp. Coefficient: < 0.1% + 5mA
Read back Temp. Coefficient: < 100 ppm+5 mA
Dimensions: 4.3 x 6.1 x 10.25 inch (110 x 156 x 260mm)
Original: $45.55
-65%$45.55
$15.94More Images
