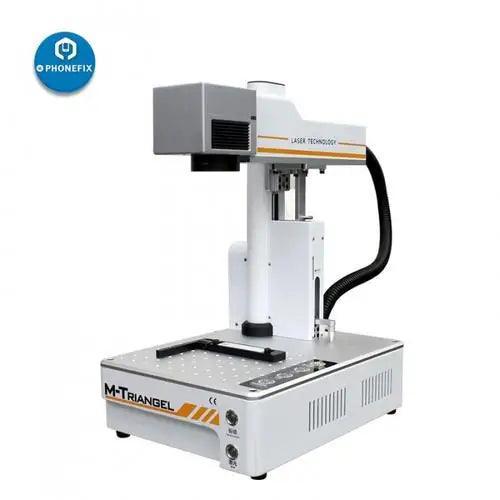

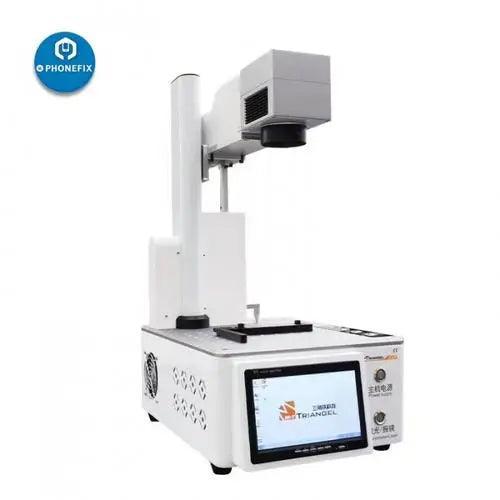

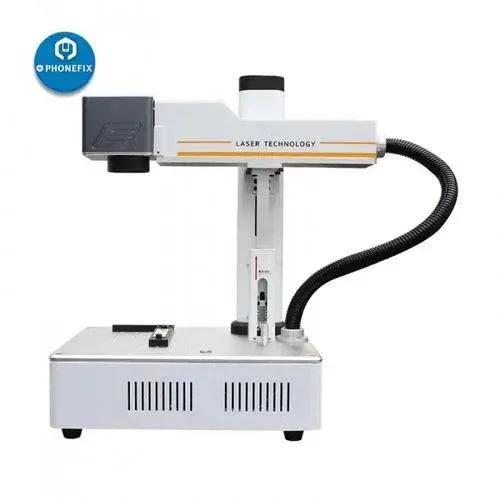

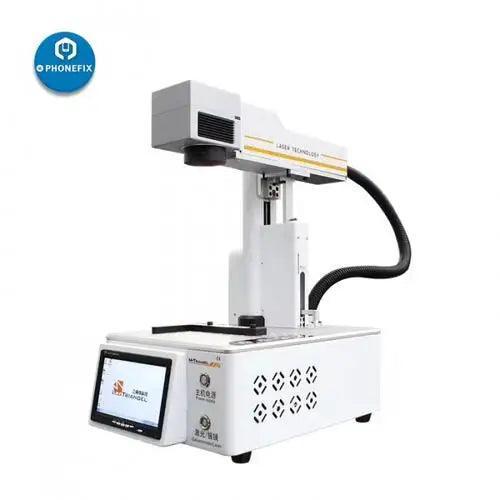

Laser Marking Machine For Phone Screen Glass Back LCD Separating
M-Triangel MG ones PG ones Intelligent Laser Separating Machine For mobile phone Back cover glass LCD Frame Removing Repair, Mobile Phone Back Glass Separate Laser Machine, DIY Logo machine Laser Marking Machine. Laser Marking Machine Separating machine for phone back glass Removing Repair. Laser Marking / Laser Separating / Laser DIY Logo.
Option:
1. M-Triangel MG ones(SP002). Package size: 650*620*380mm.
2. M-Triangel PG ones(SP003). Package size: 680*680*360mm.
Option:
1. M-Triangel MG ones(SP002). Package size: 650*620*380mm.
2. M-Triangel PG ones(SP003). Package size: 680*680*360mm.
1. Separate Midframe / Bezel / Back glass, Marking / Engraving
2. Technology Upgrading----Intelligent Ranging System
3. Easy operation, Come with Software and drawings(Continuous updating...)
4. Suitable for all touch screen smart phones Laser Repair in the market: for IPhone, Huawei, XiaoMi,OPPO,vivo,LG series;
5.Many type of metals are workable: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc.
6.Alloy and metal oxides: Anodized Aluminum
7. 12 months warranty, online technical support and training is provied.

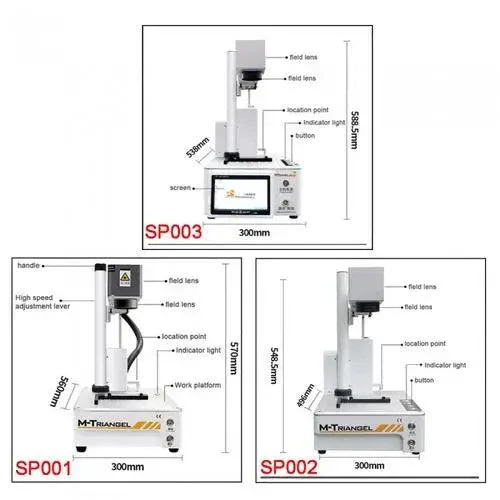

Intelligent SP001 Parameters
Laser Power: 20W
Machine Speed: ≤10000mm/s
Marking power: ≤0.001MM
Cooling method: built-in air cooling
Laser wavelength: 1.06μm
Laser equipment size: 300*560*570MM
Power supply:220V ± 10%, 50HZ ± 5%
Ambient temperature: -10 ° C ~ 65 ° C
Repeatability: ≤0.001mm
Marking depth: 0.015-0.5mm
Marking range: 175*175mm
Marking line width: 0.05-0.01mm
Equipment weight: 32kg
Packing Size: 630x600x300mm
Gross weight: 28kg
Automatic SP002 Parameters
Laser Power : 20W
Machine Speed:≤10000mm/s
Marking power：≤0.001MM
Cooling method：built-in air cooling
Laser wavelength：1.06μm
Laser equipment size：300*496*548.5MM
Power supply：220V ± 10%, 50HZ ± 5%
Ambient temperature：-10 ° C ~ 65 ° C
Repeatability：≤0.001mm
Marking depth:0.015-0.5mm
Marking range:175*175mm
Marking line width:0.05-0.01mm
Equipment weight:18.9kg
Packing Size:630x600x300mm
Gross weight :28.92kg
Computer SP003 Parameters
Laser Power : 20W
Machine Speed:≤10000mm/s
Marking power：≤0.001MM
Cooling method：built-in air cooling
Laser wavelength：1.06μm
Laser equipment size：300*538*588.5MM
Power supply：220V ± 10%, 50HZ ± 5%
Ambient temperature：-10 ° C ~ 65 ° C
Repeatability：≤0.001mm
Marking depth:0.015-0.5mm
Marking range:175*175mm
Marking line width:0.05-0.01mm
Equipment weight:21.2kg
Gross weight: 32kg
Select Option
From $349.65
Original: $999.00
-65%Laser Marking Machine For Phone Screen Glass Back LCD Separating—
$999.00
$349.65More Images
Laser Marking Machine For Phone Screen Glass Back LCD Separating
M-Triangel MG ones PG ones Intelligent Laser Separating Machine For mobile phone Back cover glass LCD Frame Removing Repair, Mobile Phone Back Glass Separate Laser Machine, DIY Logo machine Laser Marking Machine. Laser Marking Machine Separating machine for phone back glass Removing Repair. Laser Marking / Laser Separating / Laser DIY Logo.
Option:
1. M-Triangel MG ones(SP002). Package size: 650*620*380mm.
2. M-Triangel PG ones(SP003). Package size: 680*680*360mm.
Option:
1. M-Triangel MG ones(SP002). Package size: 650*620*380mm.
2. M-Triangel PG ones(SP003). Package size: 680*680*360mm.
1. Separate Midframe / Bezel / Back glass, Marking / Engraving
2. Technology Upgrading----Intelligent Ranging System
3. Easy operation, Come with Software and drawings(Continuous updating...)
4. Suitable for all touch screen smart phones Laser Repair in the market: for IPhone, Huawei, XiaoMi,OPPO,vivo,LG series;
5.Many type of metals are workable: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc.
6.Alloy and metal oxides: Anodized Aluminum
7. 12 months warranty, online technical support and training is provied.
Intelligent SP001 Parameters
Laser Power: 20W
Machine Speed: ≤10000mm/s
Marking power: ≤0.001MM
Cooling method: built-in air cooling
Laser wavelength: 1.06μm
Laser equipment size: 300*560*570MM
Power supply:220V ± 10%, 50HZ ± 5%
Ambient temperature: -10 ° C ~ 65 ° C
Repeatability: ≤0.001mm
Marking depth: 0.015-0.5mm
Marking range: 175*175mm
Marking line width: 0.05-0.01mm
Equipment weight: 32kg
Packing Size: 630x600x300mm
Gross weight: 28kg
Automatic SP002 Parameters
Laser Power : 20W
Machine Speed:≤10000mm/s
Marking power：≤0.001MM
Cooling method：built-in air cooling
Laser wavelength：1.06μm
Laser equipment size：300*496*548.5MM
Power supply：220V ± 10%, 50HZ ± 5%
Ambient temperature：-10 ° C ~ 65 ° C
Repeatability：≤0.001mm
Marking depth:0.015-0.5mm
Marking range:175*175mm
Marking line width:0.05-0.01mm
Equipment weight:18.9kg
Packing Size:630x600x300mm
Gross weight :28.92kg
Computer SP003 Parameters
Laser Power : 20W
Machine Speed:≤10000mm/s
Marking power：≤0.001MM
Cooling method：built-in air cooling
Laser wavelength：1.06μm
Laser equipment size：300*538*588.5MM
Power supply：220V ± 10%, 50HZ ± 5%
Ambient temperature：-10 ° C ~ 65 ° C
Repeatability：≤0.001mm
Marking depth:0.015-0.5mm
Marking range:175*175mm
Marking line width:0.05-0.01mm
Equipment weight:21.2kg
Gross weight: 32kg
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
M-Triangel MG ones PG ones Intelligent Laser Separating Machine For mobile phone Back cover glass LCD Frame Removing Repair, Mobile Phone Back Glass Separate Laser Machine, DIY Logo machine Laser Marking Machine. Laser Marking Machine Separating machine for phone back glass Removing Repair. Laser Marking / Laser Separating / Laser DIY Logo.
Option:
1. M-Triangel MG ones(SP002). Package size: 650*620*380mm.
2. M-Triangel PG ones(SP003). Package size: 680*680*360mm.
Option:
1. M-Triangel MG ones(SP002). Package size: 650*620*380mm.
2. M-Triangel PG ones(SP003). Package size: 680*680*360mm.
1. Separate Midframe / Bezel / Back glass, Marking / Engraving
2. Technology Upgrading----Intelligent Ranging System
3. Easy operation, Come with Software and drawings(Continuous updating...)
4. Suitable for all touch screen smart phones Laser Repair in the market: for IPhone, Huawei, XiaoMi,OPPO,vivo,LG series;
5.Many type of metals are workable: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc.
6.Alloy and metal oxides: Anodized Aluminum
7. 12 months warranty, online technical support and training is provied.
Intelligent SP001 Parameters
Laser Power: 20W
Machine Speed: ≤10000mm/s
Marking power: ≤0.001MM
Cooling method: built-in air cooling
Laser wavelength: 1.06μm
Laser equipment size: 300*560*570MM
Power supply:220V ± 10%, 50HZ ± 5%
Ambient temperature: -10 ° C ~ 65 ° C
Repeatability: ≤0.001mm
Marking depth: 0.015-0.5mm
Marking range: 175*175mm
Marking line width: 0.05-0.01mm
Equipment weight: 32kg
Packing Size: 630x600x300mm
Gross weight: 28kg
Automatic SP002 Parameters
Laser Power : 20W
Machine Speed:≤10000mm/s
Marking power：≤0.001MM
Cooling method：built-in air cooling
Laser wavelength：1.06μm
Laser equipment size：300*496*548.5MM
Power supply：220V ± 10%, 50HZ ± 5%
Ambient temperature：-10 ° C ~ 65 ° C
Repeatability：≤0.001mm
Marking depth:0.015-0.5mm
Marking range:175*175mm
Marking line width:0.05-0.01mm
Equipment weight:18.9kg
Packing Size:630x600x300mm
Gross weight :28.92kg
Computer SP003 Parameters
Laser Power : 20W
Machine Speed:≤10000mm/s
Marking power：≤0.001MM
Cooling method：built-in air cooling
Laser wavelength：1.06μm
Laser equipment size：300*538*588.5MM
Power supply：220V ± 10%, 50HZ ± 5%
Ambient temperature：-10 ° C ~ 65 ° C
Repeatability：≤0.001mm
Marking depth:0.015-0.5mm
Marking range:175*175mm
Marking line width:0.05-0.01mm
Equipment weight:21.2kg
Gross weight: 32kg
