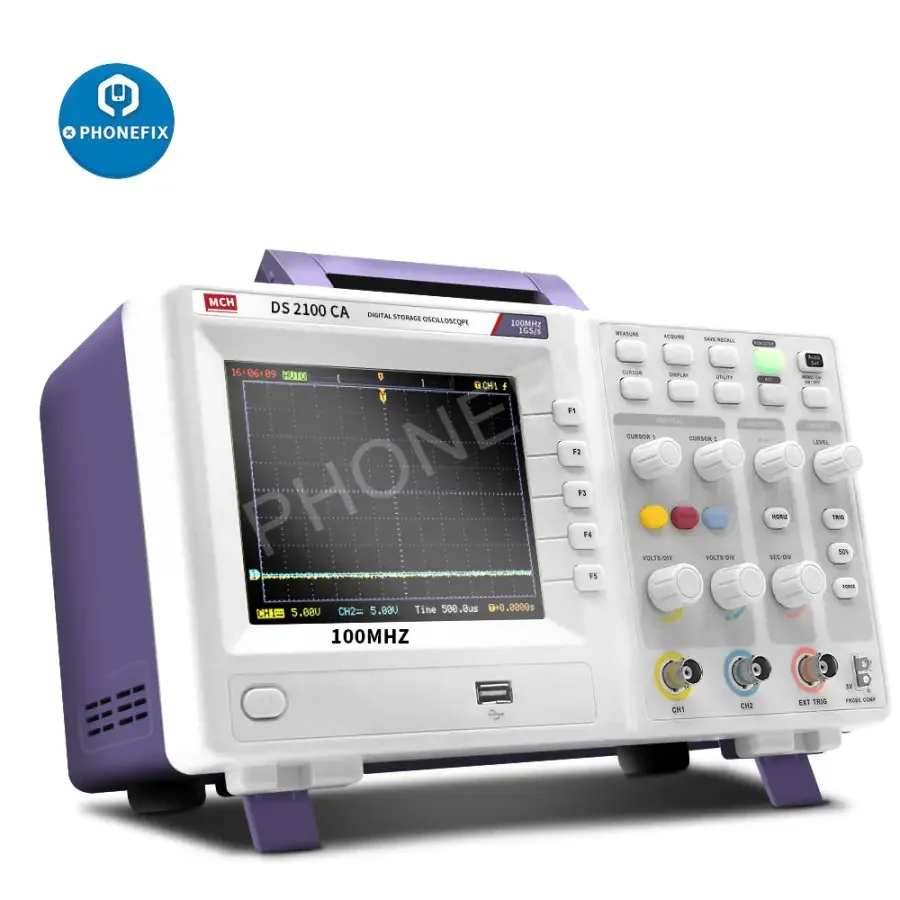

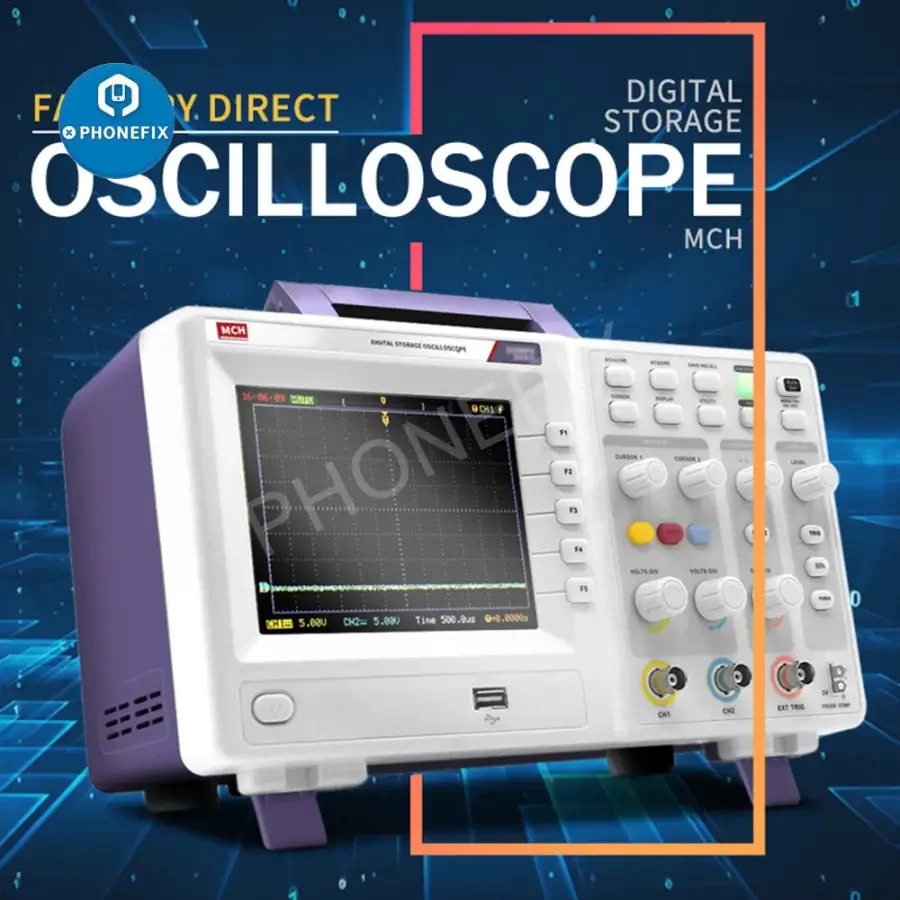

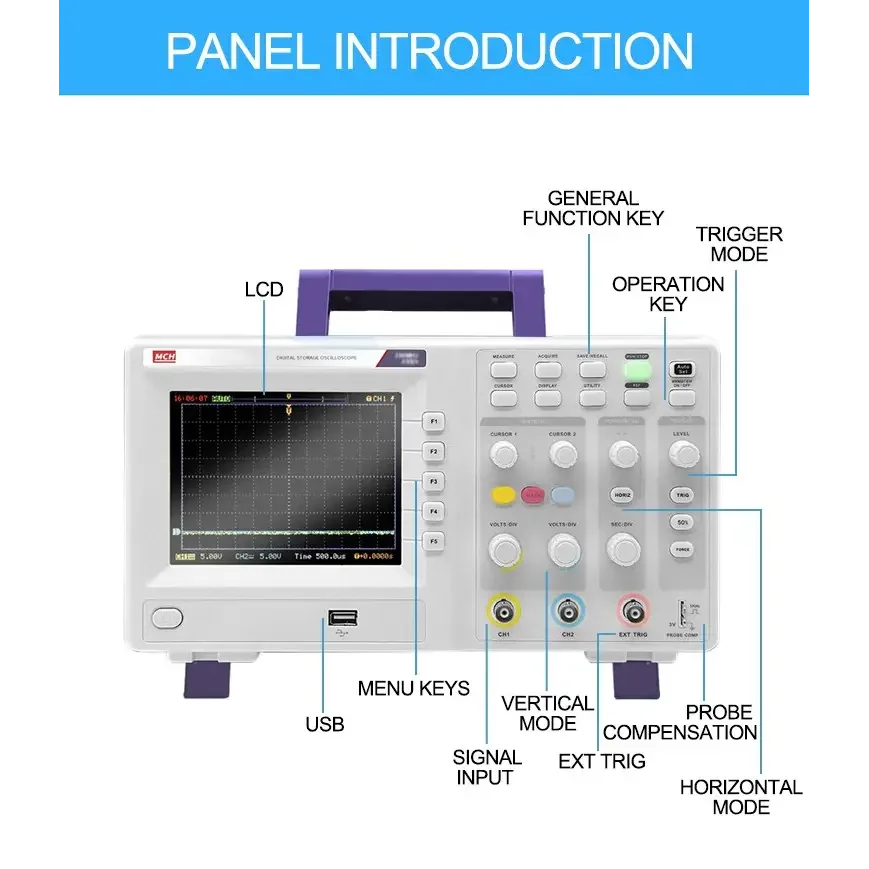

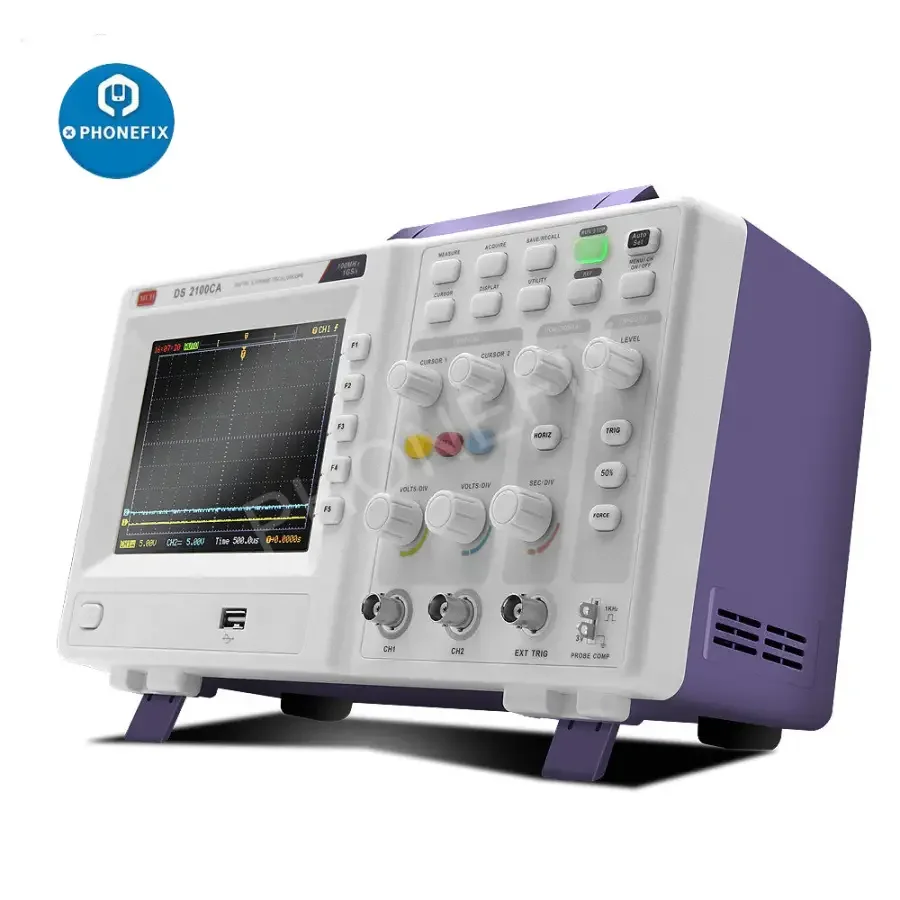

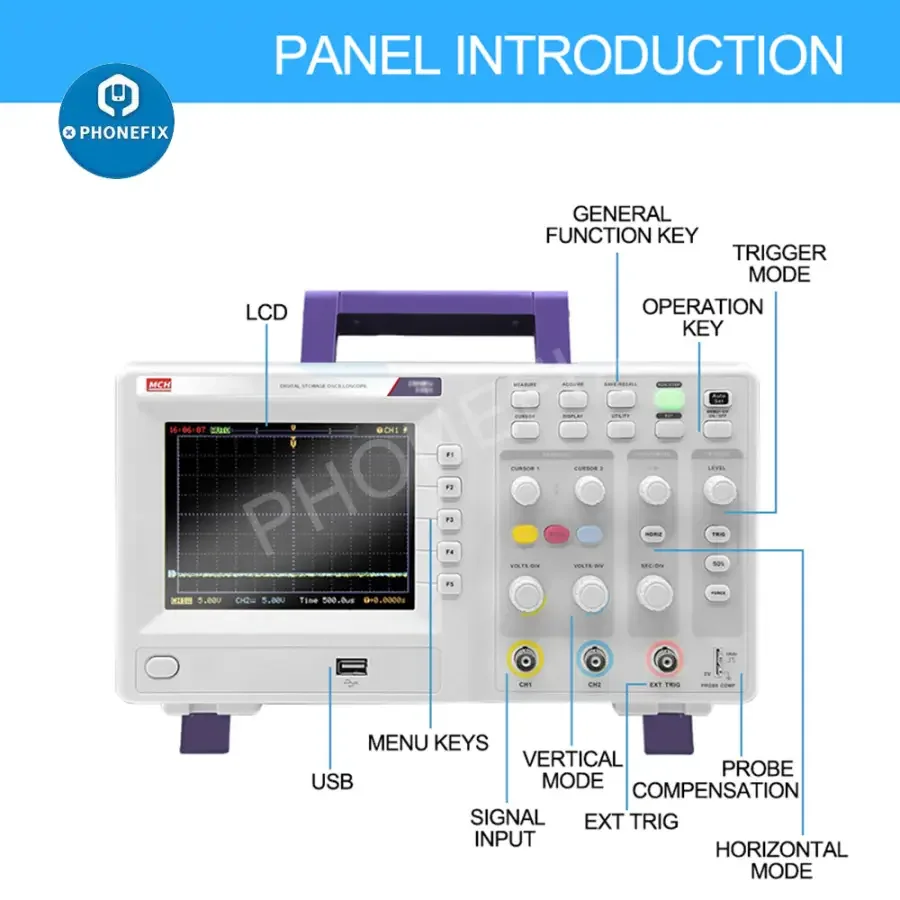

MCH DS Series Advanced Digital Storage Oscilloscope With Dual Channel

Model

DS-2025CA 2060ca 2010ca 2200ca  (25m 60m 100m 200m)

Channels

2+Ext.Trigger

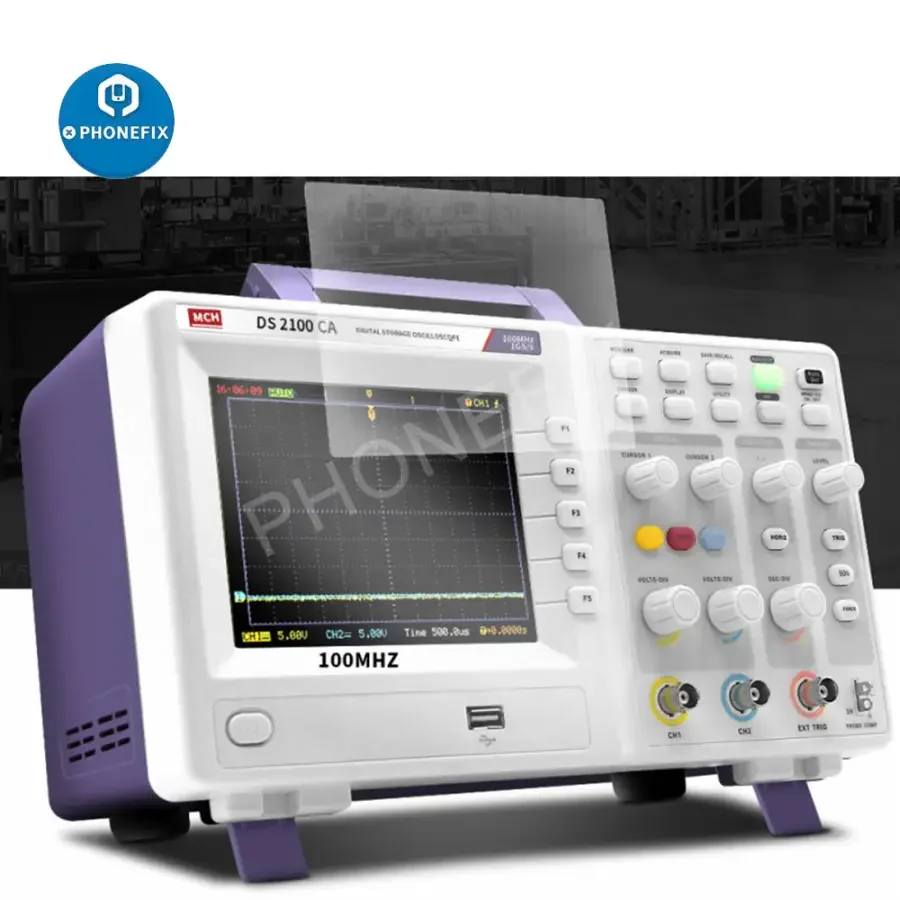

Bandwidth

25m  60m  100m 200mhz

Rising time

1.8ns

Time base

1ns to 50s/div

Real time sample rate

1GSa/s

Equivalent sample rate

50GSa/s

Input impedance

1MΩ//13pF

Input coupling

DC, AC, GND

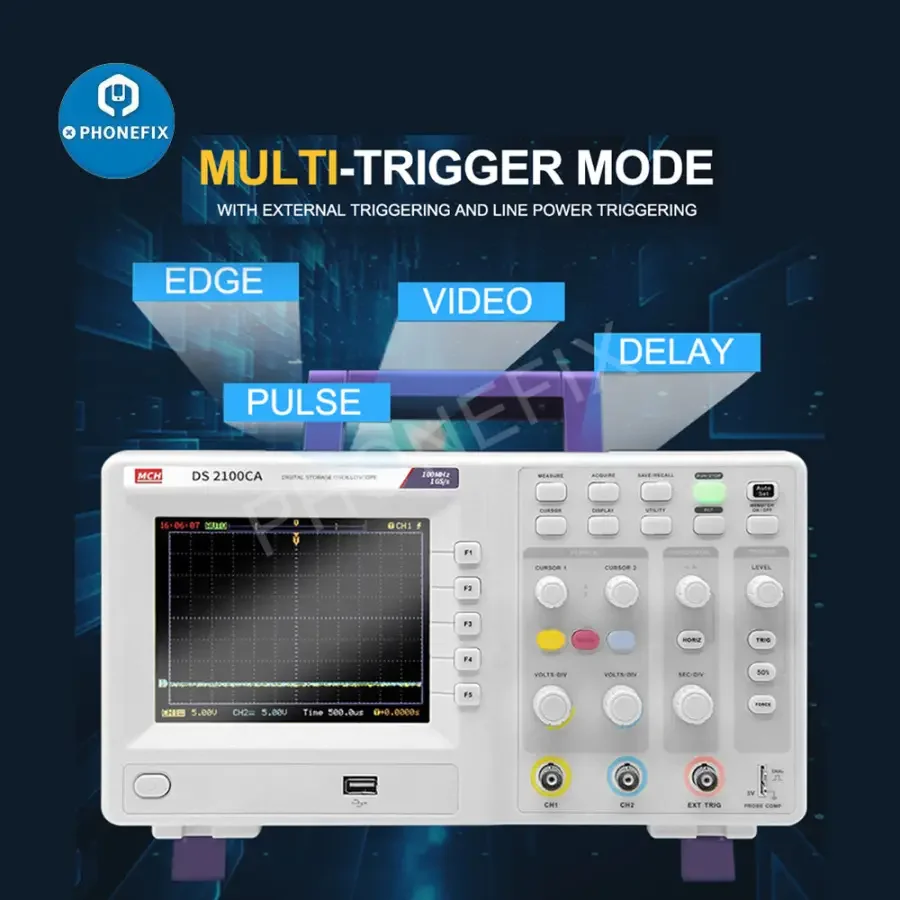

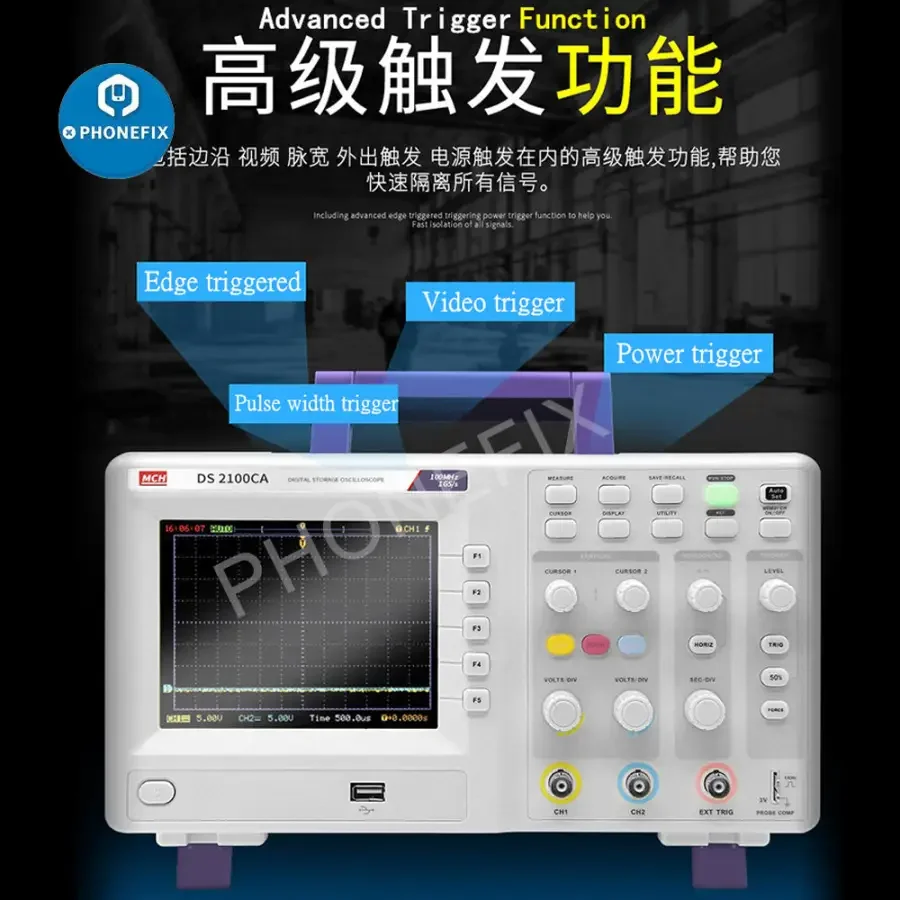

Trigger

Edge, video, pulse, delay

Acquisition modes

Auto, normal, single

Trigger sources

CH1, CH2, Ext, Ext/5, Ext(50Ω)

Horizontal accuracy

±0.01%

Vertical sensitivity

2 mV/div to 5V/div

Vertical resolution

8bit

Max. input voltage

400V(DC+AC peak),5Vrms@50Ω

Auto measurements

Vpp, Vamp, Vrms, Vmin, Vtop,Vbase,Vbase,Vavg,Freq,Period,Rise time

Fall time,+width,-width,overshoot,preshoot,+duty,-duty,etc

Math

+-×÷FFT

Storage

10waveforms,10 steps

FFT

Window

Hanning, hamming, Blackman-harris, rectangylar

Sample points

1024points

X-Y

Bandwidth

200MHz

Phase diff

±3 degrees

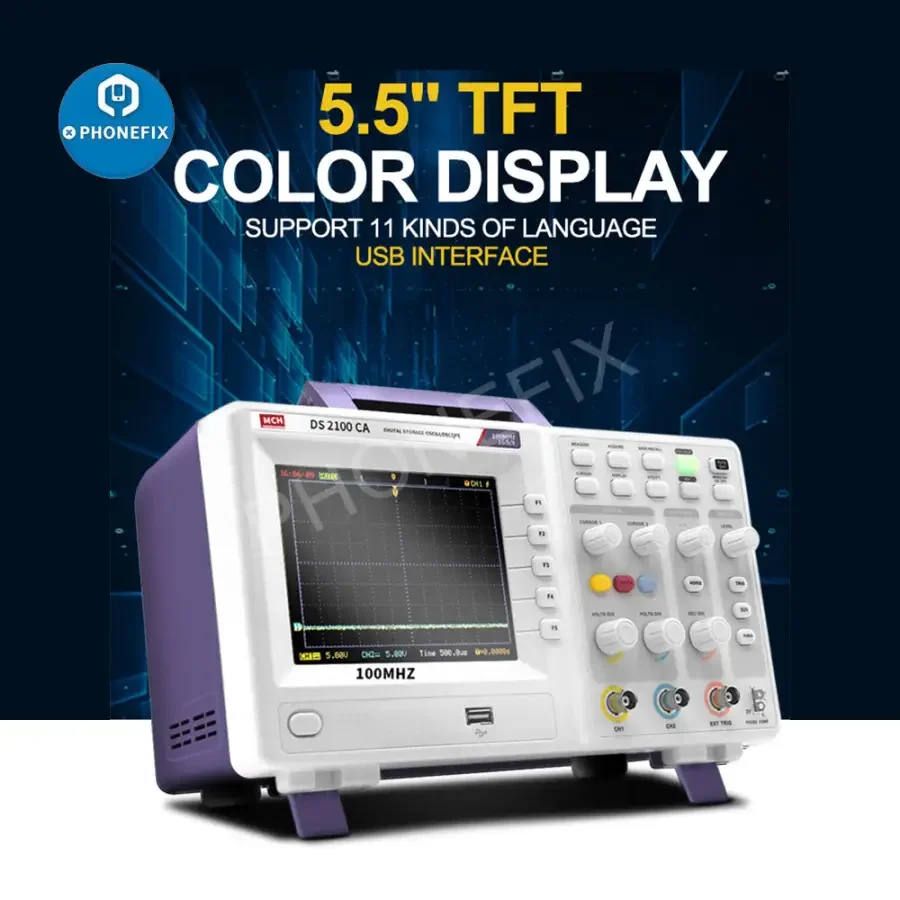

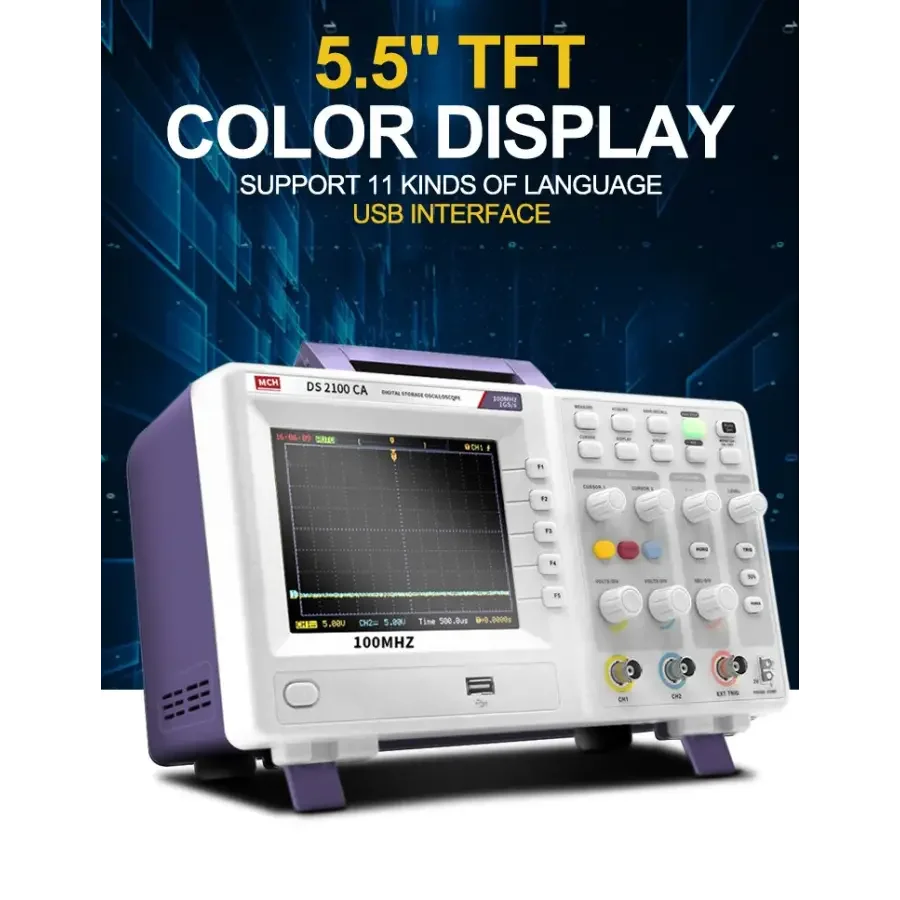

Display

A/CA: mono/color,320×240 resolution

Power supply

Worldwide 100-225 V/40VA Max

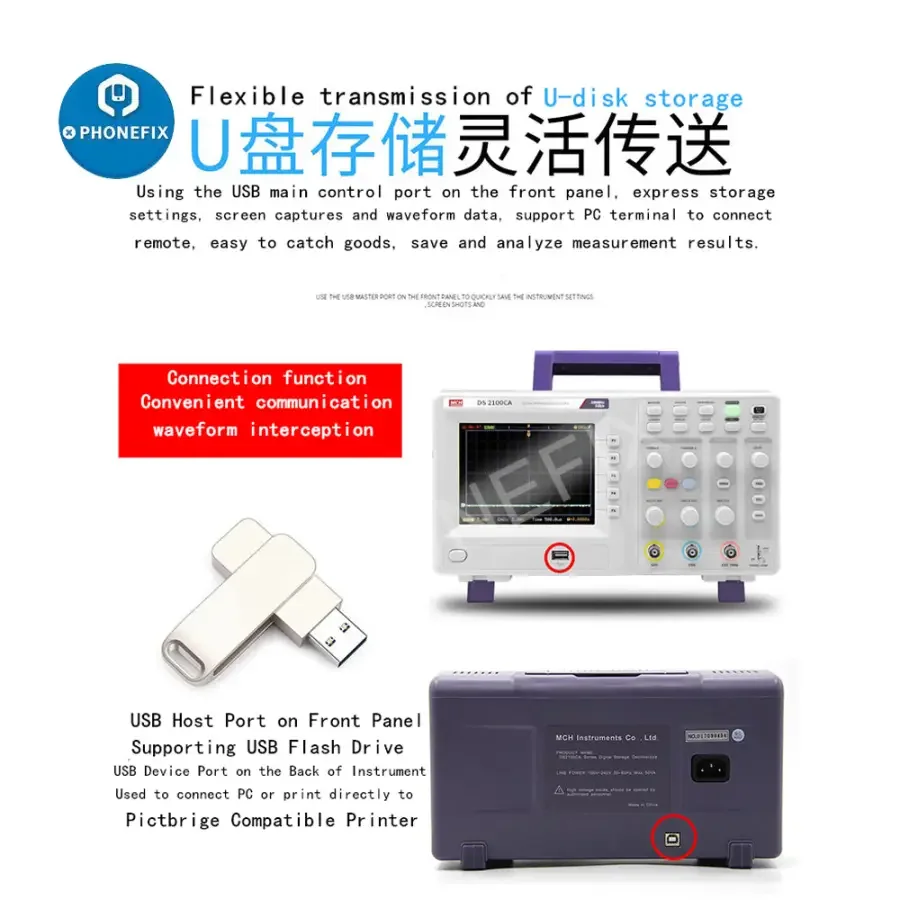

Interface

USB port

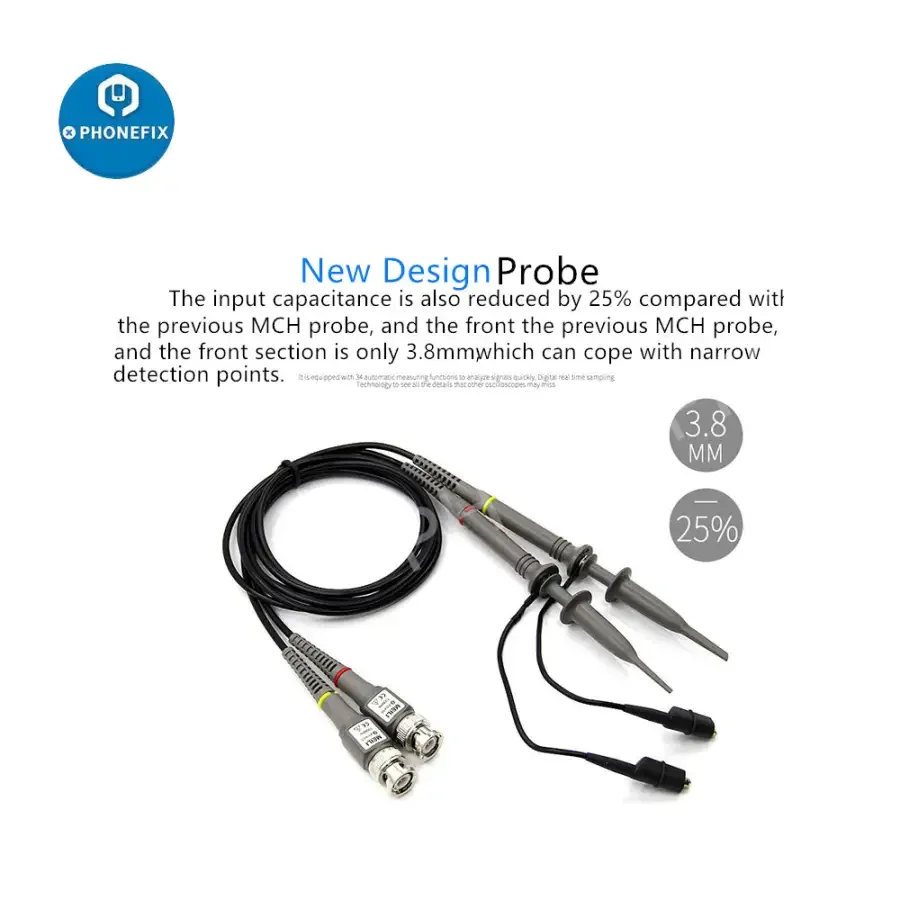

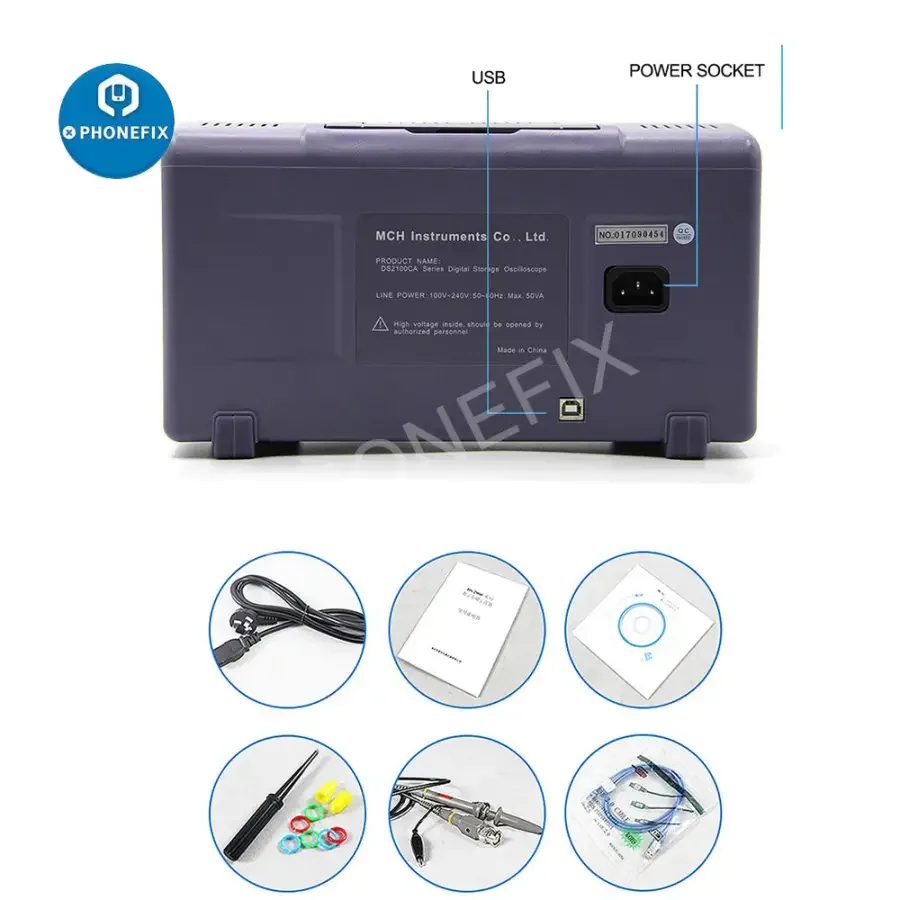

Accessories

Probe×2, power cord, user's manual

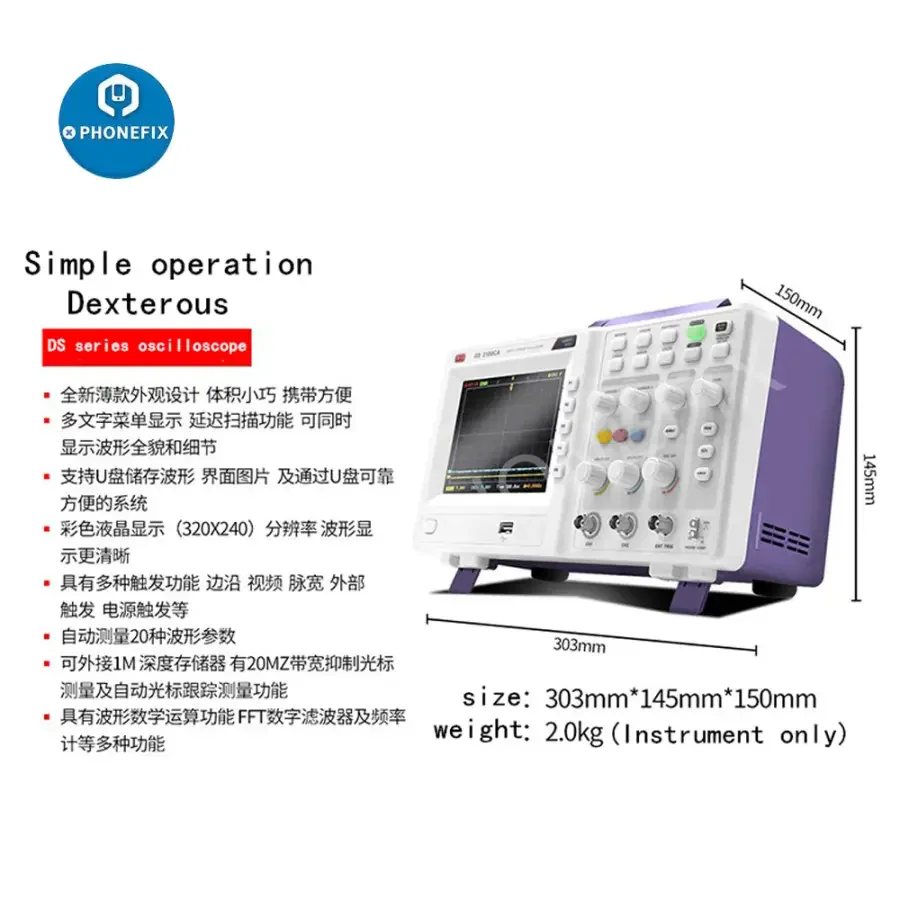

Dimension

303(W)×145(H)×288(D)mm

Weight

3.5kg
