Thermal Camera Infrared Imaging Analyzer PCB Fault Testing

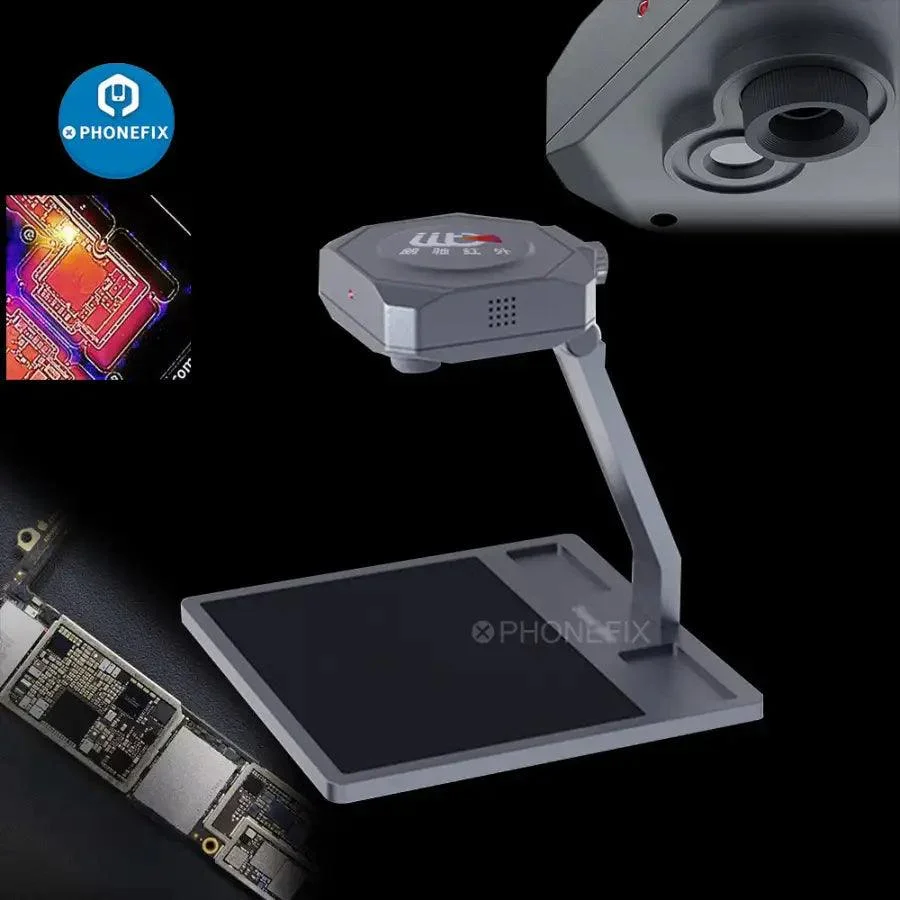

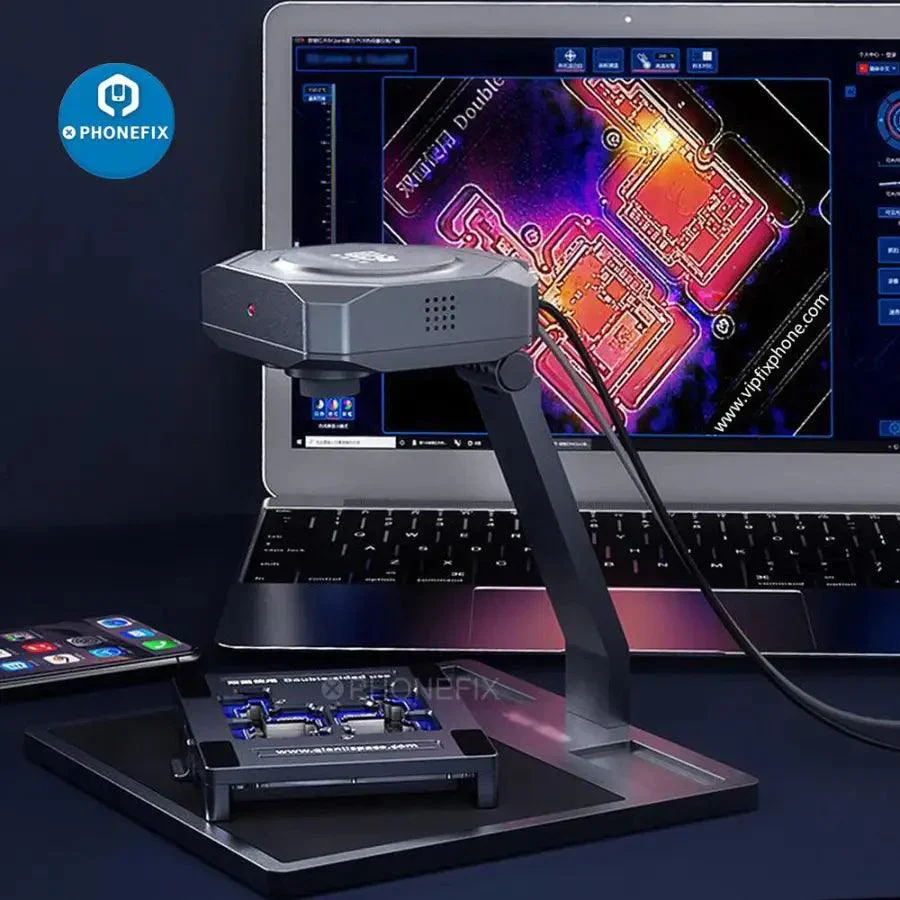

LINCSeek IIT Shortcam Infrared Thermal Imaging Camera for Mainboard PCB Repair. LINCSeek Shortcam II Infrared Thermal Imaging Analyzer Circuit Board Fault Diagnostic Instrument.

Phone PCB Fault Diagnostic Instrument is an professional cell phone PCB Fault Circuit Board Diagnostics Repair machine, it is used for the diagnosis on cell phone components temperature to judge if cell phone PCB is short circuit, the Infrared Thermal Image Analyzer can test your cell phone main board, pc main board, multimeter main borad and many other PCB board very fastly and accurately.

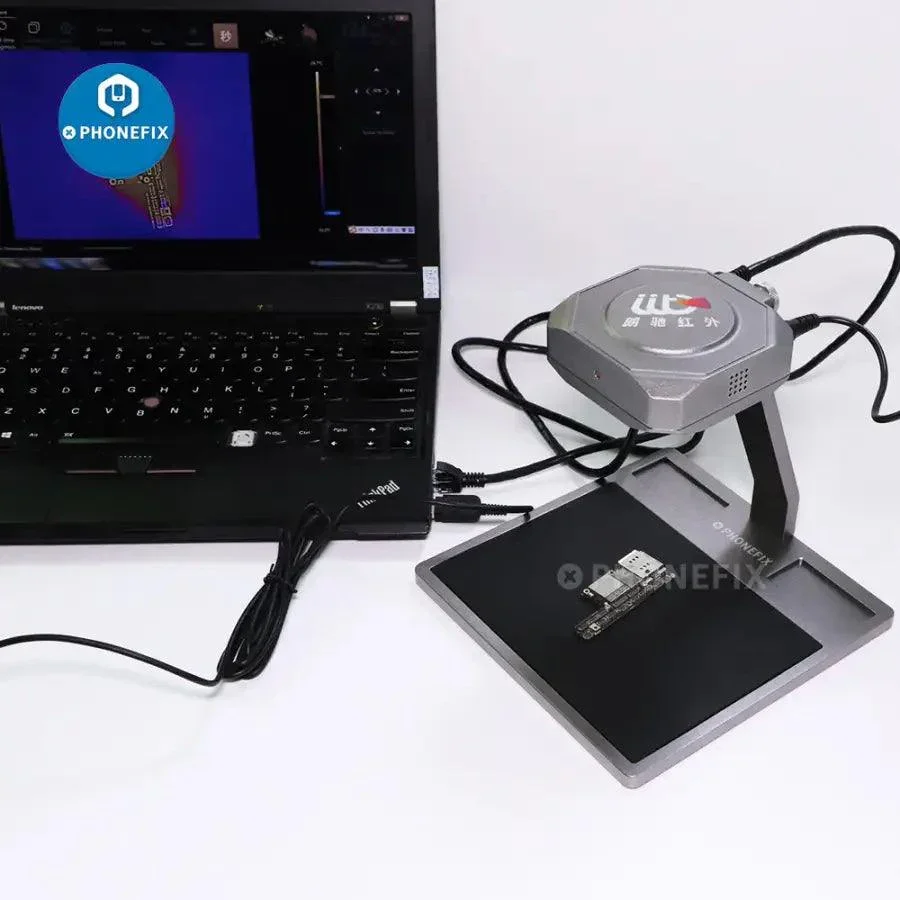

Note: The device is a black main unit, not including personal PC (computer), support only Microsoft system (windows). Easy to use. Connect the device and installing the software, that can be used. When used, the motherboard need connect power

Features :

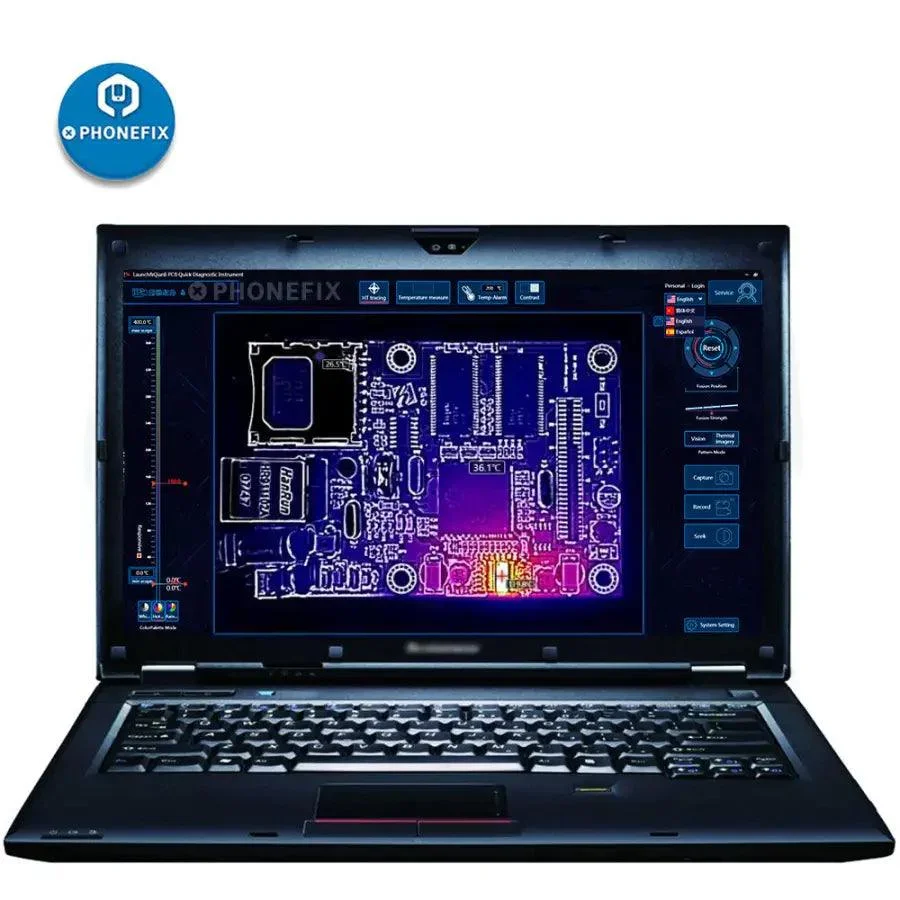

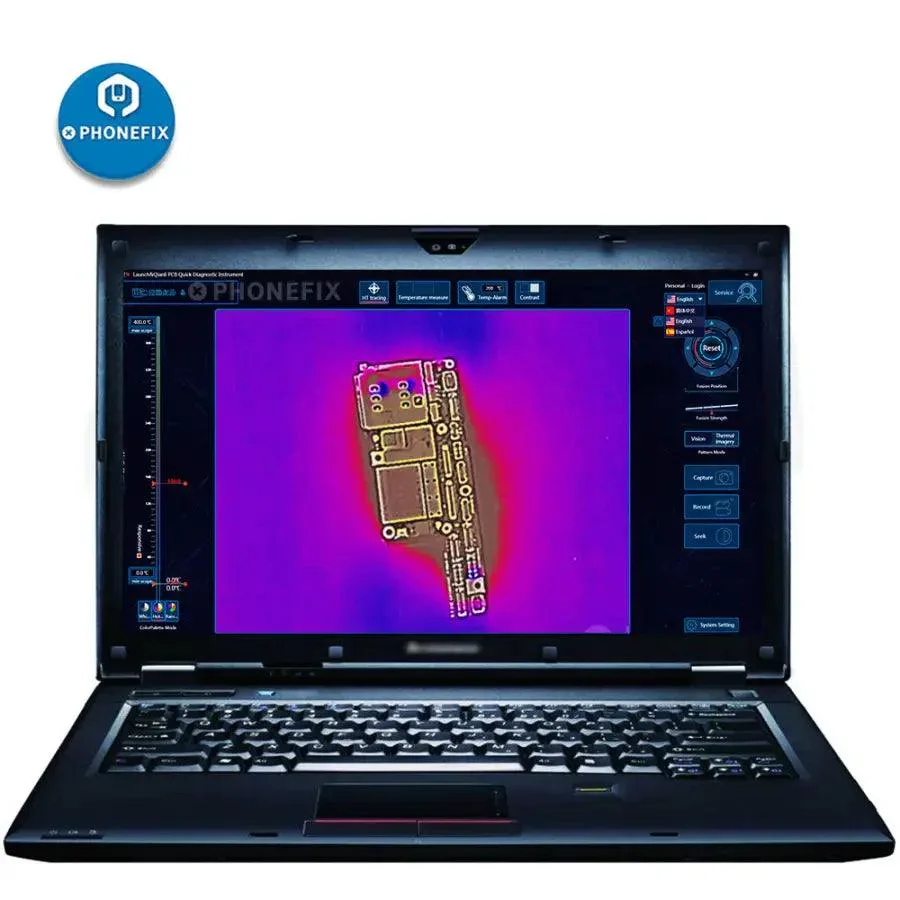

1. Detect the motherboard chip, resistor and capacitor running temperature by the powerful PC intelligent analysis software and intelligent algorithm;
2. Fastly Locate the capacitance of micro current leakage, short-circuit position;
3. Through the analysis of normal / abnormal motherboard comparison mode, quickly and accurately identify the problem chip, help phone fix technician troubleshooting motherboard, greatly improve the efficiency and accuracy of maintenance of the new generation of overhaul equipment

Specification :

• Resolution: 160x120
• Wavelength range: 7.5-13.5 μm

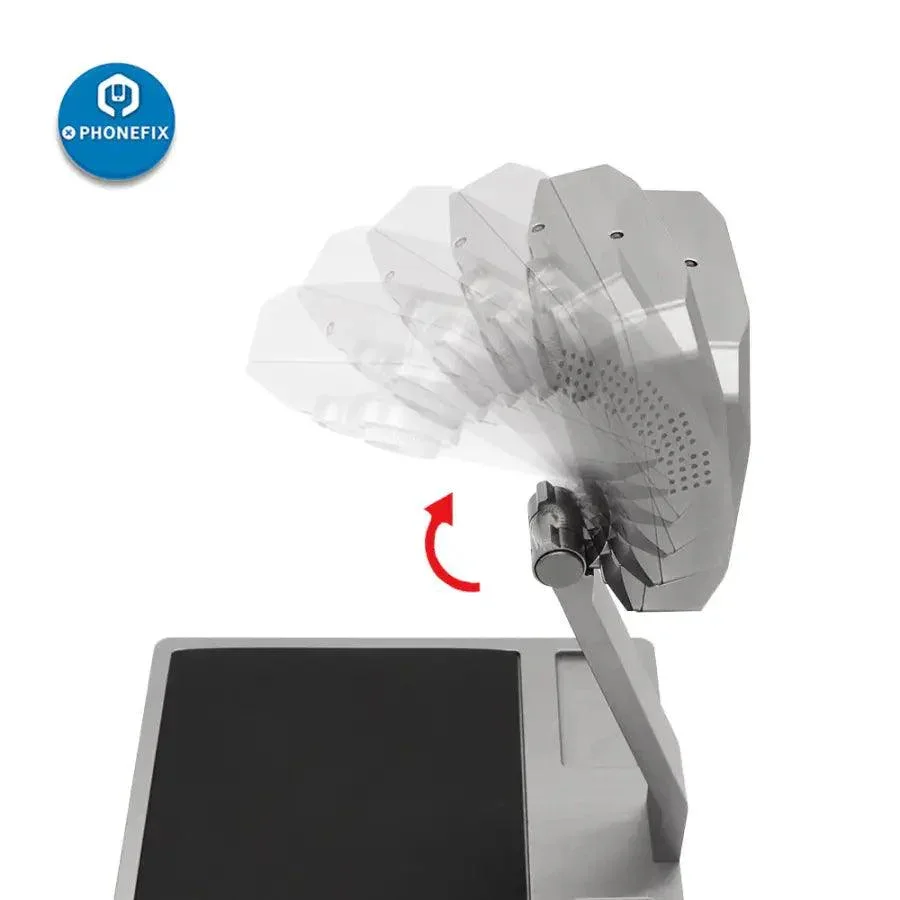

• Lens angle: 57° x 44°
• Visible part of the parameters: resolution 1920x1080
• Display Mode: Visible / Infrared Thermal Imaging / Dual Optical Interlace positioning
• Power: Input power voltage 5-26V DC
• Power consumption: 2.2W (maximum 3W)
• Temperature function: full temperature

Thermal Imager for Mobile Phone PCB Troubleshoot,software download link:

https://drive.google.com/file/d/1MupQ3yqSnIIJnxRU5P1GUpIagAWrNAgl/view?usp=sharing
