ShortCam II Infrared Thermal Imaging Camera PCB Diagnosis Repair

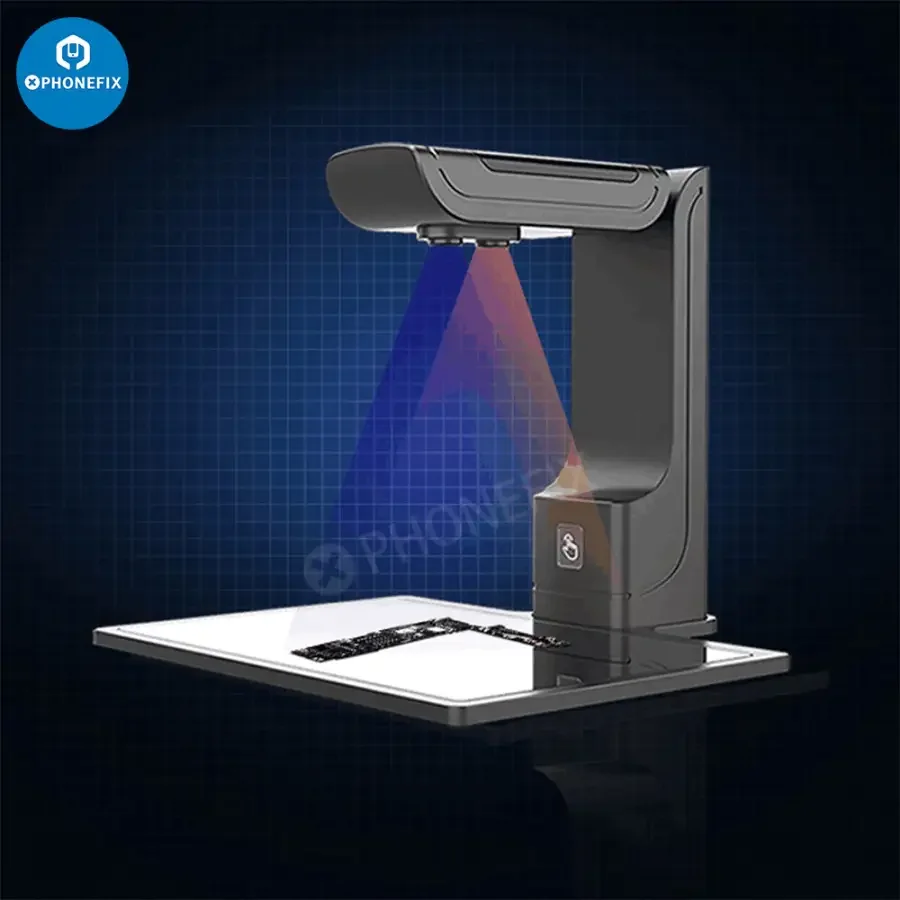

ShortCam II Folding infrared thermal imager PCB fault diagnosis Tool. Launch Linkseek ShortCam II Infrared Thermal Imaging Camera PCB Fault Rapid Diagnosis Instrument For Mobile Phone Motherboard Repair. Linkseek shortcam II thermal imager for diagnosing motherboard IC faults such as short circuit, overheating, etc.
Features:
1. High precision measurement.
2. High contrast display.
3. One key check leakage.
4. Precise location of fault points.
5. Fast accurately locate the location of high-temperature components, and implement high-definition display of faulty component details, which can zoom in on the details of the motherboard and easily find tiny components.

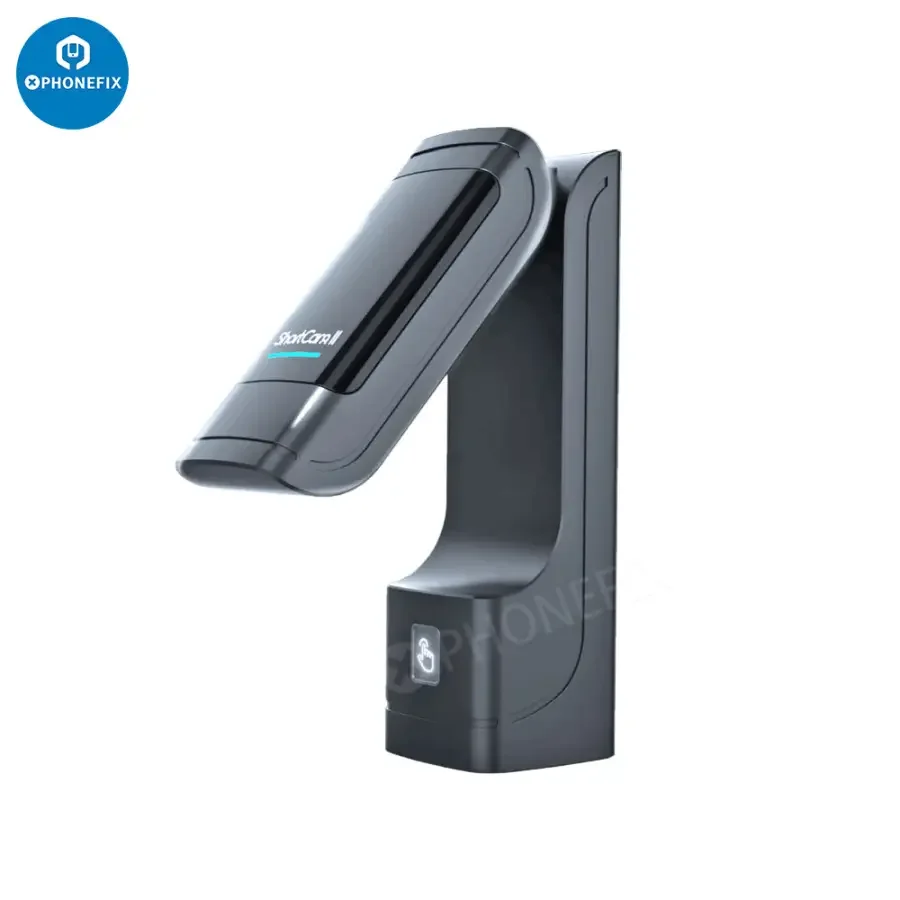

6. Folding design, small size, easy to carry, easy to store and assemble.

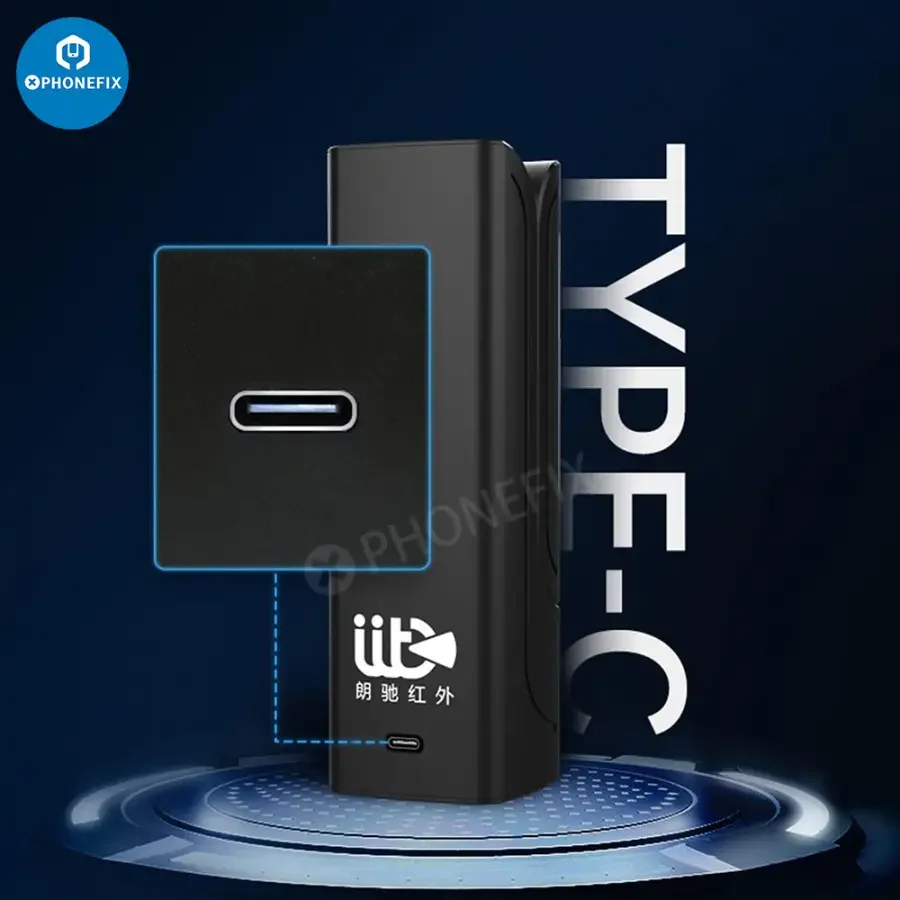

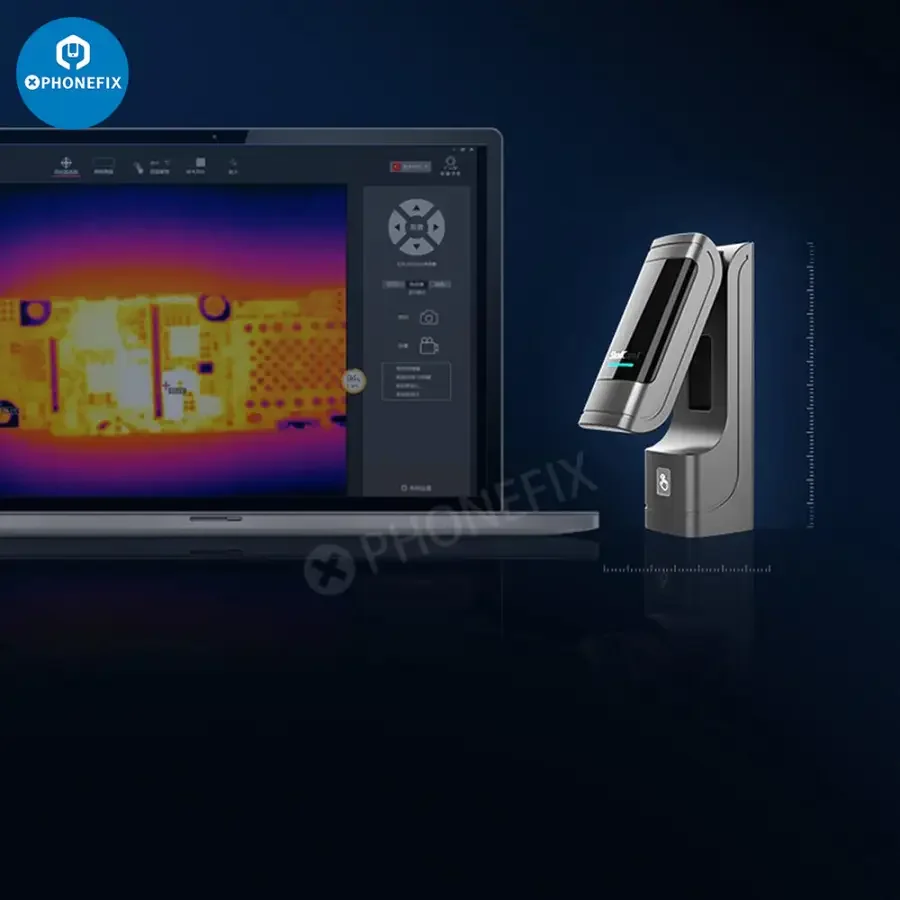

7. Configure the type-c interface, the installation program can be used, and the operation is convenient.
Thermal imaging parameters:
Resolution: 256*192
Pixel size: 12um
Wavelength range: 8-14um
Field of view: 25°*18°
Visible light parameters:
Resolution: 2568H*1448V
Display mode: visible light/local fusion/quick check
Interface and Display Specifications:
interface: type-c
Image display format: JPEG
Video storage format: MP4
Function application:
One-key quick check, high and low temperature tracking, partial enlargement of frame temperature measurement, comparative analysis, snapshot, video
Temperature measurement performance:
Temperature measurement function: full temperature measurement
Temperature measurement distance: 13cm
Temperature measurement accuracy: ±5°C or ±5% (take the maximum value)
Temperature measurement range: -20℃~550℃
General Specifications:

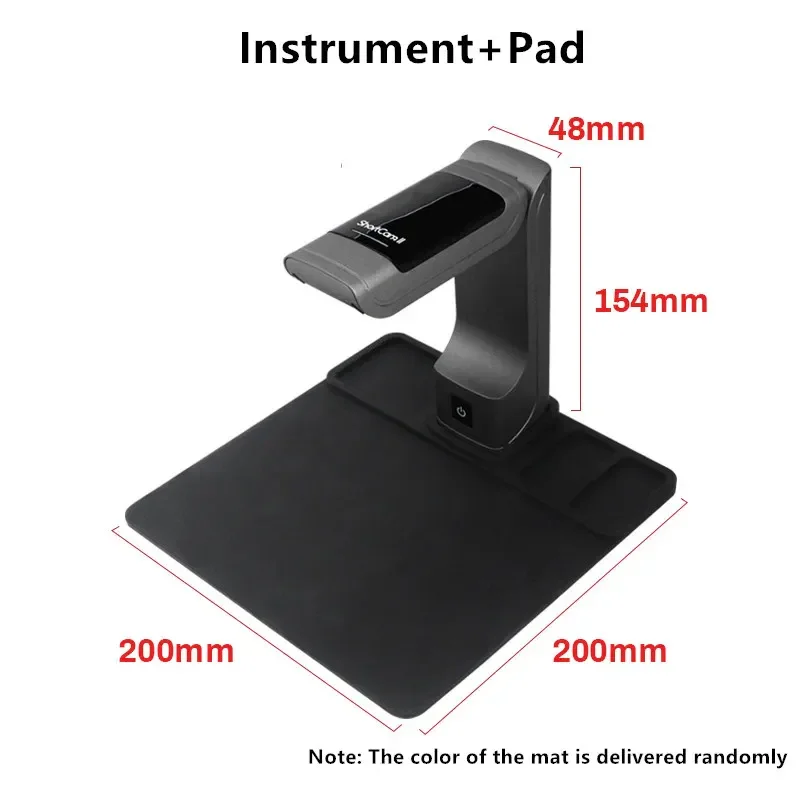

Product size: 48mm*48mm*154mm
Output voltage/power consumption: 5VDC/2.5W
Storage temperature -20℃~60℃
Working environment 3℃~45℃
