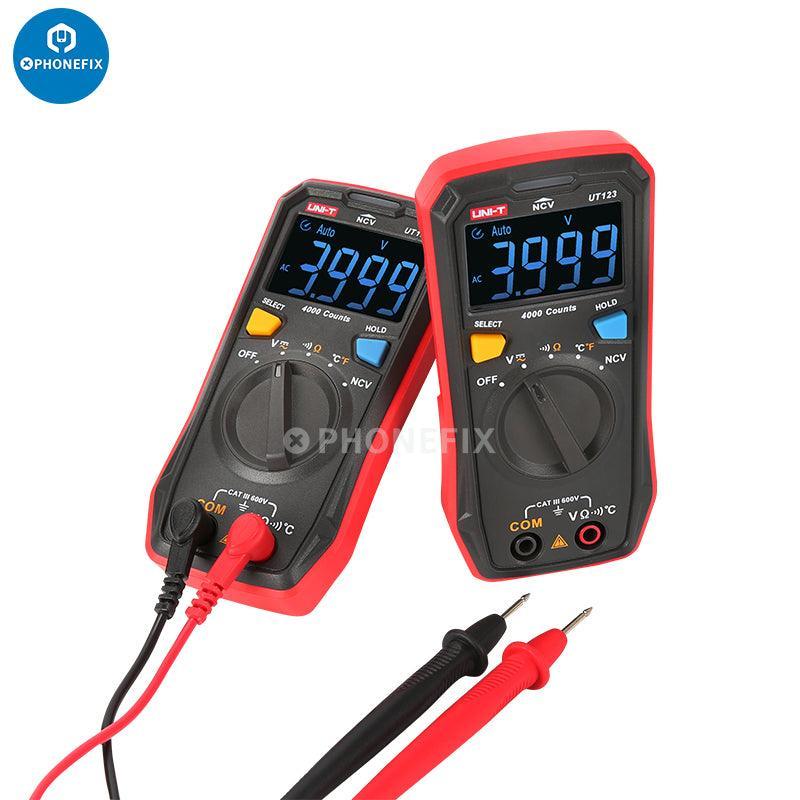

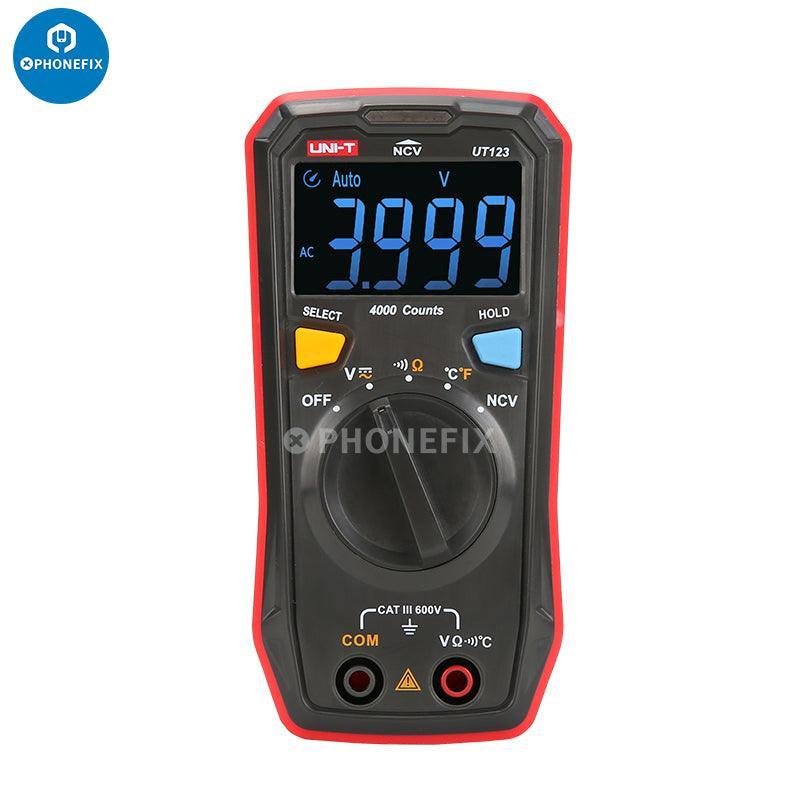

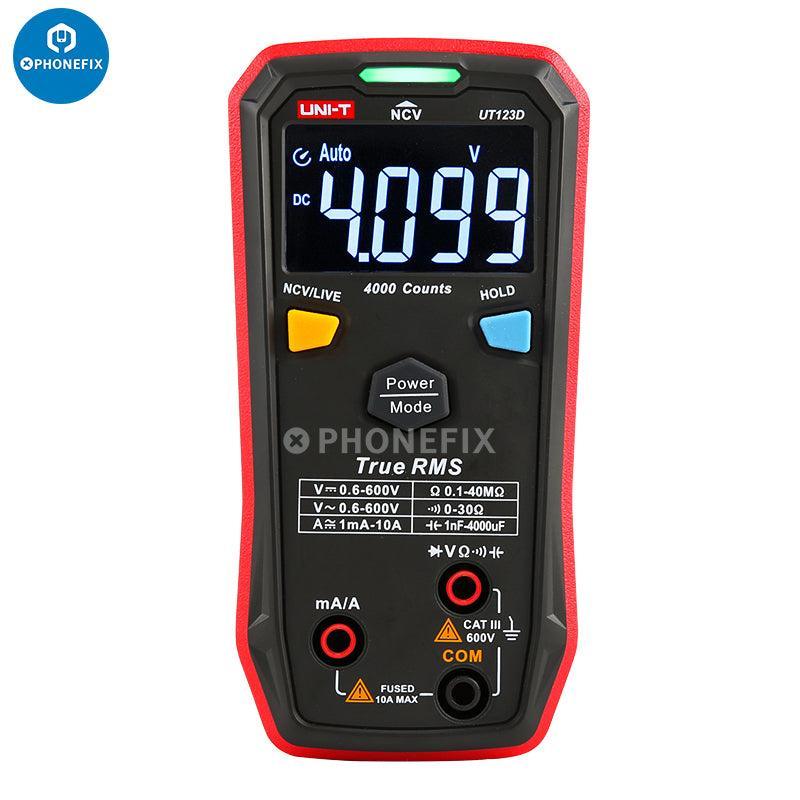

UNI-T UT123D Auto Range Digital Multimeter AC/DC Voltage Tester

UNI-T UT123 UT123D Auto Range True-RMS EBTN Display intelligent digital multimeter. This temperature tester, AC/DC voltmeter has a unique design and functional configuration and is an entry-level phone repair tool.

Features:

1. True RMS measurement.
2. Intelligent anti-bum, no need to shift gears.

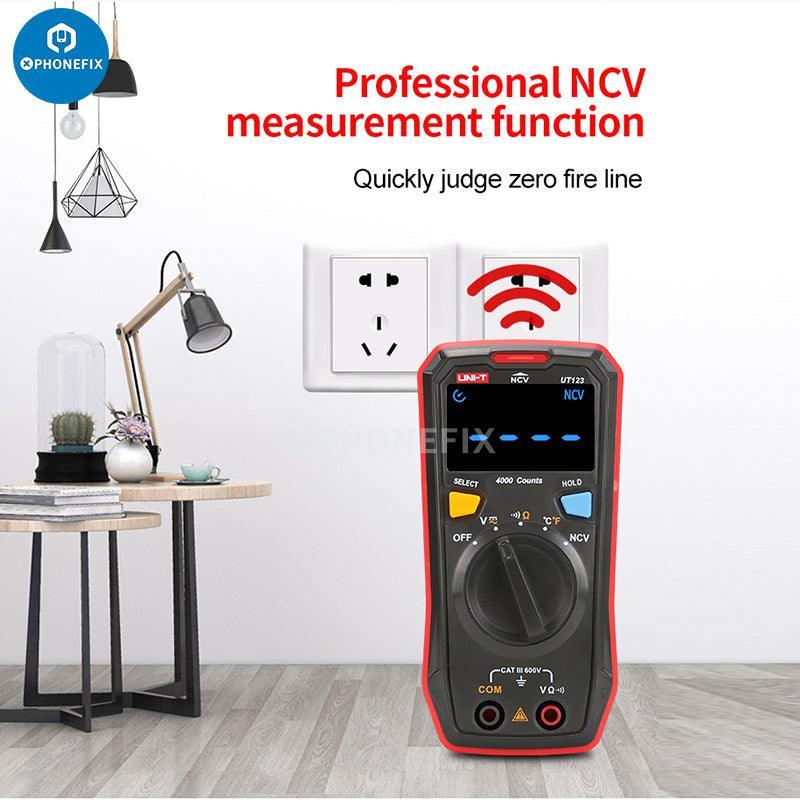

3. Single meter pen distinguishes the zero line of fire, and audible and visual alarm prompts.
4. With 4mF large capacitance measurement function, and circuit setting automatic power saving function.

5. It meets safety standards, a functional anti-bum protection device to ensure the safe operation of users in the CAT Ill 600V environment.

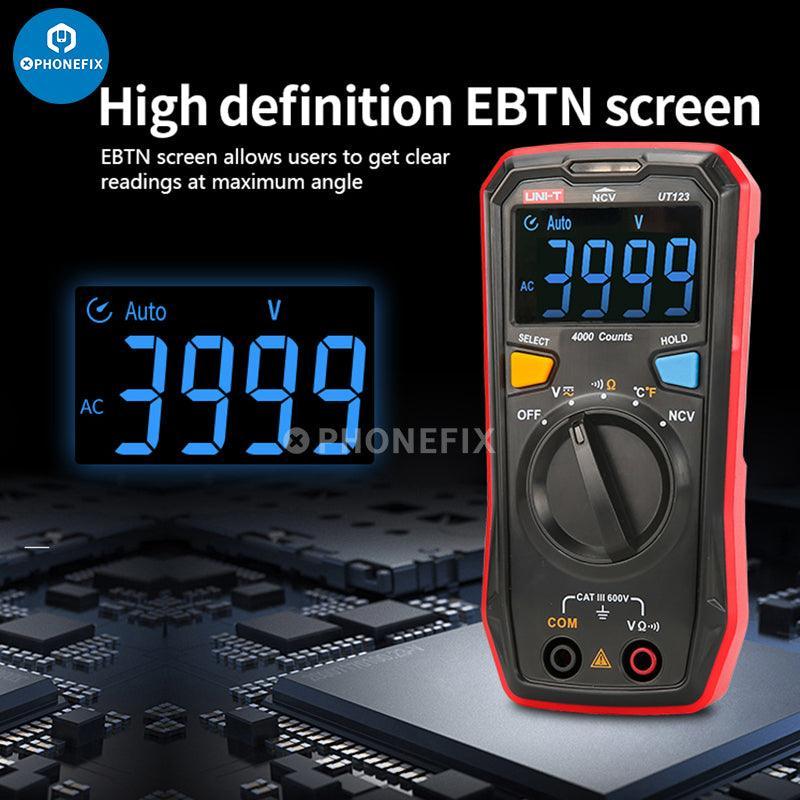

6. Large screen EBTN/NCV sound and light alarm: The EBTN screen display enables the user to obtain clear readings at the maximum angle.
7. Automatic power supply detection: The meter pen is inserted into the current input hole to automatically switch to the current measurement function.
8. It can automatically identify the function gear and range according to the input signal, effectively reduces the difficulty of the operation and improves the work efficiency.

Specification:

• DC voltage: 4.000~600V ±(0.5%+3)
• AC voltage: 4.000~600V ±(1.0%+5)
• AC current: 999.9mA~9.999A ±(1.2%+3)
• DC current: 999.9mA~9.999A ±(1.0%+3)
• Resistance: 400Ω~40.00MΩ ±(1.0%+2)
• Capacitance: 40.00nF~4000uF
• Maximum display: 4099
• True RMS: Yes
• Diode: Yes
• On-off/buzzer: Yes
• NCV: Yes
• LIVE: Yes (Distinguish the zero line of fire)
• Auto range: Yes
• Low voltage display: Yes
• Automatic shut-down: Yes
• Weight: 137g

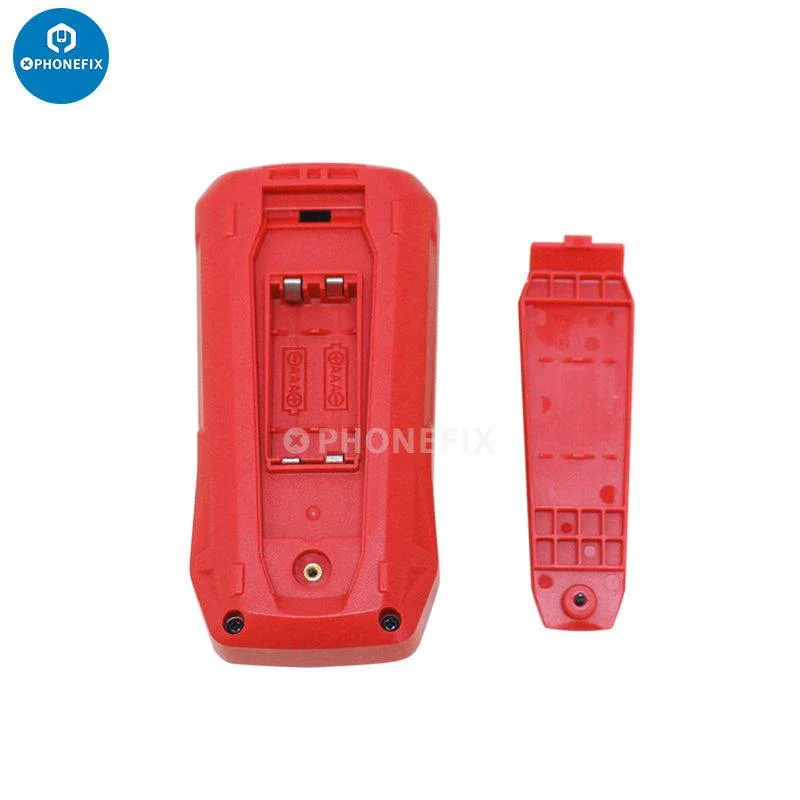

• Power supply: AAA 1.5V battery x2 (not included)
• Size: 130*65*28mm

Package includes:

• 1 x Multimeter (Without battery)
• 1 x Test line
