UNI-T UT58A LCD Digital Multimeter PCB Soldering Repair Tester

UNI-T UT58A LCD Digital Multimeter PCB Soldering Repair Tester

UNI-T UT58A 3.0" LCD Digital Multimeter Mobile Phone Repairs

UNI-T UT58A multimeter in mobile phone repairs. it is used for testing and to check readings of various parts and components in a mobile phone

Product Specification :
  • DC voltage: 200mV/2V/20V/200V/1000V ±(0.5%+1)
  • AC voltage: 2V/20V/200V/1000V ±(0.8%+3)
  • DC current: 20uA/2mA/20mA/200mA/20A ±(0.8%+1)
  • AC current: 2mA/200mA/20A ±(1%+3)
  • Resistance: 200ohm/2Kohm/20Kohm/2Mohm/20Mohm/200Mohm ±(0.8%+1)
  • Capacitance: 2nF/200nF/100uF ±(4%+3)
  • Maximum display: 1999
  • Input impedance for voltage test: 10Mohm
  • Other functions: Full symbol display, input port prompt, diode testing, triode testing, continuity buzzer, low power warning, data hold, automatically power off
$21.50
UNI-T UT58A LCD Digital Multimeter PCB Soldering Repair Tester—
$21.50

More Images

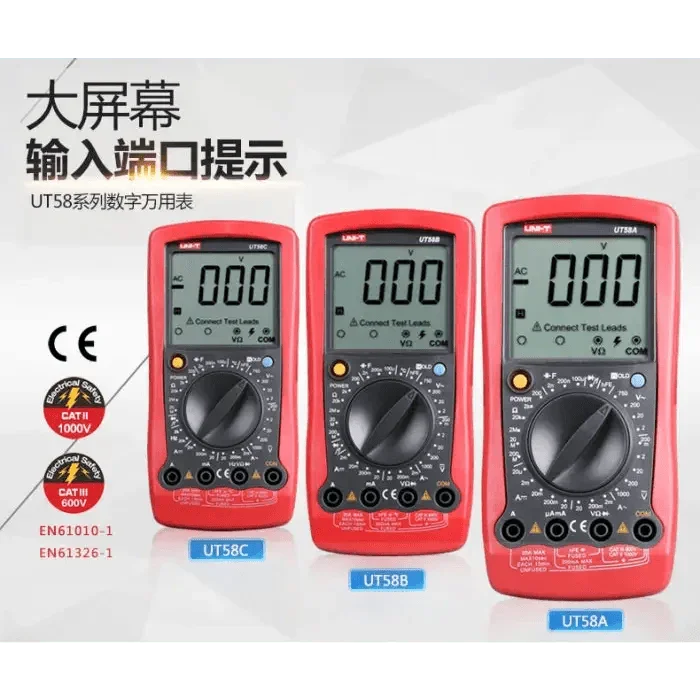

UNI-T UT58A LCD Digital Multimeter PCB Soldering Repair Tester - Image 2

UNI-T UT58A LCD Digital Multimeter PCB Soldering Repair Tester

UNI-T UT58A 3.0" LCD Digital Multimeter Mobile Phone Repairs

UNI-T UT58A multimeter in mobile phone repairs. it is used for testing and to check readings of various parts and components in a mobile phone

Product Specification :
  • DC voltage: 200mV/2V/20V/200V/1000V ±(0.5%+1)
  • AC voltage: 2V/20V/200V/1000V ±(0.8%+3)
  • DC current: 20uA/2mA/20mA/200mA/20A ±(0.8%+1)
  • AC current: 2mA/200mA/20A ±(1%+3)
  • Resistance: 200ohm/2Kohm/20Kohm/2Mohm/20Mohm/200Mohm ±(0.8%+1)
  • Capacitance: 2nF/200nF/100uF ±(4%+3)
  • Maximum display: 1999
  • Input impedance for voltage test: 10Mohm
  • Other functions: Full symbol display, input port prompt, diode testing, triode testing, continuity buzzer, low power warning, data hold, automatically power off

Product Information

Shipping & Returns

Description

UNI-T UT58A 3.0" LCD Digital Multimeter Mobile Phone Repairs

UNI-T UT58A multimeter in mobile phone repairs. it is used for testing and to check readings of various parts and components in a mobile phone

Product Specification :
  • DC voltage: 200mV/2V/20V/200V/1000V ±(0.5%+1)
  • AC voltage: 2V/20V/200V/1000V ±(0.8%+3)
  • DC current: 20uA/2mA/20mA/200mA/20A ±(0.8%+1)
  • AC current: 2mA/200mA/20A ±(1%+3)
  • Resistance: 200ohm/2Kohm/20Kohm/2Mohm/20Mohm/200Mohm ±(0.8%+1)
  • Capacitance: 2nF/200nF/100uF ±(4%+3)
  • Maximum display: 1999
  • Input impedance for voltage test: 10Mohm
  • Other functions: Full symbol display, input port prompt, diode testing, triode testing, continuity buzzer, low power warning, data hold, automatically power off
