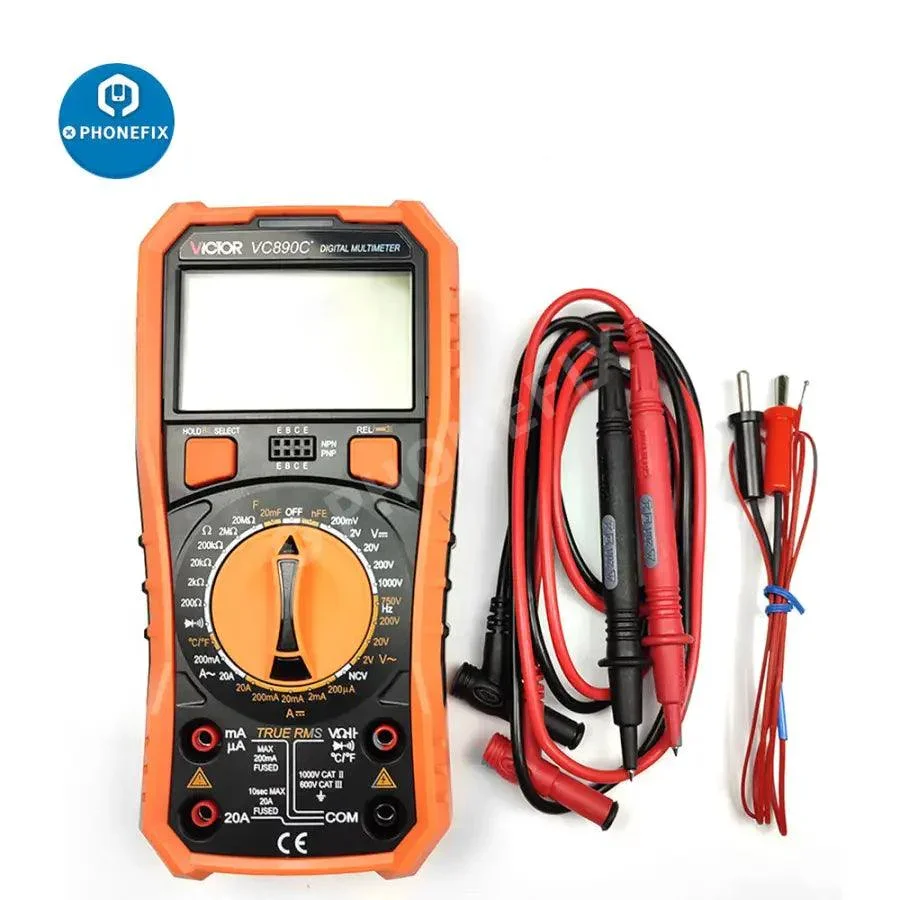

VC890D Digital Multimeter PCB Fault Testing Universal Meter

VICTOR VC890C+ Digital Multimeter phone repair tool. VC890D Digital Multimeter Mobile Phone Repair Fix Tool.

VC890C+ is a digital multimeter for Mobile Phone Repair Fix Tool. It can be used to measure AC voltage, DC voltage, DC current, AC current, resistance, capacitors, continuity test, diode test etc. The handle held design is the best choice for field work, laboratories, factories, and other applications.

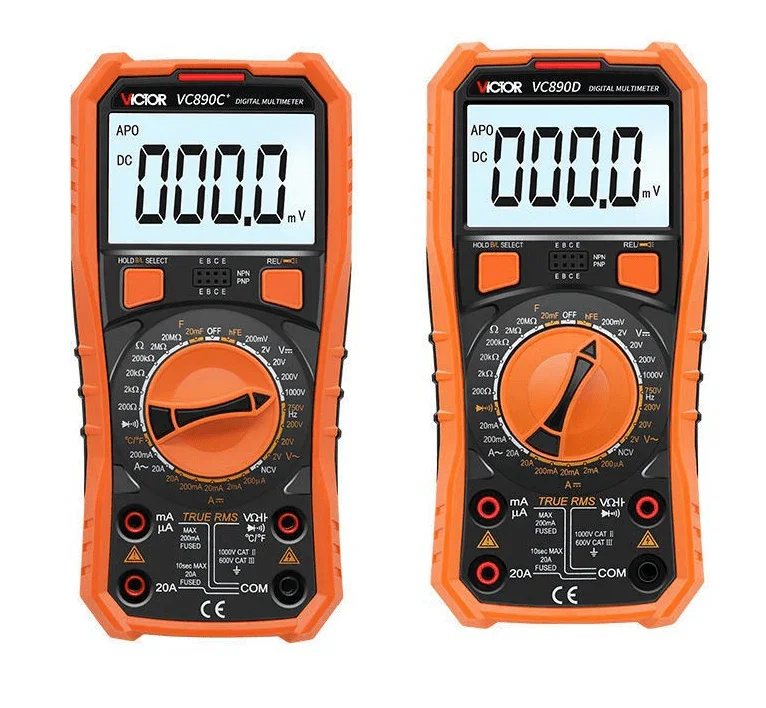

Note: VC890D is discontinued, upgraded version is VC890C+.

Product Features:

1. New type holster, streamline design
2. Large LCD makes the reading clear.
3. Metallic screen board with stronger anti-magnetic and anti-interference function.
4. No power off under natural operation.
5. Full function protection, anti-high voltage circuit design.
6. Restorable fuse protection circuit design.

Features :

1. 3 1/2 LCD Display
2. Auto power off
3. Capacitance test
4. Stream line design
5. Overload protection
6. Self-recovery fuse

Product Specifications :

• Voltage DC: 200mV/2V/20V/200V/1000V ±(0.5%+3)
• Voltage AC: 200mV /2V/20V/200V/700V ±（0.8%+5）
• Current DC: 2mA/20mA/200mA/10A ±(1.0%+3)
• Current AC: 2mA/20mA/200mA/10A ±(2.0%+3)
• Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20 MΩ/200 MΩ ±(0.8%+3)
• Capacitance: 20nF/200nF/2μF/20μF/200μF ±(4.0%+3)
• Diode test: YES
• Triode test: YES
• On-off test: YES
• Auto power off: YES
• Data hold: YES
• Low battery display: YES

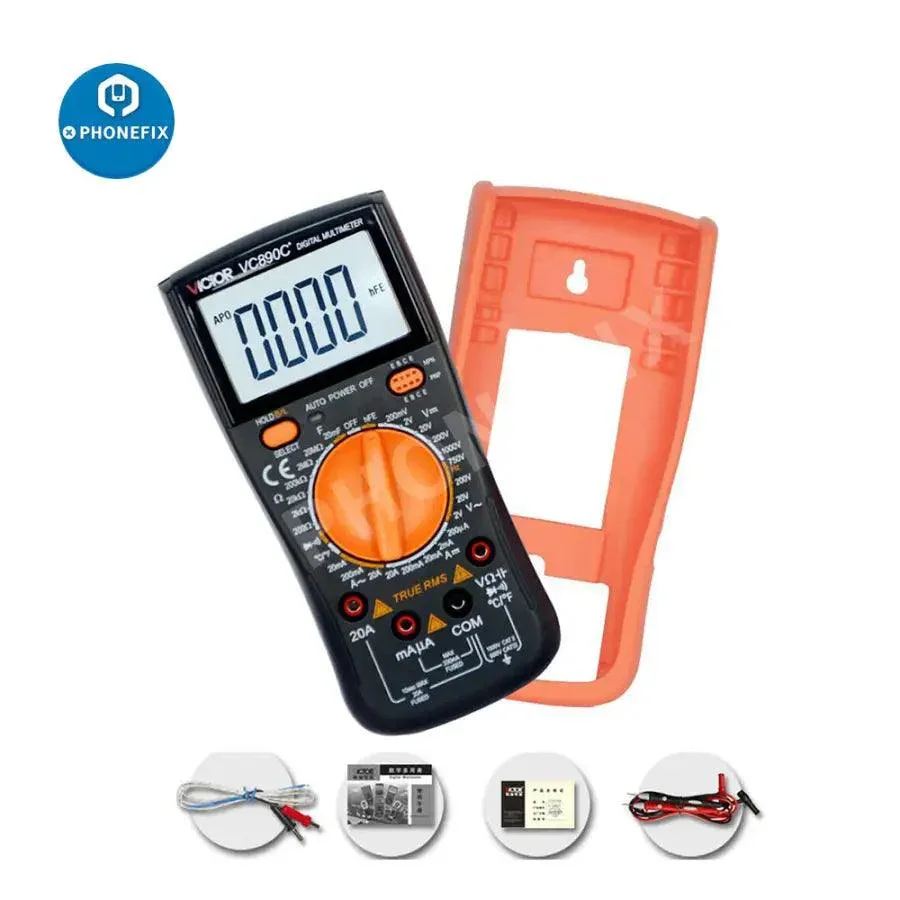

Package includes :

• 1pcs x VC890C+ digital multimeter without battery
• 1 Set of multimeter leads
• 1pcs x instruction manual
