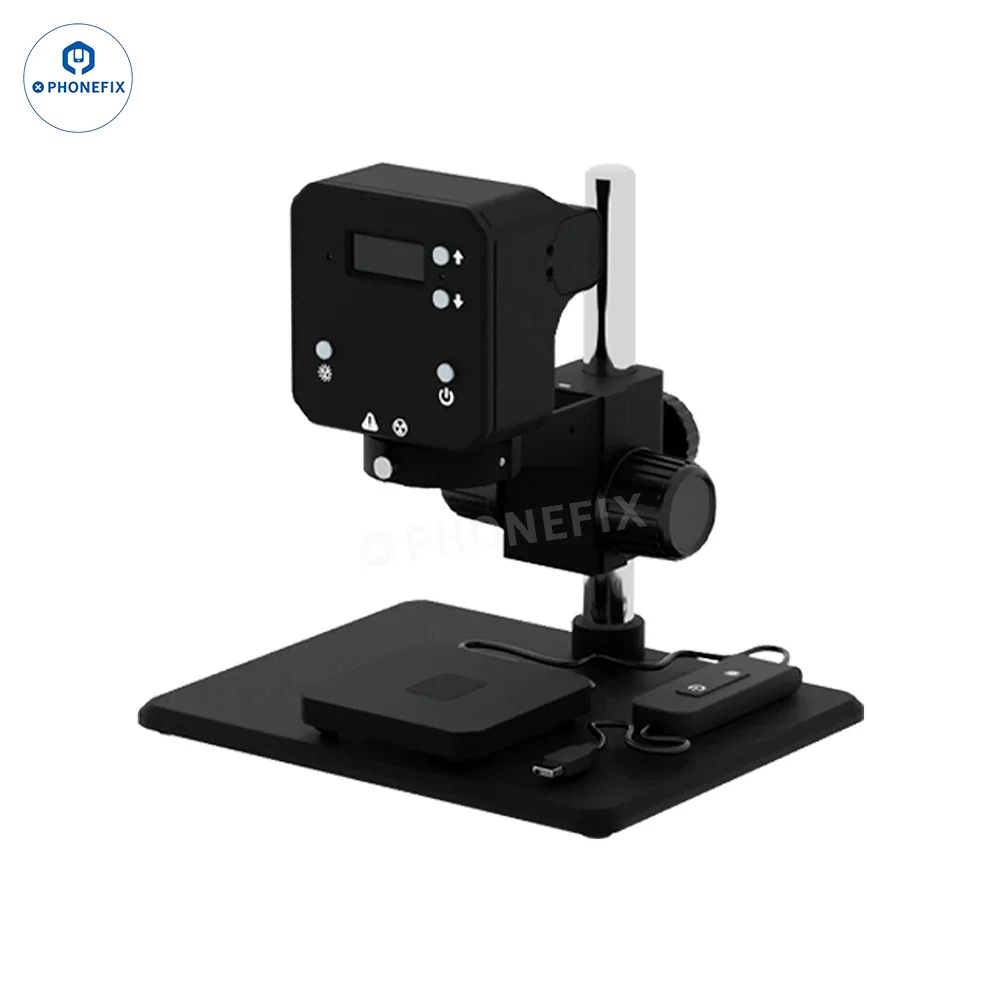

X-Ray Chip Imaging Scanner for Phone PCB IC FPC Cable Inspection
Features:

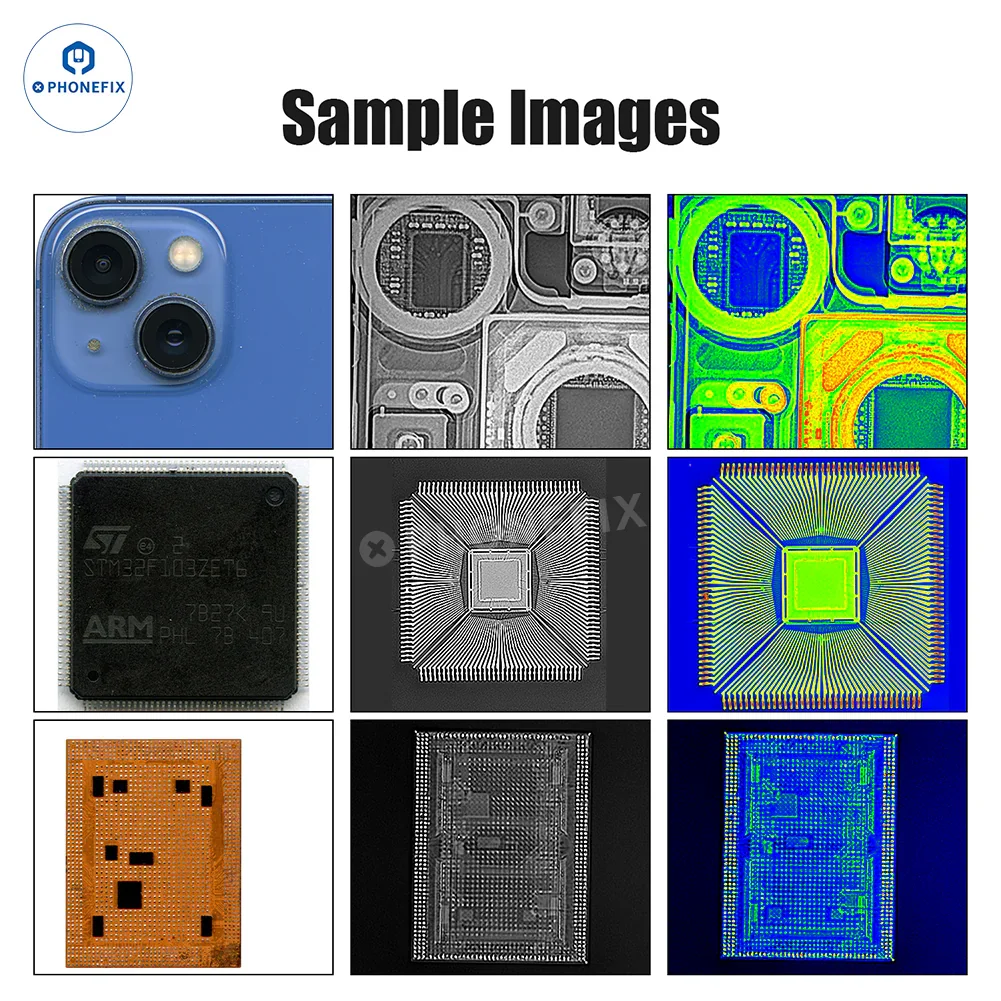

1. Eye X-Ray Chip Imaging Scanner can accurately display the internal structure of electronic components such as chips and circuit boards, effectively identifying hidden defects, microcracks and solder joint problems.Â

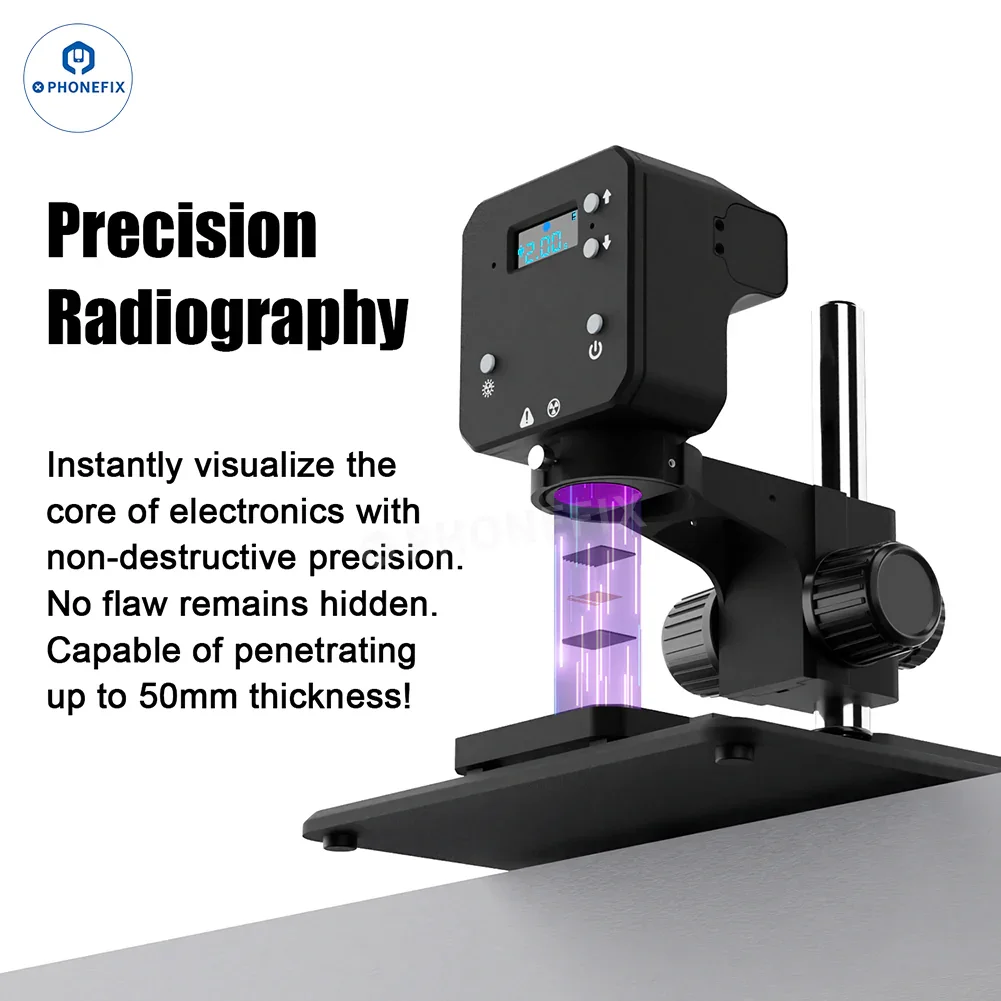

2. High-precision non-destructive testing: Capable of penetrating panels up to 50 mm thick, accurately imaging core electronic components.

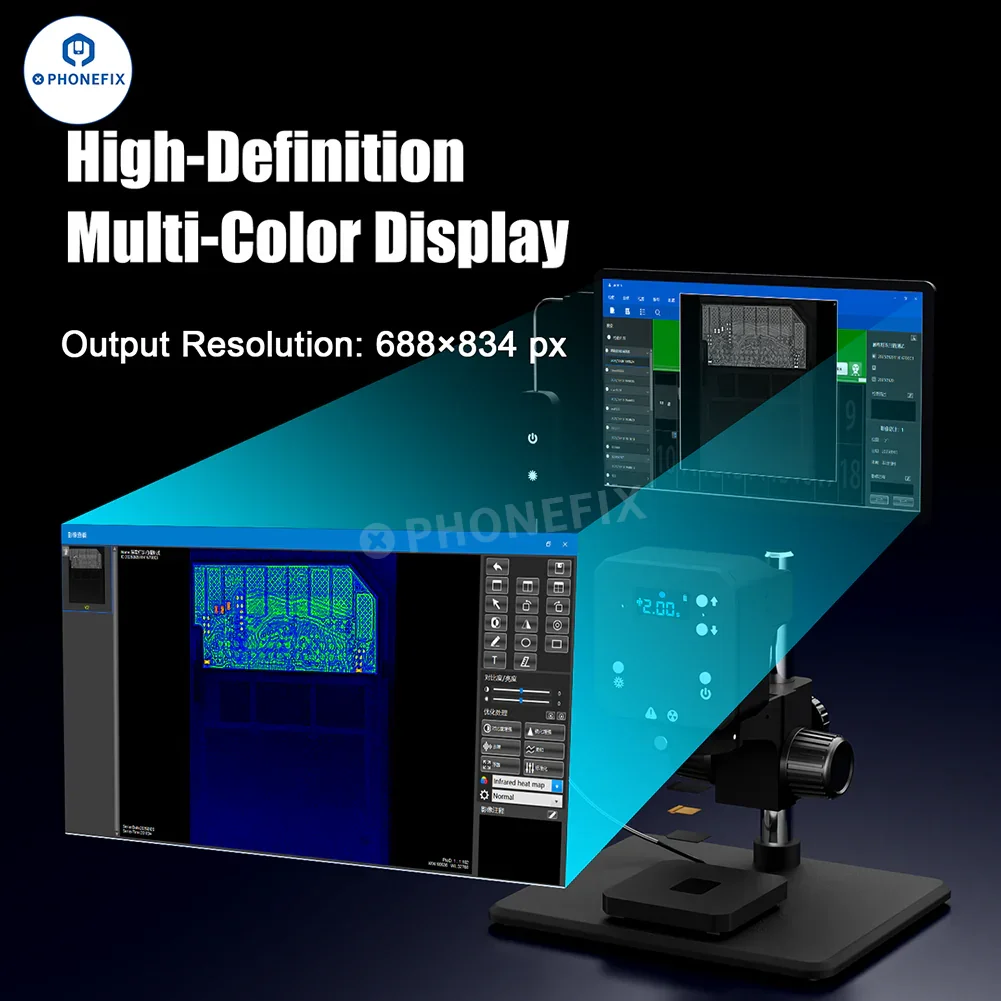

3. High-definition color display: Output resolution up to 688Ă834 pixels for crystal-clear detail.

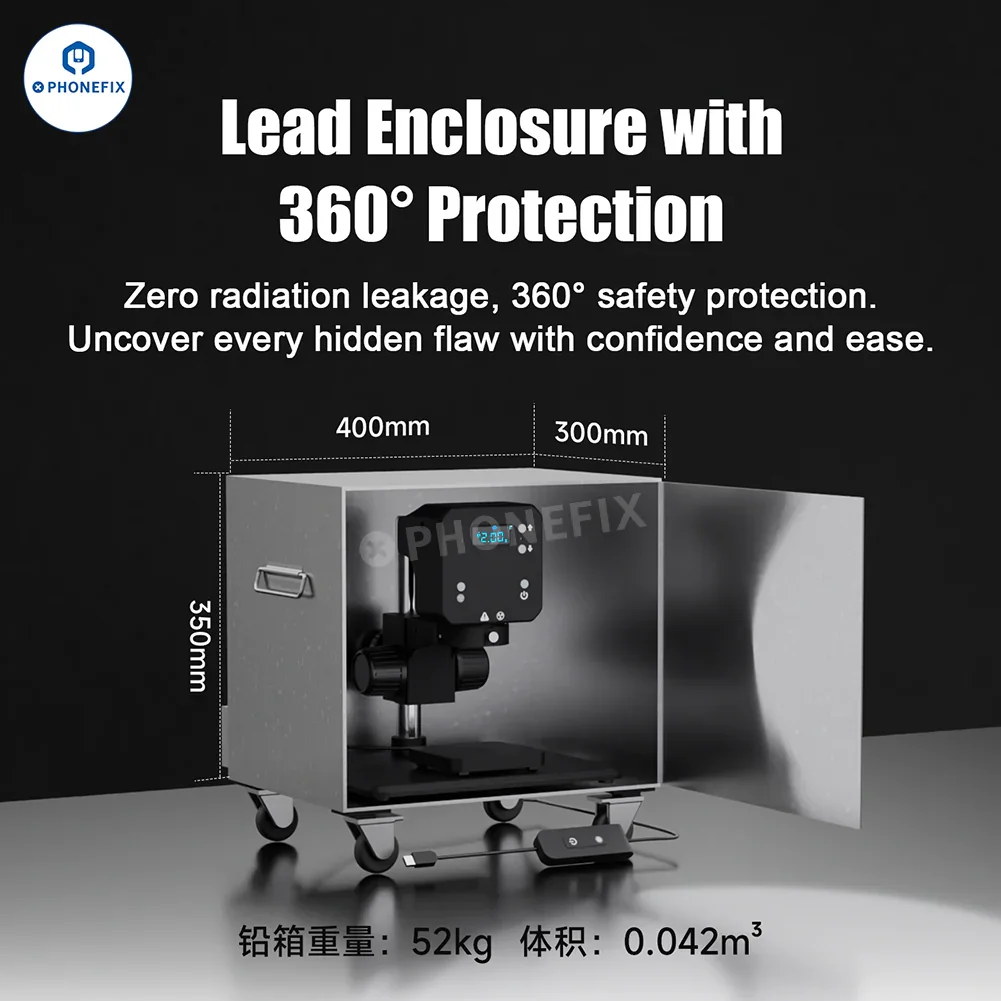

4. 360° protective seal: Zero radiation leakage, comprehensive protection, and safe operation.

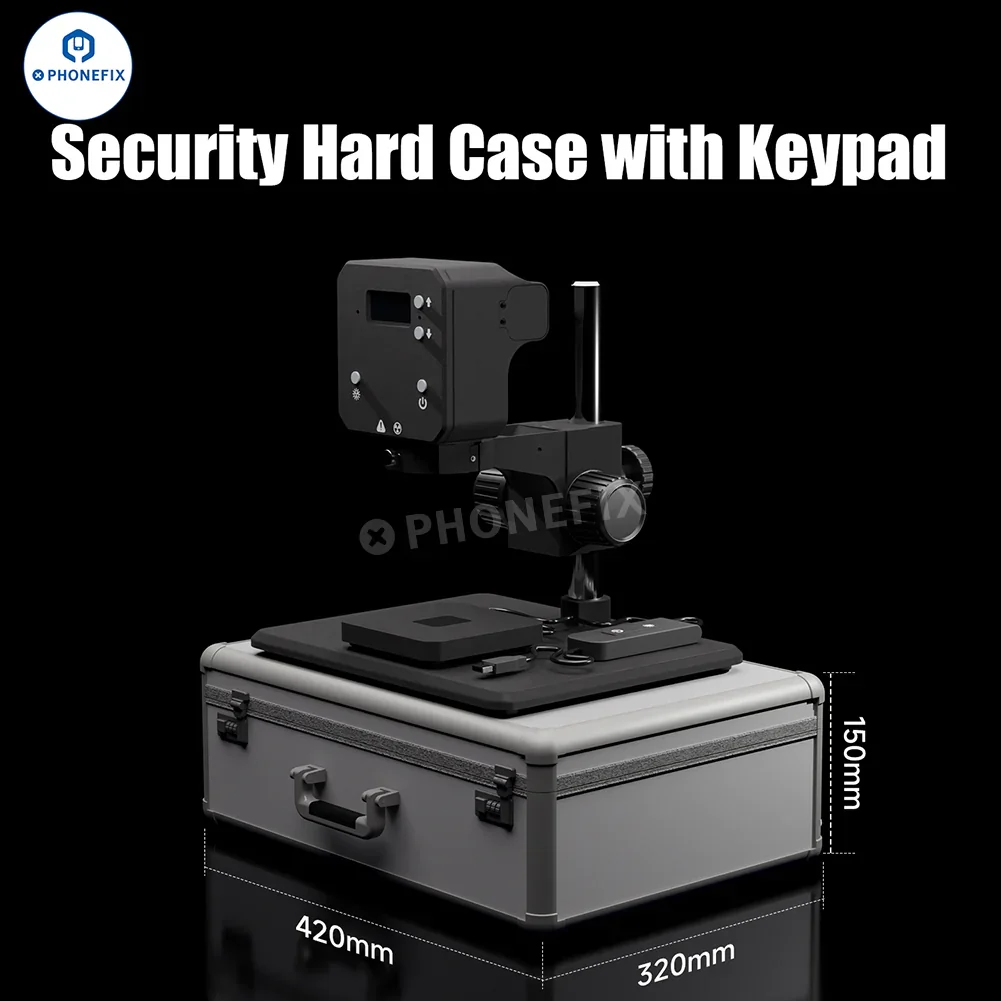

5. Portable and user-friendly: Includes a secure hard case with a keyboard for easy transportation and deployment.
6. Compact design: Suitable for a variety of laboratory and industrial testing environments, saving space.
Specifications:
Product Name: Adamantine Eye X-ray Chip Imaging Scanner
Lead Box Weight: 52 kg
Lead Box Volume: 0.042 mÂł
Focal Height Range: 5mm to 20mm
Battery Capacity: 2500mAh
Maximum Power: 480W
Imaging Capability: 0.6-5.0 LP/mm
Image Pixel Resolution: 688x 834 PX
Product Weight: about 9.0kg (with packaging)

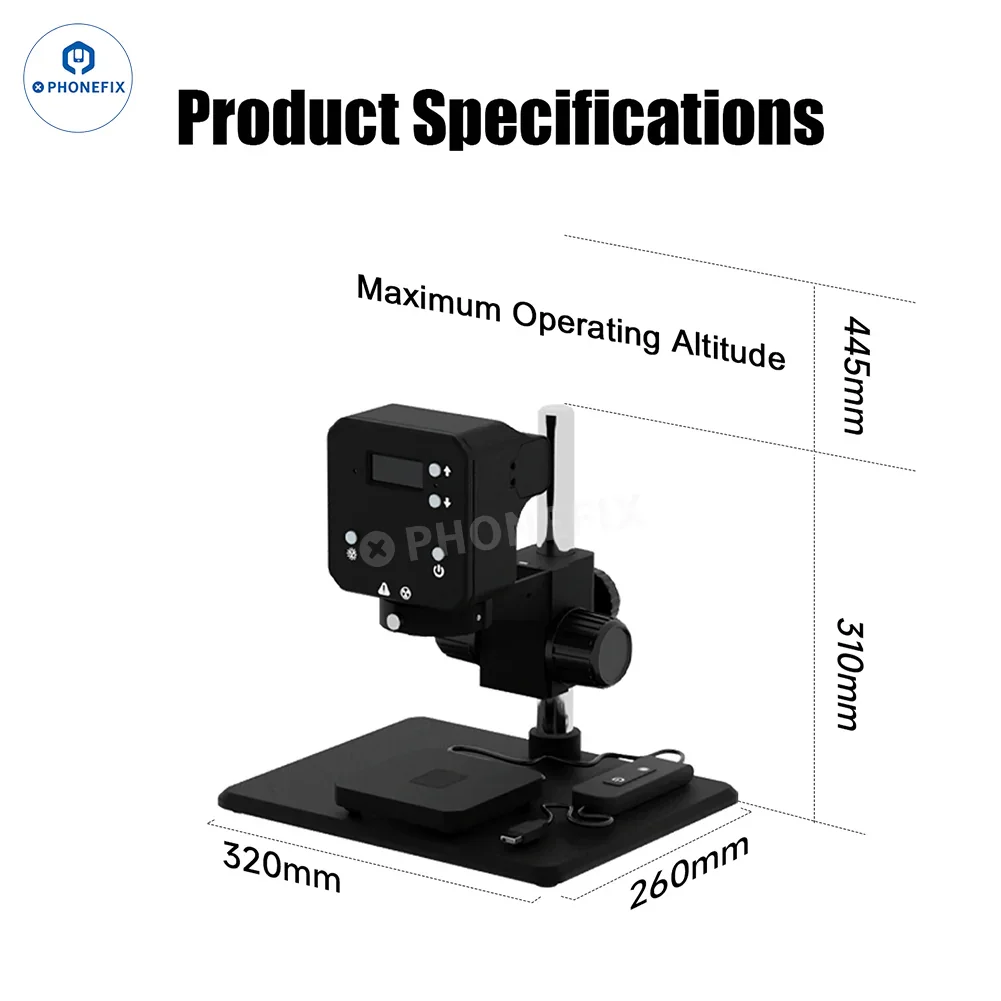

Lead Box Dimensions: 350 Ă 400 Ă 300 mm
Security Hard Case Dimensions: 150 Ă 420 Ă 320 mm
X-ray Voltage/Current Range: 40-60kV/0.5-2 mA
X-ray Tube Theoretical Lifespan: 10,000 hours
Power Cord Specifications: European, British, and Chinese Standards
Maximum Imaging Field of View (FOV): 45mm ±5mm
Operating Environment Requirements: Temperature:10â to 40â
Humidity: 30% to 75% RH (Relative Humidity)
Electromagnetic Interference (EMI): Compliance with FCC/CE EMI standards (e.g., IEC 61010-1 for industrial equipment)
Original: $2,699.99
-65%$2,699.99
$945.00More Images
