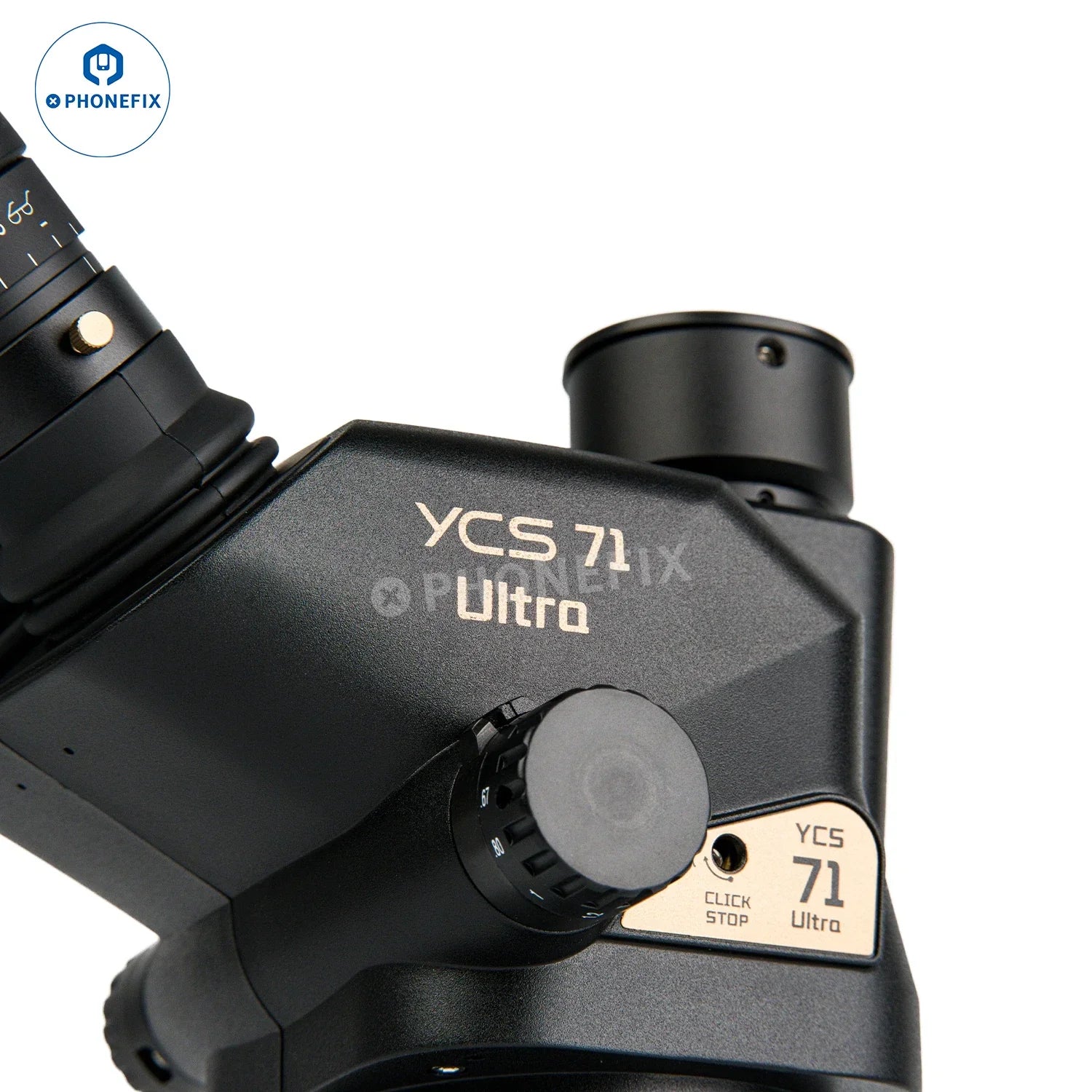

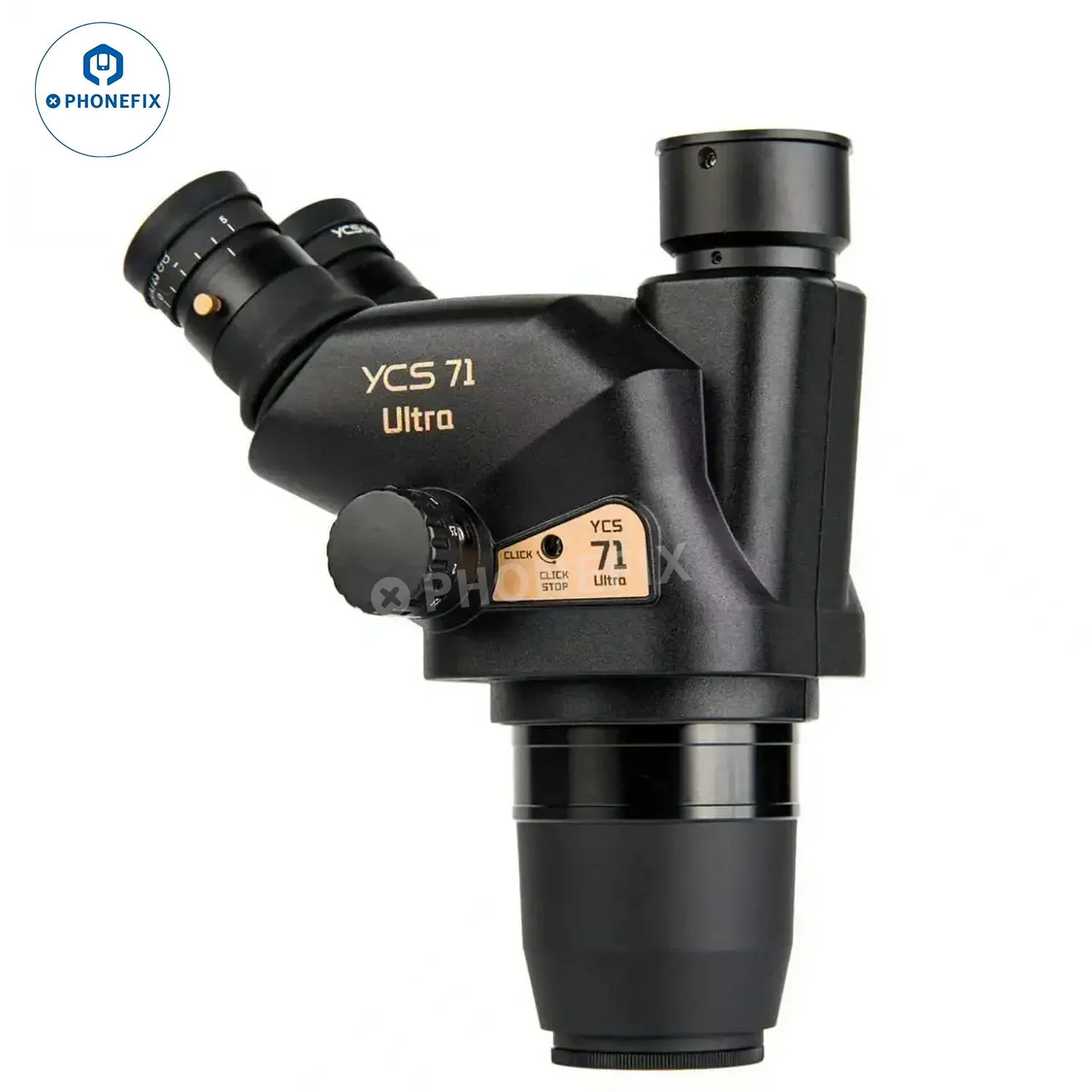

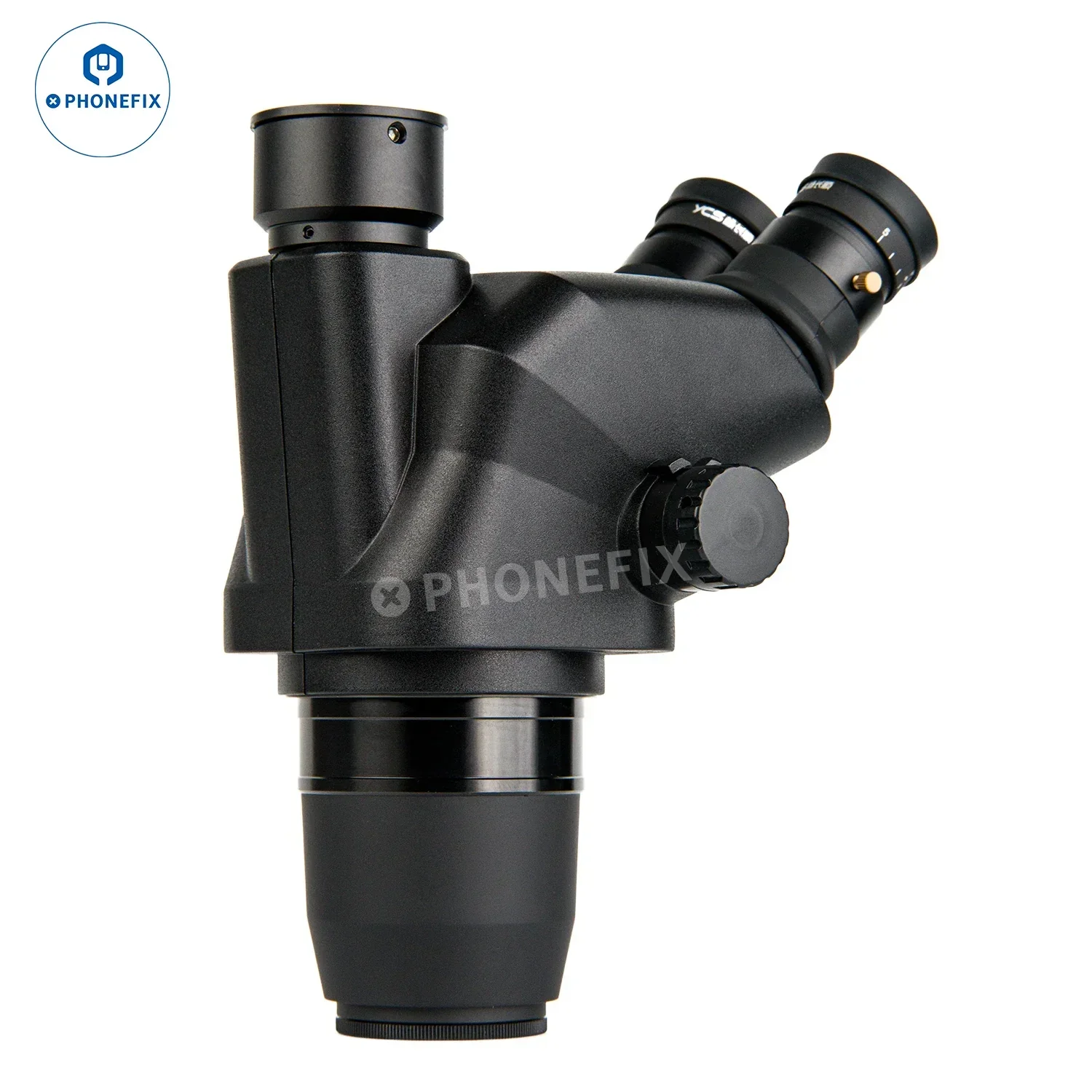

YCS 71 Ultra 6.7X-45X Trinocular Microscope for Phone Soldering Repair
YCS 71 Ultra HD Trinocular Stereo Microscope 6.7X-45X continuous zoom, with PL10X/23mm widefield eyepiece, 45° inclined viewing head can be used with most HDMI 4K cameras. Fixed frame, fixed magnification mechanism with maximum and minimum magnification adjustment lock function, high eyepoint, large field of view, suitable for mobile phone repair and various electronic product motherboard repair, PCB cpu bga chip precision welding repair, LCD assembly and testing, etc.
Option:

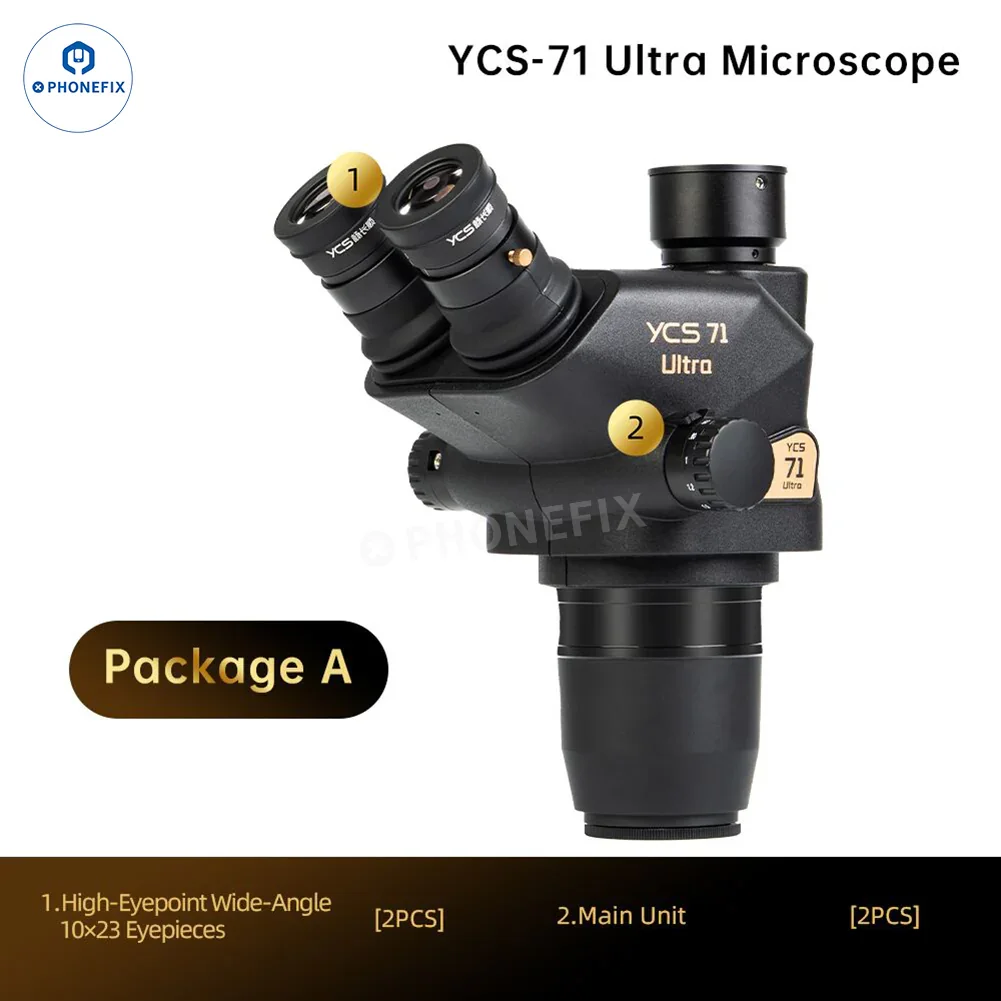

1. YCS 71 Ultra 6.7X-45X Microscope head only.

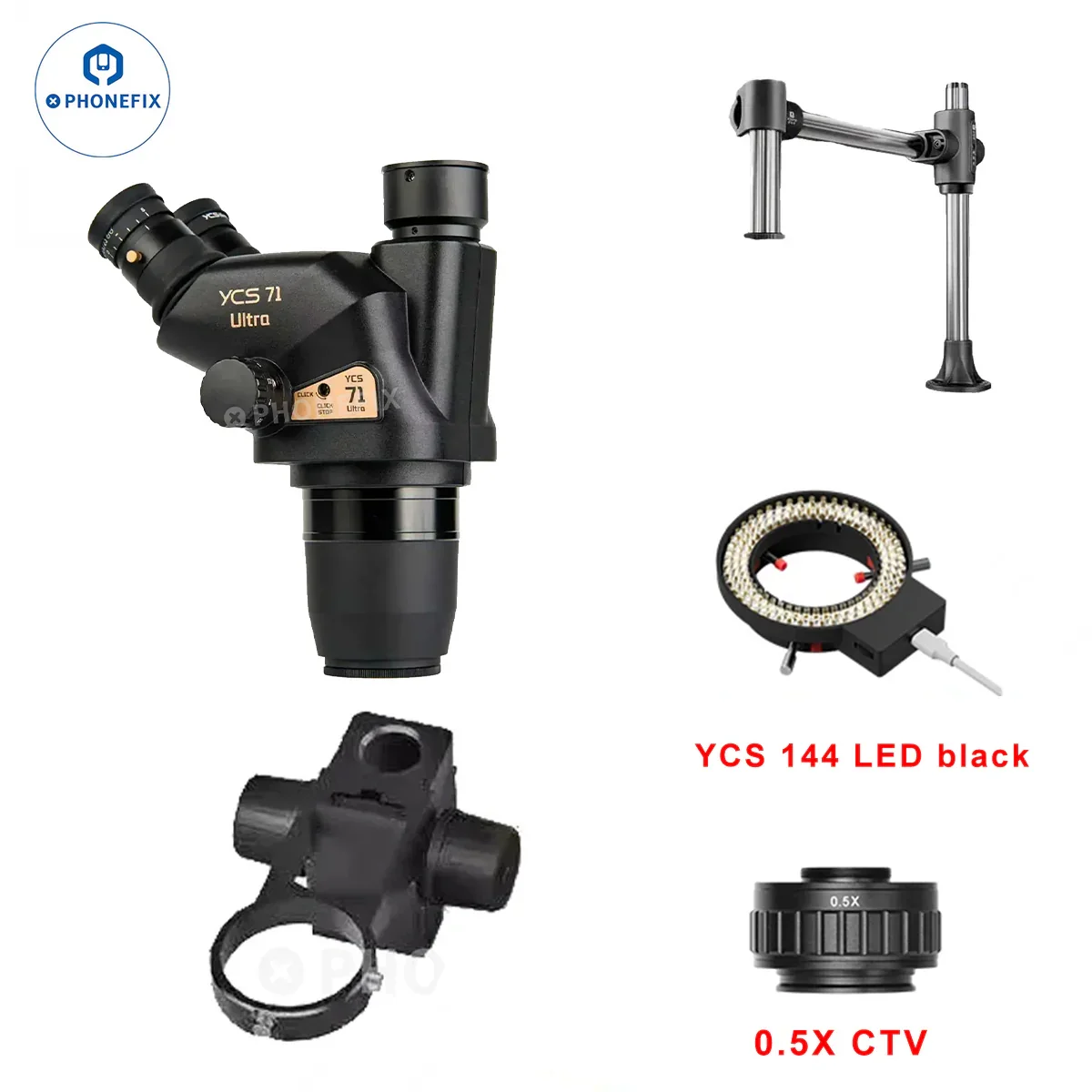

2. YCS 71 Ultra Microscope head+holder+YCS swing arm+0.5X CTV Lens+144 LED light set.

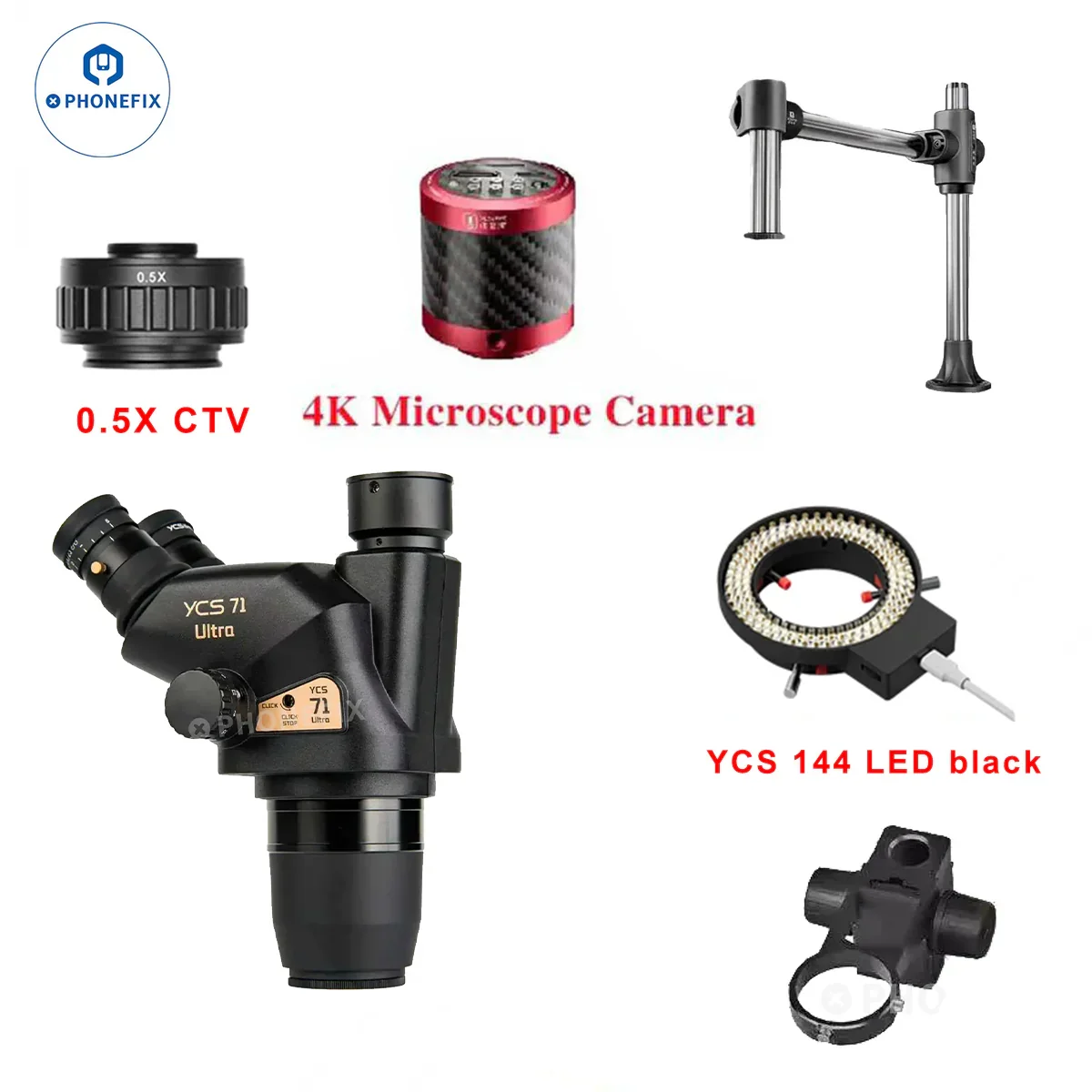

3. YCS 71 Ultra Microscope head+holder+YCS swing arm+0.5X CTV Lens+144 LED light+YCS X80 4K camera set.

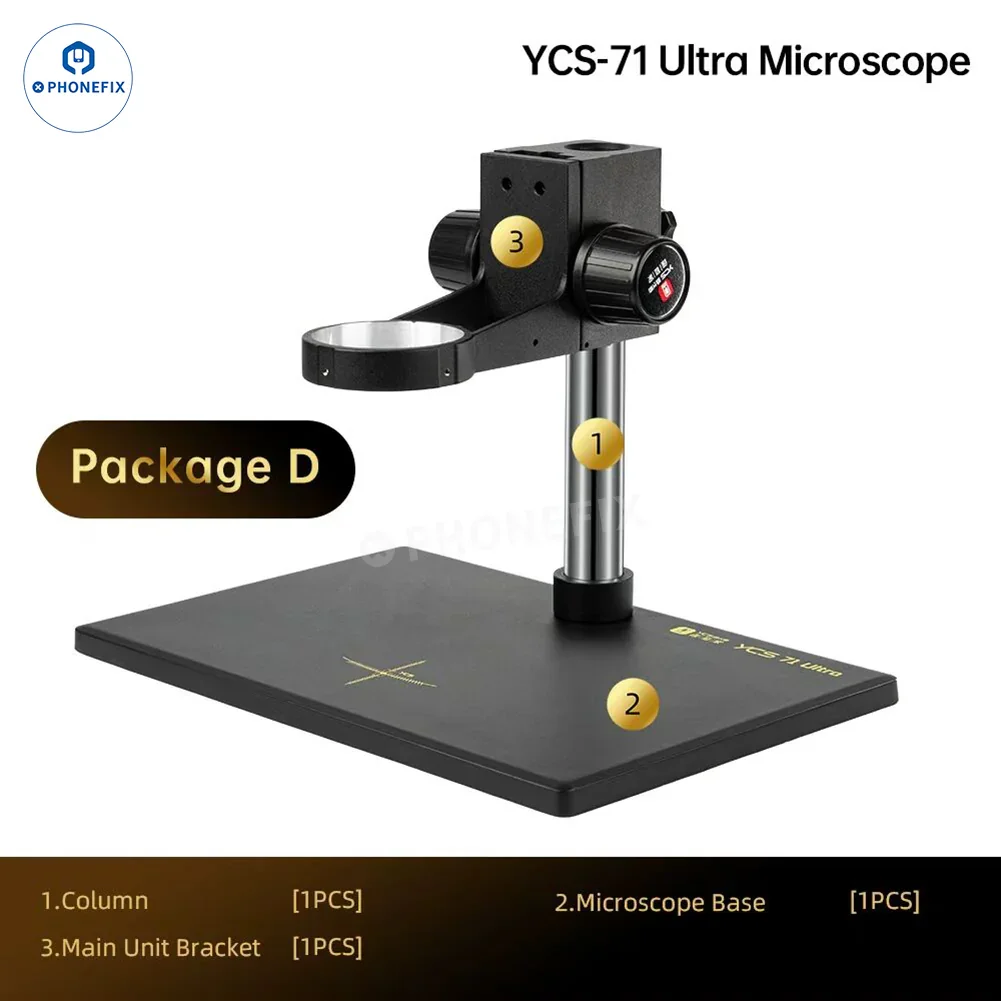

3. Base with holder set for YCS 71 Ultra Microscope head.

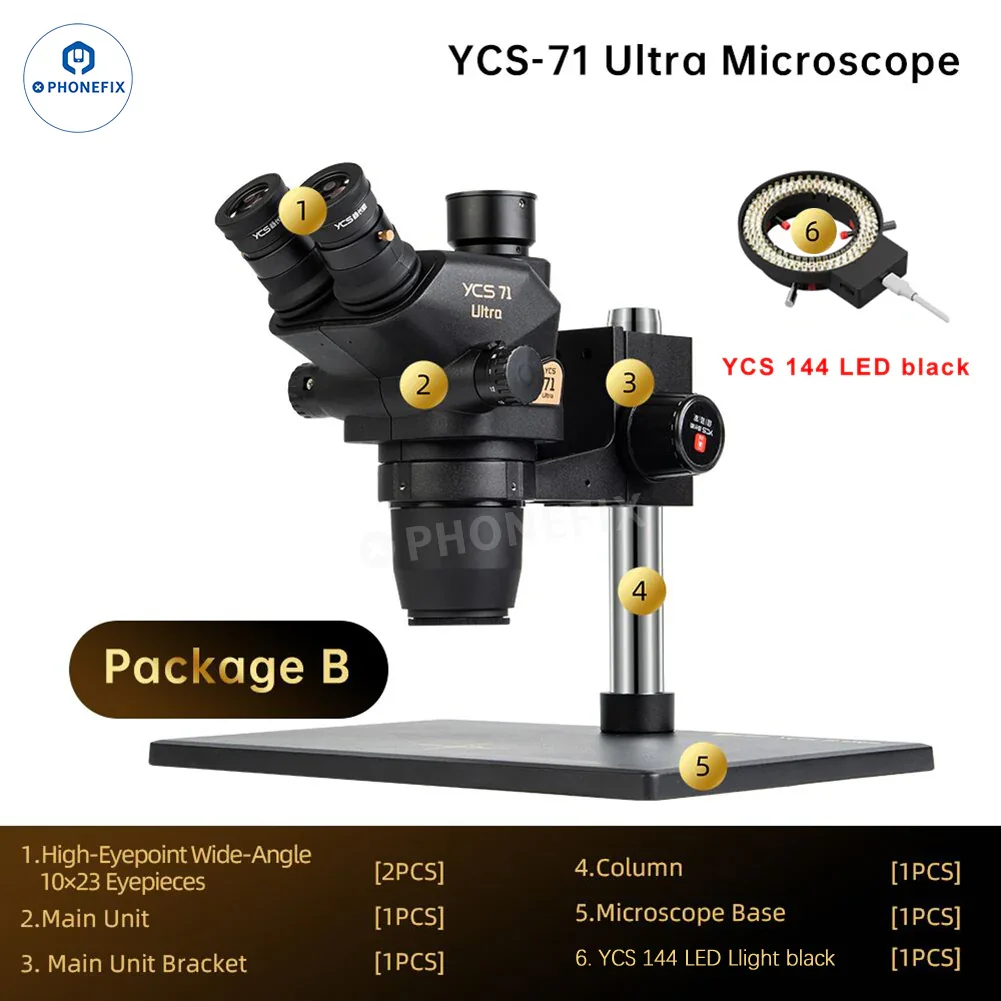

4. YCS 71 Ultra Microscope head+Base with holder+0.5X CTV Lens+144 LED light.

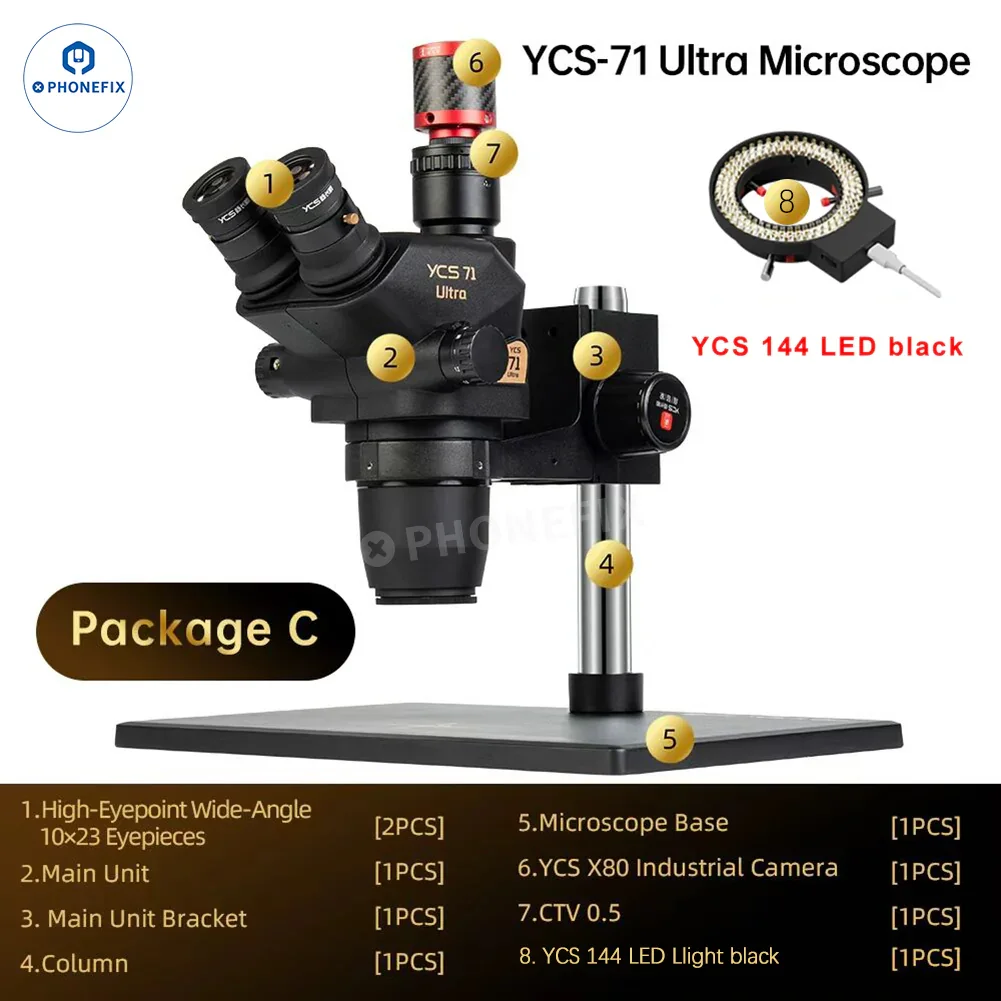

5. YCS 71 Ultra Microscope head+Base with holder+0.5X CTV Lens+144 LED light+YCS X80 4K camera set.
1. YCS 71 Ultra 6.7X-45X Microscope head only.
2. YCS 71 Ultra Microscope head+holder+YCS swing arm+0.5X CTV Lens+144 LED light set.
3. YCS 71 Ultra Microscope head+holder+YCS swing arm+0.5X CTV Lens+144 LED light+YCS X80 4K camera set.
3. Base with holder set for YCS 71 Ultra Microscope head.
4. YCS 71 Ultra Microscope head+Base with holder+0.5X CTV Lens+144 LED light.
5. YCS 71 Ultra Microscope head+Base with holder+0.5X CTV Lens+144 LED light+YCS X80 4K camera set.
Specification:
Model: YCS 71 Ultra Trinocular Microscope
Magnification: Standard magnification 6.7X-45X continuous zoom, expandable to 2X~225X.
Lens: 0.67X~4.5X continuous zoom lens, zoom ratio 6.7:1

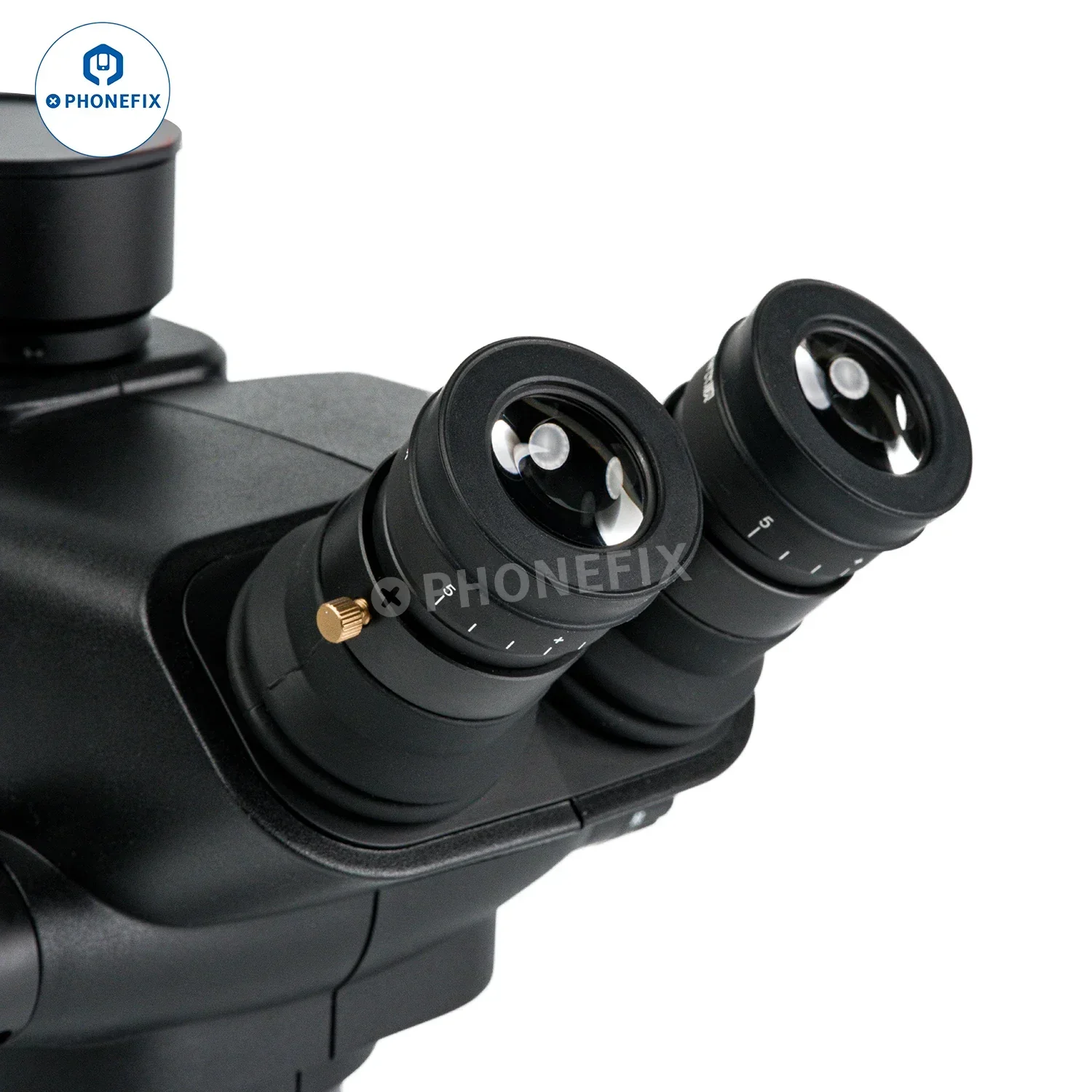

Eyepiece: Using the large field of view eyepiece PL10X/23mm, adjustable vision, adjustment range ± 5 diopters, ultra-wide field of view, and the high eye point.

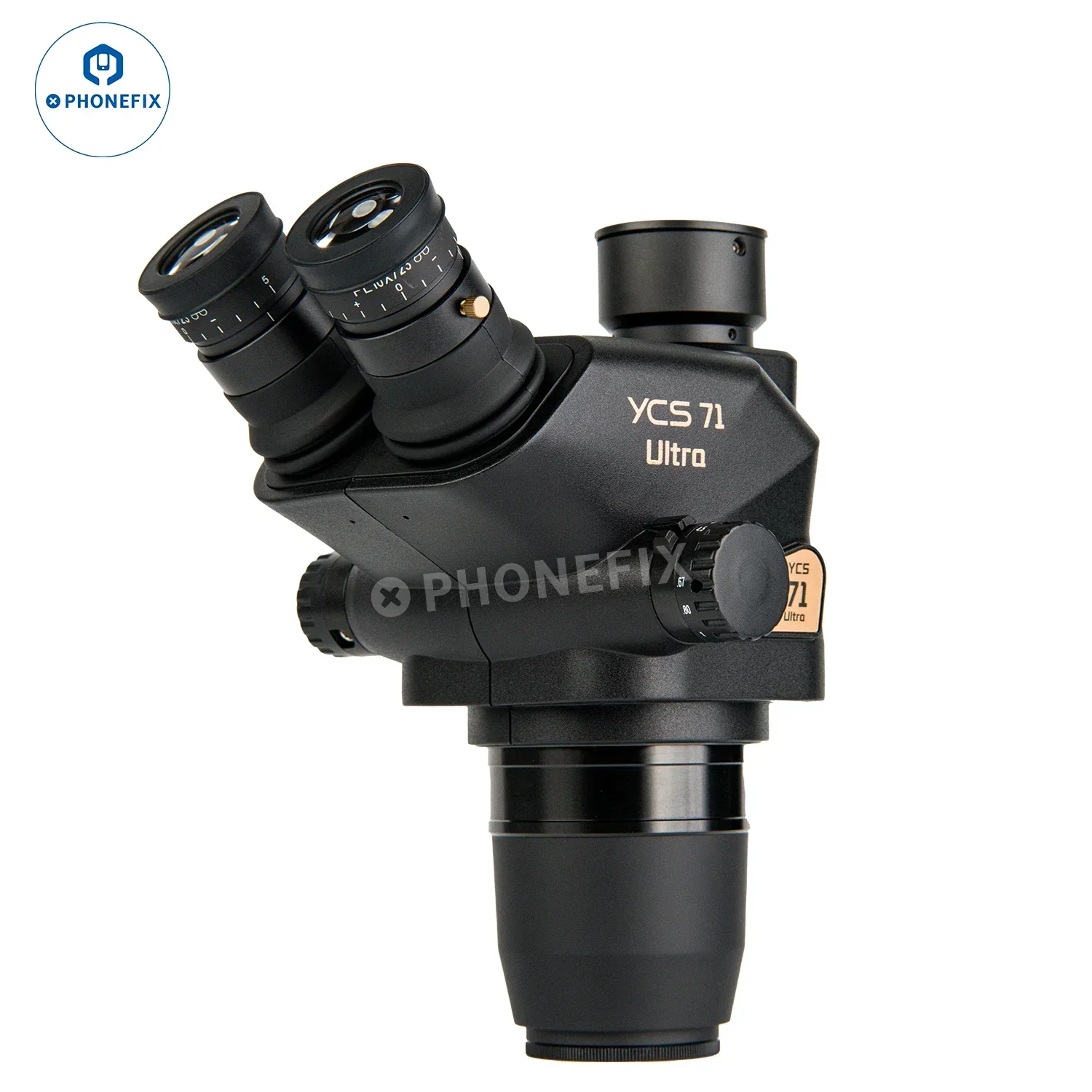

Microscope head: Binocular head / trinocular head eyepiece barrel 45 ° tilt, the host head 360 ° rotation
Binocular or trinocular beam splitting ratio 20% / 80%.
Pupil distance: Pupil distance adjustment range 52mm~76mm
Standard working distance: 110mm
Optional eyepieces: PL10X/22mm, PL15X/16mm, PL20X/12mm (adjustable visual acuity)
Optional auxiliary objective barlow lens: 0.3X/287mm, 0.4X/217mm, 0.5X/177mm, 0.7X/120mm, 1.5X/47mm, 2X/26mm
Optional camera interface (C-mount): 0.35X, 0.5X, 0.65X, 1X C-type interface, focusable.
Holder base: can be used with different base holder, swing arm brackets.
Holder base: can be used with different base holder, swing arm brackets.
Features:
1. YCS 71Ultra microscope boasts a wider field of view, a fixed frame, and a magnification limiter, making it suitable for soldering and repairing mobile phone motherboards, as well as assembly and inspection of PCBs, LCDs, and ICs for various electronic products.
2. Features a 45° tilting binocular observation head, a fixed frame, a fixed magnification mechanism, and lockable maximum and minimum magnification adjustments. It also features a high eyepoint, a wide field of view, and flat-field eyepieces.
3. Features a Grignot optical system, a 10° stereoscopic convergence angle, and wide-field flat-field eyepieces, ensuring a wide depth of field with flat-field images.
4. A newly added fixed-frame function for the main magnification allows for repeated adjustments of the same magnification, effectively solving the problem of calculating magnification when observing objects.
5. The innovative push-pull three-way switching lever, fixed frame, fixed magnification mechanism, and magnification limiter further reduce user fatigue after prolonged operation and provide ergonomic comfort.
6. It can be applied to mobile phone repair, computer repair, various precision motherboard circuit board repair, electronics industry production line testing, single board PCB verification, and can also be used for calligraphy and painting appraisal, as well as scientific research, teaching demonstration, archaeology and other fields.
