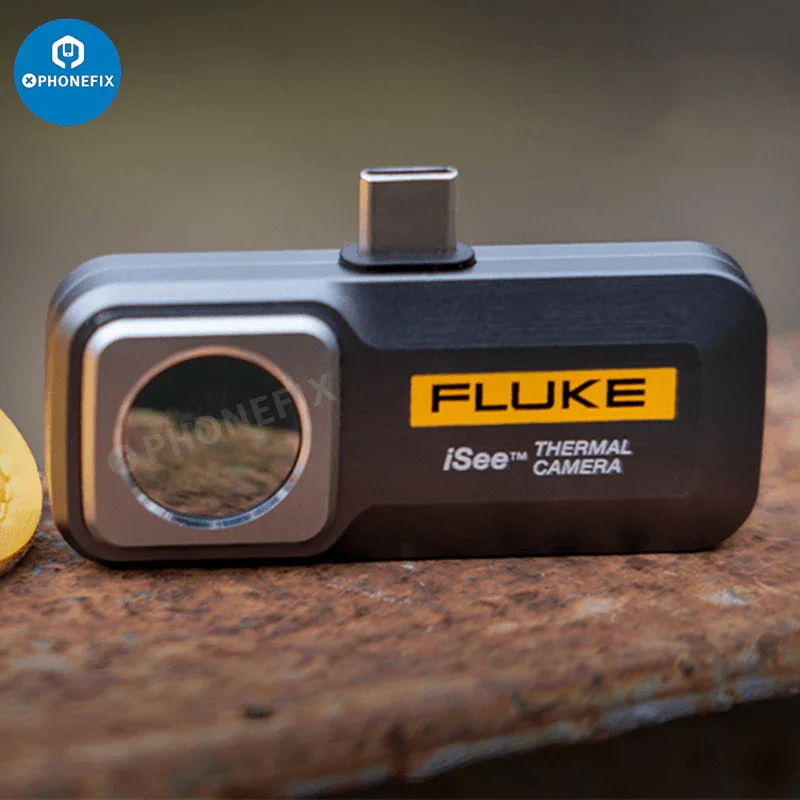

Fluke iSee Thermal Imager Camera Motherboard Fault Diagnostic Tool

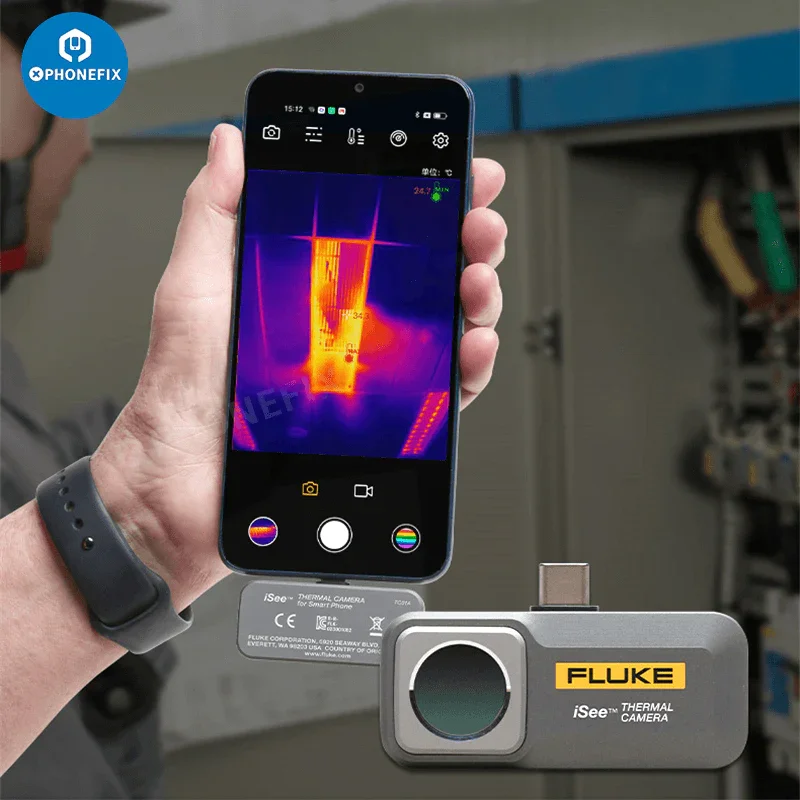

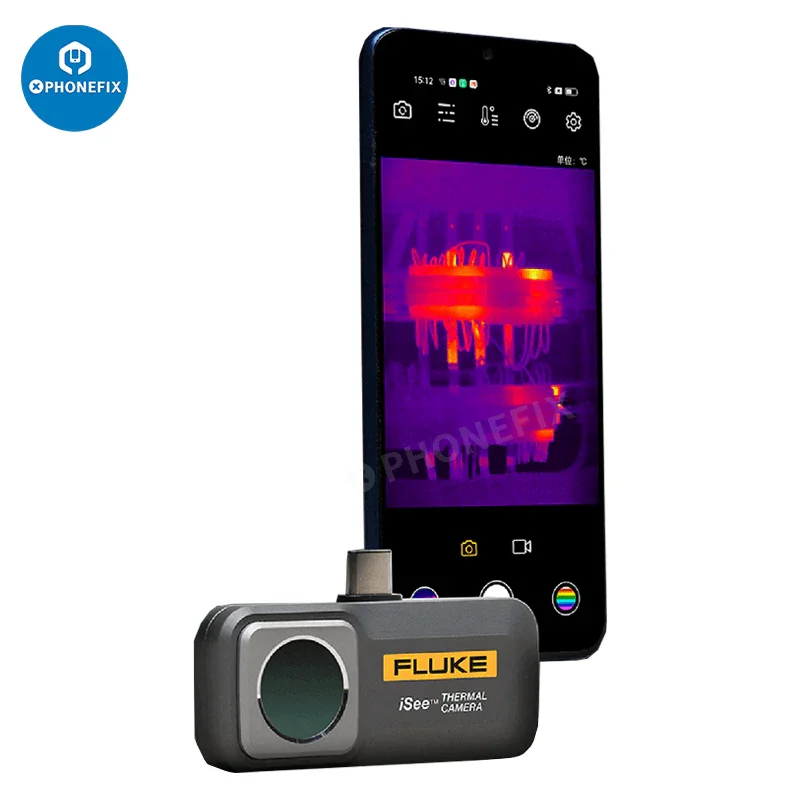

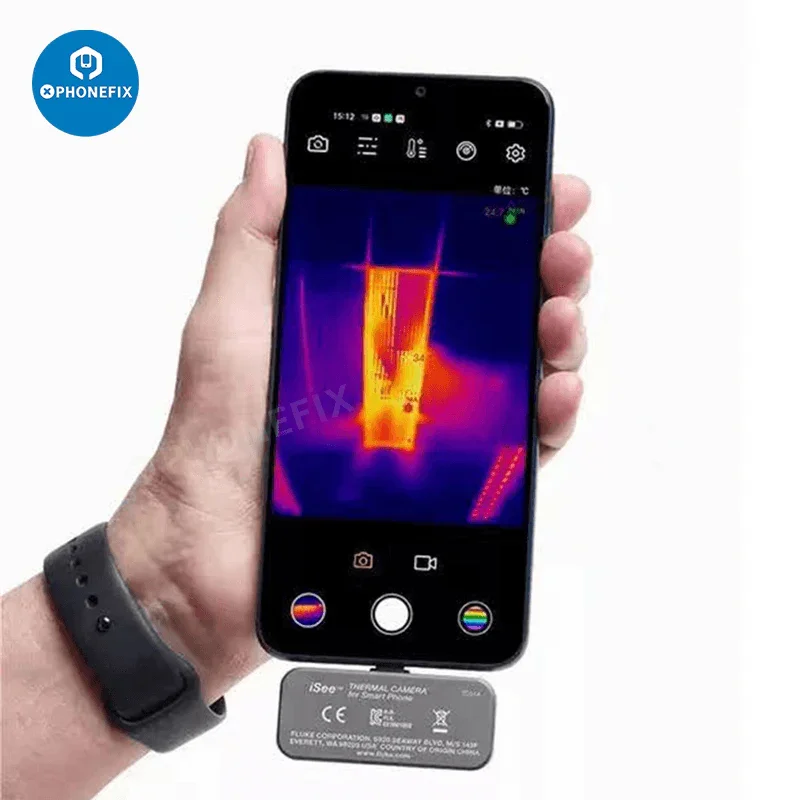

Fluke iSee TC01A Thermal Camera Mobile Phone Android Type-C Infrared Thermal Imager for motherboard fault detection. Fluke iSee powerful diagnostic tool is ideal for troubleshooting issues related to mainboard faults.

Features:

• Fluke iSee TC01A Thermal Cell Phone Camera Delicate images comparable to professional thermal imaging cameras.
• 256 x 192 pixels, delicate picture quality experience.
• -10 ~ 550℃ range, covering a wide range of applications.
• 50mk (0.05℃) thermal sensitivity for fine discrimination.
• ±2% or ±2°C accuracy for reliable results.
• 25Hz frame rate, smooth video without stuttering.

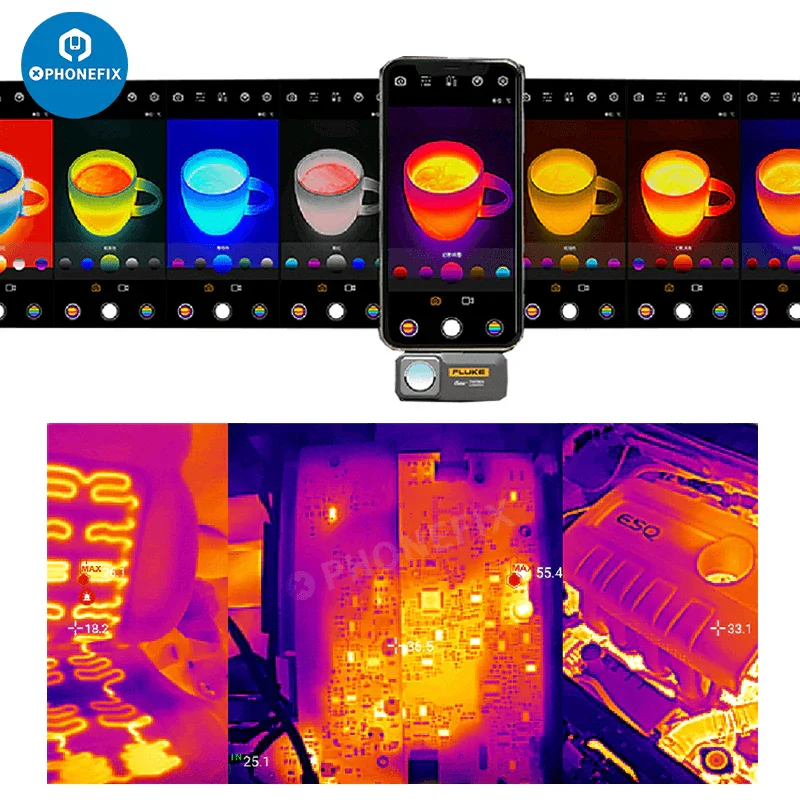

• More than 10 standard color palettes and custom color palettes to achieve a variety of personalized screens.

Powerful full temperature range analysis function:

• Real-time capture of high and low temperature without missing any details.
• Adjustable emissivity for different materials.

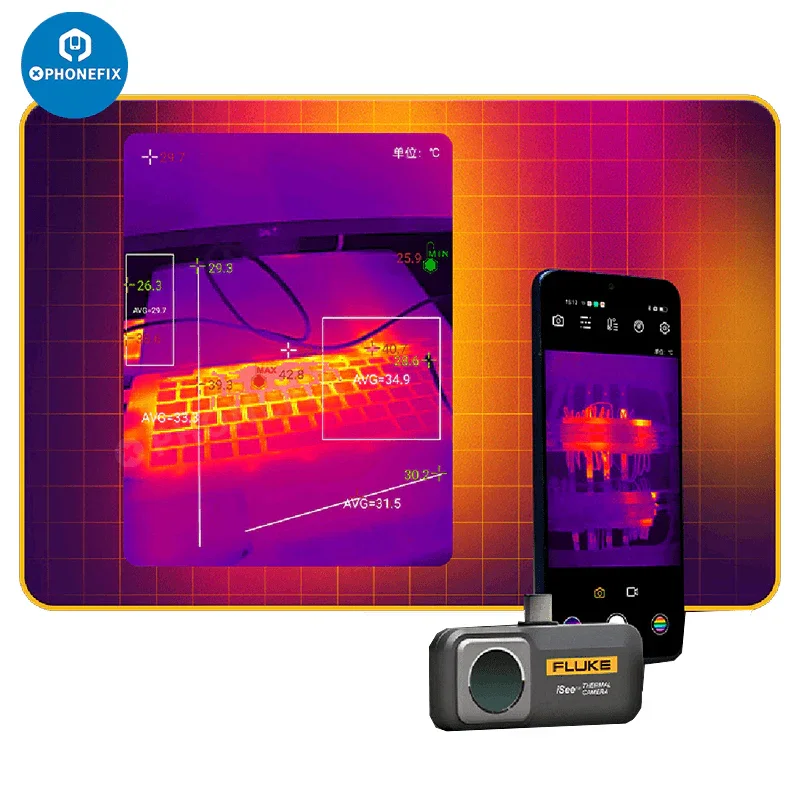

• Point, line and surface comprehensive temperature analysis, professional thermal imager software.
• Real-time temperature alarm, timely response and processing.
• Automatic interval shooting, unattended.
• Infrared and visible light image comparison view, positioning, comparison, archiving.

Share real-time images and communicate without barriers:

• Real-time sharing and management of pictures and videos, fast and efficient communication.
• Convenient picture notes, smooth and barrier-free communication.

Really small and portable, get started in a second:

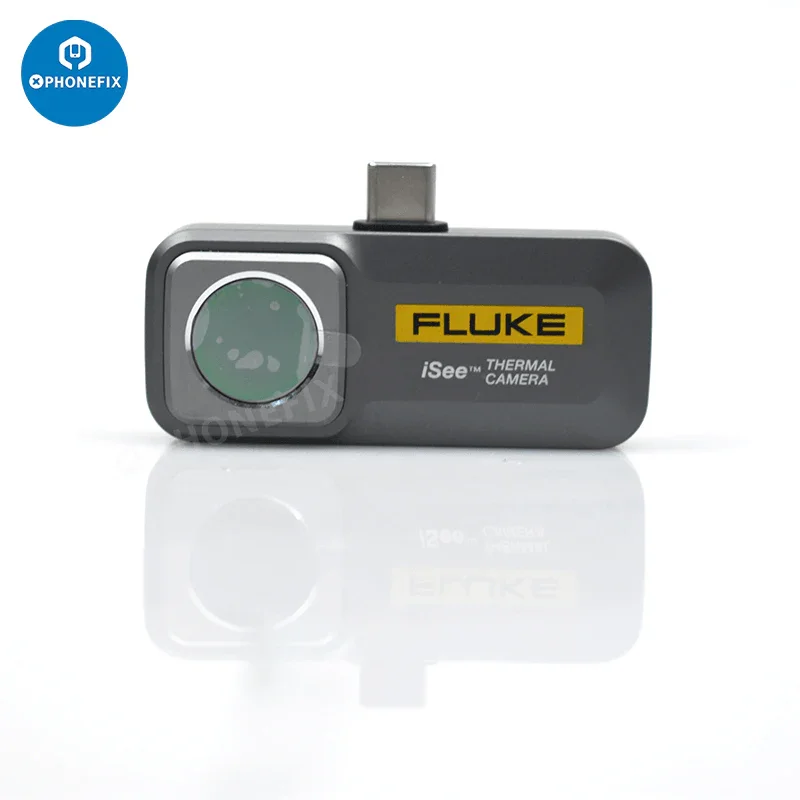

• Compact design as light as 22g, perfectly matched with the size of the mobile phone.
• Each iSee™ uses high-quality aviation aluminum, combined with unique surface treatment and laser etching process.
• 1-meter drop, IP54-rated, built-in Fluke durable quality.
• Optimized Fluke iSee™ application program interface and menu design, enjoy a professional operating experience, easily realize all functions.

Specification:

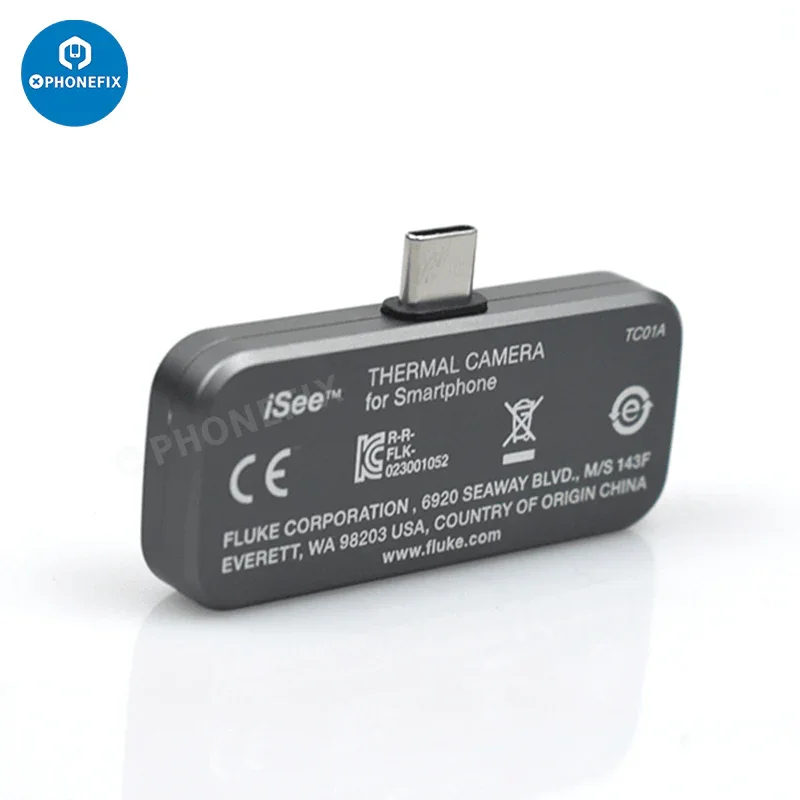

Product model: Fluke iSee TC01A
Infrared resolution: 256x192
Pixel size: 12um
Temperature measurement range: -10℃-150℃,100℃-550℃
Accuracy: ± 2% (or ± 2 ℃)
Temperature measurement distance: 0.25-5M
Frame rate: 25Hz
Focal length: fixed 3.2mm
Thermal sensitivity (NETD): 50mK
Spectra: 8-14um
Field of view angle (HxV): 56 ° x42 °
Spatial resolution: 3.81mrad
USB interface: Type C
Working temperature: 0 ℃ -40 ℃
Storage temperature: -30 ℃ -60 ℃
Working humidity: 10% -90% RH
Power consumption: 350mW
Protection level: IEC 60529, IP54
Size: 59x32x10mm
