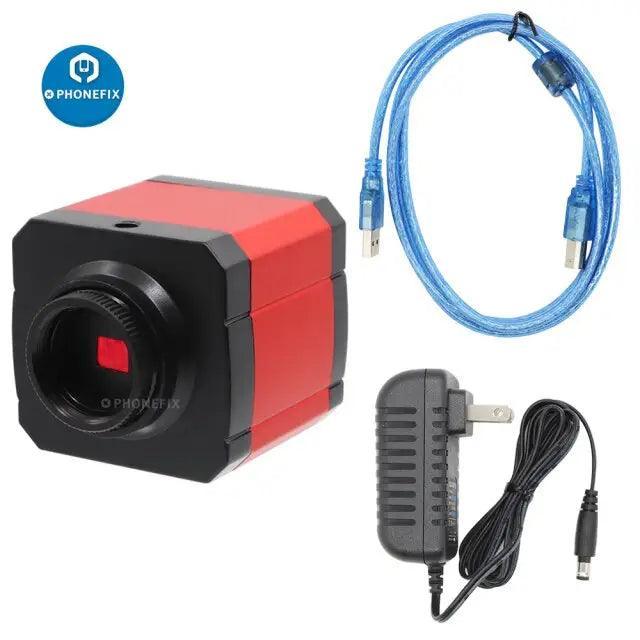

Full HD 2K HDMI USB Digital Industrial Phone Microscopio Camera

Full HD 2MP HDMI USB Camera 2000TVLine 1/2.8" 30FPS Industry Microscope Camera For Phone PCB Lap IC CPU Soldering Repairing

Model : 2MP 30FPS 2000TVLine 1/2.8" inch HDMI Type

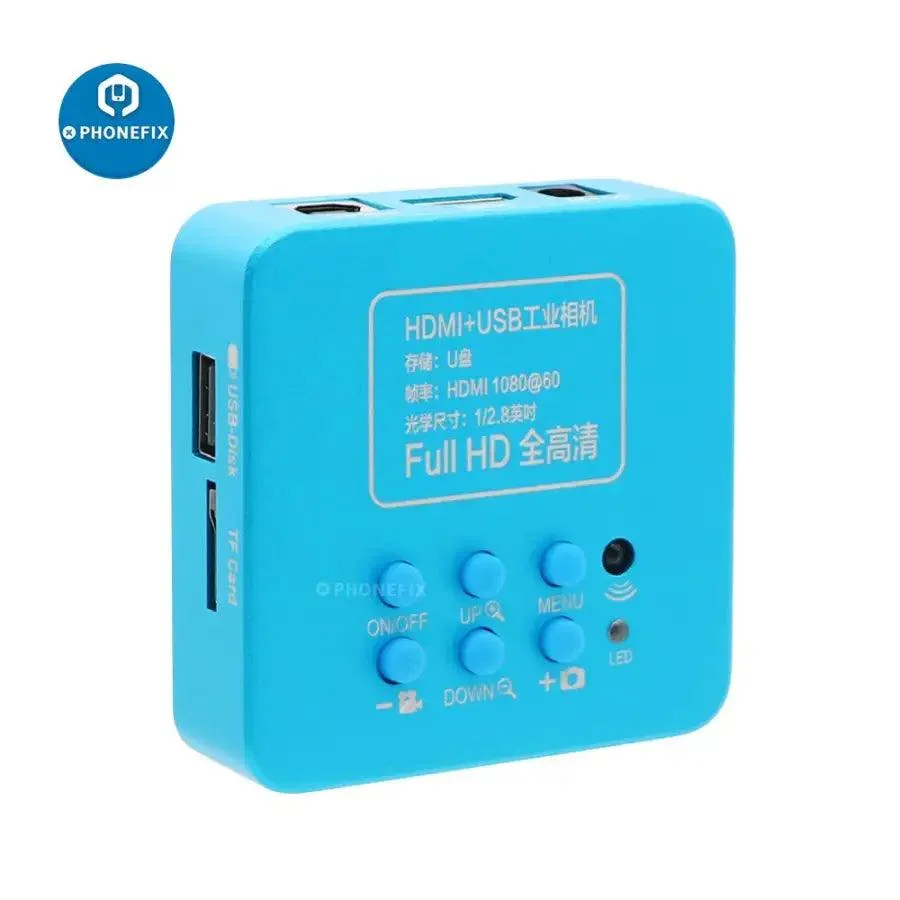

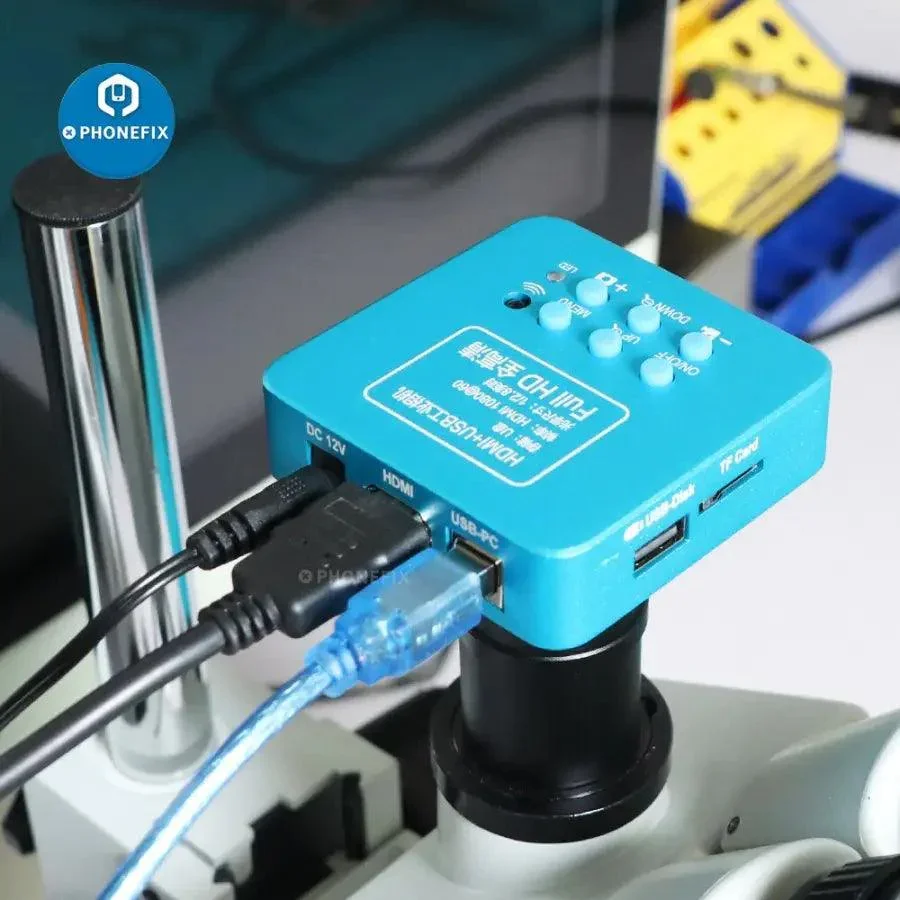

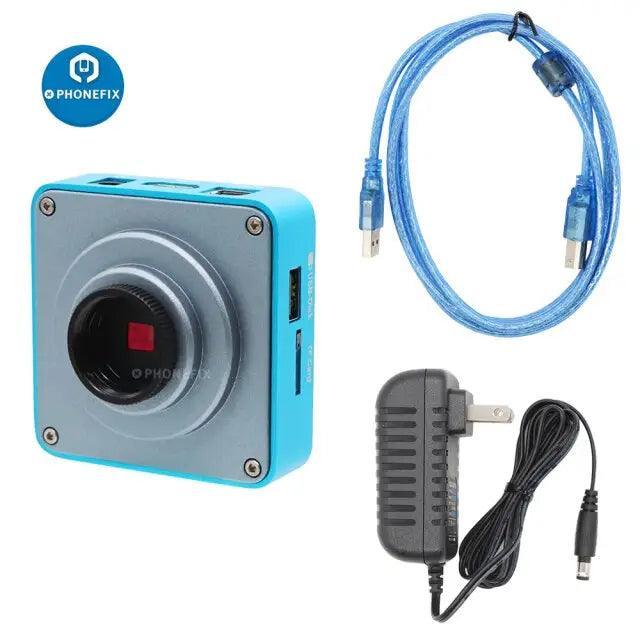

Option 1 : "overall dimension" 74*74*35mm Video Interface : HDMI USB-disk USB-PC TFCard

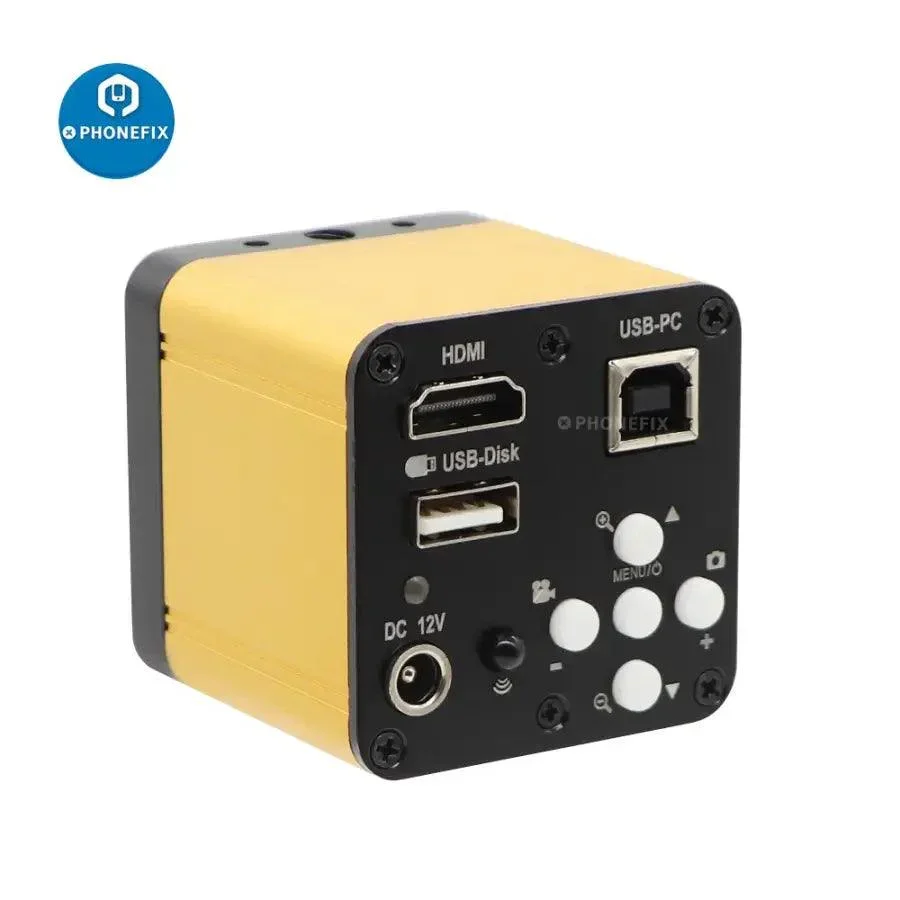

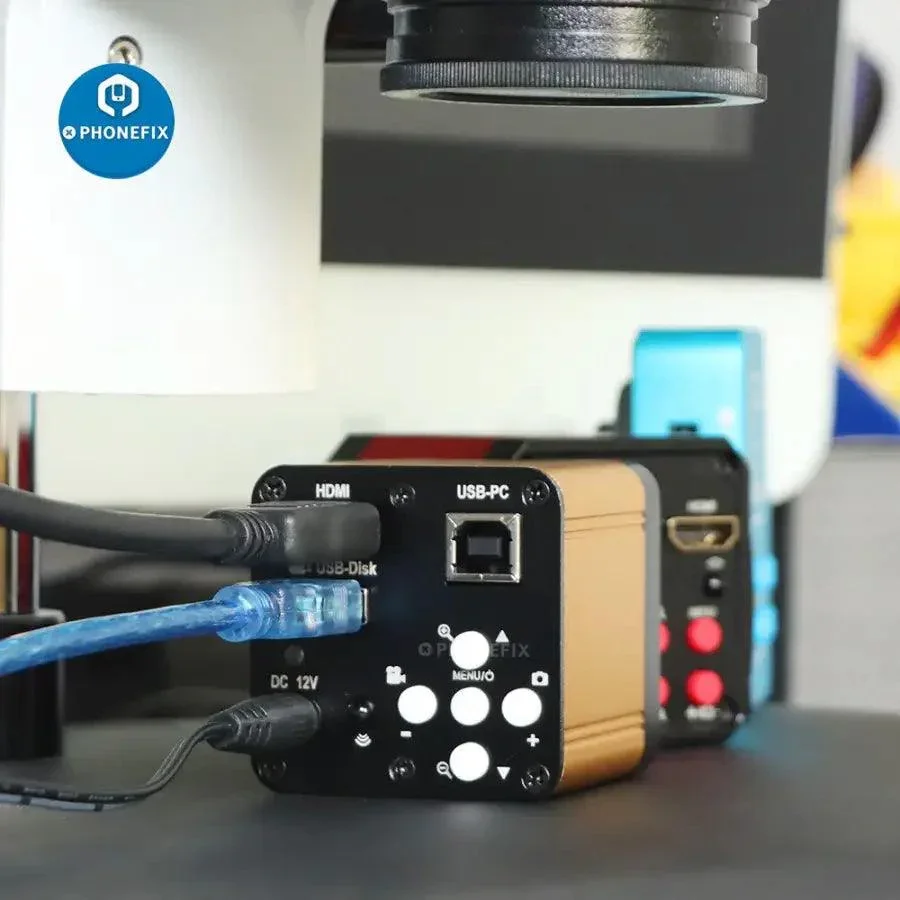

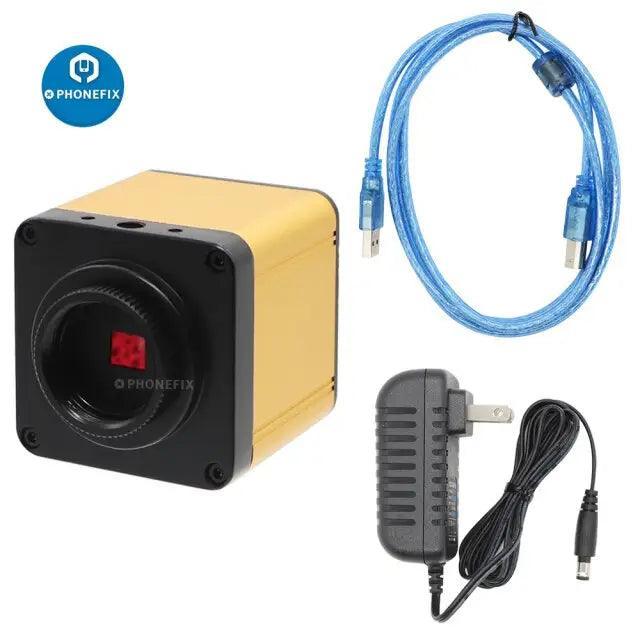

Option 2 :"overall dimension" 51*51*55mm Video Interface : HDMI USB-disk USB-PC

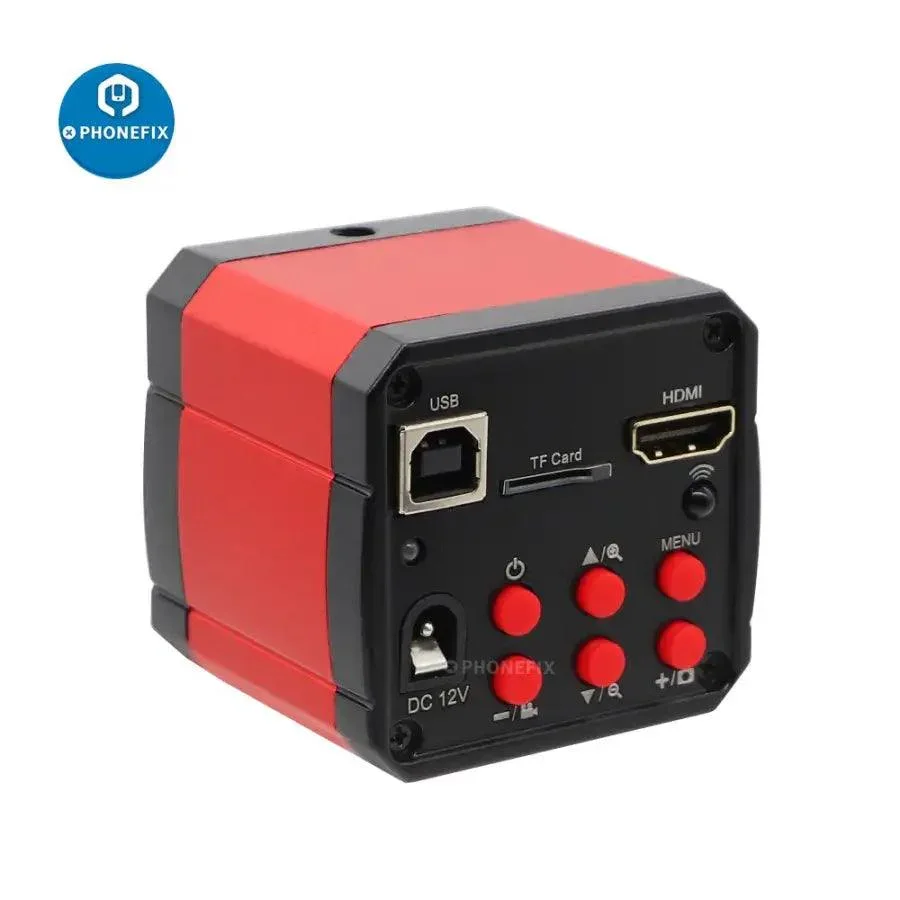

Option 3 : "overall dimension" 54*58*60mm Video Interface : HDMI USB-PC TFCard"

Specification :

Lens : CS

working voltage : 12V

working current : 120mA

optical format : 1/2.8" inch

pixel size : 2.8um*2.8um

Pixel array : 2MP

TV Lines : 2000TVLine

FPS of max image : 30FPS

scanning mode : progressive
shutter mode "

electronic shutter"
dynamic range 69dB

S/N radio 40dB

OSD language : Chinese / English

AWB mode One-time white balance/manual/auto

HDR adjustable

"Crossline" "Support 32 horizontal and vertical colors/line width adjustable"

B/W Support

negative Not support

mirror flip Support

Freeze Not support

compare Not support

"Manual setbright,sharp" Support

"Manual setcontrast,saturation" Support

output of display resolution 2MP 1920*1080
