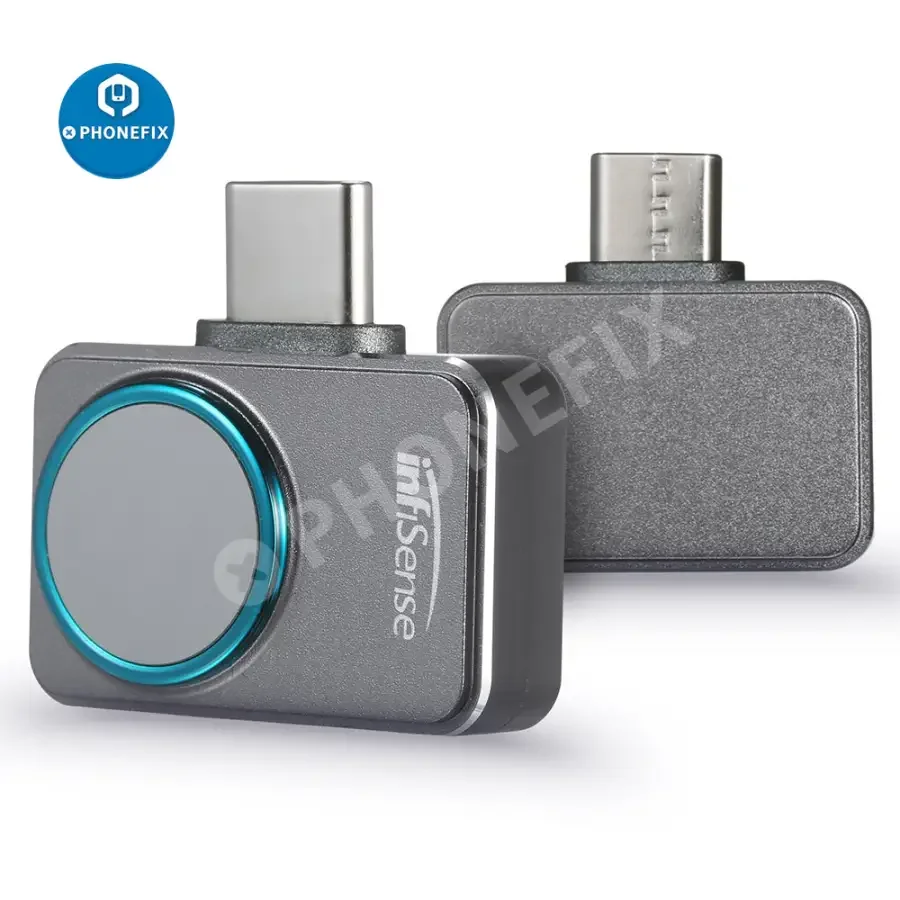

Infisense P2 Mini Infrared Thermal Imager Measure PCB Inspection

Infrared Imaging Camera P2 Industrial PCB Circuit Floor Heating Inspection Seek Thermal Imager Camera for Android Phone.

Features:
Easy to Use: after installing the supporting app on your phone, simply insert this device to your phone, then you can easily measure temperatures (-20~170℃ range) of the object and view the infrared images directly via mobile phone.

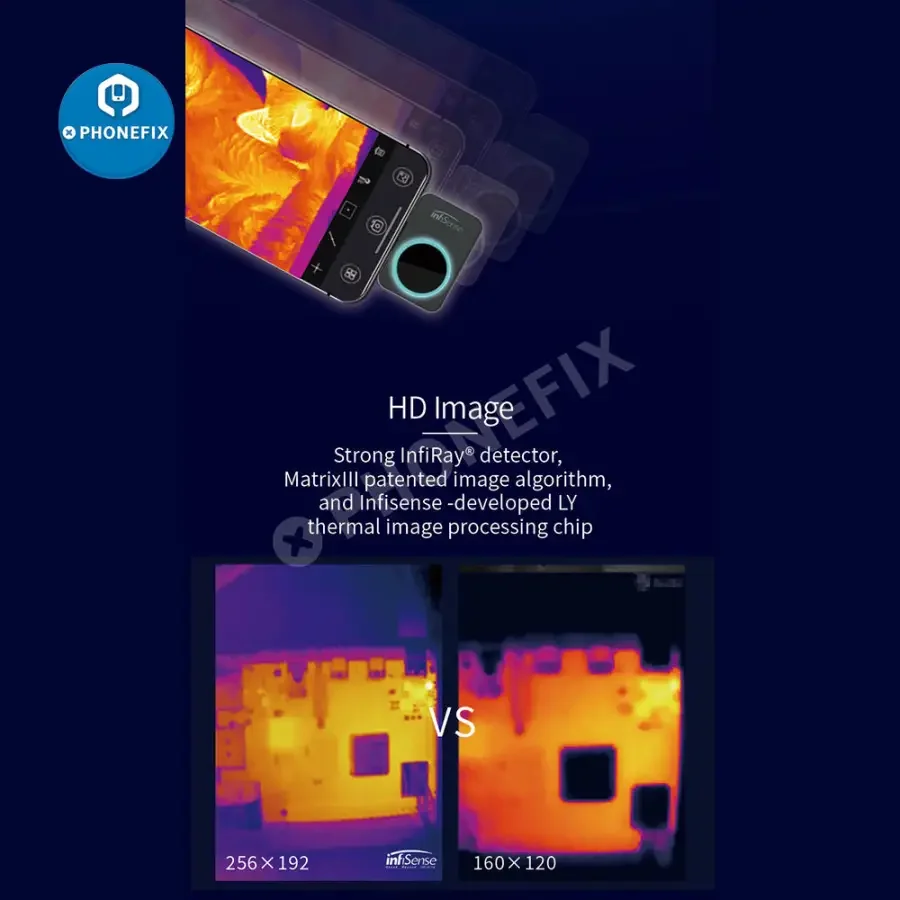

High Definition Image: adopts with self-developed ASIC image processor chip and with powerful core, features of 256*192 infrared resolution.

Full Image Temperature Memory: each frame of 50000 pixels temperature full data storage.

Temperature Analysis Function: powerful post offline temperature measurement analysis function of point, line and surface.

Specifications:
Resolution: 256*192
Pixel Size: 12um
NETD: ≤50mK@25℃, F#1.0
Spectral Response: 8~14um

PERFORMANCE:
Frame Frequency: 25Hz
Working Temperature:-10~55℃
Storage Temperature:-10~55℃
Power Consumption: 350mW
Processor: ASIC

LENS:
Focal Length: 3.2mm
Aperture: F1.1
Field Angle: 56.0°(H)*42.2°(V), 71.3°(D)
Focus: No thermal prime lens

TEMPERATURE MEASURING PERFORMANCE
Measure Range: -20~170℃
Measure Accuracy: ±3℃/±3% (whichever is greater)
Temperature Correction: Distance, circumstance temperature, emissivity

Material: Alloy
Support Device: Android 6.0 and above
Interface: Type-C

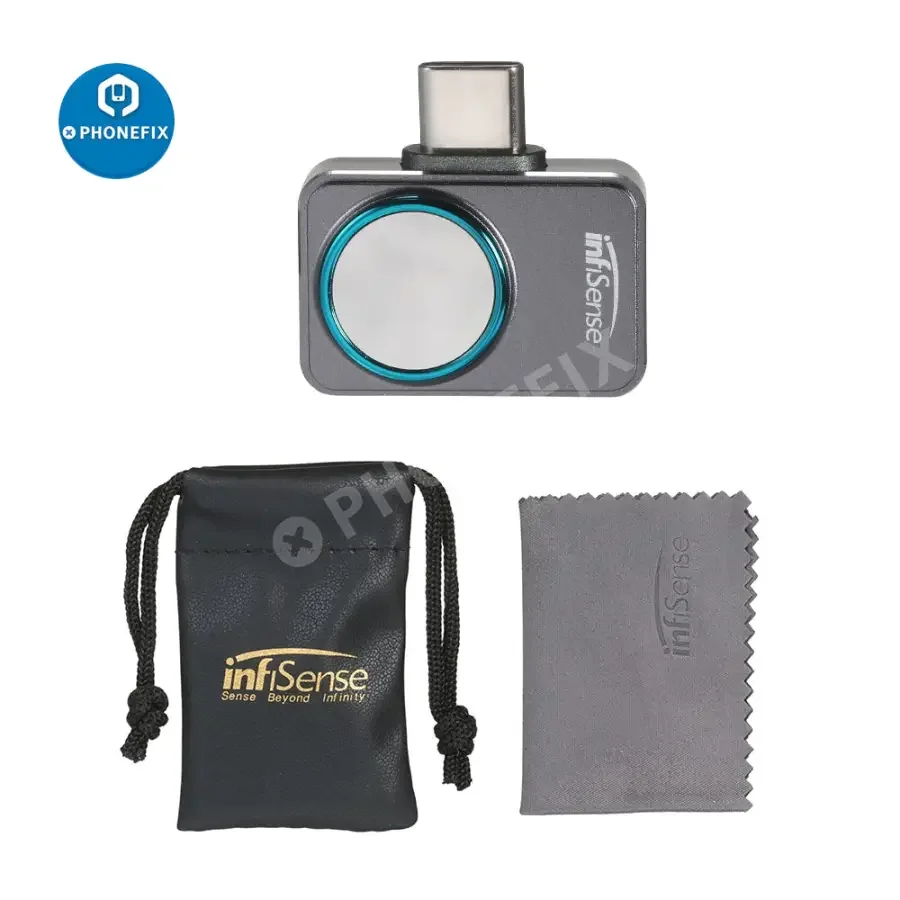

Packing List:
1 x Thermal Imager
1 x Wipe Cloth
1 x Storage Pouch
