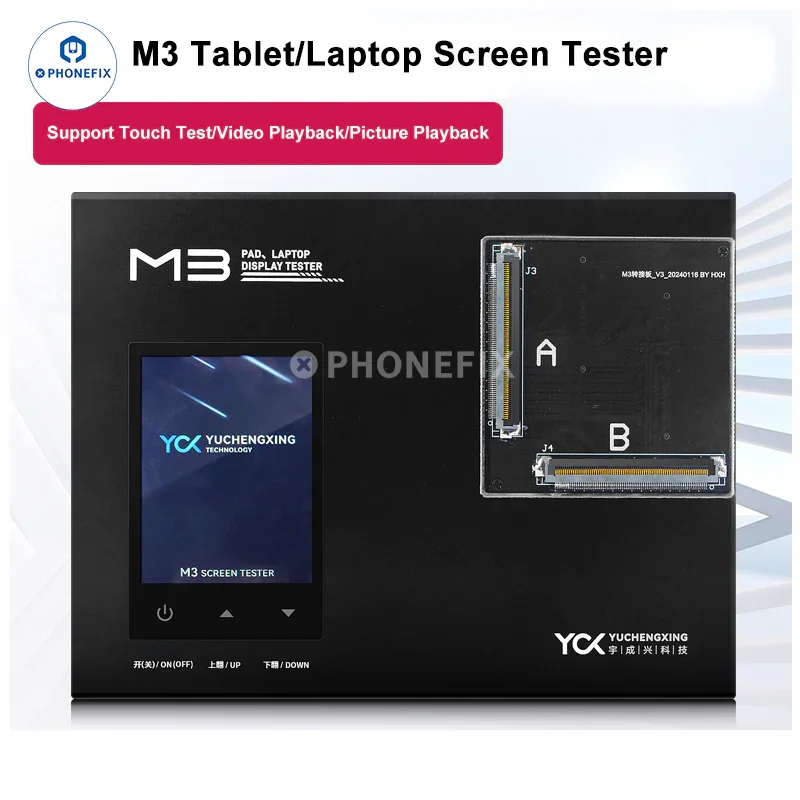

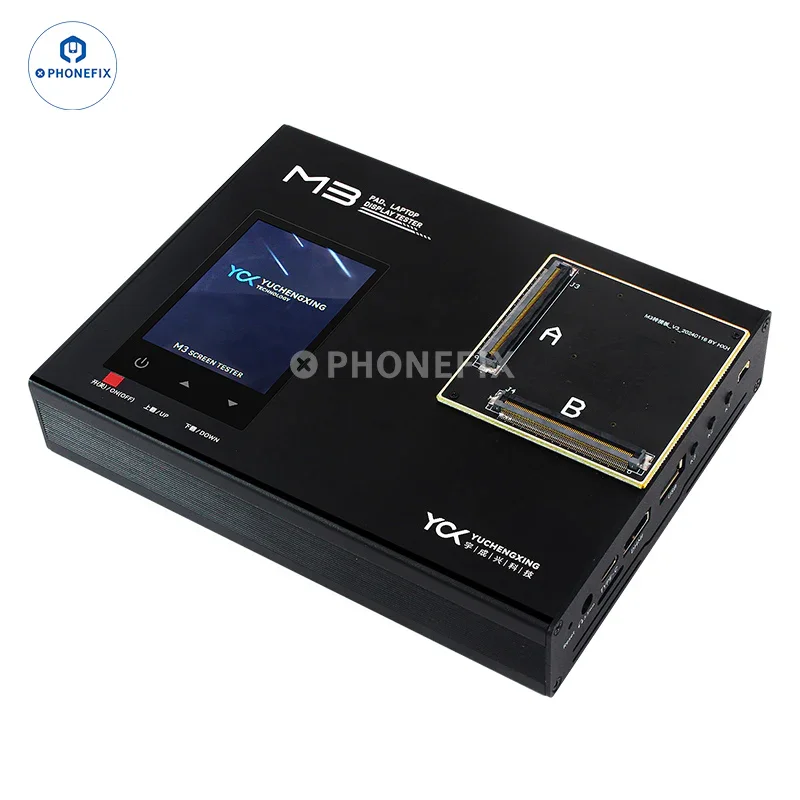

M3 iPad Laptop Display Tester Tests Screen 3D Touch Picture Video Playback
YCX M3 Pad Laptop Display Tester supports eDP MIPI SPI IIC HDMI port for iPad MacBook Samsung Huawei Xiaomi screen true tone 3D touch, picture playback and video playback functions testing. YCX smart LCD screen tester supports testing screens of the iPad, Tablet, Laptop and mobile phones.

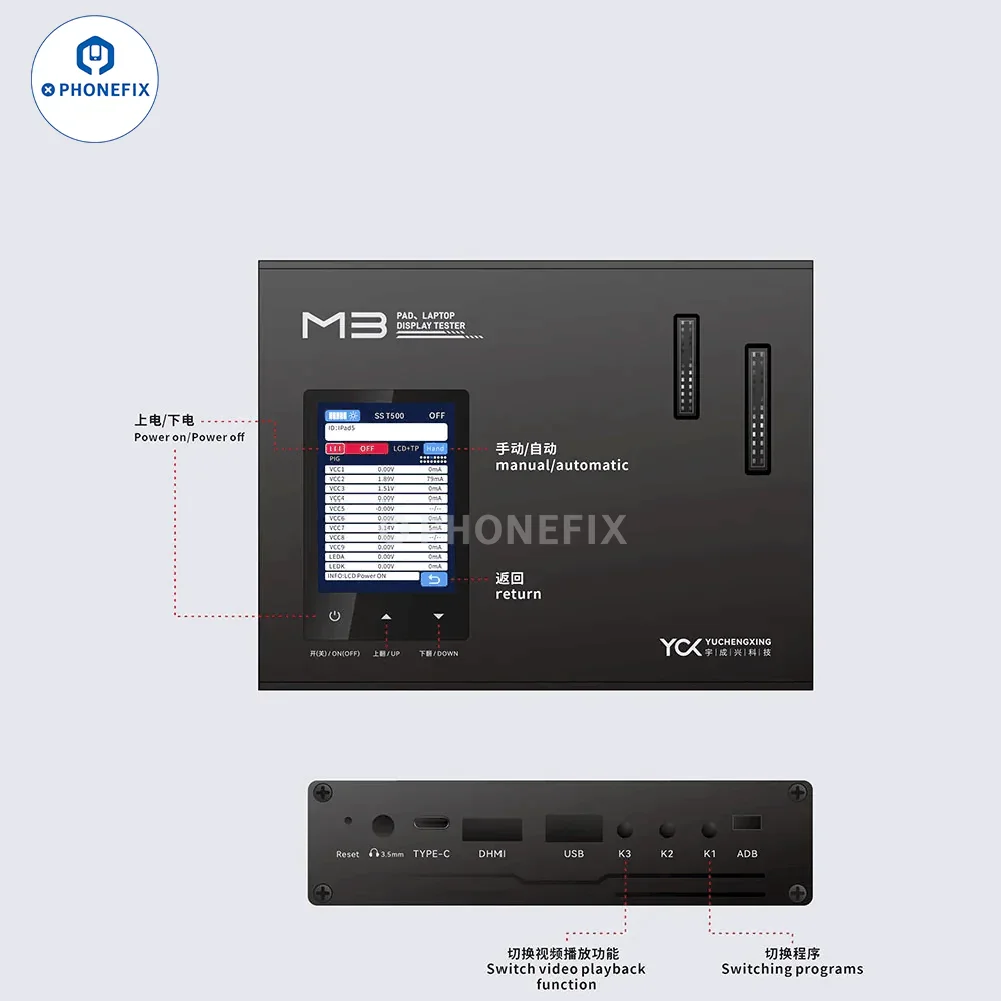

YCX M3 Smart Screen Tester Functions:
1. Support screen testing.
2. Support picture playback.
3. Support video playback (Up to 8K resolution).
YCX M3 Smart Screen Tester Features:

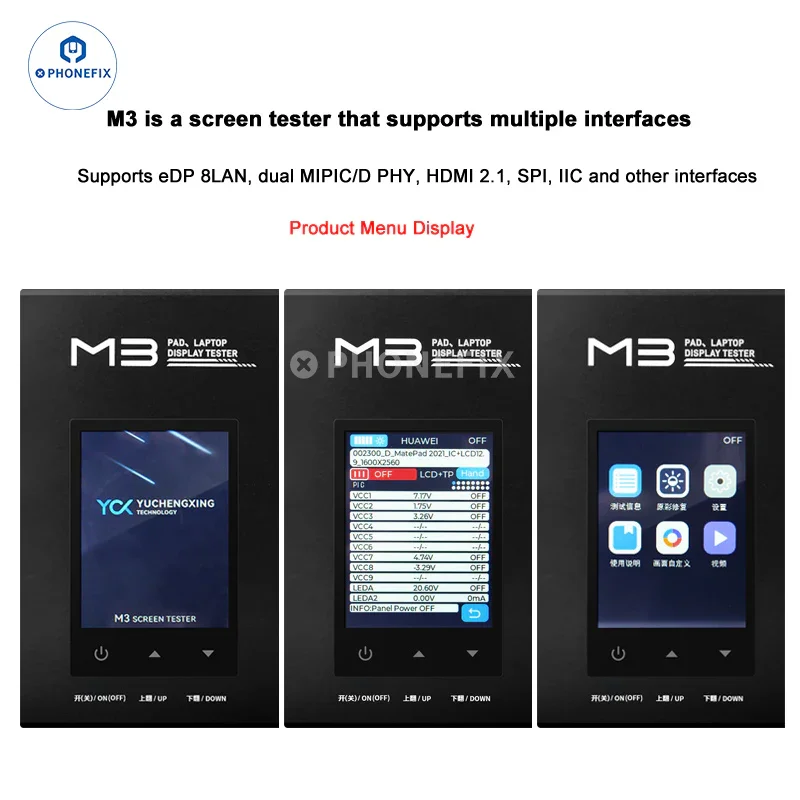

1. Support eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, IIC ports, ect.
2. Support tp test iPad, Tablet, Laptop and mobile phones screen.
3. eMMC 5.1 storage chip: 32GB.
4. Input voltage: 12V 3A.
Product Advantages
1. eDP
Support 8.1G 8K/30Hz, dual ports 4k/60Hz, single port 4K/120Hz.
Number of interfaces: 2*4lanes.
Support DP1.4a eDP single channel bandwidth 8.1Gbps (MAX).
Support eDP1/2/4/8Lanes and multi-screen display.
Support 6/8/10 Bits.
Resolution support: 3840*2160@120Hz(4lanes) 7680*4320@30Hz(4lanes).
2. MIPI
Support dual MIPI C/D PHY, support DSC, dual screen display.
Support 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interface.
Support 8 data lanes and 4.5Gbps maximum data rate per lane for DPHY.
Support 6 data trios and 2.0Gsps maximum data rate per trio for CPHY.
Support maximum resolution 4K@60Hz.
Support dual MIPI display: left and right screen mode.
Support RGB(up to 10bit) format.
Supports compression mode, DSC 1.1/1.2a.
3. SPI/IIC
SPI*1>10MHz, IIC*1.
4. HDMI
Support HDMI 2.1 interface.
Supports x1, x2 and x4 configurations per interface.
Supports all the data rates for HDMI FL: 3,6,8,10 and 12Gbps.
Support up to 7680x4320@60Hz for HDMI TX.
Support RGB/YUV(up to 10bit) format for HDMITX.
Support RGB,YCbCr 4:4:4, YCbCr 4:2:2 and 8/10 bit per component video format.
Options:

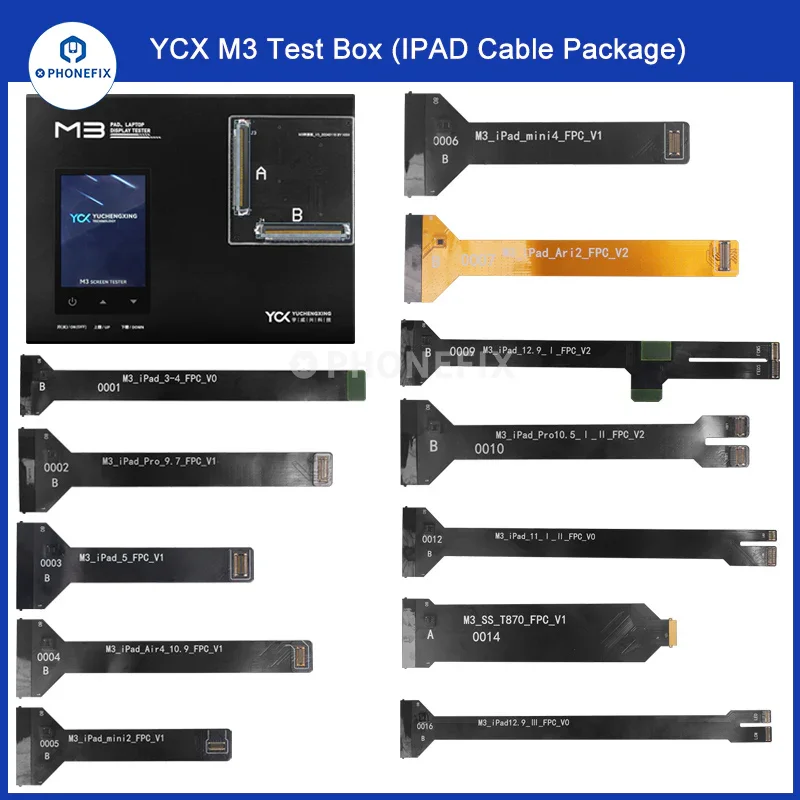

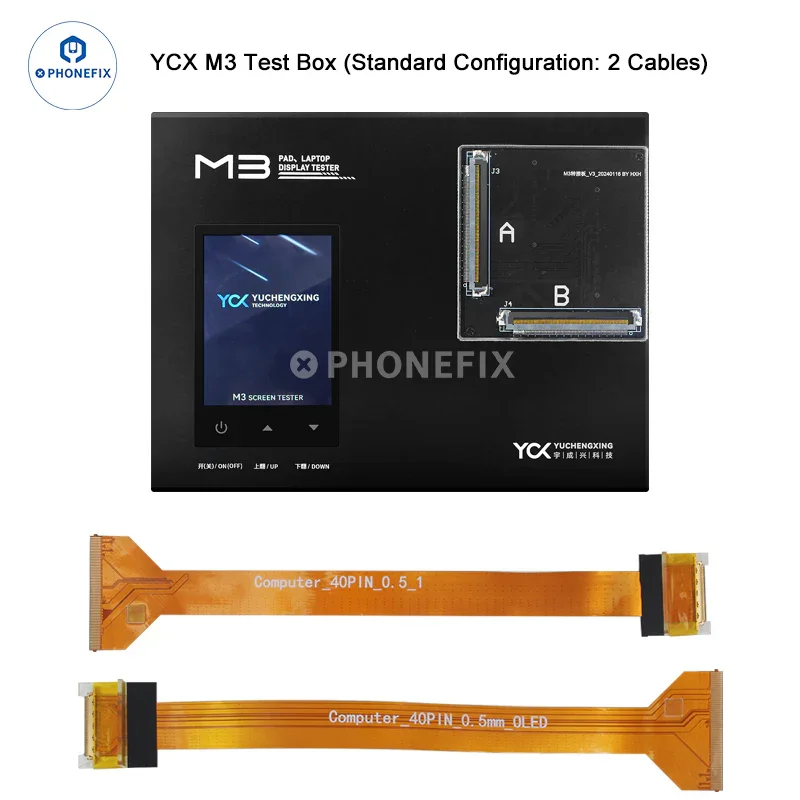

1. YCX M3 screen tester+2pcs common FPC.

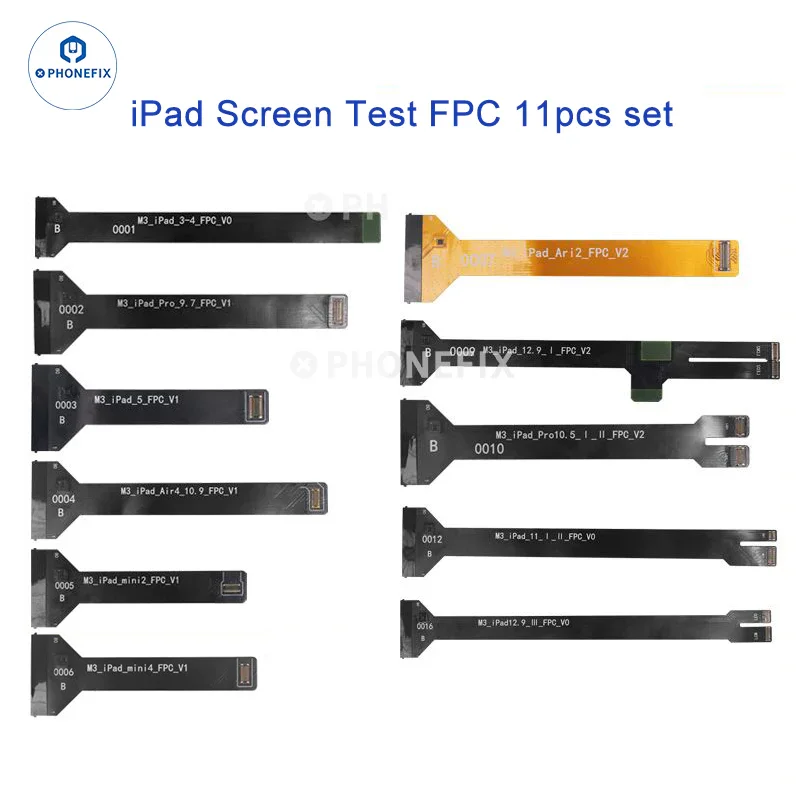

2. YCX 12pcs iPad Screen FPC.
3. Other test FPC cables need to be purchased separately.

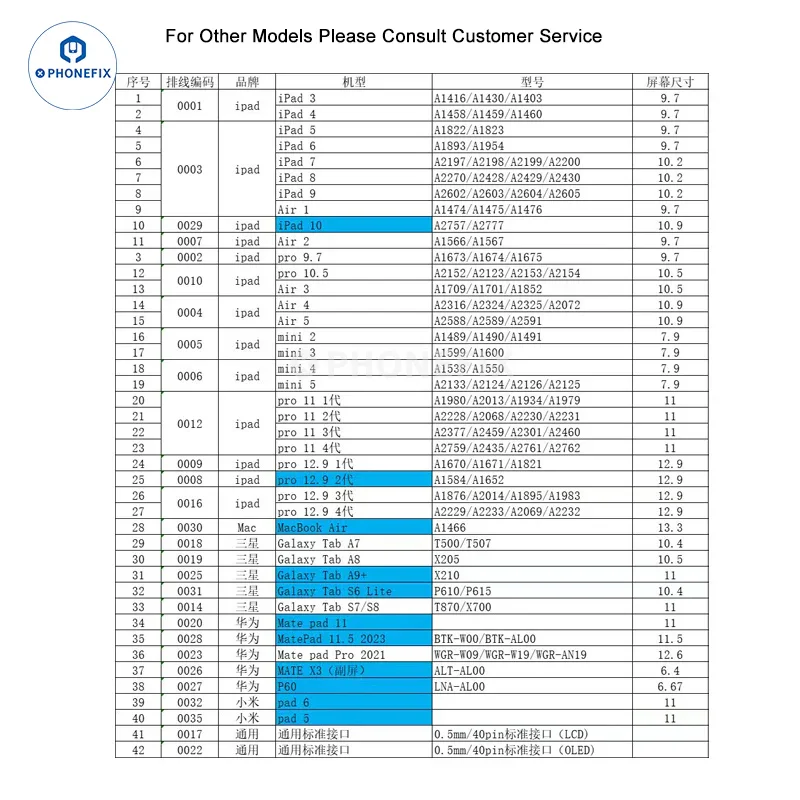

Supported model list：

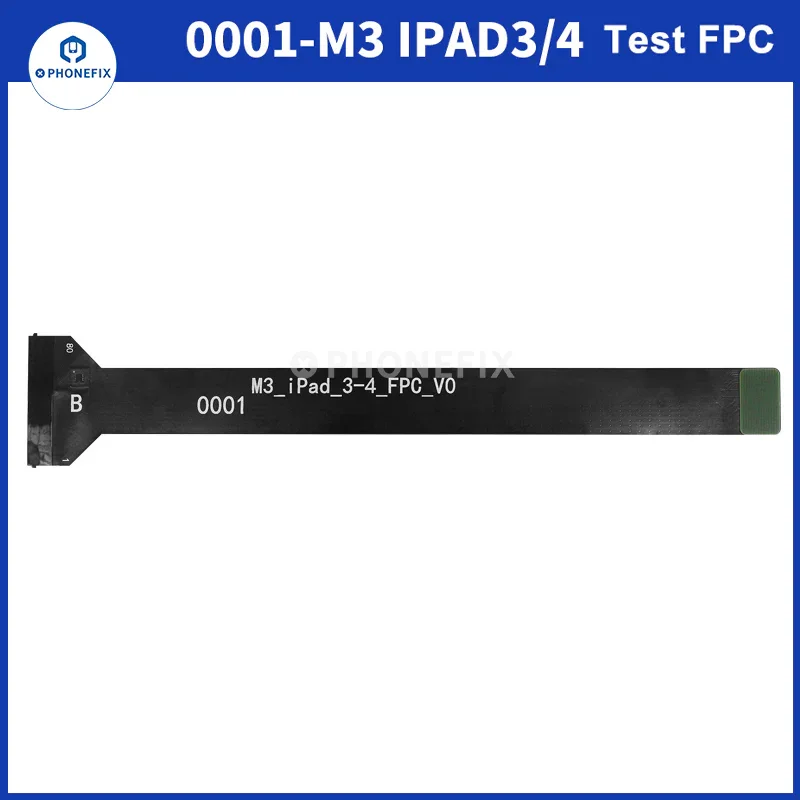

iPad 3 9.7-inch screen: A1416, A1430, A1403.
iPad 4 9.7-inch screen: A1458, A1459, A1460.

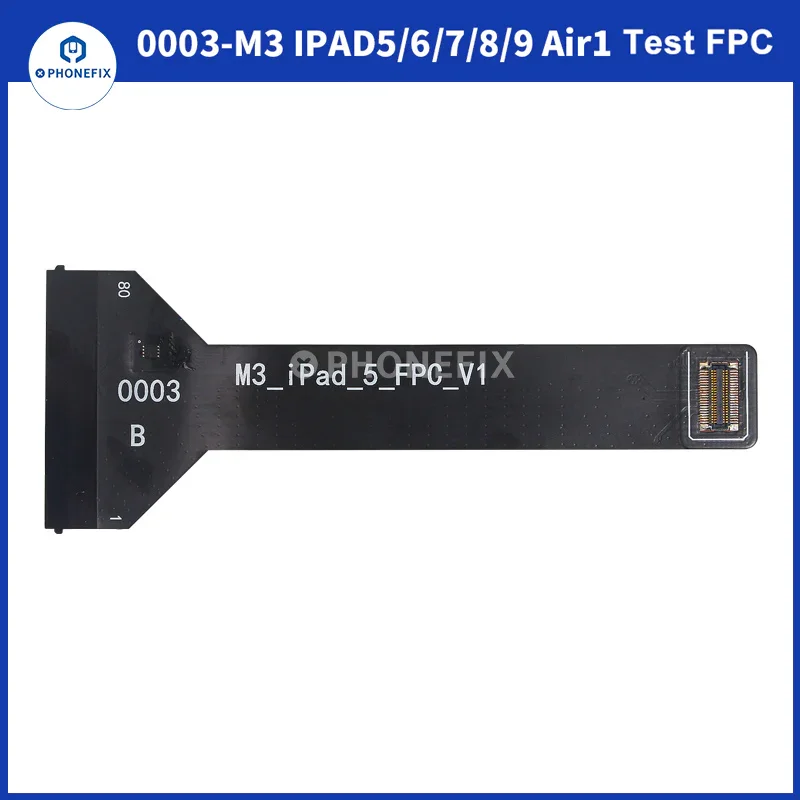

iPad 5 9.7-inch screen: A1822, A1823.
iPad 6 9.7-inch screen: A1893, A1954.
iPad 7 10.2-inch screen: A2197, A2198, A2199, A2200.
iPad 8 10.2-inch screen: A2270, A2428, A2429, A2430.
iPad 9 10.2-inch screen: A2602, A2603, A2604, A2605.
iPad Air 1 9.7-inch screen: A1474, A1475, A1476.
iPad 10 10.9-inch screen: A2757, A2777.

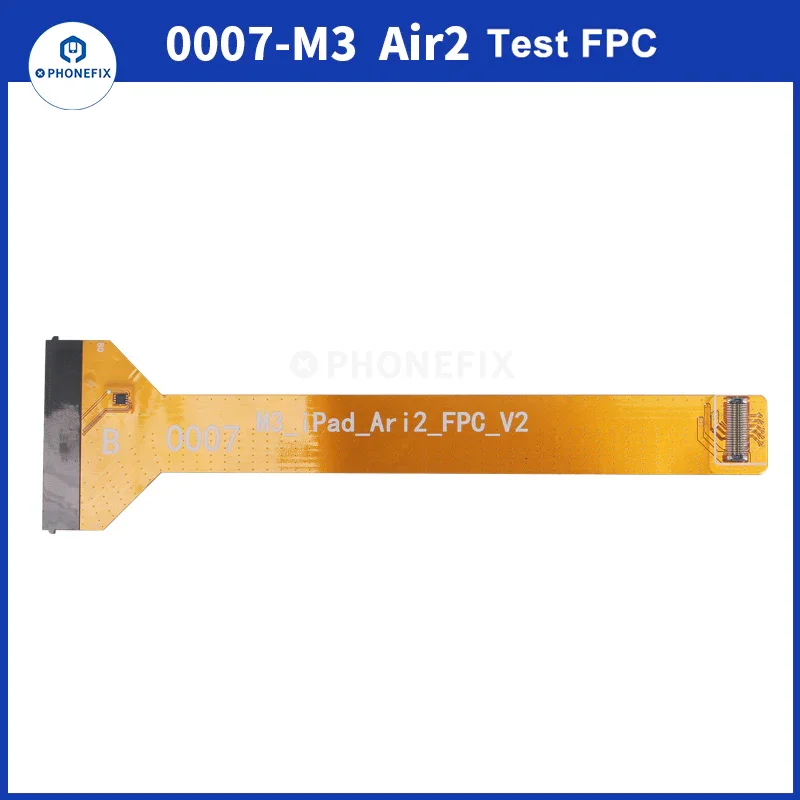

iPad Air 2 9.7-inch screen: A1566, A1567.

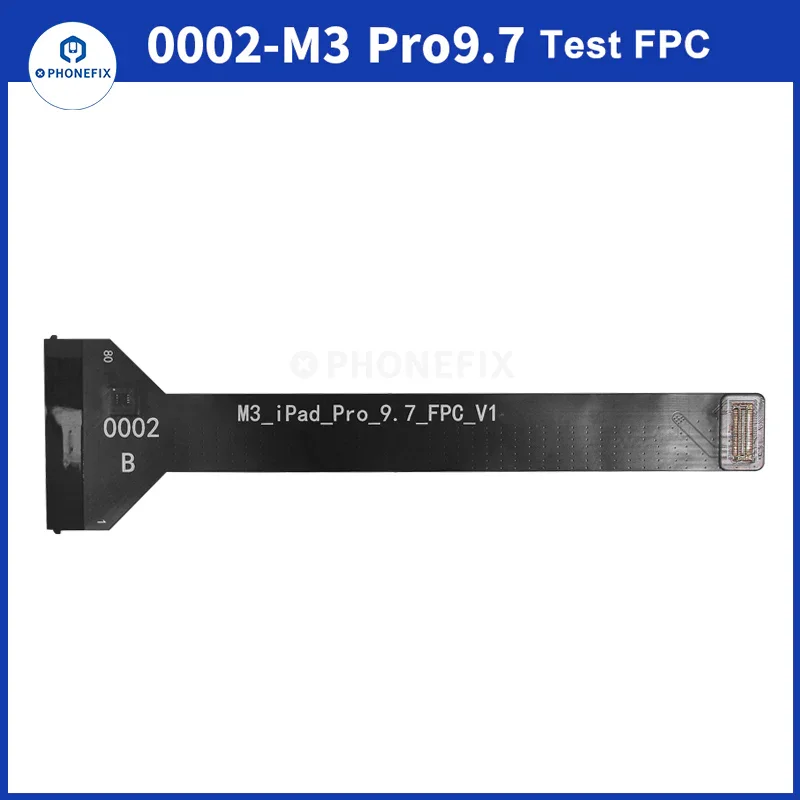

iPad pro 9.7 9.7-inch screen: A1673, A1674, A1675.

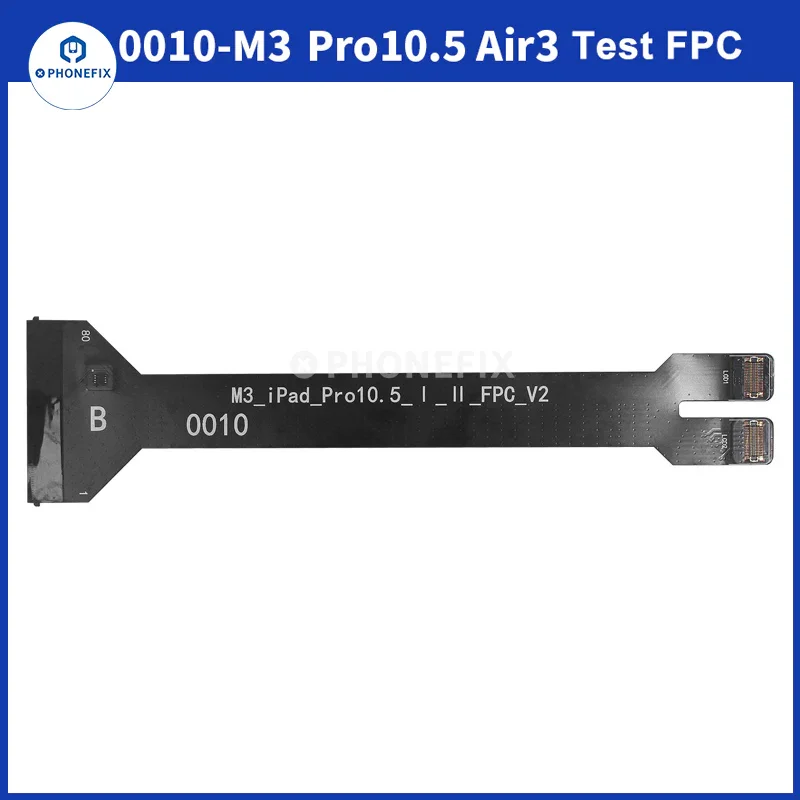

iPad pro 10.5 10.5-inch screen: A2152, A2123, A2153, A2154.
iPad Air 3 10.9-inch screen: A1709, A1701, A1852.

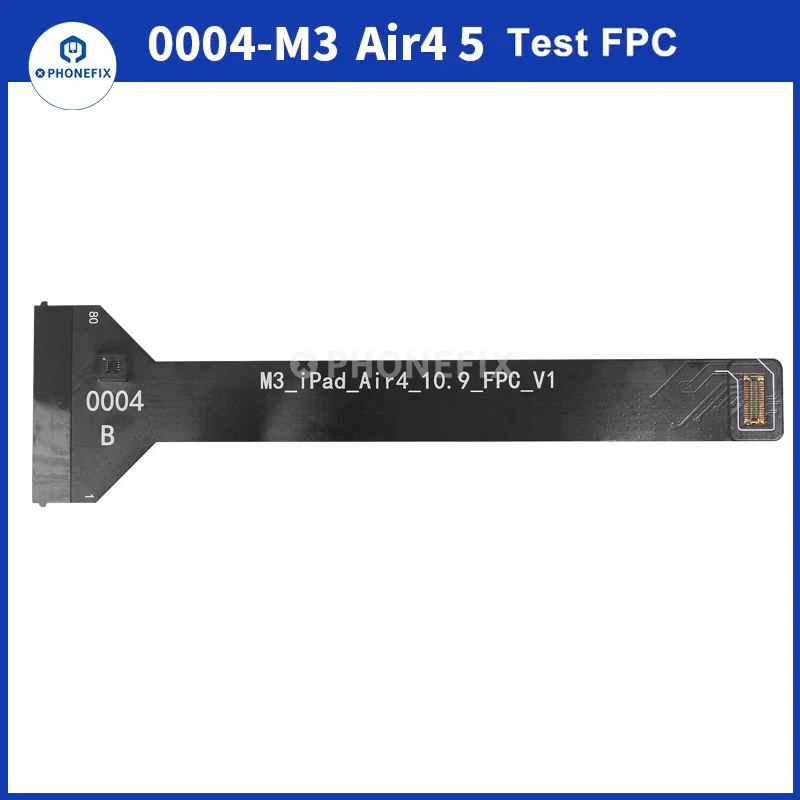

iPad Air 4 10.9-inch screen: A2316, A2324, A2325, A2072.
iPad Air 5 10.9-inch screen: A2588, A2589, A2591.

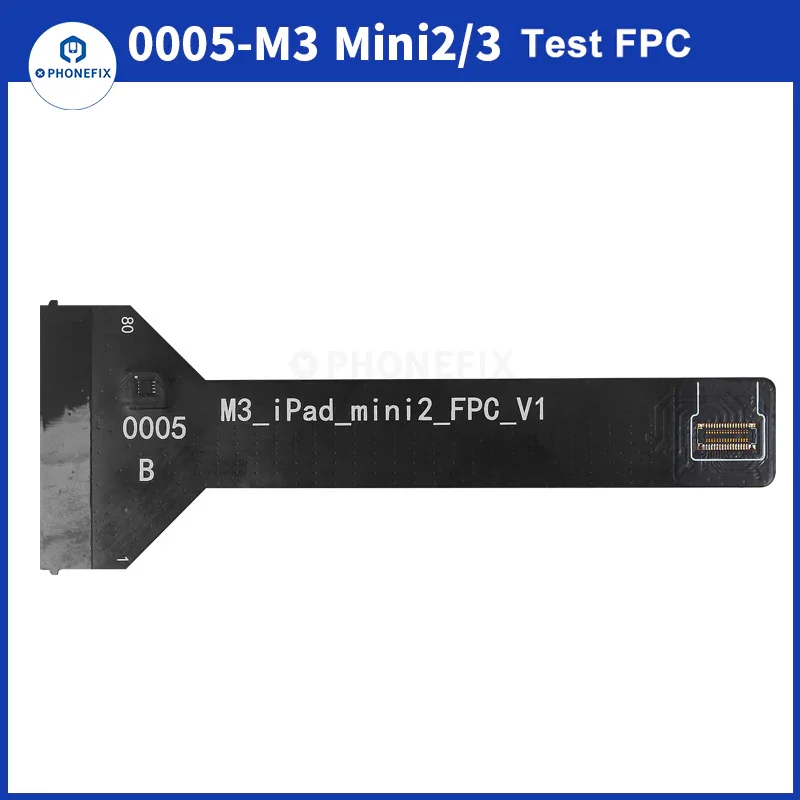

iPad mini 2 7.9-inch screen: A1489, A1490, A1491.
iPad mini 3 7.9-inch screen: A1599, A1600.
iPad mini 4 7.9-inch screen: A1538, A1550.

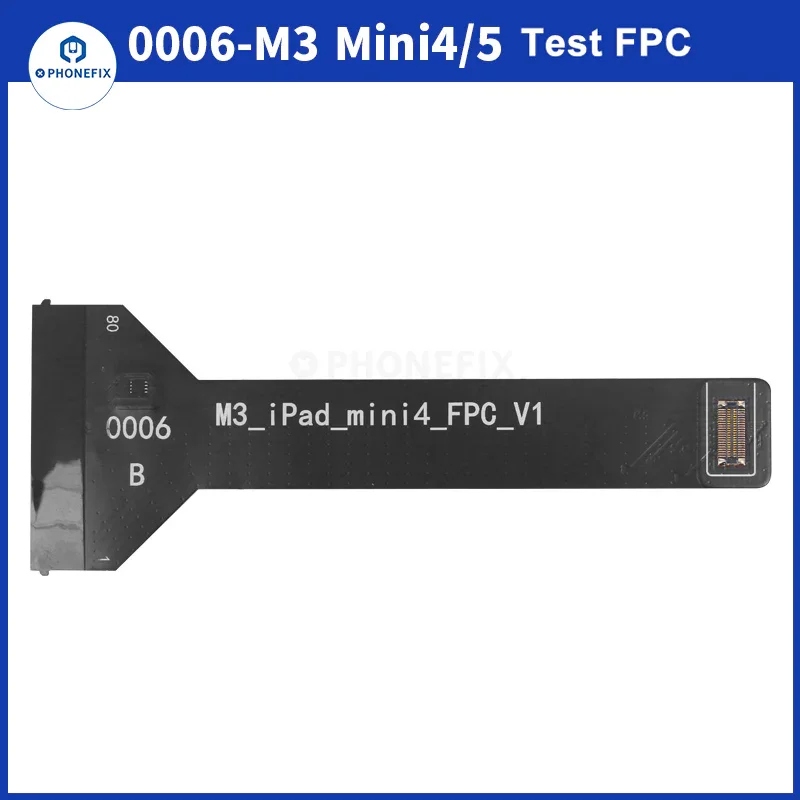

iPad mini 5 7.9-inch screen:A2133, A2124, A2126, A2125.

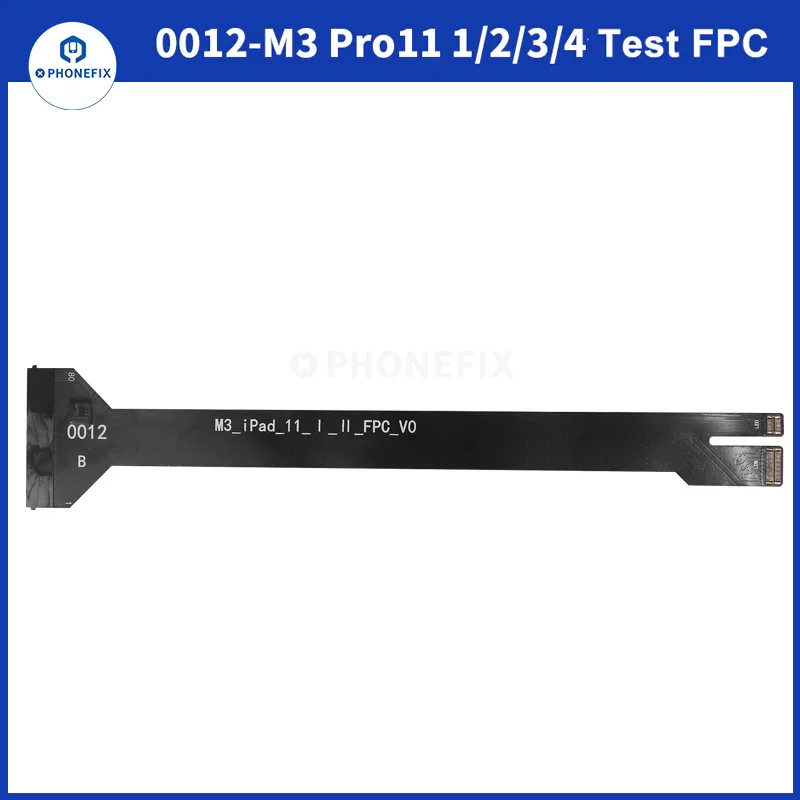

iPad pro 11 (1st) 11-inch screen: A1980, A2013, A1934, A1979.
iPad pro 11 (2nd) 11-inch screen: A2228, A2068, A2230, A2231.
iPad pro 11 (3rd) 11-inch screen: A2377, A2459, A2301, A2460.
iPad pro 11 (4th) 11-inch screen: A2759, A2435, A2761, A2762.
iPad pro 12.9 (1st) 12.9-inch screen:A1670, A1671, A1821.
iPad pro 12.9 (2nd) 12.9-inch screen: A1584, A1652.

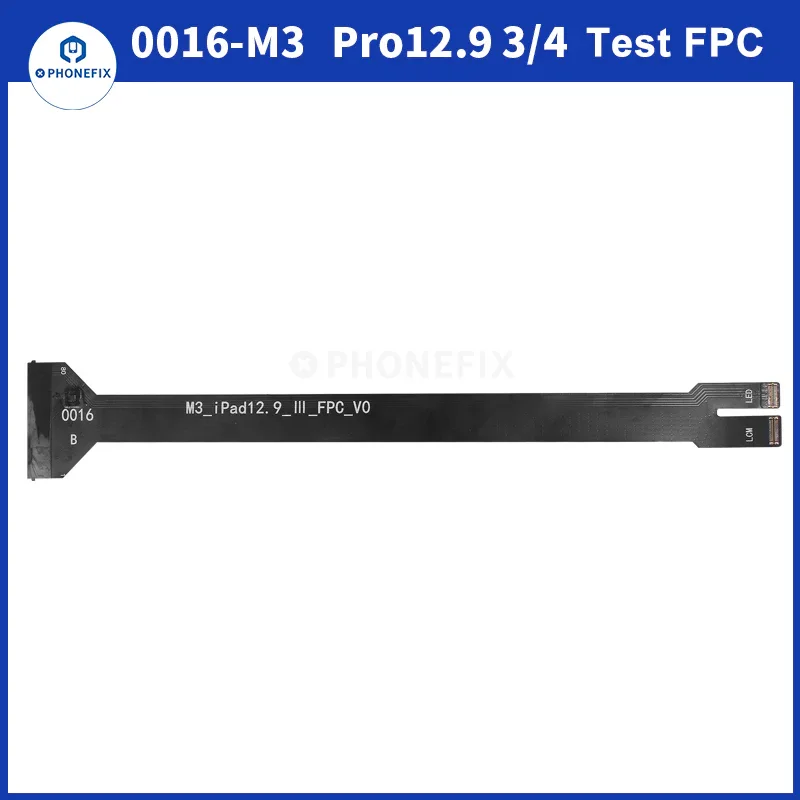

iPad pro 12.9 (3rd) 12.9-inch screen: A1876, A2014, A1895, A1983.
iPad pro 12.9 (4th) 12.9-inch screen: A2229, A2233, A2069, A2232.
MacBook Air 13.3-inch screen: A1466.

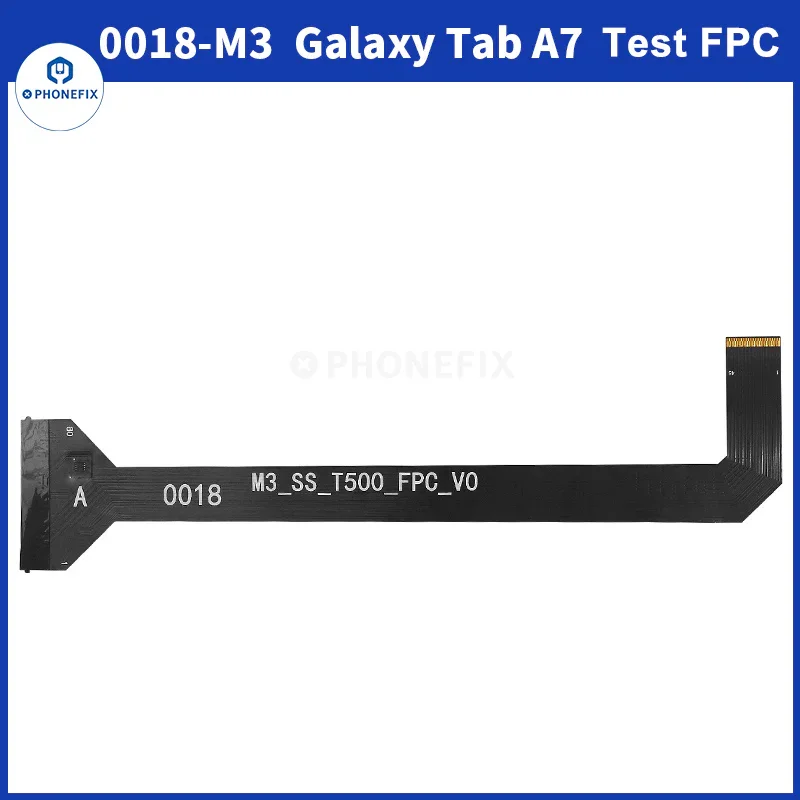

Samsung Galaxy Tab A7 10.4-inch screen: T500, T507.
Samsung Galaxy Tab A8 10.5-inch screen: X205.
Samsung Galaxy Tab A9+ 11-inch screen: X210.
Samsung Galaxy Tab S6 Lite 10.4-inch screen: P610, P615.

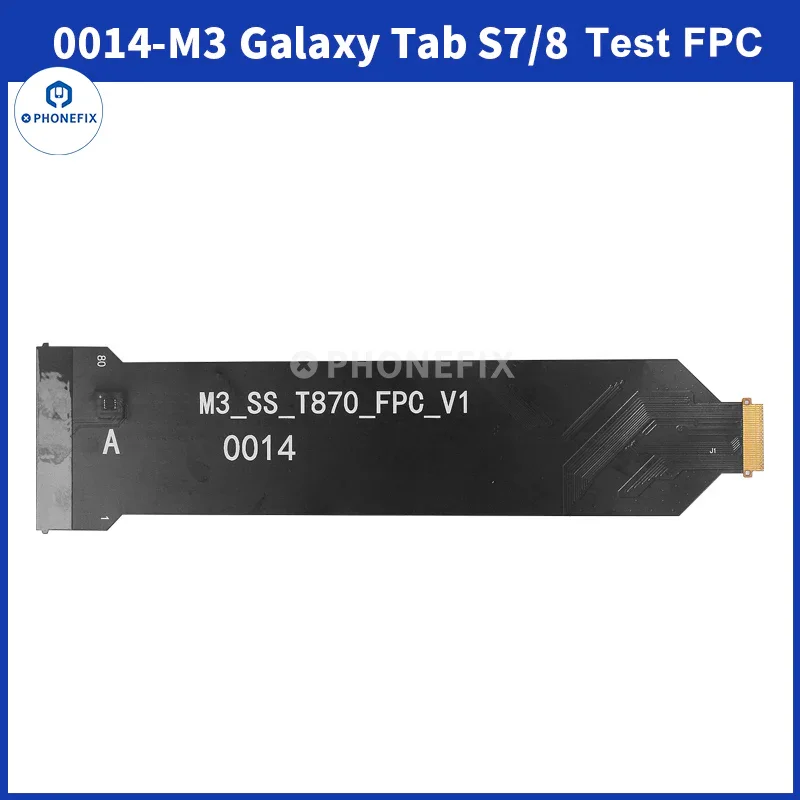

Samsung Galaxy Tab S7/S8 11-inch screen: T870, X700.

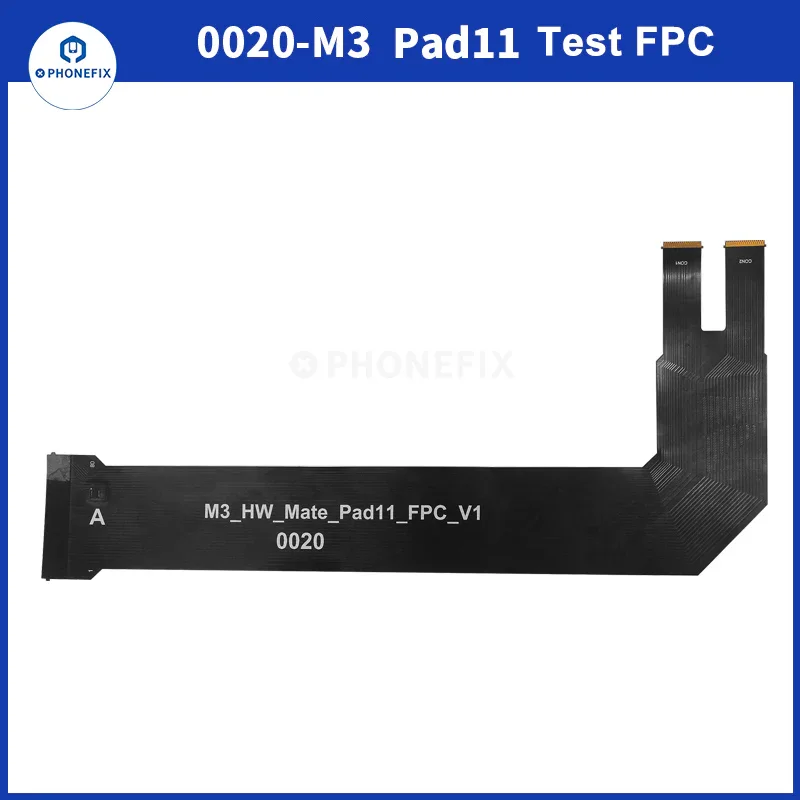

Huawei Mate pad 11 11-inch screen.
Huawei MatePad 11.5 2023 11.5-inch screen: BTK-WO0, BTK-AL00.

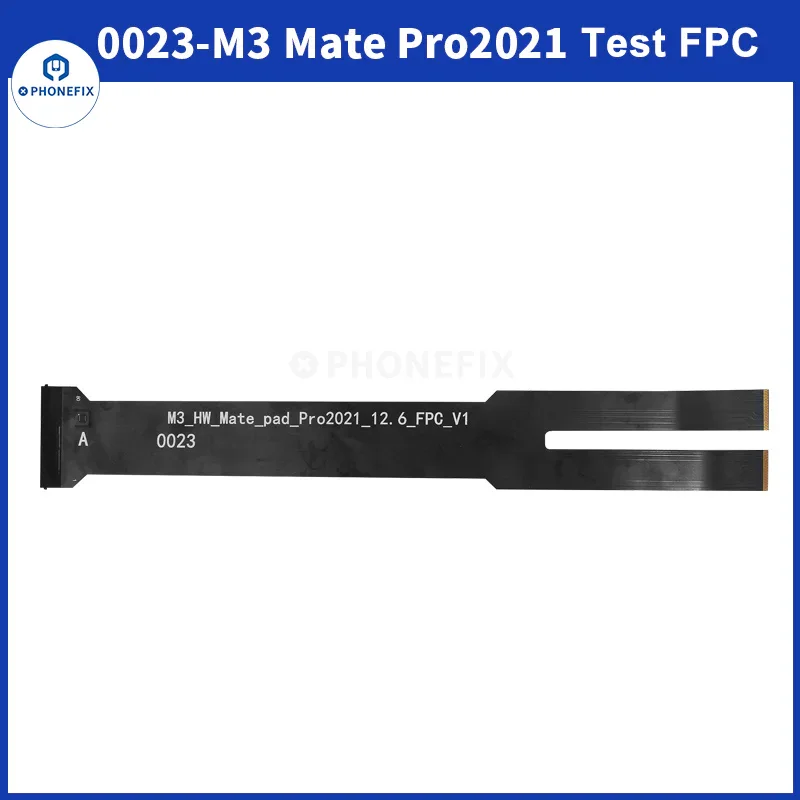

Huawei Mate pad Pro 2021 12.6-inch screen:WGR-W09, WGR-W19, WGR-AN19.
Huawei MATE X3 6.4-inch screen: ALT-AL00.
Huawei P60 6.67-inch screen: LNA-AL00.
Xiaomi Pad 6 11-inch screen.
Xiaomi Pad 5 11-inch screen.

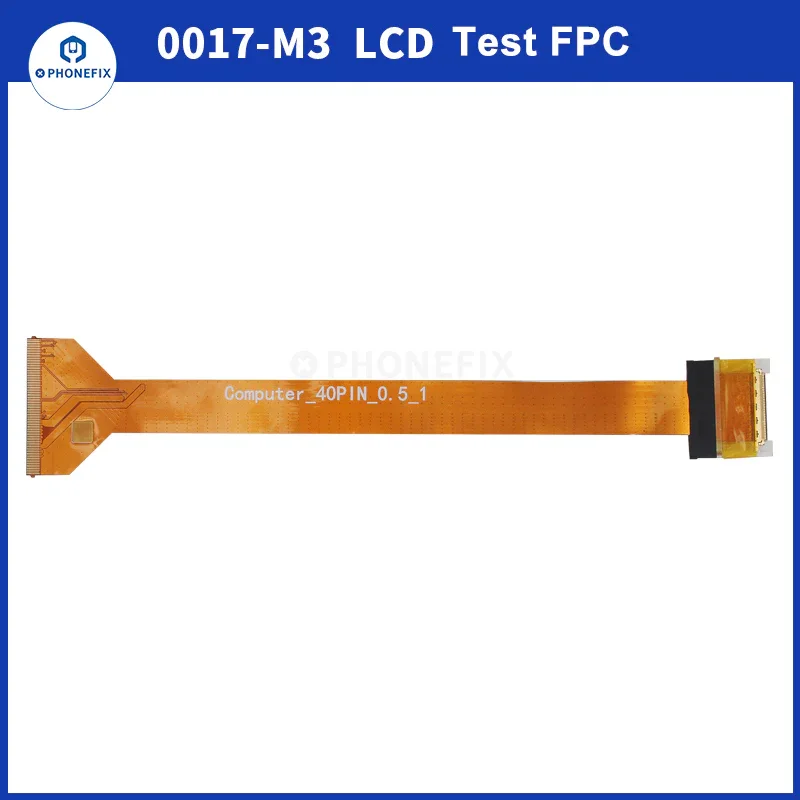

Common standard interface: 0.5mm/40pin port(LCD).

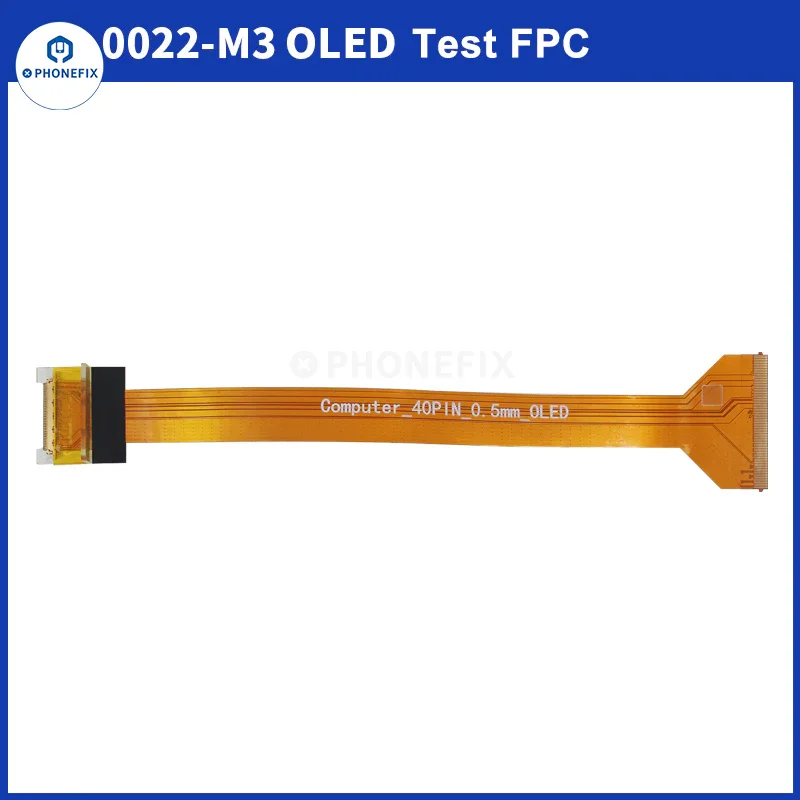

Common standard interface: 0.5mm/40pin port(OLED).
YCX M3 Smart Screen Tester Functions:
1. Support screen testing.
2. Support picture playback.
3. Support video playback (Up to 8K resolution).
YCX M3 Smart Screen Tester Features:
1. Support eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, IIC ports, ect.
2. Support tp test iPad, Tablet, Laptop and mobile phones screen.
3. eMMC 5.1 storage chip: 32GB.
4. Input voltage: 12V 3A.
Product Advantages
1. eDP
Support 8.1G 8K/30Hz, dual ports 4k/60Hz, single port 4K/120Hz.
Number of interfaces: 2*4lanes.
Support DP1.4a eDP single channel bandwidth 8.1Gbps (MAX).
Support eDP1/2/4/8Lanes and multi-screen display.
Support 6/8/10 Bits.
Resolution support: 3840*2160@120Hz(4lanes) 7680*4320@30Hz(4lanes).
2. MIPI
Support dual MIPI C/D PHY, support DSC, dual screen display.
Support 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interface.
Support 8 data lanes and 4.5Gbps maximum data rate per lane for DPHY.
Support 6 data trios and 2.0Gsps maximum data rate per trio for CPHY.
Support maximum resolution 4K@60Hz.
Support dual MIPI display: left and right screen mode.
Support RGB(up to 10bit) format.
Supports compression mode, DSC 1.1/1.2a.
3. SPI/IIC
SPI*1>10MHz, IIC*1.
4. HDMI
Support HDMI 2.1 interface.
Supports x1, x2 and x4 configurations per interface.
Supports all the data rates for HDMI FL: 3,6,8,10 and 12Gbps.
Support up to 7680x4320@60Hz for HDMI TX.
Support RGB/YUV(up to 10bit) format for HDMITX.
Support RGB,YCbCr 4:4:4, YCbCr 4:2:2 and 8/10 bit per component video format.
Options:
1. YCX M3 screen tester+2pcs common FPC.
2. YCX 12pcs iPad Screen FPC.
3. Other test FPC cables need to be purchased separately.
Supported model list：
iPad 3 9.7-inch screen: A1416, A1430, A1403.
iPad 4 9.7-inch screen: A1458, A1459, A1460.
iPad 5 9.7-inch screen: A1822, A1823.
iPad 6 9.7-inch screen: A1893, A1954.
iPad 7 10.2-inch screen: A2197, A2198, A2199, A2200.
iPad 8 10.2-inch screen: A2270, A2428, A2429, A2430.
iPad 9 10.2-inch screen: A2602, A2603, A2604, A2605.
iPad Air 1 9.7-inch screen: A1474, A1475, A1476.
iPad 10 10.9-inch screen: A2757, A2777.
iPad Air 2 9.7-inch screen: A1566, A1567.
iPad pro 9.7 9.7-inch screen: A1673, A1674, A1675.
iPad pro 10.5 10.5-inch screen: A2152, A2123, A2153, A2154.
iPad Air 3 10.9-inch screen: A1709, A1701, A1852.
iPad Air 4 10.9-inch screen: A2316, A2324, A2325, A2072.
iPad Air 5 10.9-inch screen: A2588, A2589, A2591.
iPad mini 2 7.9-inch screen: A1489, A1490, A1491.
iPad mini 3 7.9-inch screen: A1599, A1600.
iPad mini 4 7.9-inch screen: A1538, A1550.
iPad mini 5 7.9-inch screen:A2133, A2124, A2126, A2125.
iPad pro 11 (1st) 11-inch screen: A1980, A2013, A1934, A1979.
iPad pro 11 (2nd) 11-inch screen: A2228, A2068, A2230, A2231.
iPad pro 11 (3rd) 11-inch screen: A2377, A2459, A2301, A2460.
iPad pro 11 (4th) 11-inch screen: A2759, A2435, A2761, A2762.
iPad pro 12.9 (1st) 12.9-inch screen:A1670, A1671, A1821.
iPad pro 12.9 (2nd) 12.9-inch screen: A1584, A1652.
iPad pro 12.9 (3rd) 12.9-inch screen: A1876, A2014, A1895, A1983.
iPad pro 12.9 (4th) 12.9-inch screen: A2229, A2233, A2069, A2232.
MacBook Air 13.3-inch screen: A1466.
Samsung Galaxy Tab A7 10.4-inch screen: T500, T507.
Samsung Galaxy Tab A8 10.5-inch screen: X205.
Samsung Galaxy Tab A9+ 11-inch screen: X210.
Samsung Galaxy Tab S6 Lite 10.4-inch screen: P610, P615.
Samsung Galaxy Tab S7/S8 11-inch screen: T870, X700.
Huawei Mate pad 11 11-inch screen.
Huawei MatePad 11.5 2023 11.5-inch screen: BTK-WO0, BTK-AL00.
Huawei Mate pad Pro 2021 12.6-inch screen:WGR-W09, WGR-W19, WGR-AN19.
Huawei MATE X3 6.4-inch screen: ALT-AL00.
Huawei P60 6.67-inch screen: LNA-AL00.
Xiaomi Pad 6 11-inch screen.
Xiaomi Pad 5 11-inch screen.
Common standard interface: 0.5mm/40pin port(LCD).
Common standard interface: 0.5mm/40pin port(OLED).
Select Option
From $1.61
Original: $4.59
-65%M3 iPad Laptop Display Tester Tests Screen 3D Touch Picture Video Playback—
$4.59
$1.61More Images
M3 iPad Laptop Display Tester Tests Screen 3D Touch Picture Video Playback
YCX M3 Pad Laptop Display Tester supports eDP MIPI SPI IIC HDMI port for iPad MacBook Samsung Huawei Xiaomi screen true tone 3D touch, picture playback and video playback functions testing. YCX smart LCD screen tester supports testing screens of the iPad, Tablet, Laptop and mobile phones.
YCX M3 Smart Screen Tester Functions:
1. Support screen testing.
2. Support picture playback.
3. Support video playback (Up to 8K resolution).
YCX M3 Smart Screen Tester Features:
1. Support eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, IIC ports, ect.
2. Support tp test iPad, Tablet, Laptop and mobile phones screen.
3. eMMC 5.1 storage chip: 32GB.
4. Input voltage: 12V 3A.
Product Advantages
1. eDP
Support 8.1G 8K/30Hz, dual ports 4k/60Hz, single port 4K/120Hz.
Number of interfaces: 2*4lanes.
Support DP1.4a eDP single channel bandwidth 8.1Gbps (MAX).
Support eDP1/2/4/8Lanes and multi-screen display.
Support 6/8/10 Bits.
Resolution support: 3840*2160@120Hz(4lanes) 7680*4320@30Hz(4lanes).
2. MIPI
Support dual MIPI C/D PHY, support DSC, dual screen display.
Support 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interface.
Support 8 data lanes and 4.5Gbps maximum data rate per lane for DPHY.
Support 6 data trios and 2.0Gsps maximum data rate per trio for CPHY.
Support maximum resolution 4K@60Hz.
Support dual MIPI display: left and right screen mode.
Support RGB(up to 10bit) format.
Supports compression mode, DSC 1.1/1.2a.
3. SPI/IIC
SPI*1>10MHz, IIC*1.
4. HDMI
Support HDMI 2.1 interface.
Supports x1, x2 and x4 configurations per interface.
Supports all the data rates for HDMI FL: 3,6,8,10 and 12Gbps.
Support up to 7680x4320@60Hz for HDMI TX.
Support RGB/YUV(up to 10bit) format for HDMITX.
Support RGB,YCbCr 4:4:4, YCbCr 4:2:2 and 8/10 bit per component video format.
Options:
1. YCX M3 screen tester+2pcs common FPC.
2. YCX 12pcs iPad Screen FPC.
3. Other test FPC cables need to be purchased separately.
Supported model list：
iPad 3 9.7-inch screen: A1416, A1430, A1403.
iPad 4 9.7-inch screen: A1458, A1459, A1460.
iPad 5 9.7-inch screen: A1822, A1823.
iPad 6 9.7-inch screen: A1893, A1954.
iPad 7 10.2-inch screen: A2197, A2198, A2199, A2200.
iPad 8 10.2-inch screen: A2270, A2428, A2429, A2430.
iPad 9 10.2-inch screen: A2602, A2603, A2604, A2605.
iPad Air 1 9.7-inch screen: A1474, A1475, A1476.
iPad 10 10.9-inch screen: A2757, A2777.
iPad Air 2 9.7-inch screen: A1566, A1567.
iPad pro 9.7 9.7-inch screen: A1673, A1674, A1675.
iPad pro 10.5 10.5-inch screen: A2152, A2123, A2153, A2154.
iPad Air 3 10.9-inch screen: A1709, A1701, A1852.
iPad Air 4 10.9-inch screen: A2316, A2324, A2325, A2072.
iPad Air 5 10.9-inch screen: A2588, A2589, A2591.
iPad mini 2 7.9-inch screen: A1489, A1490, A1491.
iPad mini 3 7.9-inch screen: A1599, A1600.
iPad mini 4 7.9-inch screen: A1538, A1550.
iPad mini 5 7.9-inch screen:A2133, A2124, A2126, A2125.
iPad pro 11 (1st) 11-inch screen: A1980, A2013, A1934, A1979.
iPad pro 11 (2nd) 11-inch screen: A2228, A2068, A2230, A2231.
iPad pro 11 (3rd) 11-inch screen: A2377, A2459, A2301, A2460.
iPad pro 11 (4th) 11-inch screen: A2759, A2435, A2761, A2762.
iPad pro 12.9 (1st) 12.9-inch screen:A1670, A1671, A1821.
iPad pro 12.9 (2nd) 12.9-inch screen: A1584, A1652.
iPad pro 12.9 (3rd) 12.9-inch screen: A1876, A2014, A1895, A1983.
iPad pro 12.9 (4th) 12.9-inch screen: A2229, A2233, A2069, A2232.
MacBook Air 13.3-inch screen: A1466.
Samsung Galaxy Tab A7 10.4-inch screen: T500, T507.
Samsung Galaxy Tab A8 10.5-inch screen: X205.
Samsung Galaxy Tab A9+ 11-inch screen: X210.
Samsung Galaxy Tab S6 Lite 10.4-inch screen: P610, P615.
Samsung Galaxy Tab S7/S8 11-inch screen: T870, X700.
Huawei Mate pad 11 11-inch screen.
Huawei MatePad 11.5 2023 11.5-inch screen: BTK-WO0, BTK-AL00.
Huawei Mate pad Pro 2021 12.6-inch screen:WGR-W09, WGR-W19, WGR-AN19.
Huawei MATE X3 6.4-inch screen: ALT-AL00.
Huawei P60 6.67-inch screen: LNA-AL00.
Xiaomi Pad 6 11-inch screen.
Xiaomi Pad 5 11-inch screen.
Common standard interface: 0.5mm/40pin port(LCD).
Common standard interface: 0.5mm/40pin port(OLED).
YCX M3 Smart Screen Tester Functions:
1. Support screen testing.
2. Support picture playback.
3. Support video playback (Up to 8K resolution).
YCX M3 Smart Screen Tester Features:
1. Support eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, IIC ports, ect.
2. Support tp test iPad, Tablet, Laptop and mobile phones screen.
3. eMMC 5.1 storage chip: 32GB.
4. Input voltage: 12V 3A.
Product Advantages
1. eDP
Support 8.1G 8K/30Hz, dual ports 4k/60Hz, single port 4K/120Hz.
Number of interfaces: 2*4lanes.
Support DP1.4a eDP single channel bandwidth 8.1Gbps (MAX).
Support eDP1/2/4/8Lanes and multi-screen display.
Support 6/8/10 Bits.
Resolution support: 3840*2160@120Hz(4lanes) 7680*4320@30Hz(4lanes).
2. MIPI
Support dual MIPI C/D PHY, support DSC, dual screen display.
Support 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interface.
Support 8 data lanes and 4.5Gbps maximum data rate per lane for DPHY.
Support 6 data trios and 2.0Gsps maximum data rate per trio for CPHY.
Support maximum resolution 4K@60Hz.
Support dual MIPI display: left and right screen mode.
Support RGB(up to 10bit) format.
Supports compression mode, DSC 1.1/1.2a.
3. SPI/IIC
SPI*1>10MHz, IIC*1.
4. HDMI
Support HDMI 2.1 interface.
Supports x1, x2 and x4 configurations per interface.
Supports all the data rates for HDMI FL: 3,6,8,10 and 12Gbps.
Support up to 7680x4320@60Hz for HDMI TX.
Support RGB/YUV(up to 10bit) format for HDMITX.
Support RGB,YCbCr 4:4:4, YCbCr 4:2:2 and 8/10 bit per component video format.
Options:

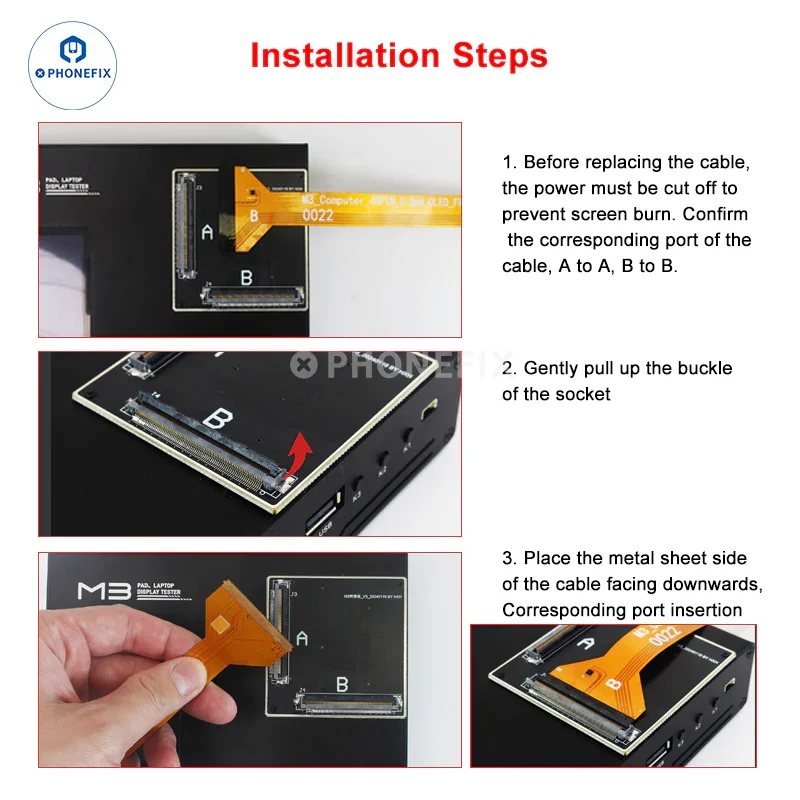

1. YCX M3 screen tester+2pcs common FPC.
2. YCX 12pcs iPad Screen FPC.
3. Other test FPC cables need to be purchased separately.
Supported model list：
iPad 3 9.7-inch screen: A1416, A1430, A1403.
iPad 4 9.7-inch screen: A1458, A1459, A1460.
iPad 5 9.7-inch screen: A1822, A1823.
iPad 6 9.7-inch screen: A1893, A1954.
iPad 7 10.2-inch screen: A2197, A2198, A2199, A2200.
iPad 8 10.2-inch screen: A2270, A2428, A2429, A2430.
iPad 9 10.2-inch screen: A2602, A2603, A2604, A2605.
iPad Air 1 9.7-inch screen: A1474, A1475, A1476.
iPad 10 10.9-inch screen: A2757, A2777.
iPad Air 2 9.7-inch screen: A1566, A1567.
iPad pro 9.7 9.7-inch screen: A1673, A1674, A1675.
iPad pro 10.5 10.5-inch screen: A2152, A2123, A2153, A2154.
iPad Air 3 10.9-inch screen: A1709, A1701, A1852.
iPad Air 4 10.9-inch screen: A2316, A2324, A2325, A2072.
iPad Air 5 10.9-inch screen: A2588, A2589, A2591.
iPad mini 2 7.9-inch screen: A1489, A1490, A1491.
iPad mini 3 7.9-inch screen: A1599, A1600.
iPad mini 4 7.9-inch screen: A1538, A1550.
iPad mini 5 7.9-inch screen:A2133, A2124, A2126, A2125.
iPad pro 11 (1st) 11-inch screen: A1980, A2013, A1934, A1979.
iPad pro 11 (2nd) 11-inch screen: A2228, A2068, A2230, A2231.
iPad pro 11 (3rd) 11-inch screen: A2377, A2459, A2301, A2460.
iPad pro 11 (4th) 11-inch screen: A2759, A2435, A2761, A2762.
iPad pro 12.9 (1st) 12.9-inch screen:A1670, A1671, A1821.
iPad pro 12.9 (2nd) 12.9-inch screen: A1584, A1652.
iPad pro 12.9 (3rd) 12.9-inch screen: A1876, A2014, A1895, A1983.
iPad pro 12.9 (4th) 12.9-inch screen: A2229, A2233, A2069, A2232.
MacBook Air 13.3-inch screen: A1466.
Samsung Galaxy Tab A7 10.4-inch screen: T500, T507.
Samsung Galaxy Tab A8 10.5-inch screen: X205.
Samsung Galaxy Tab A9+ 11-inch screen: X210.
Samsung Galaxy Tab S6 Lite 10.4-inch screen: P610, P615.
Samsung Galaxy Tab S7/S8 11-inch screen: T870, X700.
Huawei Mate pad 11 11-inch screen.
Huawei MatePad 11.5 2023 11.5-inch screen: BTK-WO0, BTK-AL00.
Huawei Mate pad Pro 2021 12.6-inch screen:WGR-W09, WGR-W19, WGR-AN19.
Huawei MATE X3 6.4-inch screen: ALT-AL00.
Huawei P60 6.67-inch screen: LNA-AL00.
Xiaomi Pad 6 11-inch screen.
Xiaomi Pad 5 11-inch screen.
Common standard interface: 0.5mm/40pin port(LCD).
Common standard interface: 0.5mm/40pin port(OLED).
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
YCX M3 Pad Laptop Display Tester supports eDP MIPI SPI IIC HDMI port for iPad MacBook Samsung Huawei Xiaomi screen true tone 3D touch, picture playback and video playback functions testing. YCX smart LCD screen tester supports testing screens of the iPad, Tablet, Laptop and mobile phones.
YCX M3 Smart Screen Tester Functions:
1. Support screen testing.
2. Support picture playback.
3. Support video playback (Up to 8K resolution).
YCX M3 Smart Screen Tester Features:
1. Support eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, IIC ports, ect.
2. Support tp test iPad, Tablet, Laptop and mobile phones screen.
3. eMMC 5.1 storage chip: 32GB.
4. Input voltage: 12V 3A.
Product Advantages
1. eDP
Support 8.1G 8K/30Hz, dual ports 4k/60Hz, single port 4K/120Hz.
Number of interfaces: 2*4lanes.
Support DP1.4a eDP single channel bandwidth 8.1Gbps (MAX).
Support eDP1/2/4/8Lanes and multi-screen display.
Support 6/8/10 Bits.
Resolution support: 3840*2160@120Hz(4lanes) 7680*4320@30Hz(4lanes).
2. MIPI
Support dual MIPI C/D PHY, support DSC, dual screen display.
Support 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interface.
Support 8 data lanes and 4.5Gbps maximum data rate per lane for DPHY.
Support 6 data trios and 2.0Gsps maximum data rate per trio for CPHY.
Support maximum resolution 4K@60Hz.
Support dual MIPI display: left and right screen mode.
Support RGB(up to 10bit) format.
Supports compression mode, DSC 1.1/1.2a.
3. SPI/IIC
SPI*1>10MHz, IIC*1.
4. HDMI
Support HDMI 2.1 interface.
Supports x1, x2 and x4 configurations per interface.
Supports all the data rates for HDMI FL: 3,6,8,10 and 12Gbps.
Support up to 7680x4320@60Hz for HDMI TX.
Support RGB/YUV(up to 10bit) format for HDMITX.
Support RGB,YCbCr 4:4:4, YCbCr 4:2:2 and 8/10 bit per component video format.
Options:
1. YCX M3 screen tester+2pcs common FPC.
2. YCX 12pcs iPad Screen FPC.
3. Other test FPC cables need to be purchased separately.
Supported model list：
iPad 3 9.7-inch screen: A1416, A1430, A1403.
iPad 4 9.7-inch screen: A1458, A1459, A1460.
iPad 5 9.7-inch screen: A1822, A1823.
iPad 6 9.7-inch screen: A1893, A1954.
iPad 7 10.2-inch screen: A2197, A2198, A2199, A2200.
iPad 8 10.2-inch screen: A2270, A2428, A2429, A2430.
iPad 9 10.2-inch screen: A2602, A2603, A2604, A2605.
iPad Air 1 9.7-inch screen: A1474, A1475, A1476.
iPad 10 10.9-inch screen: A2757, A2777.
iPad Air 2 9.7-inch screen: A1566, A1567.
iPad pro 9.7 9.7-inch screen: A1673, A1674, A1675.
iPad pro 10.5 10.5-inch screen: A2152, A2123, A2153, A2154.
iPad Air 3 10.9-inch screen: A1709, A1701, A1852.
iPad Air 4 10.9-inch screen: A2316, A2324, A2325, A2072.
iPad Air 5 10.9-inch screen: A2588, A2589, A2591.
iPad mini 2 7.9-inch screen: A1489, A1490, A1491.
iPad mini 3 7.9-inch screen: A1599, A1600.
iPad mini 4 7.9-inch screen: A1538, A1550.
iPad mini 5 7.9-inch screen:A2133, A2124, A2126, A2125.
iPad pro 11 (1st) 11-inch screen: A1980, A2013, A1934, A1979.
iPad pro 11 (2nd) 11-inch screen: A2228, A2068, A2230, A2231.
iPad pro 11 (3rd) 11-inch screen: A2377, A2459, A2301, A2460.
iPad pro 11 (4th) 11-inch screen: A2759, A2435, A2761, A2762.
iPad pro 12.9 (1st) 12.9-inch screen:A1670, A1671, A1821.
iPad pro 12.9 (2nd) 12.9-inch screen: A1584, A1652.
iPad pro 12.9 (3rd) 12.9-inch screen: A1876, A2014, A1895, A1983.
iPad pro 12.9 (4th) 12.9-inch screen: A2229, A2233, A2069, A2232.
MacBook Air 13.3-inch screen: A1466.
Samsung Galaxy Tab A7 10.4-inch screen: T500, T507.
Samsung Galaxy Tab A8 10.5-inch screen: X205.
Samsung Galaxy Tab A9+ 11-inch screen: X210.
Samsung Galaxy Tab S6 Lite 10.4-inch screen: P610, P615.
Samsung Galaxy Tab S7/S8 11-inch screen: T870, X700.
Huawei Mate pad 11 11-inch screen.
Huawei MatePad 11.5 2023 11.5-inch screen: BTK-WO0, BTK-AL00.
Huawei Mate pad Pro 2021 12.6-inch screen:WGR-W09, WGR-W19, WGR-AN19.
Huawei MATE X3 6.4-inch screen: ALT-AL00.
Huawei P60 6.67-inch screen: LNA-AL00.
Xiaomi Pad 6 11-inch screen.
Xiaomi Pad 5 11-inch screen.
Common standard interface: 0.5mm/40pin port(LCD).
Common standard interface: 0.5mm/40pin port(OLED).
YCX M3 Smart Screen Tester Functions:
1. Support screen testing.
2. Support picture playback.
3. Support video playback (Up to 8K resolution).
YCX M3 Smart Screen Tester Features:
1. Support eDP 8LAN, dual MIPI C/D PHY, HDMI 2.1, SPI, IIC ports, ect.
2. Support tp test iPad, Tablet, Laptop and mobile phones screen.
3. eMMC 5.1 storage chip: 32GB.
4. Input voltage: 12V 3A.
Product Advantages
1. eDP
Support 8.1G 8K/30Hz, dual ports 4k/60Hz, single port 4K/120Hz.
Number of interfaces: 2*4lanes.
Support DP1.4a eDP single channel bandwidth 8.1Gbps (MAX).
Support eDP1/2/4/8Lanes and multi-screen display.
Support 6/8/10 Bits.
Resolution support: 3840*2160@120Hz(4lanes) 7680*4320@30Hz(4lanes).
2. MIPI
Support dual MIPI C/D PHY, support DSC, dual screen display.
Support 2-way MIPI DPHY 2.0 or 2-way MIPI CPHY 1.1 interface.
Support 8 data lanes and 4.5Gbps maximum data rate per lane for DPHY.
Support 6 data trios and 2.0Gsps maximum data rate per trio for CPHY.
Support maximum resolution 4K@60Hz.
Support dual MIPI display: left and right screen mode.
Support RGB(up to 10bit) format.
Supports compression mode, DSC 1.1/1.2a.
3. SPI/IIC
SPI*1>10MHz, IIC*1.
4. HDMI
Support HDMI 2.1 interface.
Supports x1, x2 and x4 configurations per interface.
Supports all the data rates for HDMI FL: 3,6,8,10 and 12Gbps.
Support up to 7680x4320@60Hz for HDMI TX.
Support RGB/YUV(up to 10bit) format for HDMITX.
Support RGB,YCbCr 4:4:4, YCbCr 4:2:2 and 8/10 bit per component video format.
Options:
1. YCX M3 screen tester+2pcs common FPC.
2. YCX 12pcs iPad Screen FPC.
3. Other test FPC cables need to be purchased separately.
Supported model list：
iPad 3 9.7-inch screen: A1416, A1430, A1403.
iPad 4 9.7-inch screen: A1458, A1459, A1460.
iPad 5 9.7-inch screen: A1822, A1823.
iPad 6 9.7-inch screen: A1893, A1954.
iPad 7 10.2-inch screen: A2197, A2198, A2199, A2200.
iPad 8 10.2-inch screen: A2270, A2428, A2429, A2430.
iPad 9 10.2-inch screen: A2602, A2603, A2604, A2605.
iPad Air 1 9.7-inch screen: A1474, A1475, A1476.
iPad 10 10.9-inch screen: A2757, A2777.
iPad Air 2 9.7-inch screen: A1566, A1567.
iPad pro 9.7 9.7-inch screen: A1673, A1674, A1675.
iPad pro 10.5 10.5-inch screen: A2152, A2123, A2153, A2154.
iPad Air 3 10.9-inch screen: A1709, A1701, A1852.
iPad Air 4 10.9-inch screen: A2316, A2324, A2325, A2072.
iPad Air 5 10.9-inch screen: A2588, A2589, A2591.
iPad mini 2 7.9-inch screen: A1489, A1490, A1491.
iPad mini 3 7.9-inch screen: A1599, A1600.
iPad mini 4 7.9-inch screen: A1538, A1550.
iPad mini 5 7.9-inch screen:A2133, A2124, A2126, A2125.
iPad pro 11 (1st) 11-inch screen: A1980, A2013, A1934, A1979.
iPad pro 11 (2nd) 11-inch screen: A2228, A2068, A2230, A2231.
iPad pro 11 (3rd) 11-inch screen: A2377, A2459, A2301, A2460.
iPad pro 11 (4th) 11-inch screen: A2759, A2435, A2761, A2762.
iPad pro 12.9 (1st) 12.9-inch screen:A1670, A1671, A1821.
iPad pro 12.9 (2nd) 12.9-inch screen: A1584, A1652.
iPad pro 12.9 (3rd) 12.9-inch screen: A1876, A2014, A1895, A1983.
iPad pro 12.9 (4th) 12.9-inch screen: A2229, A2233, A2069, A2232.
MacBook Air 13.3-inch screen: A1466.
Samsung Galaxy Tab A7 10.4-inch screen: T500, T507.
Samsung Galaxy Tab A8 10.5-inch screen: X205.
Samsung Galaxy Tab A9+ 11-inch screen: X210.
Samsung Galaxy Tab S6 Lite 10.4-inch screen: P610, P615.
Samsung Galaxy Tab S7/S8 11-inch screen: T870, X700.
Huawei Mate pad 11 11-inch screen.
Huawei MatePad 11.5 2023 11.5-inch screen: BTK-WO0, BTK-AL00.
Huawei Mate pad Pro 2021 12.6-inch screen:WGR-W09, WGR-W19, WGR-AN19.
Huawei MATE X3 6.4-inch screen: ALT-AL00.
Huawei P60 6.67-inch screen: LNA-AL00.
Xiaomi Pad 6 11-inch screen.
Xiaomi Pad 5 11-inch screen.
Common standard interface: 0.5mm/40pin port(LCD).
Common standard interface: 0.5mm/40pin port(OLED).
