QUICK TR1100 180W ESD Hot Air Soldering Rework Station

QUICK TR1100 intelligent lead-free phone rework station for phone soldering rework, QUICK TR1100 ESD hot air soldering station with a brilliant LCD display, and PC communication capability, it is great for high temperature solder rework applications. QUICK TR1100 200W ESD Hot Air Gun Soldering Station For Phone Rework.

Quick TR1100 ESD soldering station HOT AIR 200W, 7l / min is a professional micro soldering hot air station with hot air 230VAC / 180W and possibility to set own profiles. The station has a precise setting of operating temperature and airflow. Electronic temperature control system in the range 100 ÷ 450 ° C with closed loop temperature sensor. High power, short warm-up time and automatic cooling system to protect the heating element and digital display with illuminated background are the main advantages of this station.

Product Features :

1. Multi-Point digital temperature calibration locked by password.
2. Twin stage brush-less blower pump for stable airflow (very quiet <55dB).
3. 3 memory banks for quick setting and/or recall of soldering parameters.
4. Temperature limit alarm function.
5. Wide airflow setting range.
6. Airflow and working time can be set as parameters in addition to temperature.
7. Automatic “Sleep” function.

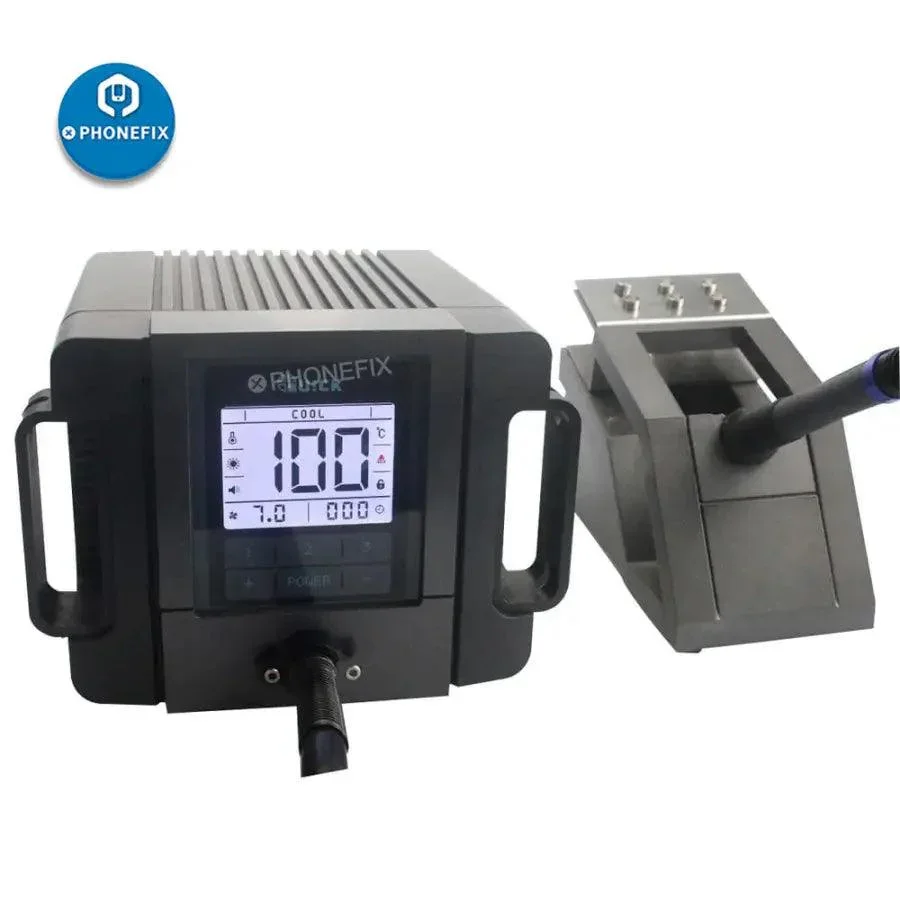

8. LCD Color display
9. Can be connected with other like units via PC.
10. ESD design.

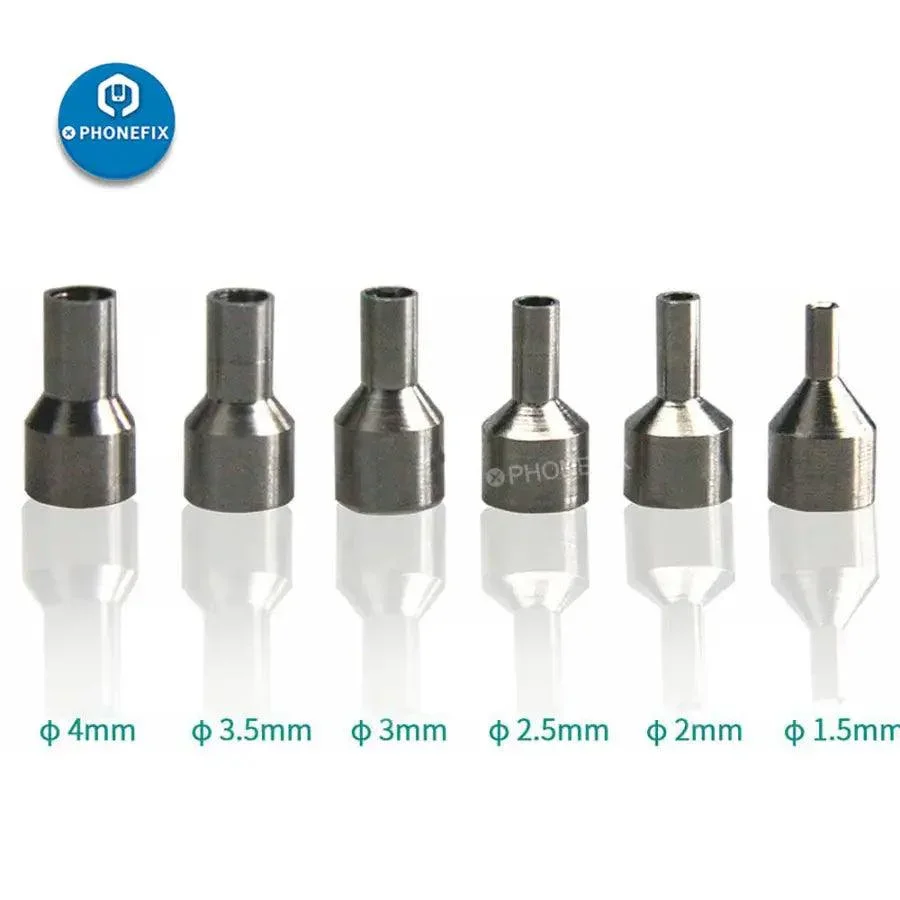

Nozzles : Standard accessory nozzles set: Ø 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm

Product Specification
Item Name	QUICK TR1100 ESD Hot Air
Brand	QUICK
Model	TR1100
Power Consumption	180W
Power Supply AC	230V
Temperature Range	100℃-450℃
Airflow	1.5-7m3/min
Airflow Max.	7m3/min
Weight	3.65kg
Dimensions	190 x  190 x 134mm

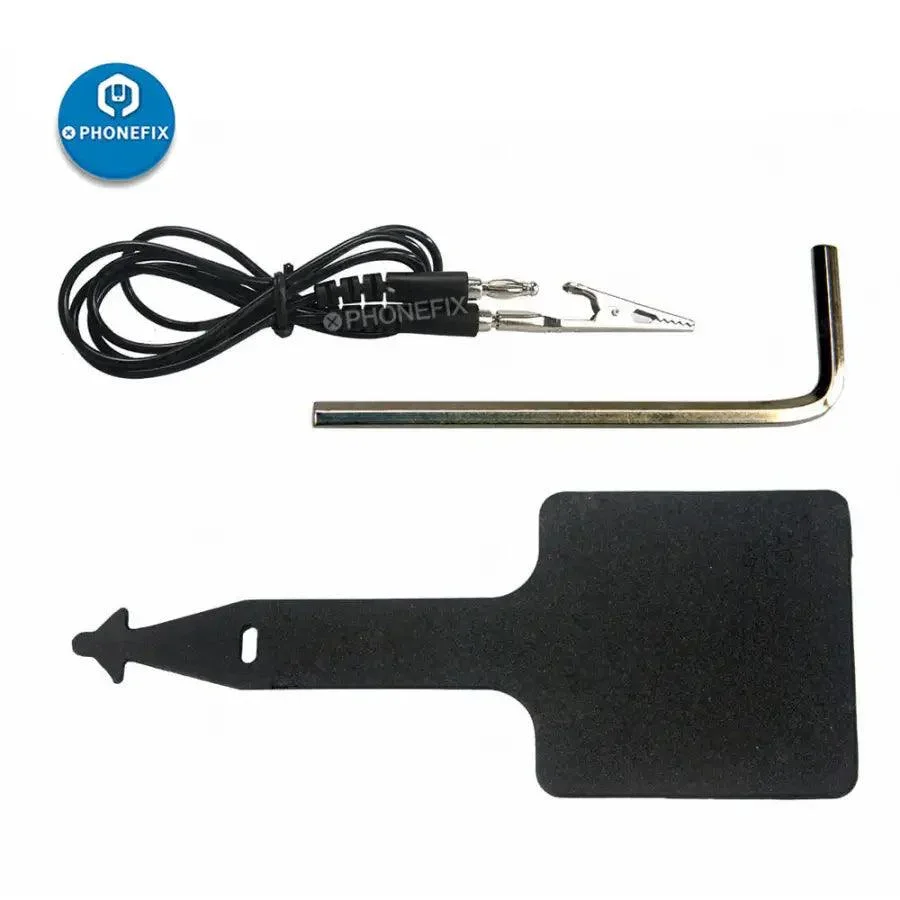

Package List :

• 1 * TR1100 ESD Hot Air Soldering Station
• 1 * Power Cord
• 1 * Ground Wire
• 1 * Scald Proof Pad
• 1 * Screwdriver
• 6 * Nozzles
