SOPTOP 7-60X Ultra Trinocular Stereo Microscope with 4K Camera
SOPTOP 7X-60X Ultra Trinocular Stereo Microscope Simul Focal Zoom with 10X/22mm Eyepeiece and 4K Ultra HD Camera for Mobile Phone Repair and PCB CPU Chip Soldering. Large metal base, 0.7-6X, crisp imaging, ideal for electronic BGA SMD component and iPhone motherboard inspection and mobile repair.
Options:

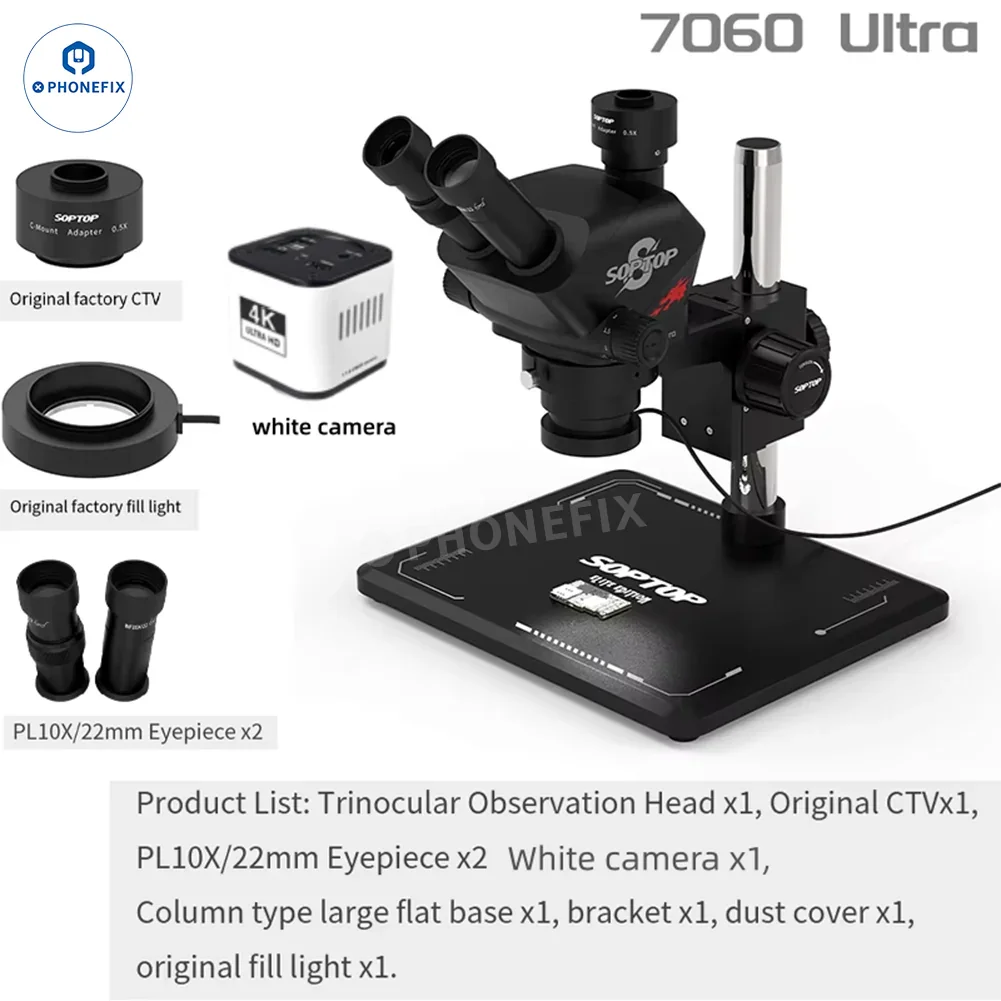

1. SOPTOP 7-60X Trinocular Microscope standard set.

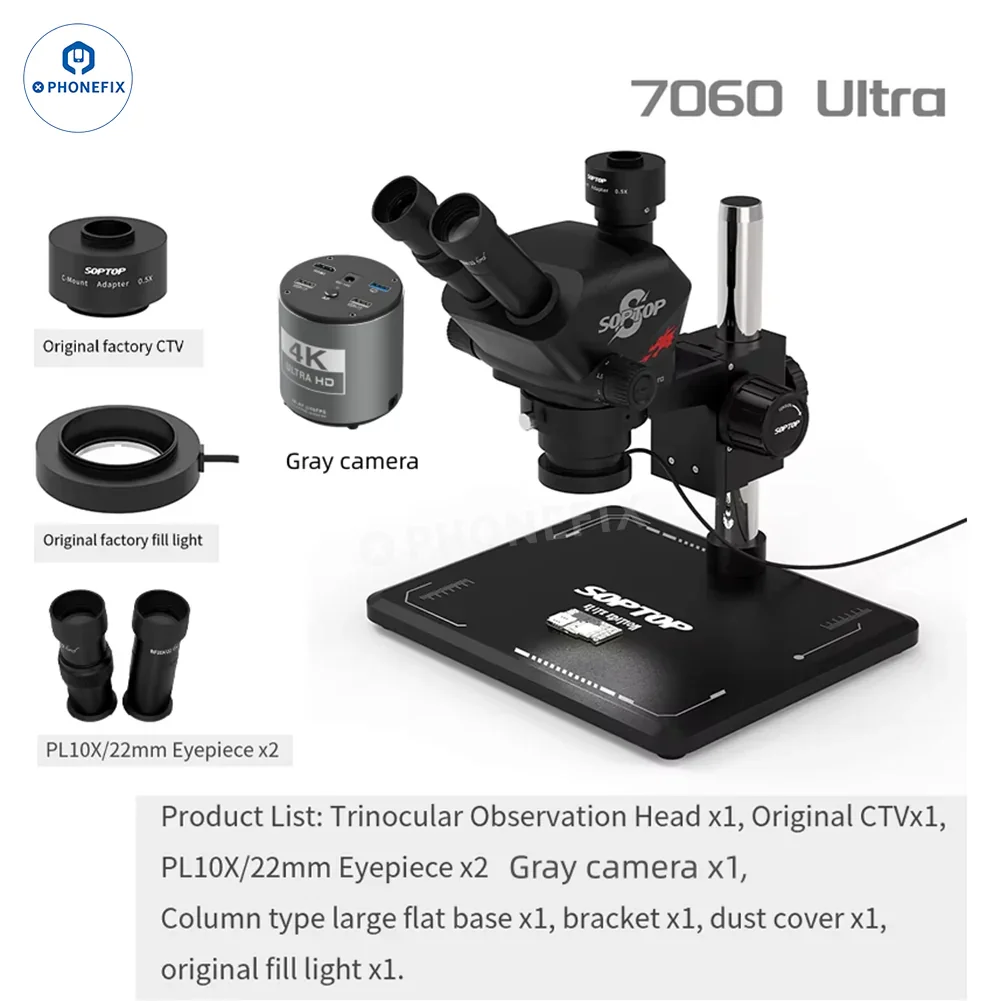

2. SOPTOP 7-60X Trinocular Microscope + 4K Ultra HD Camera (white).
3. SOPTOP 7-60X Trinocular Microscope + 4K Ultra HD Camera (gray).
Features:
1. New Design: Innovative structure improves overall stability and user experience.

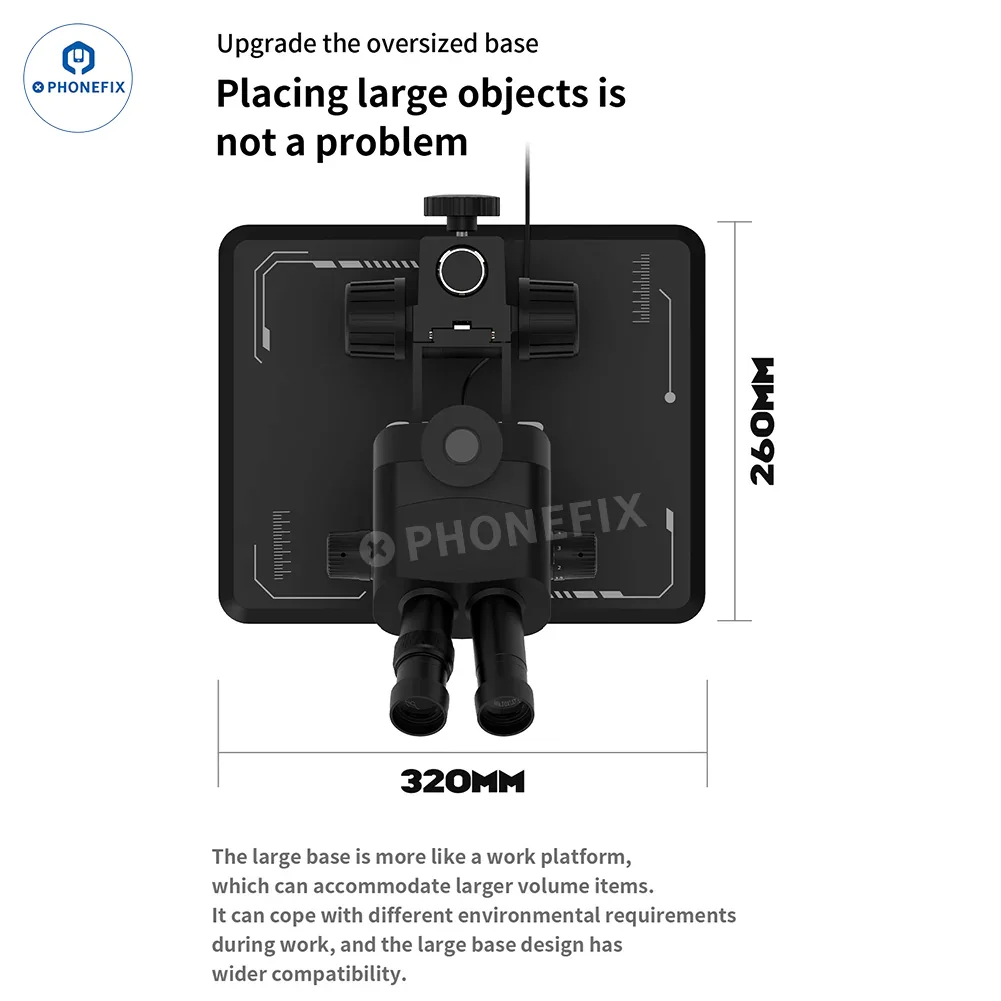

2. Oversized Base: Supports placement of large objects and offers wide base compatibility, meeting diverse application requirements.

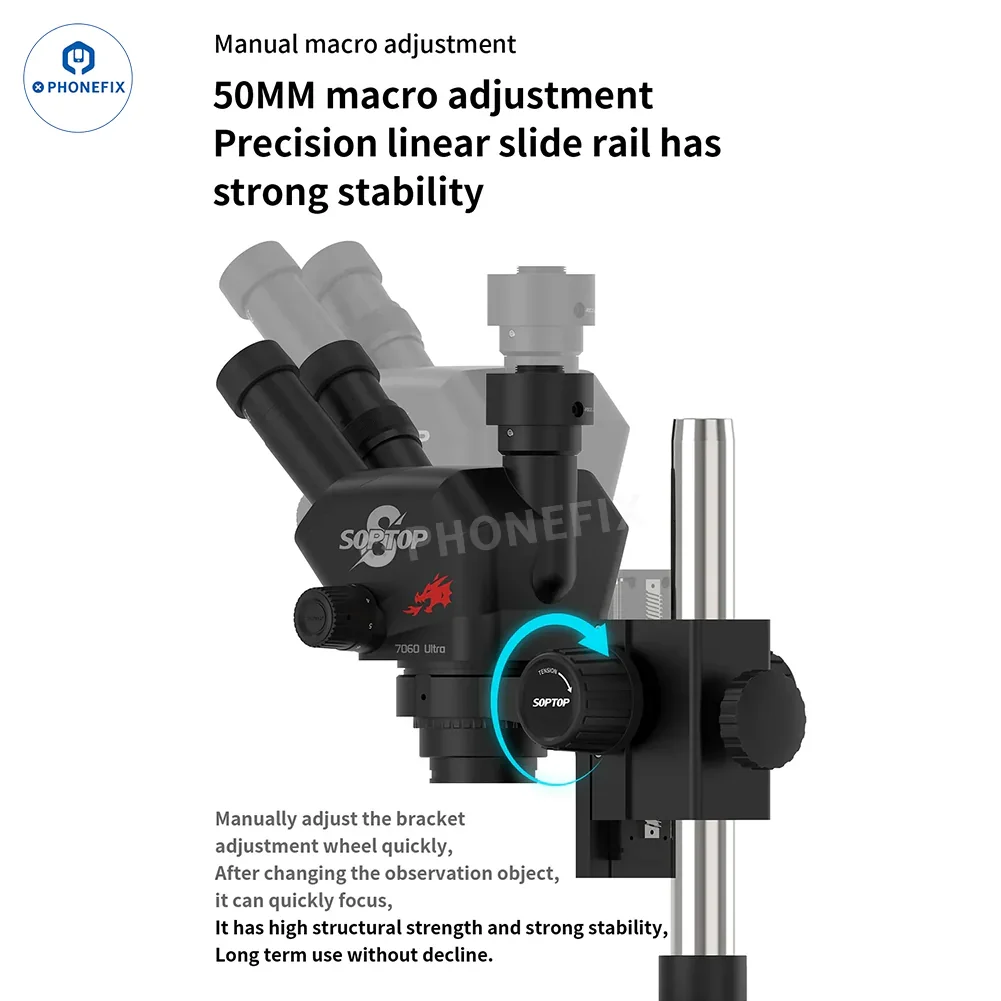

3. Manual Fine Adjustment System: 50mm fine adjustment range and precision linear slides ensure smooth and stable operation, allowing for quick focus adjustment.
4. High Structural Strength: Long-term use without slipping, ensuring stable and reliable observation.

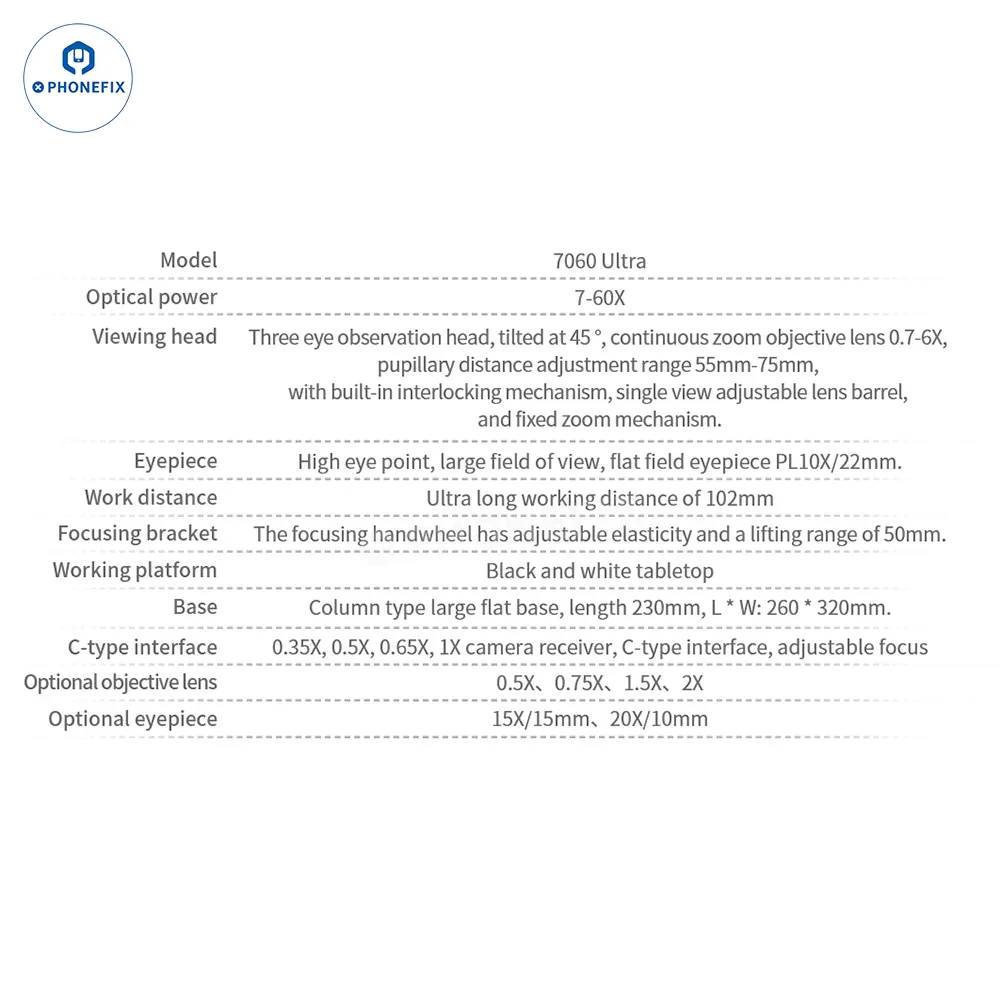

Specification:
Model: SOPTOP 7060 Ultra Microscope.
Magnification: 7-60X

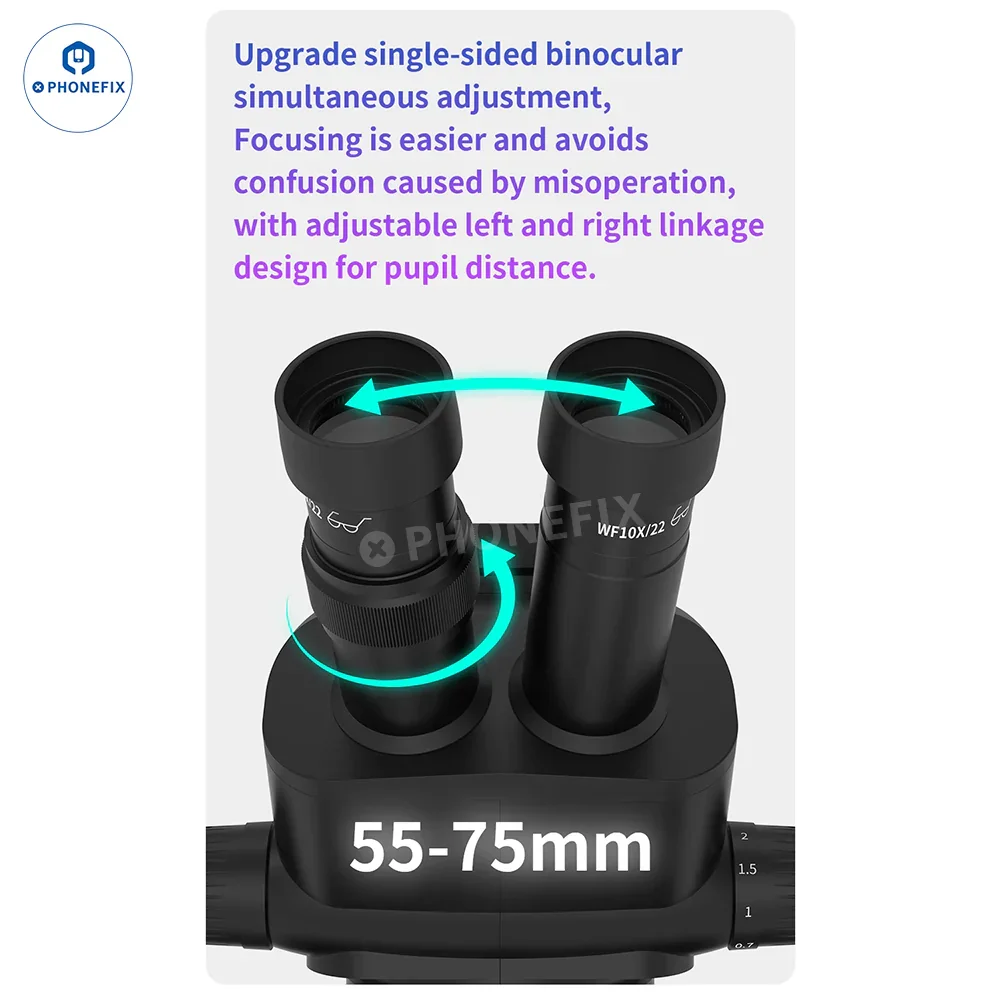

Viewing head: Three eye observation head, tilted at 45, continuous zoom objective lens 0.7-6X, pupillary distance adjustment range 55mm-75mm, with built-in interlocking mechanism, single view adjustable lens barrel, and fixed zoom mechanism.
Eyepiece: flat field eyepiece WF10X/22mm, high eye point, large field of view.
Work distance: Ultra long working distance of 102mm
Focusing bracket: The focusing handwheel has adjustable elasticity and a lifting range of 50mm
Working platform: Black and white tabletop
Base: Column type large flat base, length 230mm, LxW:260x320mm.
C-type interface: 0.5X CTV, C-type interface,adjustable focus.
Can be used with other eyepieces, objectives, C-mount adapters, and HDM
Product model: 7060 Ultra
Product size:320x300x360mm
Packaging size:410x380x370mm
Product weight: ≈4.5kg
Total weight of packaging:≈6.2kg
Product color: Black

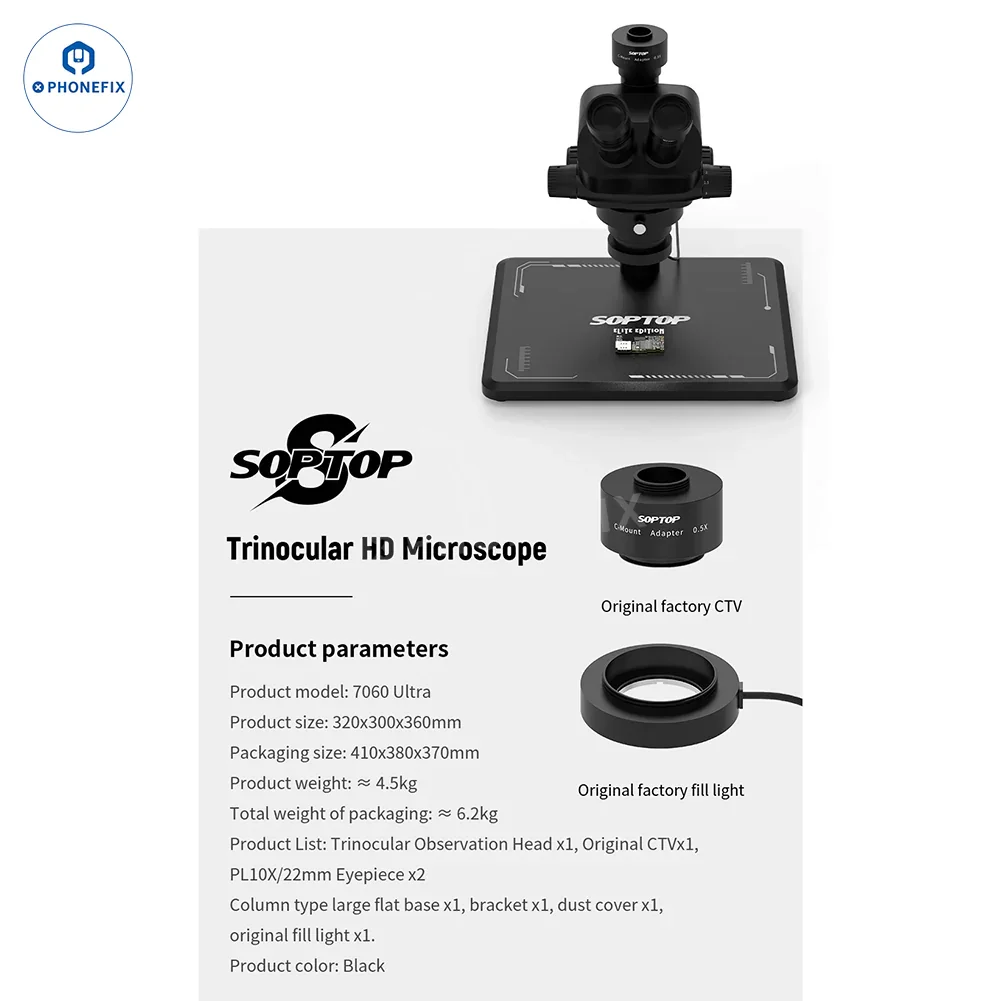

Product List:
Trinocular Observation Head x1
Original CTV x1
PL10X/22mm Eyepiece x2
Column type large flat base x1
Bracket x1
Dust cover x1
Original fill light x1
Original: $203.99
-65%$203.99
$71.40More Images
