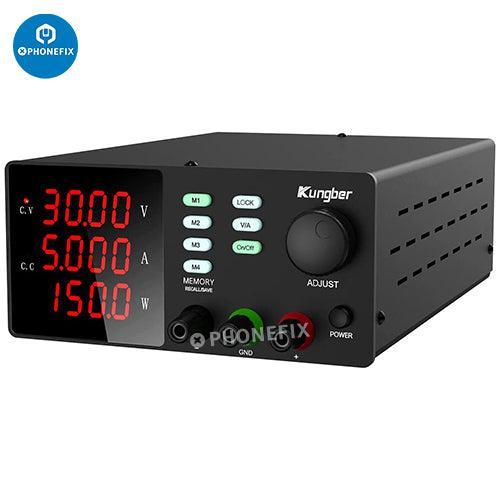

SPPS-S Series Adjustable Regulated DC Power Supply laboratory

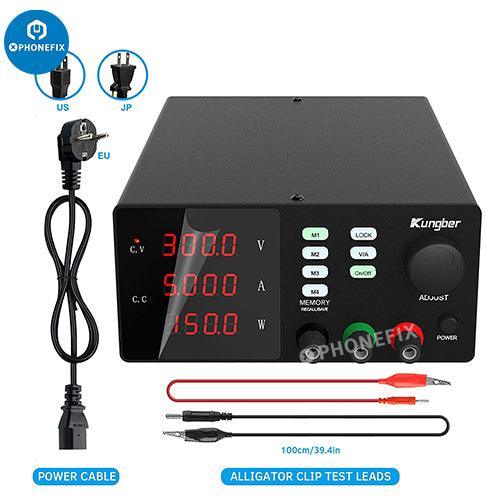

SPPS-S Series DC power supply variable with memory, 60V 5A adjustable switching regulated DC bench linear power supply with memory recall and output disables button 4-Digits display and alligator leads for mobile phone repair tool.

Features:

1. Easier to Set Values: Encoder switch is used on DC power supply 2021 version to replace the potentiometer switch which is widely used but not easy to adjust. On this version you can just “set” Voltage and Current instead of “adjust”. Make works accurate, easy and fast.

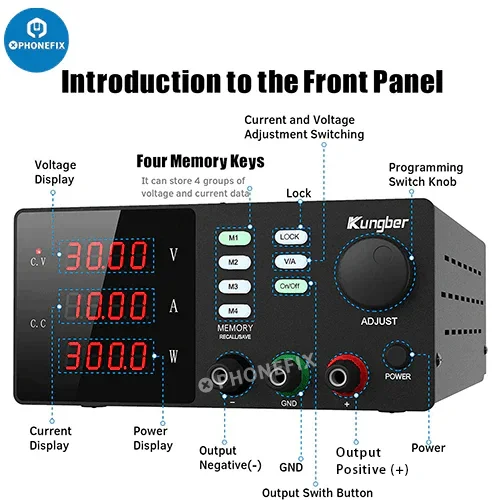

2. 4 Groups of Internal Memories: You can set 4 groups of commonly used Voltage and Current combination and easily recall them by press “M1-M4”. Use the “ADJUST” knob to set new combinations.
3. Output Switch Control: Sometimes we need to switch between different voltage or current outputs, but we often forget to unplug the previous instrument and cause it to burn out, which often occurs in the maintenance. Output switch is designed to solve this problem. By pressing the On/Off key, the required voltage and current can be adjusted without the actual output power, which makes this bench-top DC power supply more secure and more energy efficient.

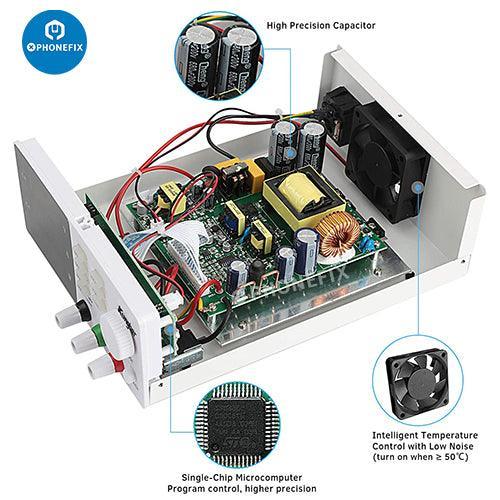

4. Reliability and Safety: Variable power supply uses premium electronic components, provides reliable working status and prolongs the product's life effectively. Many safety measures are adopted in power supply- Grounding wire, Leakage protection, Thermal protection, Voltage overload, Power overload and Short-circuit protection. When the working temperature is more than 122℉/50℃, the intelligent thermal protection will activate the cooling fan to lower the temperature according to the load.
5. Compact and Various Application: This DC power supply is less than 3 lb and measures only 9.9 x 3.3 x 6.7 inches, with a high resolution of 00.01V and 0.001A, led 4 digits display. You can easily tune it within 0-60V and 0-5A, applies for laboratory, school, repair, electrolyzation, electroplate, brush plating, lamp test, aging testing, battery charge, home DIY and other requirements.

Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

SPPS-S Series DC Bench Power Supply

• Input Voltage 230V±10% 50Hz/115V±10% 60Hz
• Input Voltage: 230V±10% 50Hz/115V±10% 60Hz
• Working Temperature: 0 ℃-40℃; Relative Humidity: ＜80%RH
• Storage Temperature: -10 ℃-70℃; Relative Humidity: ＜70%RH
• Constant Voltage State: Voltage stability≤1%±3mV Load stability≤1%±3mV Ripple noise≤50mVrms
• Constant Current State: Current stability≤1%±3mA Load stability≤1%±3mV Ripple noise≤50mArms
• Display Accuracy: 1%±5digits
• Display Resolution: Voltage: 00.01V / Current: 0.001A
• Product Dimension: 9.9 x 3.3 x 6.7 inch / 252 x 84 x 170mm
• Product Weight: 2.64lb / 1.2kg

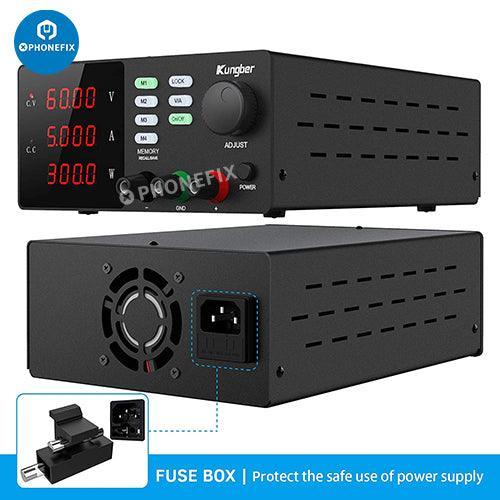

• Fuse Standard: 5A (AC 110V Input)
