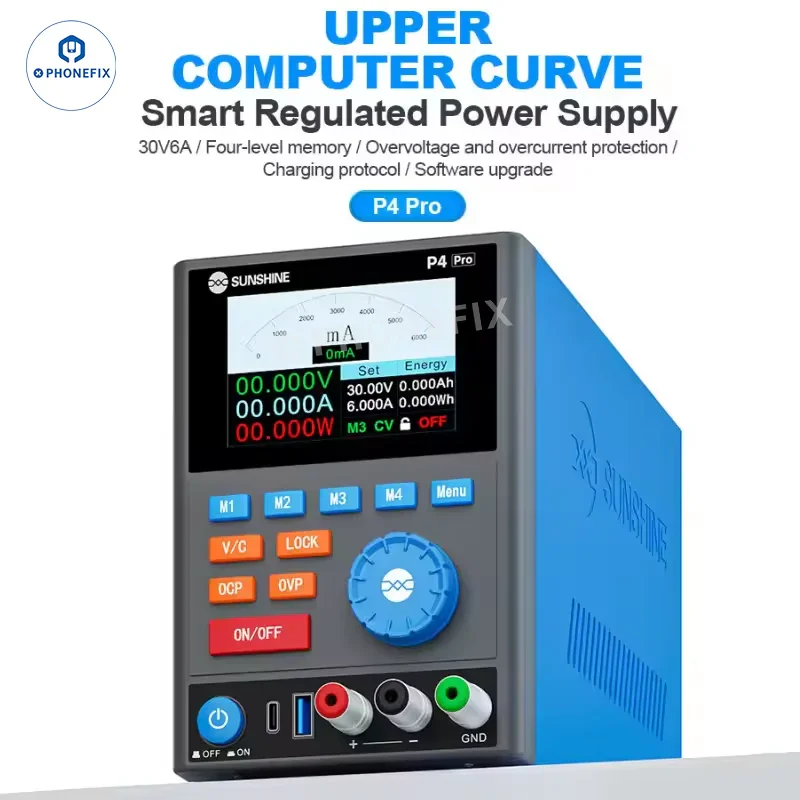

SUNSHINE P4 Pro 6A/30V Digital DC Regulated Power Supply

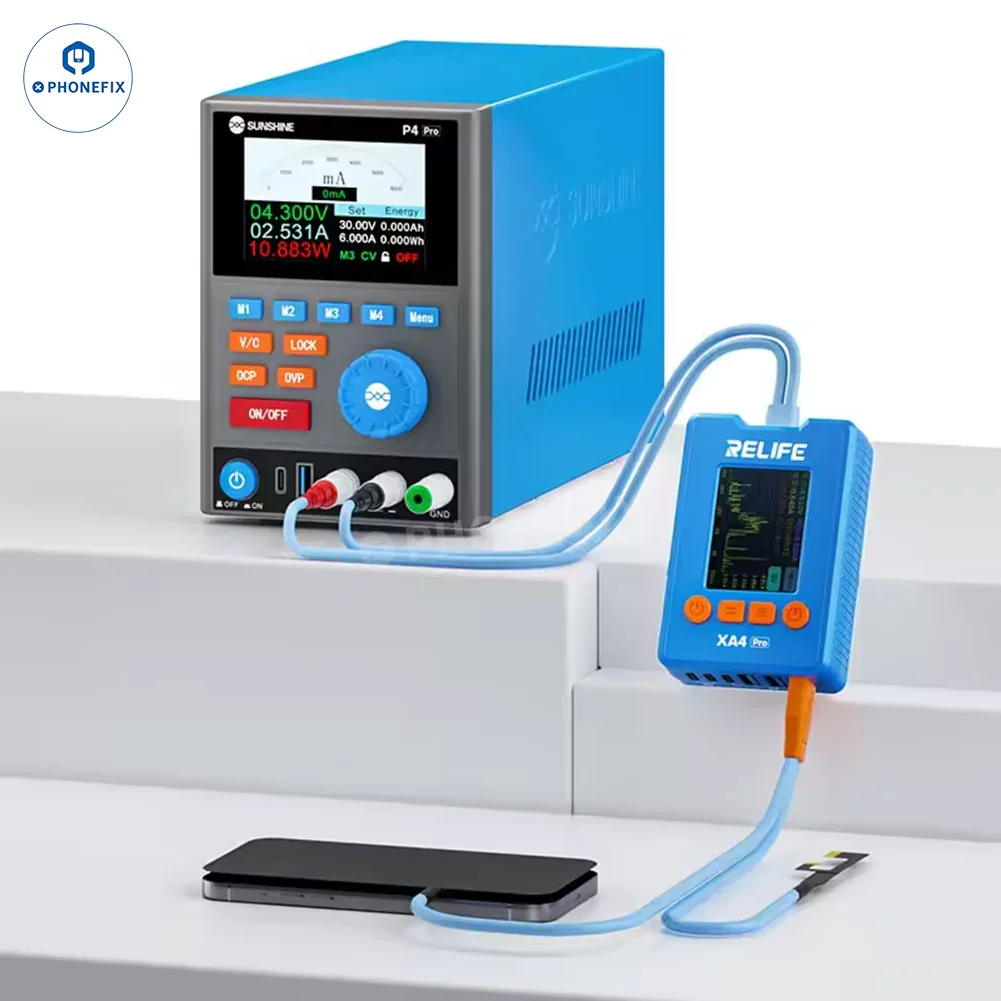

Sunshine P4 Pro 30V 6A DC Regulated Power Supply features digital display, four-level memory function, Type-C/USB-A dual-port charging, and intelligent overvoltage and overcurrent protection for mobile phone repair, tablet repair and PC repair, etc. Supports high-frequency output, features high refresh rate current curve display and PC screen projection capabilities, and is suitable for voltage and current adjustment and troubleshooting of mobile phone motherboards, batteries, and charging circuits.
Features:
1. 30V/6A High-Frequency Output: Precise voltage and current regulation meets the power requirements of various electronic devices.
2. Four-Level Memory Function: Supports storing four sets of adjustable data for convenient and quick switching and use.
3. Dual-Port Charging Design: Equipped with Type-C and USB interfaces, compatible with multiple device protocols and supports fast charging.

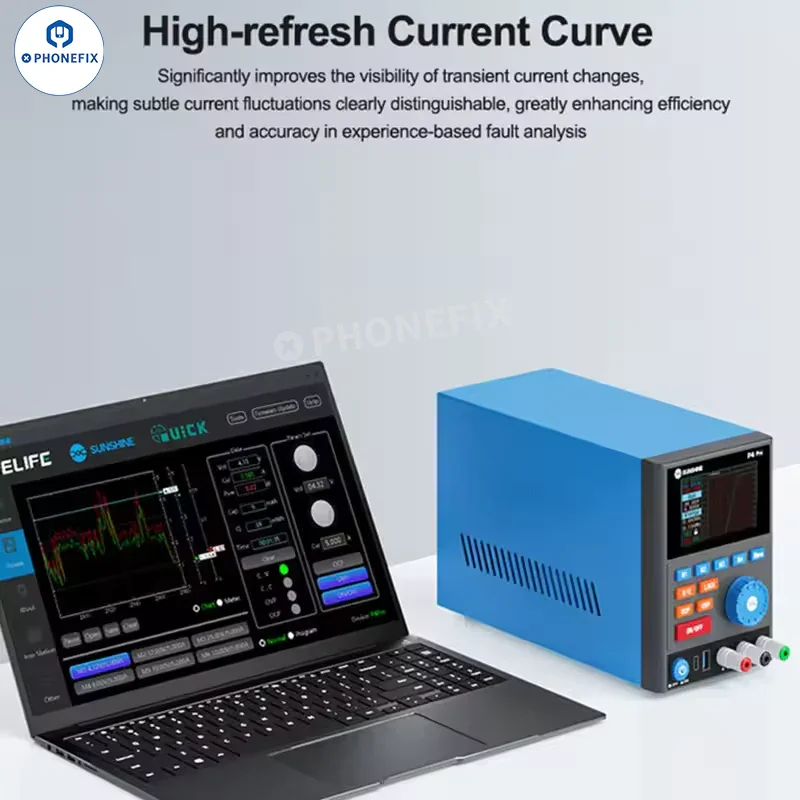

4. High-Refresh-Rate Current Curve Display: Provides a high refresh rate current curve, clearly capturing current fluctuations and improving fault analysis accuracy.

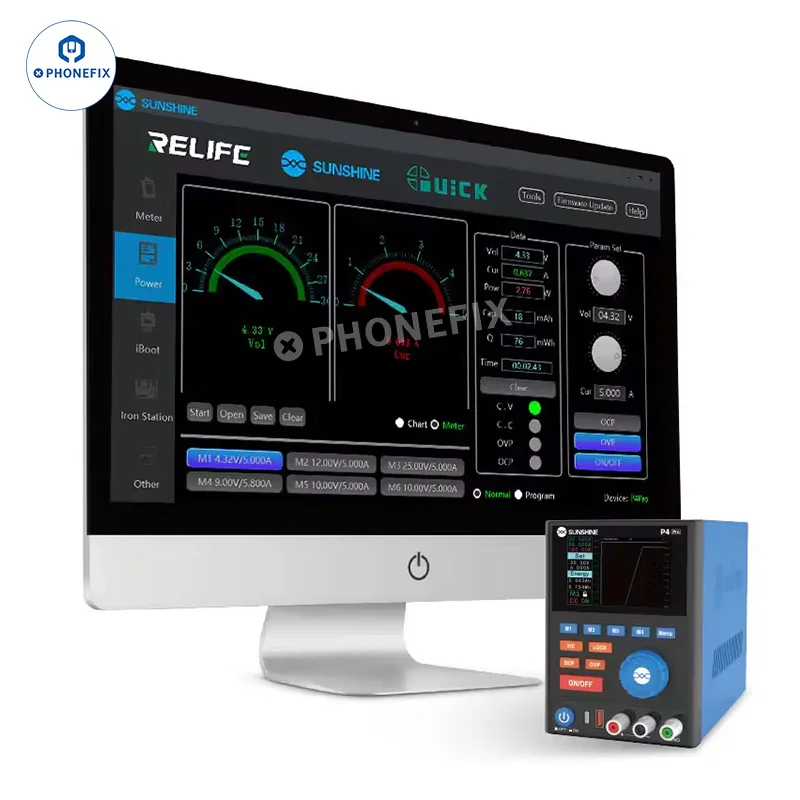

5. Host Computer Sharing and Screen Projection: Supports connection to the host computer for real-time parameter display and customized adjustments.
6. Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms provide a safer user experience.
7. Fast Response Time: Response time ≤100ms, meeting the needs of efficient testing.
Product parameters:
Product name: SUNSHINE P4 Pro Digital controlled dc power supply
Product size: 115×270×165mm
Package size: 340×210×260mm
Net weight: ≈3.8kg
Gross weight: ≈4.5kg
Voltage range: 0~30V
Current range: 0~6A
Load effect: ≤0.01%+2mV/≤0.02%+10mA
Power effect: ≤0.01%+3mV/≤0.1%+3mA
Output resolution: 10mV/1mA
Setting accuracy (25℃±15℃): ≤0.5%+20mV/≤0.5%+5mA
Ripple (20~20m): ≤2mVrms/≤3mArms
Output temperature coefficient: 150ppm
Readback resolution: 1mV/1mA
Read temperature coefficient: ≤100ppm+10mV/≤100ppm+5mA
Response time (10% rated load) | ≤100mS
USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V,2.4A/AFC/FCP/SCP/HSCP
USB-A: QC2.0/QC3.0/IP 5V,2.4A/AFC/FCP/SCP/HSCP
Original: $92.59
-65%$92.59
$32.41More Images
