WXY PF-TX2-3CM Thermal Camera PCB Fault Diagnosis Imager
WXY PF-TX2-3CM infrared thermal imaging camera has visual and infrared 2-in-1 functions and can be used with a microscope for motherboard troubleshooting. Quickly detect and diagnose PCB circuit board errors and failures such as leakage and short circuit in mobile phones, smart watches and electronic devices.
Specification:
Model: WXY PF-TX2-3CM Infrared Thermal Imaging Camera.
Resolution: 256x192 pixel.
Temperature Range: -20°C to 550°C.
Testing Accuracy: ±2℃.
WXY PF-TX2-3CM Thermal Camera Software:
https://drive.google.com/file/d/1fDf024UcYM7meyf4vpBqe0bz6lqp57p5/view?usp=sharing
Features:

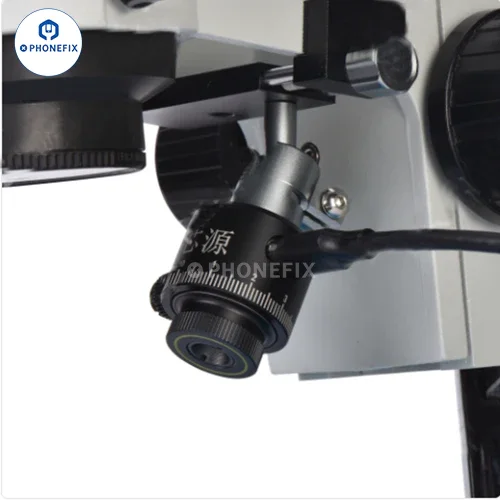

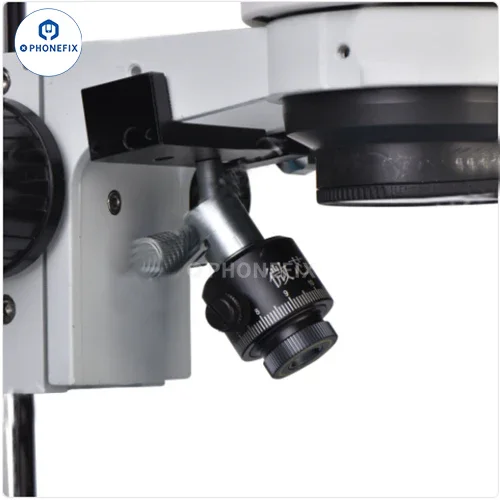

1. Portable WXY PF-TX2-3CM infrared thermal camera can be used with microscopes, convenient and efficient, improving maintenance efficiency.
2. 256x192 pixel resolution, and the versatile macro lens allows easy adjustment of focus and viewing angle for precise imaging.
3. 2x super resolution for super clear image quality.
4. Automatic temperature tracking, and the ability to quickly identify and highlight abnormally high temperature points.
5. It can accurately measure a wide temperature range from -20°C to 550°C. The temperature measurement accuracy is 2%.
6. Focus on objects as close as 3cm for detailed inspection.
7.Test reports can be easily forwarded with a single click.
8. Application areas: Detects and diagnoses PCB circuit board errors and malfunctions in cell phone, smartwatch, and electronic device.
Original: $188.99
-65%$188.99
$66.15More Images
