YCS UV Solder Mask Stencil for iPhone Screen IC & Font Nand Chips
Features:
1. Precise Alignment: Molded directly from actual devices using a 1:1 scale, ensuring that the stencil apertures align perfectly with the pin layouts of iPhones and various universal BGA chips.
2. Efficient Curing: The hollowed-out design facilitates rapid shaping and curing of the solder mask when used in conjunction with a UV light source, significantly boosting repair efficiency.
3. Durable Material: Crafted from high-quality stainless steel, featuring high hardness and resistance to deformation; supports multiple cleaning cycles and repeated use.
4. All-in-One Design: A single stencil sheet integrates multiple models, covering the entire range from the iPhone 11 series up to the latest iPhone 15 series (for display ICs), as well as various BGA specifications (for storage ICs/NAND).
Compatibility

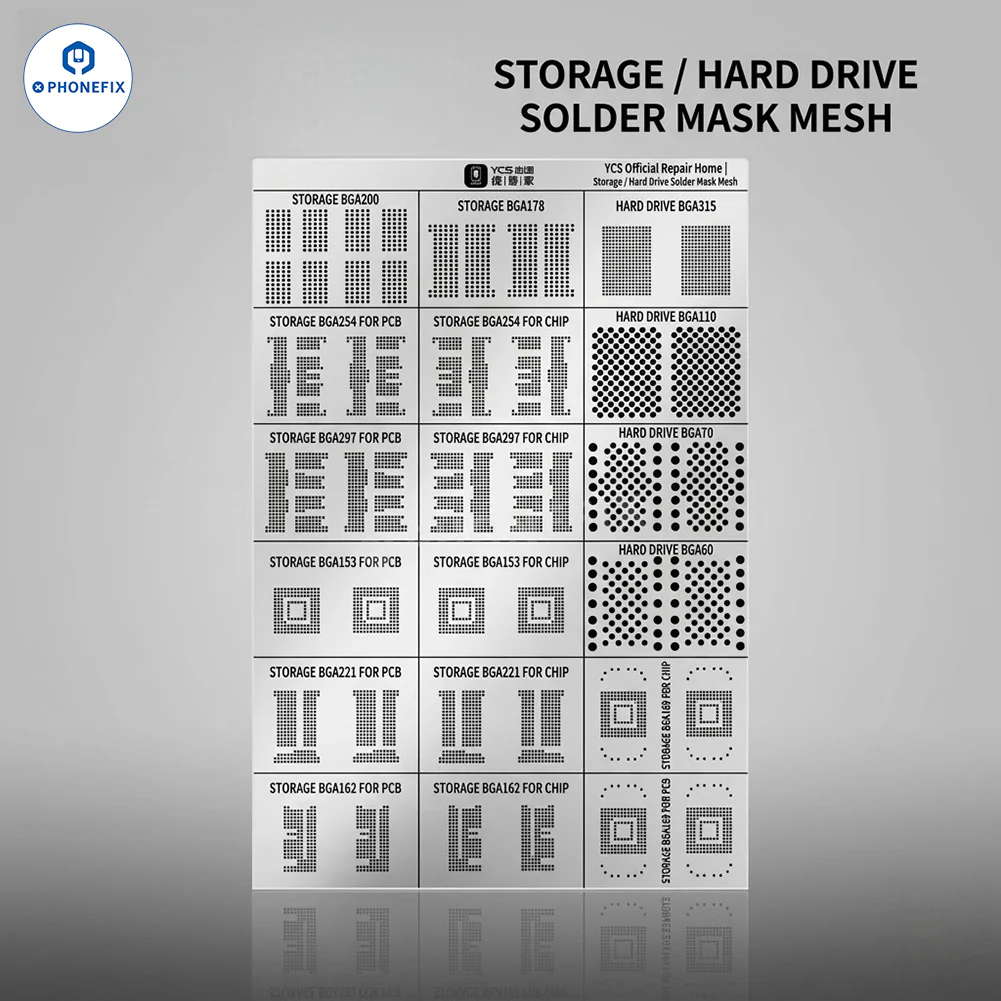

Font/Nand chips Series (Y9140401004):
· Supports various specifications including BGA200, BGA178, BGA315, BGA254, BGA297, BGA153, BGA221, BGA162, BGA110, BGA70, BGA60, BGA169, and others.
· Features distinct sections designated for use on the PCB side versus the Chip side.

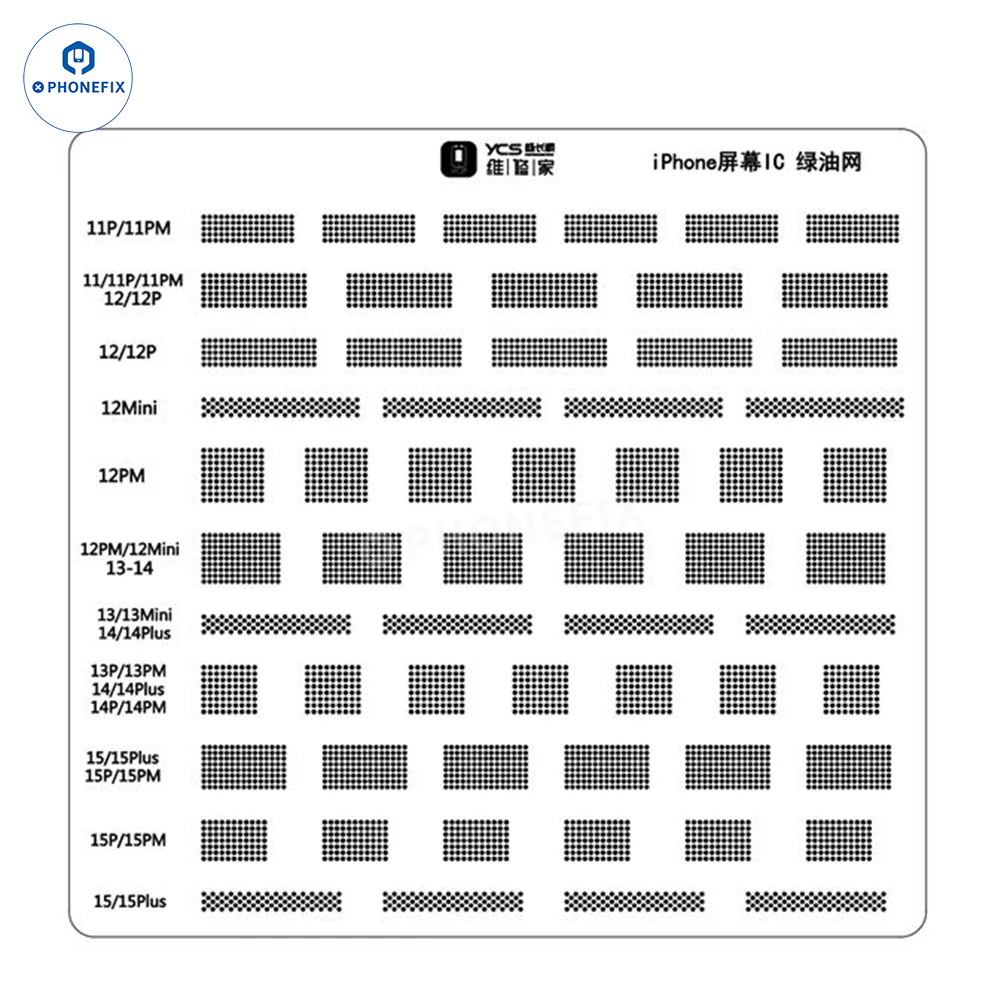

iPhone Screen IC Series (Y9140401003):
· Supports iPhone 11 / 11 Pro / 11 Pro Max
· Supports iPhone 12 Mini / 12 / 12 Pro / 12 Pro Max
· Supports iPhone 13 / 13 Mini / 13 Pro / 13 Pro Max
· Supports iPhone 14 / 14 Plus / 14 Pro / 14 Pro Max
· Supports iPhone 15 / 15 Plus / 15 Pro / 15 Pro Max
Original: $0.99
-65%$0.99
$0.35More Images
